Ceiling Light Clearance: Is 7 Ft Too Low for a Hallway?

Subtract the drop from the ceiling height, then compare what is left to 80 in. A lamp with a 9.4 in (24 cm) overall height leaves 74.6 in of clear air under a 7 ft ceiling, 86.6 in under an 8 ft one and 98.6 in under a 9 ft one. That sum is the whole ceiling light clearance question in a low hallway, and no product page does it for you.

Houseland lists that 9.4 in (24 cm) overall height for the ball light below, next to a 7.9 in (20 cm) shade width and a 4.7 in (12 cm) canopy. Five spec lines, and the three carrying a number are enough to finish the arithmetic before you spend anything.

How much clearance does a ceiling light need in a low hallway?

Leave 80 in of clear space under the lowest point of the shade, and treat 84 in as the comfortable version of the same rule. The two figures come from different places, which is why no two sources agree. The 80 in figure is the headroom line the US Access Board applies along circulation paths. The 84 in figure is showroom convention. Visual Comfort tells buyers to leave "a minimum of seven feet under your ceiling fixture" in high-traffic areas like halls and foyers.

Neither is a law you can be fined over inside your own home. Here is what each is for.

• 80 in of headroom along a circulation path, with a 78 in relief allowed at doors and doorways. That comes from the Access Board guidance on protruding objects.
• 84 in is the figure lighting retailers publish for halls and entries, which builds in room for a raised arm rather than a bare head.
• 78.7 in (2 m) is the headroom Approved Document K asks for on the access between levels in England and Wales, dropping to 1.9 m only where a loft conversion makes 2 m impossible.

The drop is the only part of the sum the shop controls. A surface mounted light has no stem to shorten, so the published overall height is the number you subtract.

What does the subtraction give on 7, 8 and 9 ft ceilings?

Take the room height in inches and take 9.4 in off it. On a 7 ft ceiling the lowest point sits at 74.6 in, which is 5.4 in below the 80 in line. On an 8 ft ceiling it sits at 86.6 in, and on a 9 ft ceiling at 98.6 in.

Round figures hide the part that decides it. At 74.6 in the shade sits at eyebrow height for anyone over about 6 ft 2 in, and a person carrying a laundry basket is temporarily taller than they are. Two other numbers land right beside 74.6 in and neither is flattering. Approved Document K lets a loft-conversion stair drop to 1.9 m (74.8 in) where 2 m cannot be had, and 74.6 in is under even that relaxation. The IRC lets a beam or a duct in a basement hang to within 6 ft 4 in of the finished floor, and 74.6 in is lower than that too.

Why is 80 in the number everyone quotes?

Because three separate rulebooks land on it. The Access Board's protruding-objects guidance requires headroom clearance of at least 80 in along all circulation paths, and permits 78 in at doors and doorways to make room for stops and closers. The stair rule uses the same figure: a stairway needs headroom of not less than 80 in, measured vertically from a line connecting the edge of the nosings. And the IRC's floor for a bathroom, toilet room or laundry ceiling is 80 in.

None of that makes an 80 in fixture illegal over your own corridor, and pretending otherwise would be dishonest. The accessible-route standard governs public circulation, not a private landing. What it gives you is a body measurement dressed as a code: the same guidance caps a cane-detectable barrier at 27 in so a white cane finds it before a shin does. An overhead object has no equivalent warning, and you find that one with your forehead. That is why the 80 in line exists.

Read against your own household, the honest version runs like this. An 8 ft ceiling with a 9.4 in drop leaves 86.6 in, more headroom than a doorway gives, and nobody in the house will ever notice it. A 7 ft ceiling leaves 74.6 in, and the tallest person you know will notice on the first visit. That is not a code failure. It is a daily annoyance you can predict with a tape measure. Whether the same piece also makes a room feel crowded from the eye down is a separate question, and the answer there is about proportion rather than headroom.

Where does a 9.4 in drop actually hurt?

Four places, and a straight run of corridor is not one of them. A lamp sitting mid-corridor gets walked under rather than into, because people track the middle of a hall and the shade is only 7.9 in (20 cm) wide. Trouble starts where the walking line and the fixture line cross.

• Directly over a threshold. Doors are the one spot where the accessible guidance itself drops to 78 in, so the tightest point on any circulation path is exactly where people also stop, turn and look up.
• At the head of a flight. Stair headroom is measured off a line through the nosings, not off the landing, so a lamp near the top of the steps hangs lower over the treads than it looks.
• Under a sloping soffit. The IRC's sloped-ceiling allowance counts floor area only where the height reaches 7 ft and never counts anything under 5 ft, so a loft landing has a band that is already marginal before you hang a thing from it.
• Anywhere people carry things. A laundry basket, a flatpack panel, a toddler on a shoulder: all of them add height that no ceiling figure accounts for.

Move the lamp 12 in to one side of the walking line and most of that disappears. In a hall too narrow to have a sideways, the honest answer is a wall light rather than a ceiling one, which is the whole argument for treating the wall you already walk past as the surface that does the work.

Flush mount vs semi-flush: which survives a 7 ft ceiling?

On a genuine 7 ft ceiling the flush mount wins and a 9.4 in drop does not. Saying so costs a sale and saves a return. A flush fitting keeps almost the whole 84 in, while a 9.4 in drop spends more than a tenth of the room's height before anything switches on.

Track is the third answer and often the right one. On a low landing a short track run stays within a couple of inches of the plaster and still lets you aim light at a picture or a stair, which a flush disc cannot do. Above 8 ft the trade reverses: the drop buys a visible object and a directed beam, and 86.6 in of clearance is more than most doorways give.

From the shop

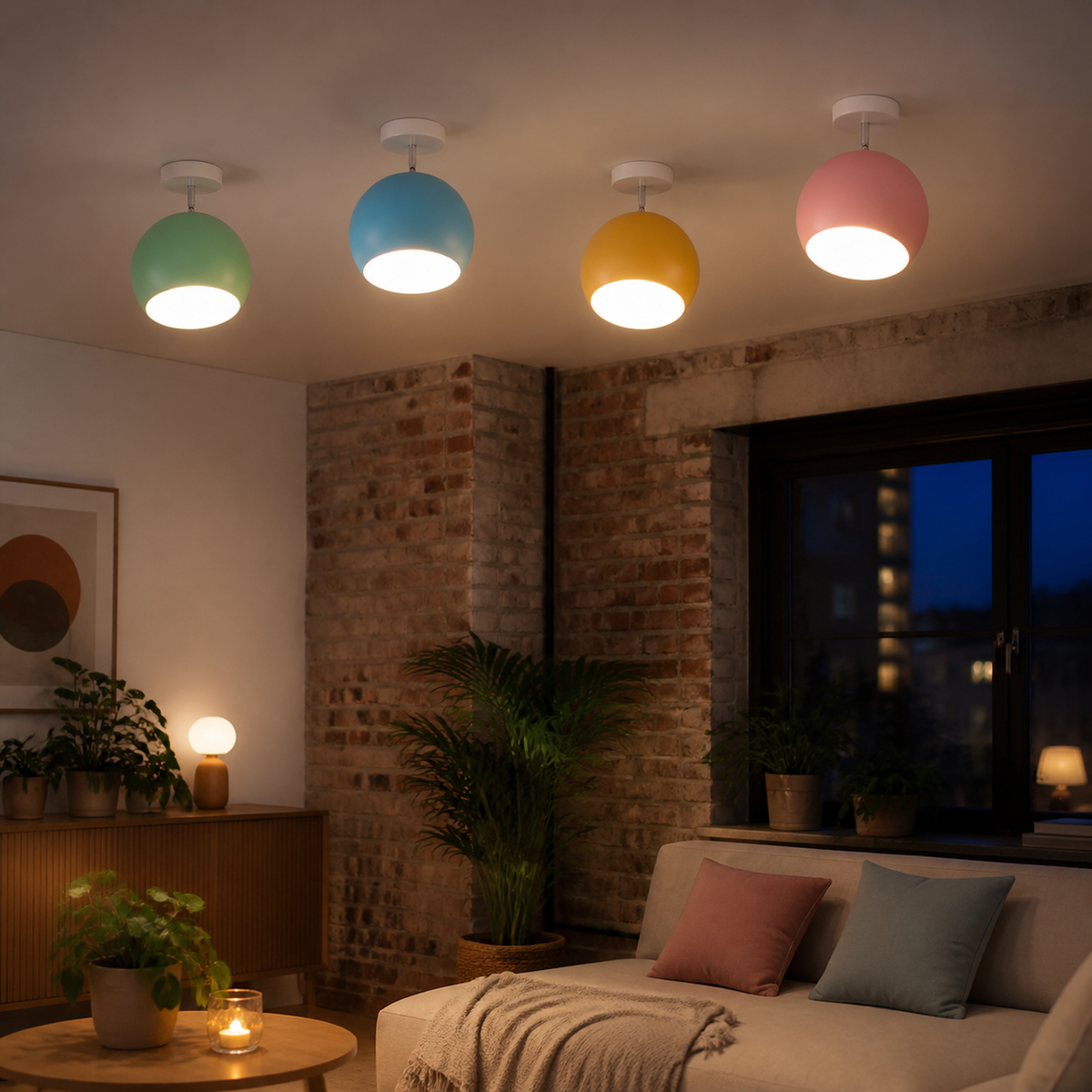

Modern Ceiling Light, Adjustable Ball LED Hallway Fixture, 4 Colors

Surface mounted, so the 9.4 in (24 cm) overall height is the whole drop. The shade is 7.9 in (20 cm) wide on a 4.7 in (12 cm) canopy, in Green, Blue, Yellow or Pink.

View the ball hallway ceiling light — 4 shade colours & current price

What does the listing not tell you?

Five spec lines, and the ones that settle the rest of the job are not among them. Houseland publishes shade colours, a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade width, a 9.4 in (24 cm) overall height and surface mounted, then stops.

Each gap has a way to close it that does not involve guessing.

• Weight: put the unopened box on a kitchen scale, then subtract the packaging. The US NEC expects a ceiling outlet box to hold a luminaire of 50 lb, so a 7.9 in (20 cm) shade is unlikely to be a box problem, though an old rose in a 1970s hallway is worth a look either way.
• Lumens and colour temperature live on the label and the box pictogram. Ask the seller before you order if the corridor gets one light source and no window.
• IP rating: not published, which is itself an answer. See below before you put anything of ours near a shower.

With no IP figure published, a bathroom zone or a shower room is a no, not a probably fine. Under BS 7671 a fitting that declares no IP figure cannot be shown to meet the IPX4 minimum a bathroom zone asks for, and the US rules turn on a damp- or wet-location marking this one does not carry. Hall ceilings are dry, but the corridor leads to the bathroom and people move fittings.

Wiring rules split by market, and acting on the wrong country's rule is worse than having no answer at all. In England, swapping a light fitting like for like is non-notifiable under Part P as long as it is not in a special location, while any electrical work in a room containing a bath or a shower is notifiable. Kill the circuit at the consumer unit or the breaker panel before the canopy comes off, and where the ceiling rose is unfamiliar or the cable is old, hand it to a qualified electrician.

What I'd do

On an 8 ft or 9 ft ceiling I would buy it and stop measuring, because 86.6 in and 98.6 in both clear the 80 in line with room for a raised arm. On a true 7 ft ceiling I would not hang it over the walking line at all.

Two fixes work and one of them is free. Move it off centre, over the console table or the radiator shelf where nobody walks: the Houseland canopy is 4.7 in (12 cm), so the mounting footprint is small enough to sit almost anywhere there is a joist and a feed. Or hang nothing overhead and put the light on the wall instead, which is where most low corridors end up. The wall lamps are sized for that, and a busy hallway asks a lot of a sconce before you commit.

Measure once before you order: floor to ceiling in inches, minus 9.4, and if the answer starts with a 7 you already have your verdict. It is the only measurement here that is about your house rather than somebody's rulebook.
