Does a Surface Mounted Spotlight Need a Ceiling Hole?

No — not for the fixture itself. A surface mounted spotlight is carried by a backplate that screws flat onto the finished ceiling, so the only opening you need is the one the existing cable already comes through. The hole saw can stay in its case.

The confusion starts in the product name. This fitting is called a downlight and specified as surface mounted, and those are two different families of light. It's a Surface Mounted LED Downlight, 7W to 20W, AC85V-260V, with a 24 degree beam angle. Read that row first.

How do I tell whether I bought a surface mount or a recessed fitting?

Four checks, in order, and the first one takes about ten seconds.

1. Read the spec row, not the title. A product name is written to be searched; a spec row is written to be true. This one says Surface Mounted LED Downlight, so the body sits below the plaster and the ceiling stays whole.
2. Hunt for a cut-out diameter. Every recessed can publishes one, because nobody can buy the right hole saw without it. No cut-out figure anywhere on the page is the strongest single signal you have a surface fitting.
3. Look at the back of the fixture. A recessed can shows spring clips or a torsion arm springing out sideways. A surface fitting shows a flat plate with screw slots and a central cable entry.
4. Look at the side of the fixture. A recessed can lives mostly above the plaster line; a surface fitting sits entirely below it, which is why one throws a shadow ring and the other does not.

Getting this wrong the other way round is the expensive mistake. Voltimum's briefing on Part B of the Building Regulations notes the hole for a recessed downlighter can run up to 5.5 in (140 mm) across. Cut four of those for fittings that never needed them and the day turns into patching.

Does a surface mounted spotlight need a hole cut in the ceiling?

No new hole is needed for the fixture body, because a surface mounted spotlight hangs off a backplate instead of sitting inside the ceiling. The plate goes up first, the cable comes through the middle of it, the light body screws or twists onto the plate, and a canopy closes the joint.

That one mechanical difference deletes a whole class of problems. You never measure the void above the plaster. You never keep insulation 3 in clear of the housing, which is what NEC 410.116 demands of a recessed luminaire not marked Type IC. You never breach a fire-resisting ceiling — the one that has to hold for 30 minutes on a domestic upper floor in a two-storey English home under Building Regulation B3, and that a recessed can only preserves if it is fire rated or hooded.

What stays on your list is a solid fixing and, in most markets, an enclosure for the joint. With no box behind the plaster, an electrician may still have to let a small one in — an opening sized to a back box, not a cut-out sized to a can. Different tool, different job.

What does the backplate actually have to be screwed into?

Something structural: a joist, a timber block between joists, a purpose-made ceiling box, or the concrete itself. Plasterboard alone is not a fixing.

Sandwich Electrical states the rule flatly — the light fitting must be supported by the structure, not by the cables or by plasterboard alone. DIY Fixit gives the remedy for the day your cable does not land on timber: secure the backplate through the ceiling to the joists, and if needs be, mount a wooden block between two joists to provide a fixing. US framing normally runs joists at 16 in on center, so a rose sitting over one is luck.

The enclosure half splits by country, and it is the half people skip.

• England and Wales. DIY Fixit quotes the wiring regulations requirement that the terminals and unsheathed sections of cables be protected in a non combustible housing, so a BESA box is set flush with the ceiling and the fitting screws to that, with a wooden support above it to fix into.
• United States. The fixture lands on the outlet box you already have. An outlet box at a ceiling luminaire outlet must be able to carry a fitting of 50 lb under NEC 314.27(A)(2), and anything heavier needs independent support unless the box is listed for the weight. This Old House puts the job in one line: secure the mounting plate to the existing electrical box with the provided screws, then twist the fixture on.
• Everywhere. NEC 314.29 wants a box installed so the wiring in it stays reachable without removing part of the building, which is why the canopy covers the joint and filler never does.
• Concrete ceilings. No void means nothing to recess into without chasing the slab, so a surface fitting is the only sane option. Concrete screws in 1/4 in diameter pull up flush enough that the head will not foul the cover.

Lath and plaster is its own animal: it crumbles off the bit before the joist takes a thread, and the cure is a slower drill and a smaller pilot, covered in our guide to drilling plaster without cracking the surface. A cavity anchor that spun is a warning, not a fixing to hang a live fitting from.

From the shop

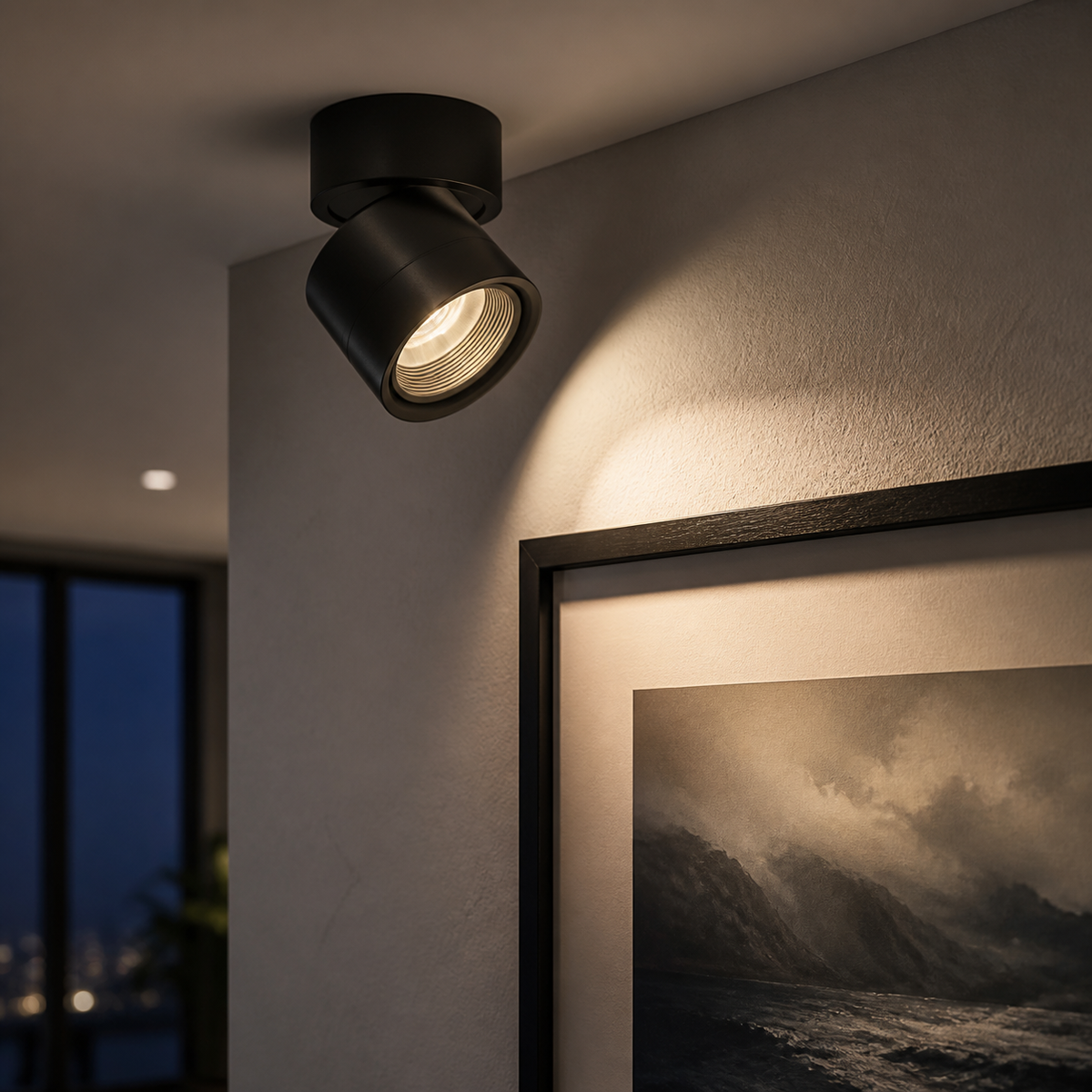

Adjustable Ceiling Spotlight, Surface Mounted LED Downlight, CRI 98

Specified as a Surface Mounted LED Downlight in 7W, 10W, 12W, 15W or 20W, at Warm White 3000K, Neutral White 4000K or Cool White 6000K, running on AC85V-260V. The product page states a 24 degree beam angle and CRI 98, both taken from the source.

View the adjustable ceiling spotlight — 6 fixture colours & current price

Surface mount vs recessed can: which suits my ceiling?

Surface mount wins on almost any ceiling that already has a light where you want one; a recessed can wins on headroom, on a flush finish, and — genuinely — in a shallow closet.

The closet row is the one that catches people out. Under NEC 410.16(C) a surface-mounted LED luminaire with a completely enclosed light source wants 12 in of clearance to the nearest point of the storage space, while a recessed one with the same source wants only 6 in. In a shallow wardrobe the recessed fitting is the compliant answer and this one is not.

BRANZ Bulletin 647 puts the New Zealand row at 4.0.2: unmarked fittings must be considered to have a Do-not-cover classification and may not be installed in residential buildings. A surface fitting never picks that up, because it never sits in the insulation. Its own trade-off is the shadow line under a low ceiling, which we sized up in our piece on whether a fitting crowds an 8 ft ceiling.

Who is allowed to connect it where I live?

Mains wiring, so the answer turns on your country rather than on your confidence.

• England. Approved Document P points to regulation 12(6A): notifiable work is a new circuit, a consumer unit replacement, or any addition or alteration to existing circuits in a special location. Paragraph 2.7 puts everything else outside that — replacements, repairs and maintenance anywhere. Swapping a bedroom ceiling fitting on the existing circuit needs no building notice, and still has to comply with BS 7671.
• A bathroom is different. A special location covers the room containing a bath or shower, in the zone reaching about 7 ft 5 in (2.25 m) above the finished floor. Alterations there are notifiable, and a fitting with no published IP rating has no business in it anyway.
• Australia and New Zealand. The wiring rules are AS/NZS 3000, and in Australia installing a light fitting is not on the homeowner list at all. Fox Electricians cites NSW maximum penalties of $22,000 for an individual and $110,000 for a company under the Home Building Act 1989.
• United States. The NEC sets the technical rules, but whether a homeowner may pull the permit is decided by the local authority having jurisdiction. Ask the building department first.

If any of that reads as unfamiliar, hand the connection to a qualified electrician. Nothing here is a wiring instruction.

What does the spec table leave out, and what should I measure?

Six rows, and not one of them is a dimension. It comes in several fixture colors, with wattage from 7W to 20W, light temperature at 3000K, 4000K or 6000K, voltage of AC85V-260V, a 24 degree beam angle and CRI 98.

• Backplate diameter. Not published. Measure the paint ring the old fitting left, and the box behind it, before you order: a narrower plate leaves a halo of unpainted plaster to cut in.
• Fixture weight. Not published. Put it on the kitchen scales when it lands and read the weight marked inside your outlet box; that marking settles the argument.
• IP rating. Not published, so treat the fitting as unrated. For a bathroom, a shower zone or a covered outdoor spot the answer is no rather than probably: a fitting with no declared IP cannot be shown to meet the IPX4 minimum under BS 7671, and the US rules turn on a marking this one does not carry.
• Lumen output and dimmer behaviour. Not published. Wattage tells you the draw, not the light on the wall. Read the label on the fixture or the pictogram on the carton before you pair it with a dimmer you already own.
• CRI 98.

What I'd do

Read the spec row, look at the ceiling, then decide who does the wiring — in that order.

For a plasterboard ceiling with an existing rose, I would drop the old fitting, see what the cable is actually screwed to, and only then decide whether the day needs a timber block between the joists. For a concrete slab there is nothing to weigh up at all. For a shallow closet I would buy a recessed fitting instead and keep the 6 in clearance the code asks for.

The one thing I would not do is borrow a hole saw on the strength of the word downlight. Read the spec row first, then browse the wall lamps collection knowing which kind of fitting you are looking at.
