Install Pine Ledge Wall Shelf Set: Layout First, Then Drill

To install pine ledge wall shelf set pieces without ending up with a crooked row, lay all 5 modules on the floor first, copy their keyhole positions onto a sheet of paper, tape that paper to the wall, then drill and hang from the centre outward. The Houseland set is 3 hexagons at 13.8, 11.8 and 9.8 in (35, 30 and 25 cm) wide plus ledges at 27.6 in (70 cm) and 19.7 in (50 cm), and every piece is rated up to 11 lb (5 kg). The layout is the slow part and the drilling is the short one.

How do I install pine ledge wall shelf set pieces in order?

Floor first, paper second, drill third, and hang from the middle of the arrangement outward. All 5 modules have a keyhole hanger routed into the back, so the job is really about copying those hanger positions off the timber and onto the wall without losing one. Do that on paper and the screws go in once.

1. Unpack and count: 5 pine modules and 1 mounting hardware set, packed flat with the corners protected. If a corner is split, photograph it within 30 days of delivery before you drill anything.
2. Lay the arrangement on the floor below the wall in the shape you actually want, using the real pieces: long ledge 27.6 in (70 cm), short ledge 19.7 in (50 cm), hexagons 13.8, 11.8 and 9.8 in (35, 30 and 25 cm), one of each.
3. Turn every piece face down and measure to the centre of each keyhole, once down from the top edge and once across from the nearest side edge. Write both numbers on masking tape stuck to that piece.
4. Roll out lining paper or the flattened carton wide enough to hold the whole arrangement, trace every module outline in position, then mark a cross at each keyhole using the numbers on the tape.
5. Tape the paper to the wall at the height you want, then walk to the far side of the room and look at it from where you actually sit. Move it now, not once the holes are in.
6. Rest a spirit level on the traced top edge of the 27.6 in ledge, adjust until the bubble sits centred, then re-tape.
7. Drill through the paper at every cross, into a stud where one falls and into an anchor rated above 11 lb (5 kg) where one does not.
8. Tear the paper away, drive the screws, and leave each head standing proud by the amount the hardware calls for so the keyhole can drop over it.
9. Hang the centre module first and work outward, checking the level after every second piece.
10. Load light on day one: 11 lb (5 kg) per piece is a rating rather than a target, and 55 lb (25 kg) is the most the 5 pieces are rated to carry between them.

Install time is set by your wall and not by the shelves, so time yourself on the first module and multiply by 5.

Should I mark a paper template or measure straight onto the wall?

Paper, every time, with 5 pieces to place. Marking straight onto plaster means each module is measured off a line that already carries the error from the one before it, and by the fifth piece that error is visible from the doorway. A paper template lets you slide the whole arrangement 1 in (2.5 cm) left without a single hole in the wall. It also solves the second person problem, because a 27.6 in (70 cm) board is awkward to hold flat while somebody marks through the hangers, and a taped sheet holds itself.

The measurement worth settling before any of this is depth, since every module projects 3.5 in (9 cm) into the room, and working out how to measure for multi piece wall shelf depth takes less time than hanging the set twice.

What spacing between stacked wall shelves works here?

The gap between stacked ledges is set by what you stand on the lower one, so measure your tallest object and add enough clearance to lift it straight out without tilting it. A 10 in (25 cm) vase wants more than 10 in (25 cm) of air above the ledge, and no published spacing number knows anything about your vase. The modules are 3.5 in (9 cm) deep on a 0.6 in (1.5 cm) board, so a frame leaning back takes up its own height in that gap and nothing more. Sideways, I keep the gaps between the three hexagons under 9.8 in (25 cm), the width of the smallest one, or the cluster stops reading as a group and starts reading as three pieces that missed each other. Stack the 27.6 in ledge and the 19.7 in ledge with their ends offset rather than centred, because centred, the 7.9 in (20 cm) difference in length looks like a measuring error. Hexagon columns need a wider gap than ledges, since the sloped top edge means the air at the point is not the air you measured at the flat.

Which fixing holds 11 lb (5 kg): a plasterboard anchor or a stud screw?

A screw into a timber stud carries the full 11 lb (5 kg) each piece is rated for, and a plasterboard anchor carries whatever its own packet states, which is a number you read before you drill rather than afterwards. Studs sit 16 in (40.6 cm) on centre in most stud walls, so the 27.6 in ledge will usually cross one and the 9.8 in hexagon usually will not. Houseland rates every module at up to 11 lb on a keyhole hanger, so the fixing is the only link in that chain you choose yourself.

If drilling is off the table completely, this set is not the answer, because every one of the 5 modules hangs on a keyhole hanger and nothing else, and a wall hook for renters who cannot drill is the honest substitute.

What height should the bottom ledge sit at?

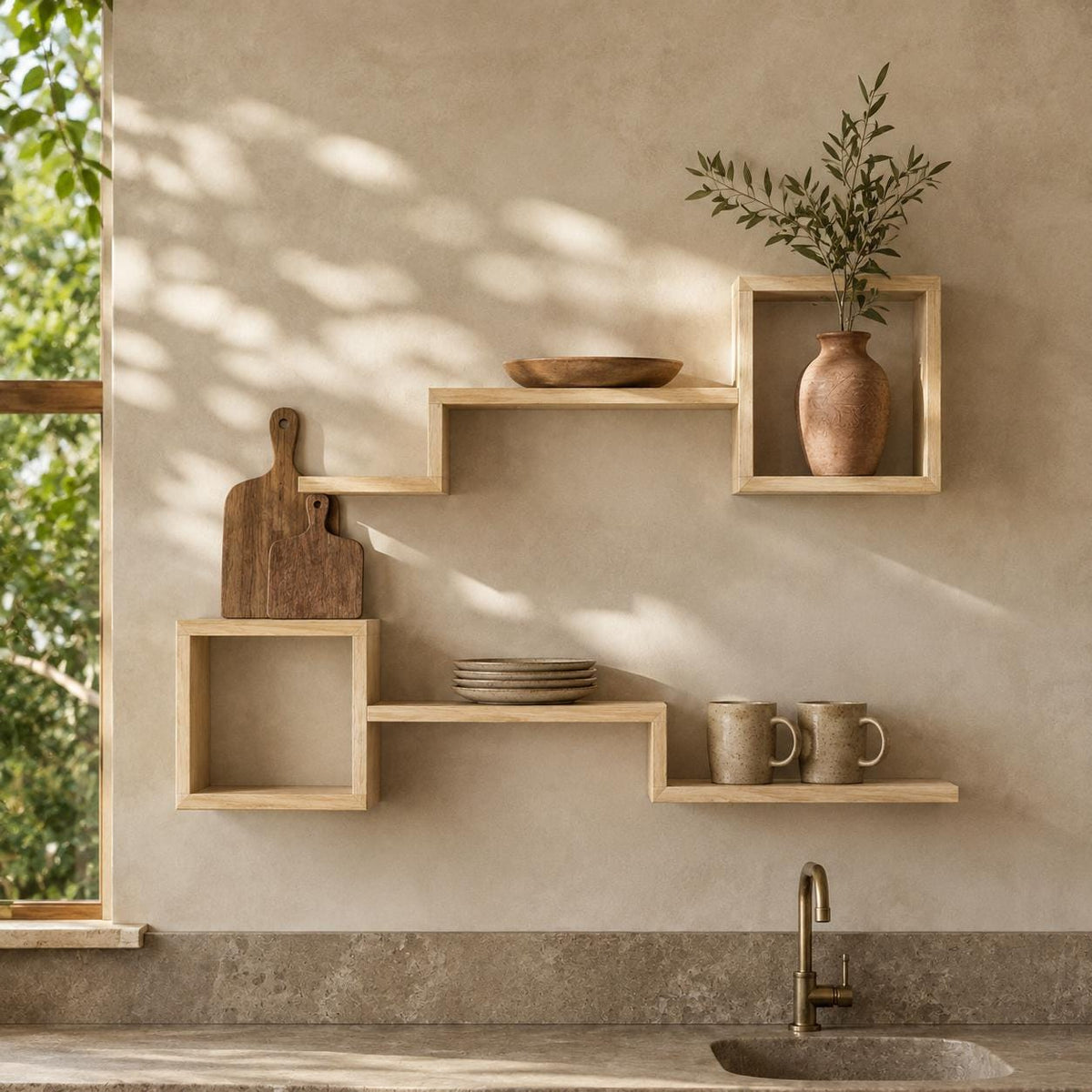

57 in (145 cm) from the floor to the centre of the arrangement is the gallery standard, and it holds up on a blank wall or in a hallway because it lands near average eye level. Over a sofa or a bed, ignore 57 in and measure up from the furniture instead, leaving enough room under the lowest module to reach in and dust a 3.5 in shelf. Above a kitchen counter the usual gap from worktop to the underside of the wall cabinets is 18 in (45.7 cm), so measure your own and centre the ledge in it, since a 0.6 in board takes almost none of that band. Whatever height you land on, mark it on the paper before the paper goes up, not while you are balancing 27.6 in of pine over your head.

What goes wrong when you hang five shelves at 11pm?

Screws driven flush, first and most often. A keyhole hanger needs the screw head standing proud of the wall, and a head screwed home into the plaster leaves the module hanging on nothing, which you find out at the moment you let go. Second is the open back, because none of the 5 modules has a back panel, so an earring or a hair clip goes over the rear edge and lands behind the furniture. Third is the front edge, which has no lip, so a frame leaning back on the 3.5 in ledge is fine while anything narrow and top heavy belongs on a hook. Fourth is tone: natural pine varies in grain, knots and colour and the corner seams on the modules are visible, so sort all 5 pieces on the floor and put the closest match where your eye lands first. Fifth is weight creep. The 11 lb (5 kg) rating sits on solid pine with a 0.6 in (1.5 cm) board rather than a veneered panel, and whether solid pine really is sturdier than MDF is worth settling before you load it. A short row of paperbacks sits inside 11 lb; a full shelf of hardbacks does not. None of those 5 is a defect, and every one of them is cheaper to avoid on the floor than to fix on the wall.

From the shop

5-Piece Pine Ledge Wall Shelf Set

Five pieces rated to 11 lb (5 kg) each: ledges at 27.6 in (70 cm) and 19.7 in (50 cm), hexagons at 13.8, 11.8 and 9.8 in (35, 30 and 25 cm), all 3.5 in (9 cm) deep on keyhole hangers.

See the 5-piece pine ledge wall shelf set

What would I put on it first?

One plant on the 13.8 in hexagon and one framed print leaning on the long ledge, then nothing else for a week. Living with 2 objects on 5 shelves tells you which module your eye goes to and which one is in the wrong place, and moving a module in week one costs a smear of filler and one more pass with the paper template. $144.58 buys 5 fixed pieces, 3 hexagons and 2 ledges, so the only thing you design is where they sit. If the wall wants a sixth element later, the wall shelves range is where to match the 3.5 in depth rather than guess at it.
