Flush Mount Ceiling Light Wiring Requirements Explained

Yes to both. A flush mount needs a grounded box overhead with three wires in it (hot, neutral, ground) and the plate that screws to that box, because the plate holds the light and the box holds the plate: the flush mount ceiling light wiring requirements in a US ceiling are those three conductors plus a box listed for fixture support, which is a 50 lb listing. The 28 W travertine flush mount Houseland sells is 8.7 in (22 cm) across and pulls about 0.23 A at 120 V, so the current is a rounding error and the weight path is the part that goes wrong.

Do I need a junction box for a ceiling light?

Yes, and it cannot be any spare box off the shelf: it has to be one designed to hold a fixture. Every splice in a US home has to sit inside an enclosure you can still get at, and the canopy of the light counts as the lid on that enclosure only when the light is screwed to the box. Code leaves you 6 in of free conductor at the box, roughly the length of your hand, and if the last installer cut the wires back to 2 in your first job is a splice, not a light. The product page for the travertine fixture says the same thing in fewer words: confirm the ceiling box can support the fixture, and have a qualified electrician mount the base and connect the wiring.

The second job of that box is structural, and it is the one nobody checks. An 8.7 in (22 cm) body made of travertine stone and iron is not a plastic dome with a bulb in it. The listing publishes no shipping weight, so put the light on a kitchen scale before you go up the ladder and hold that number against the 50 lb stamped inside your box.

Most install pages start at step three, with the box already up there and already rated, which is why nobody warns you about the marking. The 11pm version goes like this: the old fixture is down, two wires hang out of a hole with no box behind them, and the new light is still in its packaging on the floor. That is a stop, not a puzzle. A fixture screwed into a hole in 1/2 in drywall is held by paper and gypsum, and it will hold for a while, which is the dangerous part.

What are the flush mount ceiling light wiring requirements at the box?

Three wires: black to the fixture's black lead, white to white, bare or green to the ground screw. That is the whole electrical connection for a 28 W light. The driver here is rated 85V to 265V, so a 120 V US circuit sits low in its range and a 230 V circuit abroad is inside it too.

On a 15 A lighting circuit, 0.23 A is about one and a half percent of what the circuit can carry. Fifty of these lights on that one circuit would still leave headroom. Watts are not your constraint here, so stop thinking about them and go look at the wires.

Open the box and count what is in it. Three wires and one cable is a plain switched feed and the easiest thing you will ever connect. Six wires and two cables means the run carries on to the next fixture or a switch loop passes through, and the new light lands on the same pair the old one used. Photograph it before you undo anything, because those connections make sense now and will not once the old fixture is in the bin. If you find two wires and no ground at all, stop: the fixture is asking for a ground and there is nothing up there to give it.

What does the ceiling light mounting plate actually do?

It carries the light, and the box only carries the plate. The plate, a flat strap or a ceiling light crossbar bracket if it is the bar-shaped kind, screws into the two threaded ears of the box with 8-32 machine screws, and the fixture then hangs off the plate. Every pound of stone travels plate to box to joist, in that order, and if one of those three is guesswork the other two do not matter.

Two checks before the ladder: hold the plate against the canopy on the floor and confirm the holes line up, then hold the plate against the box and confirm the 8-32 screws bite. Houseland's product page says the box ships with one light body, its integrated LED source and the mounting hardware shown in the product images, so open that bag and compare it with your ceiling before the power goes off. If the supplied plate does not fit your box, a universal fixture strap from any hardware counter is the correct fix, and longer screws are not.

A 4 in (10 cm) round box vanishes behind an 8.7 in (22 cm) canopy with 2.3 in (6 cm) of cover on every side. The lit part you actually see is the 5.9 in (15 cm) lower diffuser sitting inside that stone ring. Nobody looks at the plate again once the light is up, which is exactly why nobody checks it first.

Which ceiling box works: pancake, octagon, or fan rated?

Any box with a fixture-support listing works, and the plastic old work ring most people find up there usually has no listing at all. The ceiling light electrical box weight limit that matters is 50 lb: a box built for luminaire support holds up to that, and anything heavier hangs from the structure above or from a box marked for a bigger number. A box listed only to hold wires is holding your light with drywall, and drywall lets go.

You read the rating by looking, not by guessing. Metal boxes made for fixture support say so on the inside face, usually right beside the two 8-32 holes. No 50 lb marking, treat it as a box for wires and change it. Changing a box means getting at the joist bay from below or from above, and that is the point where a swap stops being a swap and starts being work for a qualified electrician.

How do you wire a flush mount ceiling light step by step?

Kill the power, prove it is dead, screw the plate to the box, then make three connections in one order: ground, neutral, hot. The honest line on ceiling light installation without an electrician is that a like for like swap onto an existing rated box is inside most people's range, while a new box, a new cable or a missing ground is not. Houseland's product page asks for a qualified electrician to mount the base and connect the wiring, and even if you are replacing a ceiling light on the same wiring, read all ten steps before you decide which side of that line you are standing on.

1. Turn the light on and throw breakers until it goes dark, then label that breaker, usually a 15 A lighting circuit.
2. Drop the old fixture and test inside the box with a non-contact tester, because a three-way switch can feed a box from a direction you did not expect.
3. Photograph the connections, then undo them: three wires is the normal count, six means two cables.
4. Put a torch inside the box and look for the fixture-support marking, and if there is no 50 lb on it, stop and change the box.
5. Weigh the light on a kitchen scale, since the listing publishes no weight and an 8.7 in (22 cm) stone body is not obvious by eye.
6. Screw the plate to the box with the two 8-32 screws that came with it, snug plus a quarter turn, and do not crush the ears.
7. Join ground to ground first, then white to white, then black to black, and tug every connector: one that slips in your fingers would have slipped in the ceiling.
8. Fold the 6 in of conductor back into the box in an S so the wires sit behind the plate, not between the canopy and the plaster.
9. Lift the 1.6 in (4 cm) body up to the plate and run its screws in alternately until the canopy meets the ceiling with no gap.
10. Breaker on, switch on, and if it stays dark, breaker off before you touch anything again.

Steps 4 and 5 are the two people skip, and they are the two that decide whether an 8.7 in (22 cm) stone fixture stays on the ceiling.

From the shop

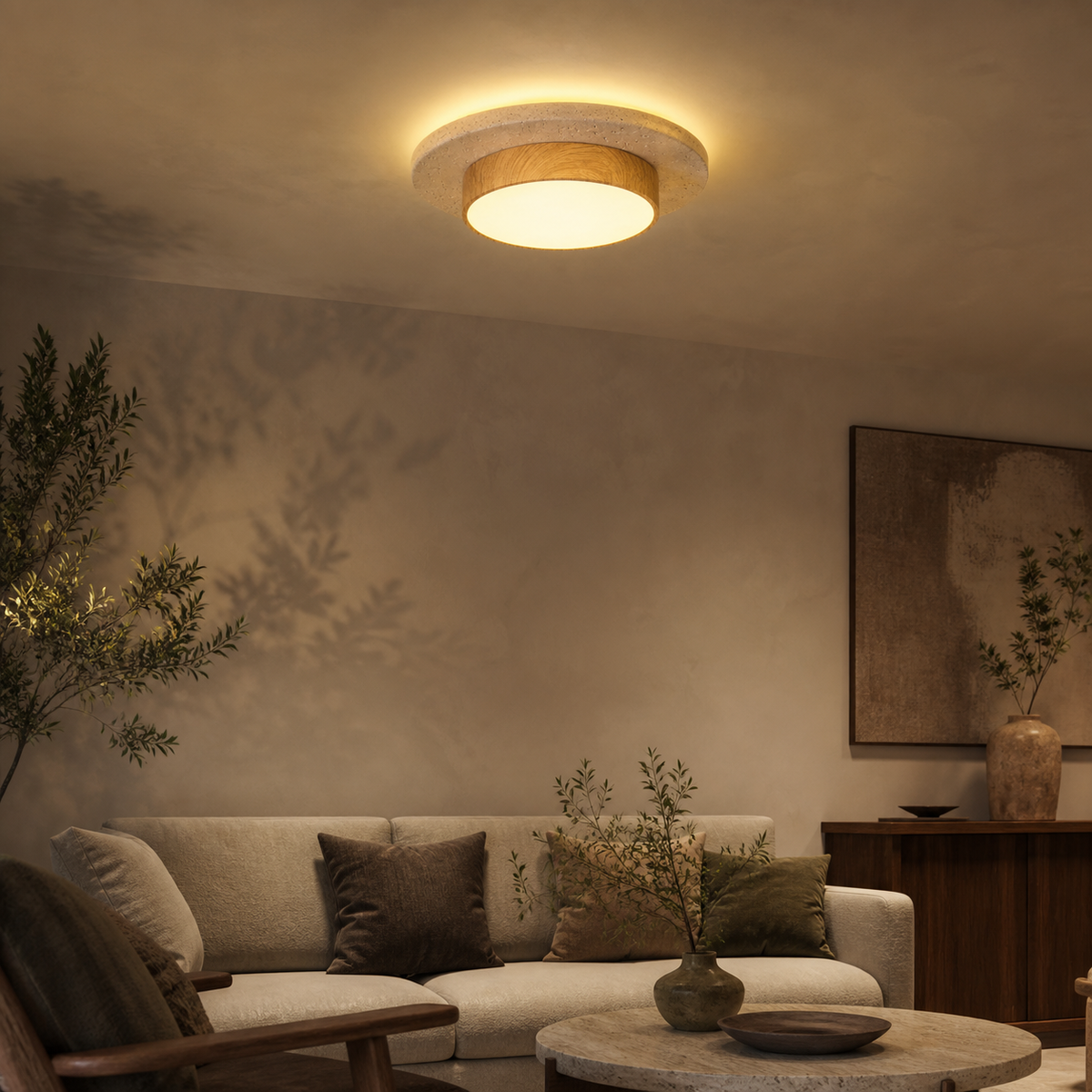

Flush Mount Ceiling Light, Travertine Wood Hallway Fixture, 8.7 In

Hardwired to a ceiling box: 28 W on a driver rated 85V to 265V, with a body 8.7 in (22 cm) across that sits 1.6 in (4 cm) below the ceiling. Yellow travertine natural stone and iron, in Natural Wood or Walnut.

See the flush mount ceiling light

Can you install a ceiling light with no existing wiring?

No, not a hardwired one, not without putting a box up there and running a cable to feed it. Ceiling joists sit 16 in on centre in most US homes, so a joist is never more than 8 in from the spot you picked, and that spacing is what an electrician works to when cutting in a new fixture box. That job is a cable run, a box, a switch and in most places a permit, so price it before you fall for a fixture.

The cheaper answer is to stop using the ceiling. A switched outlet does the same work at 120 V with a lamp plugged into it, and if your wall switch already kills a floor socket, the reason your switch controls an outlet is worth ten minutes of your evening. There is also a set of ways to light a dark corner without wiring that never touches a box, a plate or a breaker.

Clearance is the one argument for a flush mount that survives all of this: at 1.6 in (4 cm) deep it leaves about 7 ft 10 in of headroom under an 8 ft ceiling, which is the whole case for flush mounts under 8 ft.

What would I buy first?

The box, if there is no fixture-support marking inside the one you already have. A 4 in (10 cm) round box listed for luminaire support and a strap with two 8-32 screws are the cheapest parts of this whole job, and they are the two that decide whether the light stays on the ceiling. The fixture itself is 124.99 USD in Natural Wood or Walnut, listed as warm white, which puts it at the 2,700 K to 3,000 K end of the scale where a hallway at midnight still looks like a home, and the trade-offs between wood and metal matter more than the photograph does. If the 8.7 in (22 cm) round is too small for the room, the rest of the wall and ceiling lamps sit on the same site.

If what is holding your ceiling light tonight is a plastic ring with two tabs biting into 1/2 in drywall, that ring is the entire safety system. Change it before the light arrives, not after you have an 8.7 in (22 cm) stone body balanced on one hand at the top of a ladder.
