How to Measure for a Ceiling Light Before You Buy

Three numbers tell you how to measure for a ceiling light: room length plus width in feet, floor to ceiling height, and the width of the junction box already sitting in your ceiling. Add the room's length and width in feet and read that total as inches of diameter, so a 12 by 12 ft room asks for about 24 in (61 cm), a standard ceiling box measures about 4 in (10 cm) across the opening, and the bottom edge of the fixture wants to stay above 84 in (7 ft). Write those three numbers down before you open a single product page, because the box is what sends fixtures back, not the diameter.

How to measure for a ceiling light: what do I write down?

Three lines: diameter in inches, ceiling height in inches, box width in inches. The measuring takes about 10 minutes and needs a tape, a breaker you can switch off, and one fixture number to test against, such as the 9.1 in (23 cm) drum on the Houseland wood flush mount.

1. Measure the room wall to wall in feet, add the length and the width, and treat the total as inches: 12 plus 12 gives a 24 in (61 cm) target.
2. Measure floor to ceiling standing under the box rather than in the doorway, since most US rooms read 96 in (8 ft) and older houses read less.
3. Switch off the breaker, take the old fixture down, and measure the box across the opening: round and octagon boxes usually run 4 in (10 cm), and older pancake boxes run smaller.
4. Measure the paint ring the old canopy left behind, because a fixture narrower than that ring adds a painting job to the 10 minutes.

Step three is the one people skip, and it is the only one of the three that can stop the work dead with the power off and the ceiling open. The other two only decide whether the light looks right.

Why measure the junction box before buying a light?

Because the box decides whether the fixture mounts at all, and no size chart mentions it. A standard round or octagon ceiling box is about 4 in (10 cm) across the opening, with two mounting ears set inside it, and the collar on the new fixture has to meet those ears before anything about style matters. Measure three things while the ceiling is open: the opening across, the span from ear screw to ear screw, and the depth from the back of the box to the ceiling surface. Then hold those against the canopy width, because a 9.1 in (23 cm) drum covers a 4 in (10 cm) box with margin left over, while a narrow modern canopy sometimes does not. Depth is the half that catches people out, since a shallow box already crowded with wire leaves the collar sitting proud of the ceiling instead of pulling flat to the plasterboard, and tightening the screws harder does not fix it. Pull the conductors out and look at the length you have to work with too, because a box wired tight to the back leaves nothing to strip and cap. All of that is part of the same 10 minutes, and it is the honest version of measure before replacing a ceiling fixture. A size chart cannot tell you any of this, which is why the chart is the least useful of the three numbers. The fixture is hardwired to a standard ceiling electrical box rather than plugged in, and because box depth and wiring vary by house, Houseland asks a licensed electrician to confirm fit before installation, older houses especially. Settle the wiring question on the same trip, because if the switch on that wall turns on an outlet instead of the ceiling, which is more common in older houses than people expect, you have an electrical job in front of you rather than a shopping decision.

What size flush mount for a 12x12 room?

24 in (61 cm), from adding 12 and 12 and reading the total as inches. Ceiling light diameter for room size comes out of that one sum, and here it is as a ceiling light size chart by room.

Two rooms break the rule. A hallway goes by width, so measure across it, and in a 36 in (91 cm) hall keep the fixture under half that width, which a 9.1 in (23 cm) drum clears comfortably and a 24 in (61 cm) one does not. Long rectangular rooms still take the sum, and the shape shows up in where you centre the fixture rather than in its diameter, so a 10 by 16 ft room asks for the same 26 in (66 cm) as a 12 by 14 ft one. If the box sits off centre, which happens constantly in older houses, measure in from all four walls before you decide whether to move the box or live with it. A room where the ceiling fixture is the only light needs more diameter and more output than a small drum gives. The product page is plain about that: this wood drum works as ambient or secondary light in a hallway, closet, or small bedroom rather than as the only bright source in a 12 by 12 ft living room.

How do I measure ceiling height for a fixture?

Floor to ceiling, in the exact spot where the box sits, written in inches, because 96 in is easier to work with than 8 ft once you start subtracting.

1. Write down the ceiling height under the box, then measure again at the far wall, because ceilings in older houses are not level.
2. Write the fixture depth beside it: the Slim profile sits 1.9 in (4.8 cm) off the ceiling and the Tall sits 4.7 in (12 cm) off it.
3. Do that subtraction yourself and compare the answer with 84 in (7 ft), the line you want the bottom edge to stay above.
4. Measure what moves underneath, since a standard interior door is 80 in (203 cm) tall, and above a stair landing you measure from the highest tread rather than the floor below.

On a 96 in ceiling both depths leave the bottom edge well clear of 84 in, so the profile becomes a looks decision rather than a clearance one. Below 96 in it stops being about looks, which is why low ceilings get a separate shortlist and why the Slim profile exists at all.

Slim vs Tall: which profile clears my ceiling?

Slim under 96 in, Tall at 96 in and above.

Both profiles are 9.1 in (23 cm) across and both are 99.95 USD, so the four options are two wood tones crossed with two depths rather than four different lights. Walnut and Natural use the same frosted acrylic diffuser and the same body, so the tone is the only thing that changes between them. The LED is an integrated module rather than a replaceable bulb, so the whole fixture gets swapped if it fails, and it reads warm white rather than daylight. Whether a joined wood drum earns 99.95 USD next to a metal one is an argument with two sides, and it turns on how close your eye gets to the grain in a hallway.

From the shop

Wood Flush Mount Ceiling Light, Walnut or Natural, Slim or Tall LED Fixture

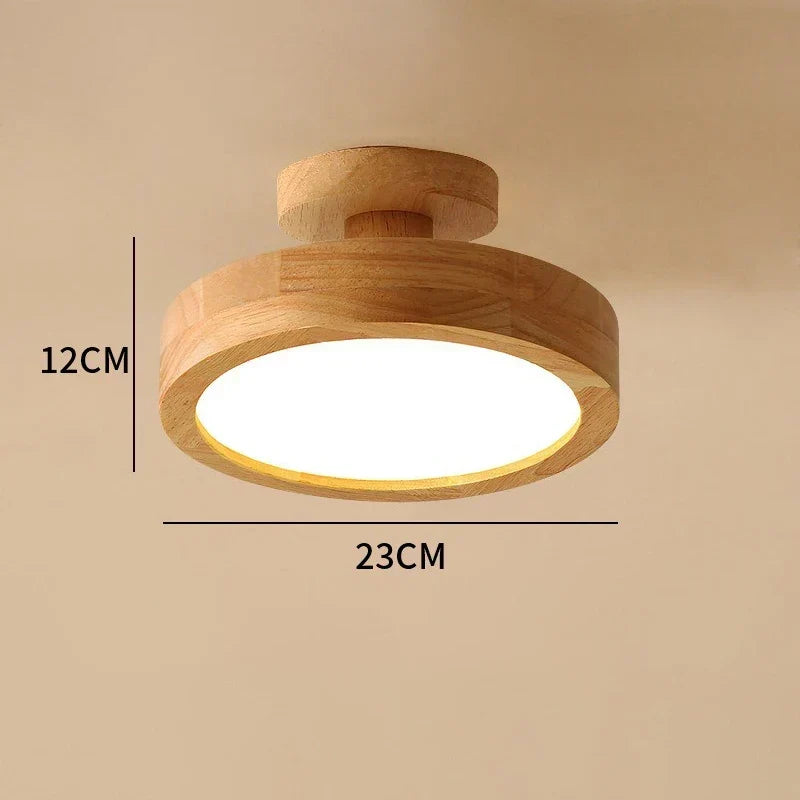

Both profiles measure 9.1 in (23 cm) across, and the ceiling height you wrote down picks the depth: 1.9 in (4.8 cm) for the Slim, 4.7 in (12 cm) for the Tall. Houseland sells it in Walnut or Natural at 99.95 USD.

See the wood flush mount ceiling light

What changes in a hallway, a closet, or an entry?

The width rule replaces the sum rule, and shelf clearance replaces ceiling height. In a hall, measure the width first, since 36 in (91 cm) is common and half of that width is your ceiling for diameter, so a 9.1 in (23 cm) drum works and a 24 in (61 cm) one crowds the walk. A hall longer than 12 ft usually wants two fixtures rather than one large one, measured in from each end wall so the spacing looks deliberate instead of accidental. In a closet, measure from the ceiling down to the top shelf and to the hanging rail, because that gap decides whether 4.7 in (12 cm) of fixture depth is fine or whether 1.9 in (4.8 cm) is the only option. In an entry, measure the door swing before anything else, because a standard 80 in (203 cm) door leaf passing under a flush mount is fine and a coat hook loaded with winter coats is the thing that actually hits it.

What goes wrong when a ceiling light is too big for the room?

It reads as a hat on the room, and in a hallway it turns into something you walk into. A 24 in (61 cm) drum in a 36 in (91 cm) hall leaves almost nothing either side of it, and next to an 80 in (203 cm) door it looks like it was ordered for a different house. Undersized fails more quietly: a 9.1 in (23 cm) drum centred on a 12 by 14 ft ceiling, where the sum asks for 26 in (66 cm), reads as a smoke alarm with a wood trim ring. Both mistakes come from ordering to a photo instead of to the sum, and both cost you a return shipment plus the paint ring you exposed taking the old fixture down. Run the sum against the room and the half width rule against the hall before anything ships, and neither one happens.

What would I buy first?

A tape measure and a non-contact voltage tester, then the fixture. The tester confirms the ceiling is dead before your hand goes near the wire nuts in a 4 in (10 cm) box, which is the part of this job worth being fussy about. Then order to your three numbers rather than to a photo: if the room reads 24 in, 96 in and 4 in, a 9.1 in (23 cm) drum belongs in the hall outside that room, and the wider ceiling and wall light range is where the living room fixture comes from. If the numbers read 9 in, 96 in and 4 in for a closet or a landing, the Slim at 1.9 in (4.8 cm) is the one, and the flush mount shortlist is worth reading before you commit. Every figure in this article except three came off a tape measure, and those three are 9.1 in (23 cm), 1.9 in (4.8 cm) and 4.7 in (12 cm). Measure the box first. Everything after that is shopping.
