How Much Wall Do 6 Honeycomb Shelves Cover, and in Which Layouts?

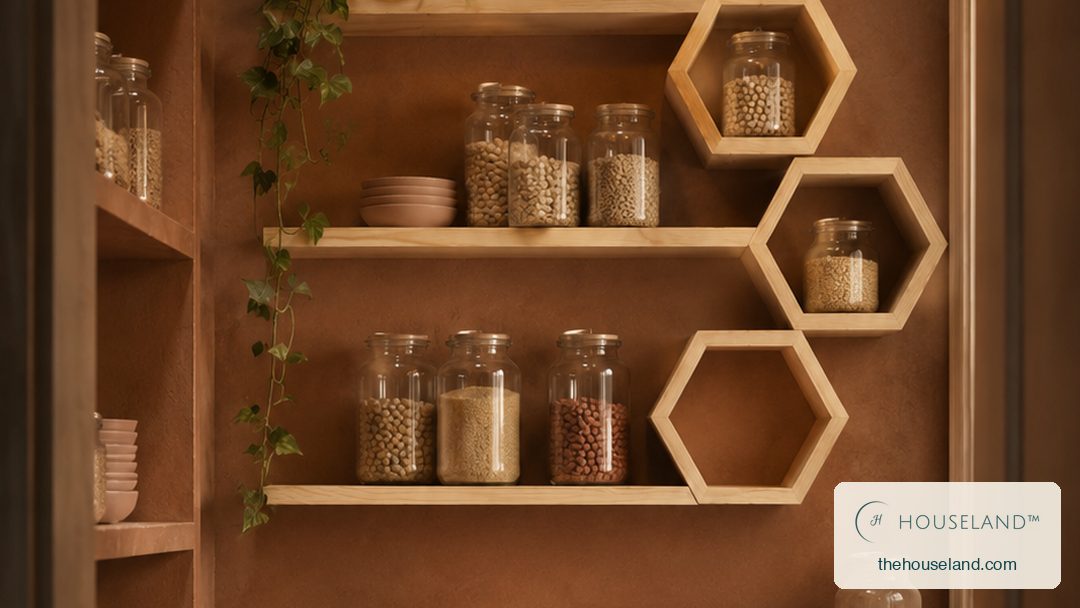

Houseland's 6-piece pine honeycomb shelves set is three hexagons — 13.8, 11.8 and 9.8 in wide — plus three 19.7 in ledges, six modules total, each on its own keyhole hanger. Laid side by side with about 2.5 in between pieces — Gallery Wall Planner's spacing guide for clustered wall pieces — three hexagons (35.4 in) plus two gaps (5 in) come to about 40 in (102 cm); laid end to end the same way, three hexagons (35.4 in) plus three ledges (59.1 in) plus five gaps (12.5 in) come to about 107 in (270 cm).

Because nothing links the six pieces together, the exact footprint is whatever you build: this piece works through the numbers for four layouts, when a stud actually falls under a mounting point, and where the 9-piece version fits better instead.

How Much Wall Do the 6 Honeycomb Shelves Cover?

The short answer: about 40 in (102 cm) of wall for the smallest useful layout, and about 107 in (270 cm) for the largest. Houseland's 6-piece pine honeycomb set is three hexagons — 13.8, 11.8 and 9.8 in wide — plus three 19.7 in ledges. Laid end to end with about 2.5 in between pieces — the spacing Gallery Wall Planner's guide gives for clustered wall pieces — three hexagons (35.4 in) plus three ledges (59.1 in) plus five gaps (12.5 in) come to about 107 in (270 cm) for all six pieces in one row, while three hexagons (35.4 in) plus two gaps (5 in) come to about 40 in (102 cm) for a hexagon-only cluster. A ledge-only run or a split arrangement falls in between.

• Hexagon cluster only: about 40 in (102 cm) wide
• Ledge run only: about 64 in (162 cm) wide
• Hexagons and ledges as two separate runs: two shorter stretches instead of one long one
• All six pieces in a single row: about 107 in (270 cm) wide

What Size Is Each Individual Hexagon and Ledge?

This set has two shapes: three hexagons and three matching ledges, six modules total. Every piece shares the same 3.5 in (9 cm) depth and 0.6 in (1.5 cm) board thickness, and every piece is rated up to 11 lb (5 kg) on its own keyhole hanger.

That's the whole set — one of each hexagon size, three identical ledges, no seventh piece to fill a leftover gap. The product page gives a width for each hexagon but not a separate height figure, so the numbers above are what you plan a layout around; treat anything beyond them as your own measurement of the piece once it arrives. For a different approach — starting from your wall's own width instead of a fixed six-piece kit — sizing a hexagon set to your wall width works the problem from the other direction.

How Do You Arrange Three Hexagons and Three Ledges Into a Layout?

Start by measuring the actual wall run you have, then match it to one of the four layouts above before you mark a single hole. Dry-lay the six pieces on a table or the floor first — a build log for a similar hexagon set on oliveanddom.com recommends laying the whole arrangement out and photographing it before anything touches the wall, so the spacing is a decision made on purpose rather than improvised with a pencil in hand. A closer walkthrough of the marking step itself is in marking hexagon shelf spacing before you drill.

1. Measure the wall run in inches, corner to corner or switch-plate to switch-plate.
2. Lay the three hexagons and three ledges out on the floor in the pattern you're considering, then photograph it.
3. Pick a gap and hold it with a tape measure between piece edges, not centers, before marking any keyhole position.
4. Run a stud finder across the marked run; studs commonly sit 16 in apart on center in US framing, so not every mark will land on one.
5. Level each mark with a spirit level, then fit the hardware in the box to whichever fixing — a stud screw or a drywall anchor rated above 11 lb (5 kg) — actually suits that spot.
6. Hang the largest hexagon first as your anchor point and work outward, so a small spacing error ends up at the edge of the run instead of the middle.

Recommended for this use case: anyone filling a run of about 40 to 64 in (102 to 162 cm) — the space above a desk or a single bed frame — is the reader this set is built for. Houseland's 6-Piece Pine Honeycomb Wall Shelves gives you three hexagons (13.8, 11.8 and 9.8 in) and three 19.7 in ledges to use as one hexagon cluster, one ledge run, or split across two shorter walls, whichever the room actually has. It doesn't stretch to a single unbroken wall past about 107 in (270 cm) in one row — that's a job for the 9-piece pine hexagon set instead — and because every module hangs on its own keyhole hanger with nothing tying the six pieces' spacing together, how even the gaps look is on your own marking, not the hardware.

From the shop

6-Piece Pine Honeycomb Wall Shelves

Best for a 40 to 107 in (102 to 270 cm) run — a desk or a single bed frame at the low end, a long unbroken wall at the high end: three hexagons (13.8/11.8/9.8 in) and three 19.7 in ledges, each on its own keyhole hanger rated up to 11 lb (5 kg). No shared template, so gap spacing is on your own marking.

View the 6-piece pine honeycomb set — dimensions & current price

Which Layout Fits a Narrow Wall, and Which Needs a Longer One?

A narrow wall — under about 64 in (162 cm) — fits only the hexagon cluster or the smallest single hexagon; a longer wall opens up a ledge run, splitting the pieces, or running all six together. Match the row below to what you actually have before you buy anchors or count studs.

Every width above assumes the same 2.5 in (6 cm) gap convention from the previous section. Leave noticeably more than that and the six pieces stop reading as one grouped layout; leave noticeably less and hexagon corners start to visually collide once shadows fall across the seams. For other shapes and sizes in the same line, the wall shelf collection covers the rest of the range.

What Happens If You Skip the Gaps or Ignore the Studs?

Skip the gaps and the honeycomb look collapses into one blocky panel. Important limitation: every module in this set hangs on its own keyhole hanger that you mark and fit individually — there's no shared bracket, rail or template locking the six pieces' spacing together. That independence is what makes four different layouts possible from one box, but it also means the evenness of any layout is exactly as good as your own marking and level.

Studs commonly run 16 in apart on center in US residential framing. None of the six pieces here is wide enough on its own to guarantee a stud under every keyhole — even the widest ledge, at 19.7 in, is barely one stud bay across — so plan on at least some pieces landing on drywall alone. The listing itself only says to fit a fixing suited to your wall, without naming a specific anchor, which puts the anchor choice for off-stud pieces on you: match any drywall anchor's own rated capacity to the stated 11 lb (5 kg) per piece before trusting it with anything near that limit.

• Find every stud along the run first with a stud finder and mark them lightly in pencil.
• Dry-lay the pieces and photograph the arrangement before drilling, the way the oliveanddom.com build log recommends.
• Hold the 2.5 in (6 cm) gap with a tape measure at every edge, not just the first one, so small errors don't compound across six pieces.

For the specific tool list this step needs, the tools for installing honeycomb wall shelves straight goes through each one.
