The Tools to Install Honeycomb Wall Shelves Straight

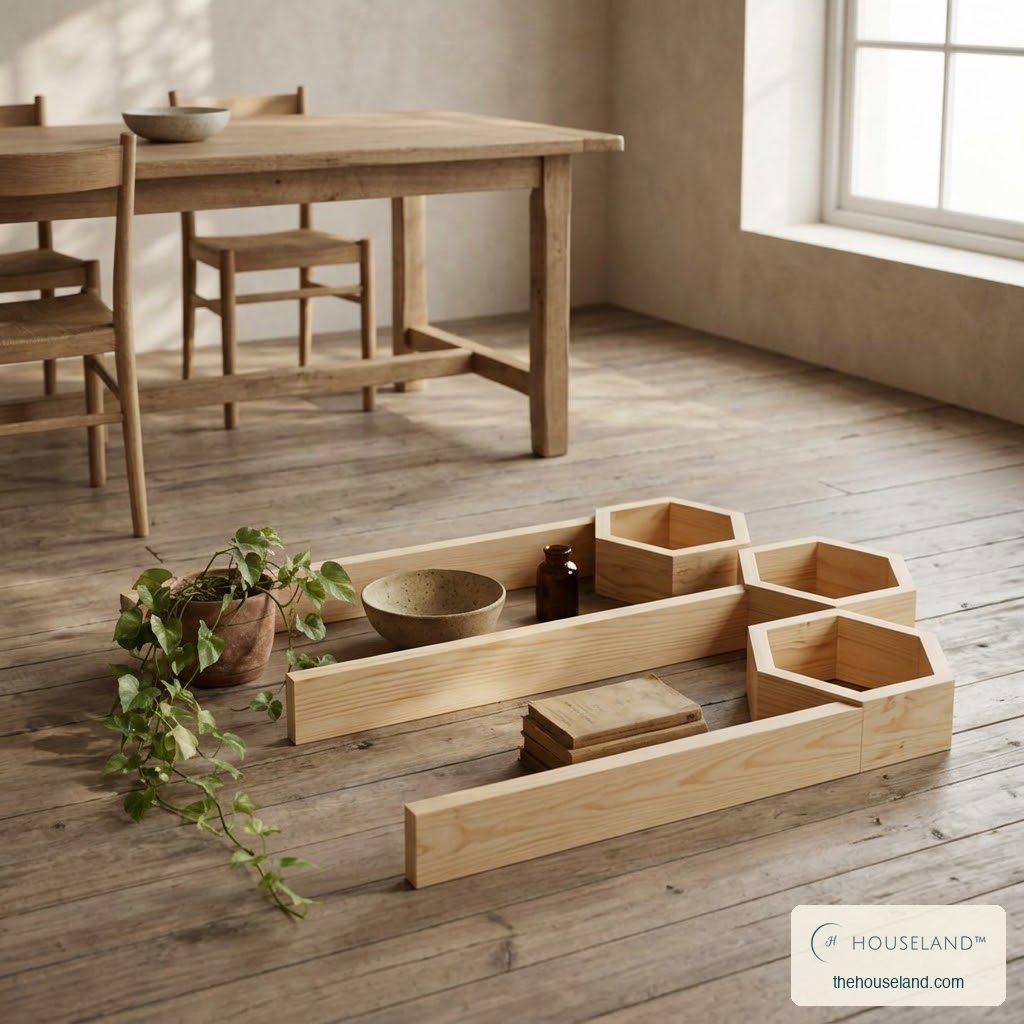

A pine shelf set laid out on the floor before hanging, styled in a neutral-toned dining area

The tools to install honeycomb wall shelves come to six: a drill, the bit size printed on your anchor packet, hollow wall anchors rated above the 11 lb (5 kg) each piece is built to carry, a spirit level, a pencil and a full size paper template of the cluster. Five of those you probably already own. The sixth, a roll of paper, is what decides whether six pieces land straight or land approximately.

The hexagon outline of the honeycomb shelves reading clearly against a pale wall

Why does a six piece cluster go crooked when a single shelf never does?

What do I need to hang a six piece hexagon shelf cluster so it ends up straight? One shelf forgives you. Hang it 1/4 in (6 mm) low and nobody will ever know, because there is nothing beside it to disagree with. Six pieces disagree constantly, because the eye does not read the shelves, it reads the gaps between them. A 1/4 in (6 mm) drift on the second hexagon is a visible slope by the sixth. Most guides for this list a drill and a level and stop there, which covers one board on one wall and leaves a cluster of six to luck.

At Houseland we believe a wall you arrange yourself becomes a room you keep, which is why this set arrives as 3 hexagons at 13.8 / 11.8 / 9.8 in (35 / 30 / 25 cm) and 3 ledges at 19.7 in (50 cm) instead of one fixed frame with the decisions already made. The arrangement is yours. So is the geometry, and about 20 minutes with a roll of paper takes most of the risk out of it before a single hole exists.

Which tools to install honeycomb wall shelves do you need in hand first?

Six things, and only one of them plugs in.

A drill. A bit matched to your fixing rather than to the screw. Hollow wall anchors, or wood screws where you find timber. A spirit level, ideally a 9 in (23 cm) torpedo that sits on a hexagon's top facet without overhanging it. A pencil and a tape. And enough paper to trace all 6 modules at full size. The mounting hardware for the shelves is in the box; the fixing that suits your particular wall is the part you buy separately, which is the same split that catches people out when they put up a wall sconce.

Knock along the wall before you buy any of it. Hollow reads drummy, solid reads dead, and what you hear decides the next four rows.

What is behind the paint Fixing that holds Hole to drill Watch for
Plasterboard, no timber behind Self drilling nylon anchor or metal toggle Self drilling: none in 1/2 in (12.7 mm) board, drive it with a screwdriver. Toggle: wide enough for the folded wings, often 1/2 in (13 mm) A packet rating above 11 lb (5 kg) per piece
Plasterboard with a stud behind Wood screw straight into the timber 1/8 in (3 mm) pilot Studs sit 16 in (40.6 cm) on centre, so a cluster rarely lines up with them
Brick or block Wall plug and screw The plug diameter, commonly 1/4 in (6 mm) Masonry bit, hammer action on, blow the dust out before you plug it
Old plaster on lath Toggle, not a nylon expansion anchor Often 1/2 in (13 mm) Drill slowly with hammer action off or the face crumbles round the hole

The bit matches the anchor body, never the screw. An anchor with a 3/16 in (5 mm) body wants a 3/16 in (5 mm) hole; open it to 1/4 in (6 mm) and the anchor turns in the board instead of gripping it, which is how a shelf ends up on the floor with a fist sized hole above it.

The honeycomb shelves hung as separate modules along a hallway wall

How do you template the cluster before you drill anything?

Cut all six shapes out of paper at full size and move those around the wall for twenty minutes instead of the shelves.

  1. Trace every module on kraft paper or the back of a roll of wrapping paper: hexagons at 13.8, 11.8 and 9.8 in (35, 30 and 25 cm) wide, ledges at 19.7 in (50 cm) long. Cut all 6 out.
  2. Lay each module face down on its paper twin and push a pencil through the keyhole hanger. The paper now carries the screw position, not only the outline, and that is the whole trick.
  3. Tape the shapes up with low tack tape. Hanging alone on a wall, put the centre of the group 57 to 60 in (145 to 152 cm) off the floor, the height galleries hang to. Above a sofa, leave 8 to 10 in (20 to 25 cm) of clear wall above the back instead.
  4. Choose one gap and repeat it everywhere. 2 in (5 cm) between pieces reads tight and busy; 4 in (10 cm) reads calm. Measure every gap with the tape, because eyes are generous at 11pm.
  5. Walk to the far side of the room with the lights on and look. Move paper. Paper costs nothing and leaves no holes.
  6. Drill through the paper at the marked points, then tear it away.

The three hexagons are deliberately different widths, so a symmetrical arrangement is not available to you and stops being the goal about ten minutes in. Leaving one module empty reads better than filling all six, which is the argument for a honeycomb wall that does not turn into clutter.

Six-piece pine honeycomb shelf set with trailing pothos on a warm cream wall, styled in a boho living room

Why does levelling the group leave every shelf crooked?

A spirit level held across two hexagons measures your arrangement, not either shelf, and a keyhole hanger will happily let a module sit 1/8 in (3 mm) out of true on a screw that is perfectly level.

Level each piece on its own top edge, after it is hanging. A cluster looks straight because every piece is level on its own, never because you levelled the outline. The ledges give you a long straight top edge that any level sits on. The hexagons give you a short facet, which is where the 9 in (23 cm) torpedo earns its place.

Set the screw head so it stands about 1/8 in (3 mm) proud of the wall. Too tight and the module stands off the plaster; too loose and it rocks on the fixing every time you put a mug down near it. If one side sits 1/16 in (1.6 mm) low, back the screw out a quarter turn rather than drilling again.

Hang the largest hexagon at 13.8 in (35 cm) first, level it, then work outwards from it. Error accumulates away from the piece you start with, so start with the one your eye lands on when you walk into the room.

Several pine shelf modules showing natural grain variation, styled in a entryway

How long does it take, and what goes wrong at 11pm?

Budget 90 minutes for the six modules, and expect around 40 of those to be paper, pencil and standing back.

The drilling is roughly 10 minutes of the job. Everything else is layout, and the failures are boringly consistent.

The hole goes oversize. In 1/2 in (12.7 mm) plasterboard, a hole 1/16 in (1.6 mm) too wide lets the anchor spin, and no amount of matchsticks fixes it. Move about 2 in (5 cm) along, drill fresh, fill the first one.

You hit timber where you planned an anchor. That is good news: drop the anchor, use a wood screw with a 1/8 in (3 mm) pilot, and remember studs sit 16 in (40.6 cm) on centre, so the next fixing along the row probably will not find one.

The paint scuffs. It happens when you slide a module up the wall hunting for the screw head instead of lifting it on, and it is the same drag mark that shows up under a long run of floating shelves.

The last piece sits low. Rehang that one piece, not all six, and keep the heaviest object closest to the hanger rather than out at the 3.5 in (9 cm) edge. What goes on the shelves is the other half of straight. Each module is rated for plants, ceramics, candles, framed photographs and a short run of paperbacks on a 0.6 in (1.5 cm) pine board, and a full row of hardbacks is a different fixing and a different shelf.

What would I buy for this, and who should skip it?

Six pine wall shelves joined into a honeycomb pattern across the wall surface

From the shop

6-Piece Pine Honeycomb Wall Shelves

Six modules on keyhole hangers: 3 hexagons at 13.8 / 11.8 / 9.8 in (35 / 30 / 25 cm) and 3 ledges at 19.7 in (50 cm), each 3.5 in (9 cm) deep, so the paper template decides the layout and every piece hangs on its own fixing.

See the 6-piece pine honeycomb wall shelves

Every module has a keyhole hanger routed into the back and the mounting hardware set is in the box, so all 6 pieces hang independently and each one gets levelled on its own. Houseland packs them flat with the corners protected, 6 modules and one hardware set, which is why nothing needs assembling before it goes up.

The depth is 3.5 in (9 cm) on a 0.6 in (1.5 cm) board, slim enough for a hallway where a deeper shelf catches shoulders, and it is solid pine rather than a veneered board.

The load rating is up to 11 lb (5 kg) per piece: plants, ceramics, candles, framed photographs and a short run of paperbacks. The set is 146.43 USD for all six modules.

Wrong for a renter whose lease bans drilling, because a keyhole hanger needs a screw and a fixing in the wall, and adhesive fixings do not reach that rating, which is a separate decision worth reading through in adhesive hooks against over the door hooks. Wrong for a study wall meant to carry books, since the rating is per piece and a full row of hardbacks belongs on a bracketed shelf. Wrong for a nursery or anywhere small parts get left about, because the modules are open at the back and anything narrower than the opening passes straight through. And wrong if you want six matched pieces: the hexagons are 13.8, 11.8 and 9.8 in (35, 30 and 25 cm), pine varies in grain and knots, and the corner seams are visible on every module. If a hexagon cluster is the wrong shape for your wall, the wall shelves at Houseland list dimensions, load rating, material and finish on every page, which is the information this job actually turns on.

Shop wall shelves from Houseland

9-Piece Pine Hexagon Wall Shelf Set-20%9-Piece Pine Hexagon Wall Shelf Setfrom $165.50$206.886-Piece Rounded Pine Box Wall Shelves-20%6-Piece Rounded Pine Box Wall Shelvesfrom $160.78$200.966-Piece Pine Cube and Ledge Wall Shelves-20%6-Piece Pine Cube and Ledge Wall Shelvesfrom $152.00$190.006-Piece Staggered Pine Wall Shelves-20%6-Piece Staggered Pine Wall Shelvesfrom $151.15$188.945-Piece Matte Black Wall Shelf Set-20%5-Piece Matte Black Wall Shelf Setfrom $155.59$194.499-Piece Matte Black Hexagon Wall Shelves-20%9-Piece Matte Black Hexagon Wall Shelvesfrom $174.58$218.23

See all wall shelves →

Questions people ask about this

What tools do I need to hang hexagon shelves?

Six: a drill, a bit matched to your anchor, hollow wall anchors rated above 11 lb (5 kg) per piece, a spirit level, a pencil and paper for a full size template. The mounting hardware comes in the box; the wall fixing is the part you buy separately.

What drill bit do I use for drywall anchors?

The one printed on the anchor packet, which matches the anchor body rather than the screw. An anchor with a 3/16 in (5 mm) body takes a 3/16 in (5 mm) bit. Open the hole to 1/4 in (6 mm) and the anchor spins in the board instead of gripping.

How do I keep a shelf cluster straight?

Level each piece on its own top edge after hanging, not the group outline. The 19.7 in (50 cm) ledges give any level a long edge to sit on; hexagons need a 9 in (23 cm) torpedo on the top facet. Hang the largest hexagon first and work outwards.

Do I need to find a stud for pine shelves?

No. Each module is rated up to 11 lb (5 kg), which hollow wall anchors handle in 1/2 in (12.7 mm) plasterboard. Studs sit 16 in (40.6 cm) on centre, so a six piece layout rarely lines up with them. Use a wood screw wherever a fixing does land on one.

How far apart should hexagon shelves be?

Pick one gap and repeat it. 2 in (5 cm) between pieces reads tight, 4 in (10 cm) reads calm. Consistency matters more than the number, because the eye reads the gaps rather than the shelves, so measure every gap with a tape instead of judging it.

What anchors work for plasterboard shelves?

Self drilling nylon anchors or metal toggles, with a packet rating above the 11 lb (5 kg) each module carries. Toggles need a hole wide enough for the folded wings, often 1/2 in (13 mm). In old plaster on lath, use a toggle rather than an expansion anchor.

How do I make a template for shelf layout?

Trace all 6 modules on paper at full size, hexagons at 13.8, 11.8 and 9.8 in (35, 30 and 25 cm) and ledges at 19.7 in (50 cm), then push a pencil through each keyhole hanger so the paper carries the screw position. Tape it up, adjust, drill through it.

How long does installing six shelves take?

Budget about 90 minutes. Roughly 40 of those go on the paper template and standing back to look, while the drilling itself is closer to 10 minutes across the six fixings. Time saved on layout comes back as an hour of rehanging.

Can I hang honeycomb shelves without a stud?

Yes. The rating is 11 lb (5 kg) per piece and each module hangs on its own keyhole hanger, so hollow wall anchors in 1/2 in (12.7 mm) plasterboard are the normal route. Check the packet rating before you buy the anchors.

What height should a shelf cluster hang at?

Put the centre of the group 57 to 60 in (145 to 152 cm) off the floor when it hangs on a bare wall, which is standard gallery height. Above a sofa, leave 8 to 10 in (20 to 25 cm) of clear wall above the back instead, and set the height from the furniture.

How much weight can each hexagon hold?

Up to 11 lb (5 kg) per piece. That covers plants, ceramics, candles, framed photographs and a short run of paperbacks. A full row of hardbacks is more than the fixing and the 0.6 in (1.5 cm) board are rated for, so put those on a bracketed shelf.

How deep are the honeycomb shelves?

3.5 in (9 cm), on a 0.6 in (1.5 cm) board. That is enough to stand a small pot or prop a frame without the shelf catching shoulders in a hallway, and it keeps a six piece cluster from projecting into a narrow room.

What is in the box?

6 shelf modules and one mounting hardware set, packed flat with the corners protected. The wall fixing itself, anchors or masonry plugs, is what you supply, because it depends on whether you are drilling plasterboard, brick or old plaster on lath.

Do the shelves have a back panel?

No. The modules are open at the back, which keeps them reading as light on the wall rather than as boxes stuck to it. Anything narrower than the opening can pass straight through, so keep small items away from the 3.5 in (9 cm) edge.

What are the shelves made of?

Natural pine with a clear matte lacquer, sanded and lead free. It is solid timber rather than a veneered board, 3.5 in (9 cm) deep on a 0.6 in (1.5 cm) board. The colour is warm honey pine, and grain and knots vary from piece to piece.

How do I fix an anchor hole that is too big?

Drill a fresh hole rather than packing the old one. In 1/2 in (12.7 mm) plasterboard, a hole 1/16 in (1.6 mm) oversize lets the anchor spin under load. Move the fixing about 2 in (5 cm) along, hang from there, and fill the first hole.

Can I hang just one hexagon?

Yes. Every module has its own keyhole hanger, so a single 9.8 in (25 cm) hexagon works beside a door or over a light switch where a run of six would never fit. The 11 lb (5 kg) rating is per piece, not per group.

What size hexagons come in the set?

One each at 13.8, 11.8 and 9.8 in (35, 30 and 25 cm) wide, plus three straight ledges at 19.7 in (50 cm) long. Six pieces in total, so a perfectly symmetrical arrangement is not possible and the sizes are meant to be mixed.

How wide a wall does the six piece set need?

It depends on your layout and the gap you pick. The three ledges are 19.7 in (50 cm) each and the hexagons run 13.8 to 9.8 in (35 to 25 cm), so lay the paper templates out on the floor at your chosen spacing and measure the total before you drill.

Do I need a laser level?

No. A 9 in (23 cm) torpedo level does the job, because you are levelling each module on its own edge rather than one long span. A laser only helps if you want a shared baseline for the three 19.7 in (50 cm) ledges.

How do I avoid scuffing the paint while hanging?

Lift each module onto the screw head rather than sliding it up the wall to find the slot. Leave the screw standing about 1/8 in (3 mm) proud so the keyhole drops over it cleanly, and wipe drilling dust off the wall before anything touches it.

How do I clean pine shelves?

Dust with a dry cloth, and wipe with a barely damp one if needed, then dry it. Do not soak the timber or use solvents on the lacquer. Nothing needs oiling, waxing or resealing over the life of the shelves.

Will the colour match the photographs?

The finish is warm honey pine, and natural pine varies in grain, knots and tone. Corner seams are visible on the modules and no two sets look identical, because the timber is not identical. That variation is normal rather than a fault.

How much does the six piece set cost?

146.43 USD for all 6 modules and one mounting hardware set. Wall fixings are extra and bought locally, since the anchors you need depend on whether you are drilling plasterboard, brick or old plaster on lath.

Is this a good option for renters?

Only if you can drill. Each module hangs on a keyhole hanger, which needs a screw and a fixing in the wall, and adhesive hooks are not rated for the 11 lb (5 kg) each piece carries. Check your lease before you order.

What should I put on an 11 lb shelf?

Plants, ceramics, candles, framed photographs and a short run of paperbacks, all within the 11 lb (5 kg) per piece rating. Keep the heaviest object nearest the keyhole hanger rather than out at the 3.5 in (9 cm) front edge.

Is a hexagon cluster better than one long shelf in a small room?

A cluster, if the wall is short or broken up. Pieces of 13.8 in (35 cm) and under can step around a window or wrap a corner, where a 19.7 in (50 cm) ledge run needs one uninterrupted stretch of wall.

Do I need a stud finder?

Useful, not required. Knock along the wall: a stud reads solid, the hollow between reads drummy, and studs run 16 in (40.6 cm) on centre in most builds. Where a fixing lands on one, use a wood screw with a 1/8 in (3 mm) pilot.

Can these go in a bathroom or kitchen?

Treat them as dry room shelves. The finish is a clear matte lacquer on natural pine, and the care instruction is a dry cloth or a barely damp one, then dry, so steady steam and splashing are not what the 0.6 in (1.5 cm) board is finished for.

What are the shipping and returns terms?

Check the product page for current shipping and returns details. Worth knowing before you order: the set arrives as 6 modules packed flat with one mounting hardware set, so nothing needs assembly beyond mounting it to the wall.
