How Far Apart Should Sconces Sit Along a Corridor?

Sconces along a corridor should sit 6 to 8 ft apart on centre, and that number is not a constant. It is a ratio: about 1.2 to 1.5 times the drop from the middle of the fixture down to the floor, which is why the same corridor takes different spacing at 66 in (168 cm) mounting height than at 78 in (198 cm).

Get the ratio first, then divide the run so the two end gaps are each half a spacing. Doors and openings override both. What almost never works is starting at one end with a tape measure and a round number, because the last fixture then lands wherever the arithmetic leaves it.

How far apart should sconces sit along a corridor?

Use 6 to 8 ft on centre for a fixture mounted around 66 in (168 cm), and treat that as 1.2 to 1.5 times the drop to the floor rather than a number to memorise. A wall light throws a cone, and the width that cone has covered by the time it reaches the floor is set by how far it fell. Raise the fixture and each pool grows, so the same coverage needs fewer of them.

The sum takes 10 seconds. Subtract the mounting centre from the floor: at 66 in (168 cm) the drop is 5.5 ft, and 1.2 to 1.5 times that is 6.6 to 8.25 ft. Mount at 78 in (198 cm) instead and the drop is 6.5 ft, which stretches the same rule to 7.8 to 9.75 ft. Both are inside the band people quote, which is why the band exists.

Three things pull you to the tight end. A corridor narrower than 40 in (102 cm) puts the walls close enough that each pool is cut off before it spreads. A ceiling under 8 ft leaves little wall above the fixture for an upward wash to open out on. And a dark paint colour absorbs the grazing light instead of bouncing it, which shrinks the useful pool without changing the geometry at all.

One thing pulls you to the wide end: a fixture that fires both ways. Houseland's fluted body is open at the top and the bottom, so each unit lights two bands of plaster instead of one, and the listing puts its coverage at 5 to 10 square metres (54 to 108 sq ft) per fitting.

How many fixtures does the run need, and where do they land?

Divide the corridor length by 7 ft, round to a whole number, then space that many fixtures evenly with end gaps of half a spacing. The rounding is the whole method: it forces the spacing to land inside the band instead of forcing the band to fit a round number.

Half-spacing end gaps are not a style preference. A fixture 3 ft from the end wall lights that wall with its own spill, so the last stretch gets roughly what the middle stretches get. Push the outer fixtures to the ends instead and the middle is over-lit while both ends stay dim.

Two more figures worth having before you drill. The nearest fixture to a door should clear the architrave by at least 6 in (15 cm), and a run of 2 fittings looks better on a wall than 4 fittings crammed at 4 ft, because a corridor read at walking speed registers rhythm long before it registers brightness.

Why does even spacing matter more than total brightness?

The eye judges a corridor by its darkest patch, not by its average, so 3 evenly placed fittings beat 2 brighter ones every time. Averages hide the failure. A single strong source can hit any average you like and still leave both ends of a 20 ft run visibly darker than the middle, because illumination from a source falls with the square of the distance and doubling that distance leaves a quarter of the light (Inverse-square law, Wikipedia).

Your eye then amplifies the unevenness. It resolves a contrast range of roughly 1,000 to 1 in any single moment, and full adaptation from bright light to darkness runs 20 to 30 minutes, with cone cells needing 9 to 10 minutes and rods 30 to 45 (Adaptation of the eye, Wikipedia). Nobody stands in a corridor that long. You walk into a bright pool, your eye sets itself there, and the gap after it reads darker than a meter would say it is.

The absolute levels are modest. US labour rules set a floor of 5 foot-candles indoors for warehouses, corridors, hallways and exitways under Table D-3 (29 CFR 1926.56), which is about 54 lux since one lux is 0.0929 foot-candles. Wikipedia's illuminance table puts public areas with dark surroundings at 20 to 50 lux and an office building hallway at 80 lux (Lux, Wikipedia). A domestic passage sits in that range, and hitting it is easy; hitting it evenly is the part people get wrong.

There is a second, non-optical reason the gaps have to match. Objects close to one another are perceived as belonging to one group, which is the Gestalt law of proximity (Principles of grouping, Wikipedia). Two fittings 6 ft apart with 9 ft of blank wall beyond them do not read as a lit corridor; they read as a pair, with the rest of the wall left over.

Even rhythm vs alignment to doors: which one wins?

Doors win, and the rhythm bends to fit, because a fixture 8 in (20 cm) from an architrave is the mistake people notice from the far end. Openings are fixed and the eye reads them as the corridor's structure, so lights that fight them look accidental however precise the tape was.

Projection is the quiet constraint in a narrow passage. A fitting that stands far off the plaster is in the way of a shoulder and a laundry basket, whatever the spacing says. Houseland's resin shade projects 3.1 in (8 cm) and clips over its bracket, which is the figure to compare when a corridor is tight.

From the shop

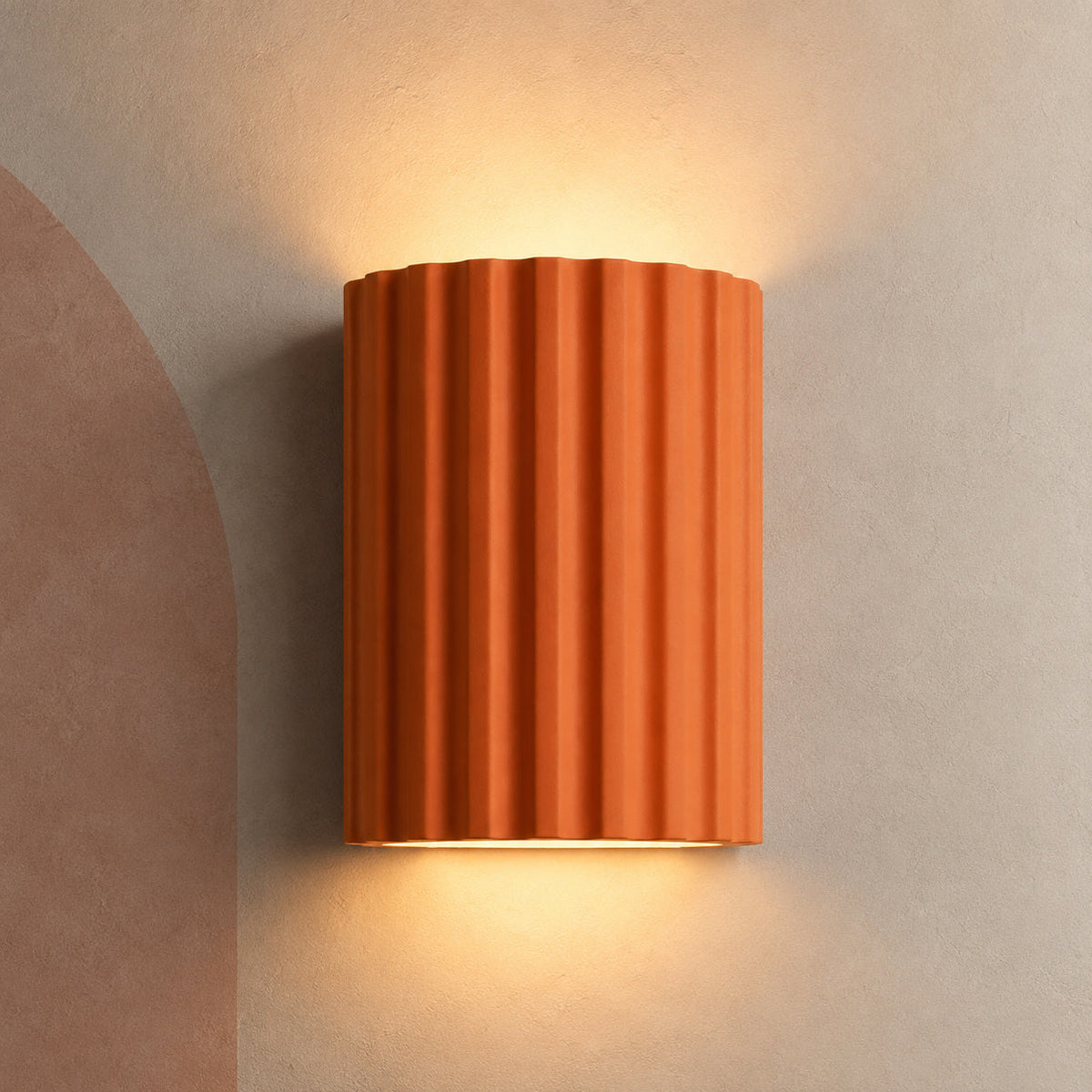

Fluted Resin Hallway Sconce, Up Down Wall Light in 4 Colors, Two G9 Bulbs

A shallow corridor fitting: the resin shade stands 6.5 in (16.5 cm) tall, spans 5.5 in (14 cm) and projects 3.1 in (8 cm) from the wall, with two G9 sockets firing up and down. It hardwires to a standard wall box at AC 90-260V and the listing puts coverage at 5 to 10 square metres per fitting.

View the fluted up-down sconce — 4 colours & current price

How do I mark the positions before drilling?

Mark all of them in tape first and stand at both ends, because a spacing error is invisible on a tape measure and obvious from 20 ft away. Work in this order.

1. Measure the true run, wall to wall. Use the plaster faces, not the skirting, and write the number down. A 19.5 ft corridor and a 20 ft corridor produce different position lists once you divide by 3.
2. Divide by 7 ft and round, then halve the spacing for the end gaps. Do the sum on paper before you pick up a pencil, so the wall is never the place you discover the count was 4 rather than 3.
3. Put a cross of painter's tape at every centre. Set the height first, commonly 66 in (168 cm) to the middle of the fixture, and keep every cross at that same height along the run.
4. Walk it at night with a torch. Hold the torch on each cross in turn, pointed at the wall, and look at where the pools would meet. Gaps show up instantly at walking speed and never on paper.
5. Check the crosses against the doors. Anything within 6 in (15 cm) of an architrave, a corner or a switch plate moves; slide the whole set rather than one fitting, or the rhythm breaks.
6. Find the boxes and the studs last. Where a fitting is hardwired the wall box has to land at the cross, so confirm the route before the tape comes down. Houseland's sconce hardwires to a standard wall box at AC 90-260V, which is the constraint that decides whether a position is really available.

What I'd do

Set the height, take the drop to the floor, multiply by 1.35 and use that as the target spacing. In a normal house that lands near 7.4 ft, and rounding the count to whole fittings pulls it back into the 6 to 8 ft band on its own. Then let the doors move everything sideways as one block.

For a passage under 40 in (102 cm) wide I would rather have 3 shallow fittings at 6.5 ft than 2 deep ones at 9 ft: the pools meet, and nothing sticks out into the walking line. That is the trade the fluted shape in our wall lamps collection is built around, with 6.5 in (16.5 cm) of height and 5.5 in (14 cm) of width on a shallow bracket. If the corridor in question is really a living room that reads as one, the layout argument in long narrow living room ideas comes before any lighting decision.

Two last things. If the run is long enough to need 3 or more positions, wire it so you are not walking the dark half to reach a switch, which is the case for the arrangement in a two-way switch on a hallway light. And if the ceiling is doing part of the job already, the same rounding method applied overhead is in spotlight spacing by ceiling height.
