Does LED Wall Art Graze Its Own Texture or Wash the Wall?

A light grazes a surface when it arrives at a shallow angle to that surface. Distance is only how a ceiling fitting buys the angle, which is why a rule written for a recessed luminaire cannot be carried across to something hanging on a hook. LED wall art with a hidden LED behind it does not graze its own face, because that light points at the wall, and the wall is the surface being lit.

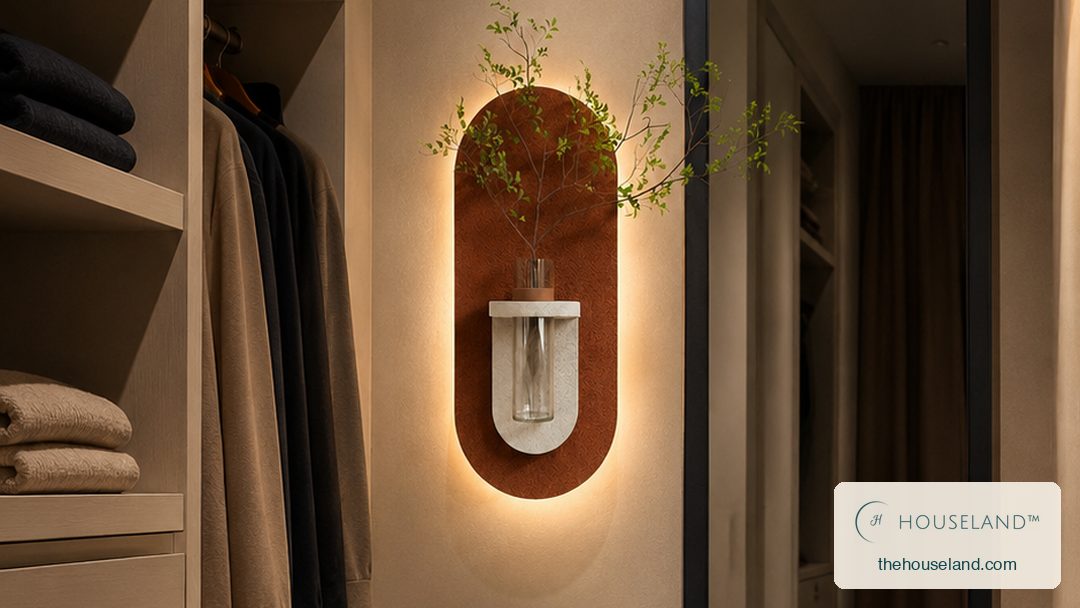

The 3.9 in (10 cm) figure everyone repeats is real, but it belongs to one recessed ceiling luminaire and, in the maker's own product guidance, it is a minimum rather than a maximum. Houseland's textured capsule panel hangs 1.6 in (4 cm) off the plaster on a keyhole hanger with the halo hidden behind it, closer to the wall than any published grazing setback, and the face you look at still gets none of that light.

Where does the 3.9 in (10 cm) grazing rule come from?

From one recessed ceiling luminaire, and it has been quoted backwards. ERCO's product page for Lightgap, a grazing light wallwasher recessed into the ceiling, says the distance from the wall should be at least 10 cm, which makes 3.9 in the floor that optic needs, not the gap that creates the effect. The press release for the same fitting says it can be positioned to within 3.9 in (10 cm) of the wall and still produce a uniform beam, and that is the sentence that escaped into decorating advice. One is a limit on how close you may go. The other is a minimum for texture. Neither describes an object mounted on the wall surface itself.

Setbacks you can act on are published in inches. Selux's wall grazing and wall washing application guide puts a grazer at 12 in or less from the wall and a washer at 12 in or more, then shows one textured accent wall from a 6 in setback, where the beam “strikes the wall at a narrower angle, producing shadowing that reveals and accentuates texture”, and from a 24 in setback, where the wall is “more evenly illuminated, but flatter in appearance”. ERCO's arrangement rule for the even version is a ratio rather than a distance: wall distance around a third of the room height, spacing up to 1.3 times that distance. On an 8 ft ceiling that lands a wallwasher about 32 in out.

What is the difference between washing, grazing and backlighting?

Three jobs, three geometries, and only one of them is about texture at all.

A backlit panel is doing the third job and only the third job. Houseland's spec sheet for the long panels calls the light direction an up and down wall wash rather than grazing, which is the honest word for it: the beam leaves the back of the frame, meets the wall at a wide angle a few inches away, and spreads. The result is a soft field of light with a shadow gap under the frame. ERCO's own definition puts the other two in opposition, describing grazing as the case where “the luminaire is positioned directly in front of the wall, emphasizing its materiality and surface texture”, while uniform wallwashing “emphasizes walls as a whole”.

Does LED wall art graze its own texture?

No, and no version of it can. The LED sits behind the panel and faces the wall, so the only surface receiving a shallow-angle beam is the plaster, while the front face is lit by whatever the room happens to be doing at that hour. Switch every other light off and the face goes darker than the wall around it, which is the silhouette effect people are actually buying, even when the photograph that sold it to them was shot with a separate light raking in from the side.

The gap does not rescue it either. On the capsule panel the body stands 1.6 in (4 cm) off the wall, which is ample to throw a halo and nowhere near enough to run a beam across a face 22 in tall. Geometry, not brightness, is the blocker: a source sitting behind a surface cannot illuminate the front of that surface at any output. If the relief in the piece is the reason you bought it, the light that shows it has to come from the room, and how much of that relief survives the trip across the room is a question of viewing distance as much as lighting.

From the shop

Wall Mounted Vase with LED Backlight, Textured Capsule Panel and Shelf

Design A is 23.6 x 9.4 in (60 x 24 cm) and Designs B and C are 22 x 9.8 in (56 x 25 cm), each 1.6 in (4 cm) deep with a hidden LED halo behind a hand-textured stone-effect face. Battery or plug-in power is chosen at checkout.

View the capsule wall vase panel — plug-in or battery options & current price

What does one degree of incidence angle actually buy you?

Far more than a foot of stand-off does. Shadow length is the height of the bump divided by the tangent of the angle the light makes with the surface, which is plain trigonometry rather than a lighting authority, and the curve turns vertical at the shallow end.

Going from 5 degrees to 1 degree multiplies the shadow five times, so the last few degrees of angle are worth more than the last several inches of setback. That is why sliding a lamp a couple of inches nearer the wall changes nothing you can see, while lifting the same lamp until its beam runs along the wall changes the whole surface. It also explains why grazing is unforgiving: at 1 degree a ridge you cannot feel with a fingertip throws a shadow you can see from the doorway.

How do you make a panel's own texture read after dark?

Light it from the room, at a shallow angle, with the panel's own halo turned down.

1. Walk a lamp you already own around the room until its beam lands on the wall the piece hangs on, then sit down and look. If the relief gains shadow from the sofa, the angle is working.
2. Get the source near the wall plane. Selux draws the line at 12 in or less for a grazer, so a floor lamp standing 4 ft out is a washer no matter how you tilt the shade.
3. Aim along the face rather than at it. A beam pointed at the middle of a piece flattens it as efficiently as a camera flash.
4. Turn the built-in halo down. The remote dims it, and a bright halo behind an unlit face is precisely the smear of light people complain about.
5. Inspect the wall before you commit to any of this. Grazing light and a wall that suddenly looks terrible are one physics with two intentions.

That last step is not caution for its own sake. The Gypsum Association's finishing standard has a defined term for what you are about to create: critical lighting, meaning “strong side lighting from windows or surface-mounted light fixtures”, which “may exaggerate minor surface differences”. The standard reserves a Level 5 finish, a skim coat over the entire surface, for rooms where critical lighting occurs. Most homes are finished to Level 4. Rake a light along one of those walls and you are lighting the taping, not only the art.

Should you add your own LED strip behind the panel?

Only with your eyes open about what it costs and what it cannot do. A strip taped behind a piece that already carries its own light gives you two uncontrolled sources on one wall, and it still points the wrong way for texture on the face. The strip-versus-panel comparison is worth reading before you buy tape rather than after.

There is also a warranty line that runs straight through this catalogue. Houseland publishes a three-year warranty on the four mains-powered backlit panels, and publishes no warranty term at all on the plaster ring or the capsule, the two pieces that can run on batteries. So “will modifying it void anything” has two different answers depending on which piece is on your wall, and the piece with the published term is the one you have most to lose by opening up.

If you want to match a strip to the built-in light on paper, we cannot give you the paper. Buy one strip, hold it against the piece with the halo running, and judge it with your eyes before you commit to a reel of it.

What I'd do

Treat the panel as the halo and buy the texture separately. The built-in LED is genuinely good at one thing, a soft wash on the wall behind the frame, and that is what makes a piece read as depth from the sofa in a dark room. It is not a grazer and it was never mounted to be one.

Then, if the surface itself is what you love, add one aimable light in the room, get its beam within a foot of the wall plane, and run it shallow. That is the whole trick. Everything else in the wall art collection behaves the same way, and a dark wall changes the maths again, which is its own question. What I would not do is buy tape in the hope of turning a wall wash into a graze. The angle is set by where the light sits, and behind the panel there is only one angle available.
