How to Aim an Adjustable Ceiling Light in a Hallway

Aim it at a wall, not at the floor. A hallway is read by its vertical surfaces - the two long walls, the doors, the art, the console table - so an adjustable ceiling light does its job pointed at one of those, and wastes itself pointed straight down, where all it makes is a hard bright disc on the carpet that everybody walks through.

Twenty minutes of nudging never converges because the pool of light is geometry, and geometry is quicker on paper than on a stepladder. Beam diameter equals 2 x (throw distance x tan(beam angle / 2)), so a 60 degree source about 7 ft 2 in above the floor lays down a pool roughly 8 ft 4 in wide, while a 24 degree source at the same height covers barely 3 ft. That single line explains the complaint: a narrow source in a corridor is a spotlight, not a corridor light, and no amount of tilting widens it.

Where should the pool of light land in a hallway?

On the vertical surfaces first, the walking route second. Archtoolbox's tabulation of the IES handbook puts a general corridor at 5-10 footcandles, or 50-100 lux, which is a low target - and a lit wall hands a good share of that back to the floor anyway.

Point the shade straight down and you get the inverse of what a corridor needs. The bright disc sits where feet go, the walls stay dark, the passage reads as a narrow tube, and the console table directly under the fixture ends up inside its own shadow. Lighting a wall makes a hallway look wider, because the eye judges the size of a space by the brightness of its boundaries rather than the brightness of its floor.

The fixture itself sets the arithmetic. Houseland lists this one as surface mounted and 9.4 in (24 cm) tall overall, so the source hangs that far below the plaster and the throw is always shorter than the room. Choose the one target before you touch anything: the art on the long wall, the console top, the door at the end, or the run of floor itself. One tilting shade does exactly one of those well. If the wall is still bare, what ends up on it decides the aim, so settle that first and aim once.

How do I aim an adjustable ceiling light in a hallway?

Aim at a mark, not at an impression. Stick a piece of painter's tape on the exact spot you want lit, tilt the shade until the middle of the pool sits on the tape, then walk away and look once instead of nudging twelve times.

1. Switch off at the breaker if the shade is warm or the joint needs force. Re-aiming a shade is not wiring work, but a hot fixture and a stepladder is a bad pairing.
2. Measure the throw, not the ceiling height. Subtract the 9.4 in (24 cm) fixture height: on an 8 ft ceiling the source sits about 7 ft 2 in above the floor, on a 9 ft ceiling about 8 ft 2 in. Every figure below comes off that, not off the room.
3. Mark the single target. Tape on the centre of the picture, or on the middle of the console top - the centre, never the top edge, because the pool is symmetrical about the point you aim at.
4. Aim from underneath, judge from 10 ft away. Standing beneath the fixture you cannot see where the beam lands. Set it, step back to the far end, and correct once.
5. Walk the hall in both directions before you tighten. If the bright source itself appears inside the shade opening at your own eye height, the tilt is too shallow and you have built a glare source instead of a light.
6. Measure the pool with a tape once it looks right. Write down the width of the bright part on the floor and the throw you measured in step 2. Those two numbers are what let you buy a second fixture that matches this one.

Houseland publishes five spec lines for this ball fixture - a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade, 9.4 in (24 cm) overall, surface mounting, and four shade colours - and no beam angle and no lumen output at all. So step 6 is not optional busywork. It is the only way you get the number the arithmetic needs.

How wide will the pool of light be from an 8 ft ceiling?

Multiply the throw by 1.15 for a 60 degree source, or by 0.43 for a 24 degree one. Portfolio Lighting's downlighting guide publishes the formula as beam diameter = 2 x (ceiling height x tan(beam angle / 2)) and works it out as 9.24 ft for 60 degrees on an 8 ft ceiling. Swap the ceiling height for the real throw and every pool shrinks with it.

Two caveats sit on top of that table. The IES defines beam angle as the angle between the two directions where intensity has dropped to 50 percent of maximum, so the smudge you see on the floor is wider than the table says and the genuinely useful core is narrower. And the table is useless if nobody published the angle.

Run it backwards in that case. Measure the pool, halve it, divide by the throw, take the arctangent, double the result. A 5 ft pool from a 7 ft 2 in throw is 2 x atan(2.5 / 7.17), which is about 38 degrees - a general spot, and now you know it in a way no listing told you.

Wall washing vs wall grazing: which one does a hallway want?

Washing, in nearly every hallway. Grazing is for a surface with texture worth dramatising; a painted drywall corridor grazed from close in just shows you every seam and roller mark the decorator left behind.

The 12 to 18 in figure circulates online as a wall wash offset. It is not one - Portfolio's own page calls it grazing, and ERCO's rule for wallwashers is that the distance to the wall equals one third of the room height, with luminaire spacing no more than 1.3 times that distance. On an 8 ft ceiling that is about 2 ft 8 in out from the wall and no more than 3 ft 6 in between fixtures. Set them closer to the wall than that and a flat hallway gets a row of scallops instead of a wash.

One more angle to steal from gallery practice: for anything behind glass, Lutron's guide to lighting artwork says tilt the downlight to 30 degrees, which pushes the reflection of the source down towards the floor and out of the eye line of whoever is looking at the picture.

From the shop

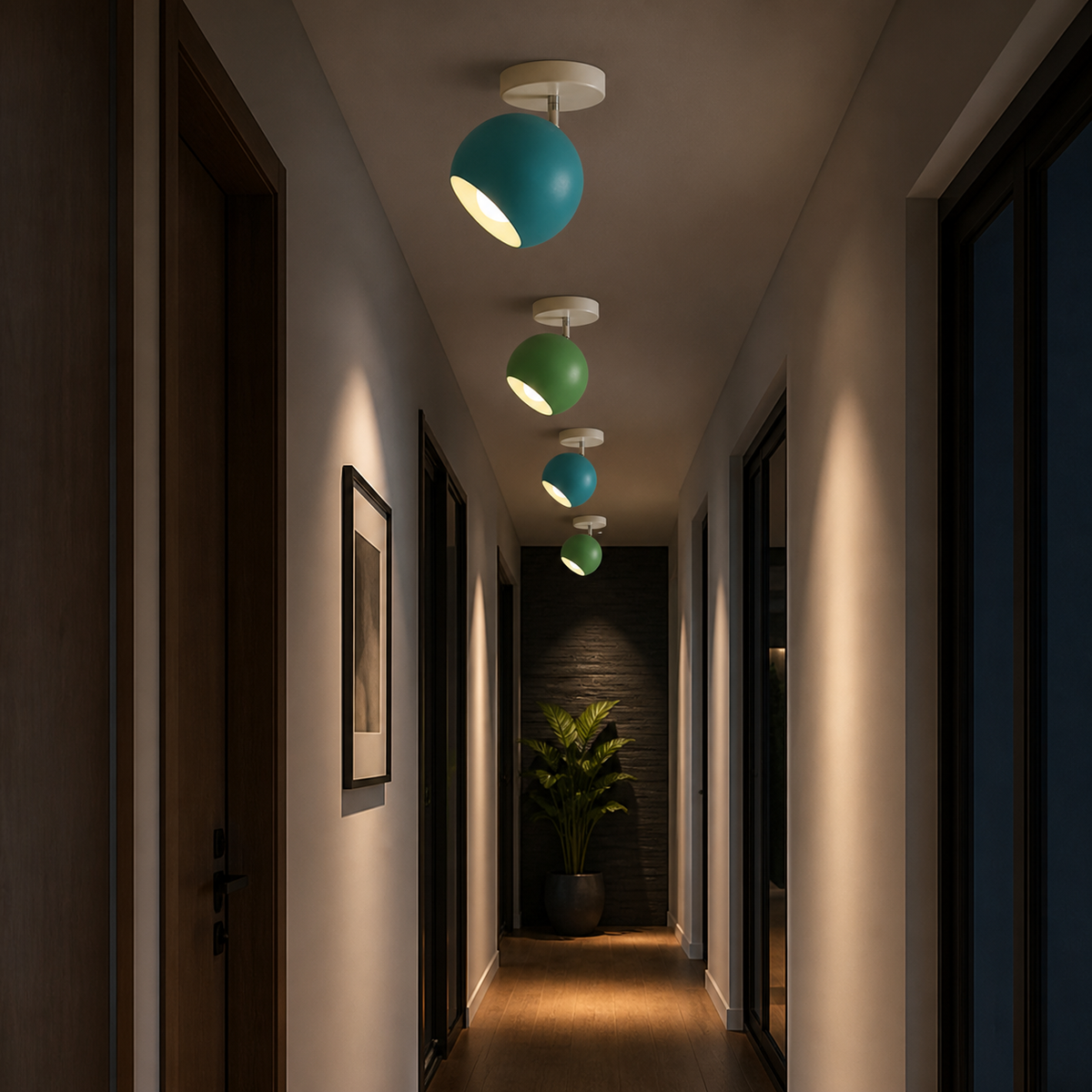

Modern Ceiling Light, Adjustable Ball LED Hallway Fixture, 4 Colors

The shade is 7.9 in (20 cm) across on a 4.7 in (12 cm) canopy, 9.4 in (24 cm) overall, surface mounted to the ceiling, in Green, Blue, Yellow or Pink.

View the ball hallway ceiling light — 4 shade colours & current price

Why is the light still in my eyes when I walk towards it?

Because the tilt that lights the far wall also points the source at your face. Aiming along the length of a corridor is the one direction that guarantees somebody walks straight into the beam, and the top of a staircase is worse again, since a person climbing is already looking up.

The trade calls the fix a shielding angle - how far the lamp is recessed behind the rim of its shade before it becomes visible. Upshine's write-up of the shielding and cut-off relationship puts the minimum at 10 to 15 degrees for ordinary indoor lighting and 30 to 45 degrees where quality matters. Aim across the corridor rather than down it, and the eye line problem disappears without costing you a single footcandle on the wall.

Houseland does not publish a shielding angle or a baffle depth for the ball fixture - the spec table stops at 7.9 in (20 cm) of shade width, a 4.7 in (12 cm) canopy and surface mounting - so the tilt itself is your only glare control, and the walk-through in both directions is how you verify it. The same tension between useful light and glare shows up at a bedside, where the fix is height and angle rather than a bigger lamp.

What if one fixture cannot cover the whole hallway?

Then the problem is spacing, and no aim solves it. Portfolio's guide caps ambient spacing at ceiling height x 1.5 and accent spacing at ceiling height x 0.75 - 12 ft and 6 ft respectively on an 8 ft ceiling - and asks for roughly 50 percent overlap between neighbouring coverage areas so there are no dark gaps between them.

A 20 ft hallway lit by one fixture in the middle is two fixtures short of even light, whatever angle you set. If you want the whole run even, a track with three heads or a second surface fixture beats any amount of tilting, and it is worth admitting that before you spend another evening on the ladder. A single adjustable ball wins in a short entry, or where there is one thing worth lighting: a picture, a console, the head of the stairs. A pair of wall lights down the sides is the other honest answer, and in a corridor that takes knocks the material of the sconce matters as much as the beam.

What no listing on this page will give you is lumen output, colour temperature in Kelvin, a beam angle or a maximum lamp wattage. Check the label printed on the fixture and the pictogram on the box when it arrives, ask before you buy if the number decides the purchase, and measure the pool on your own floor once it is up - that measurement beats any figure in a listing anyway.
