How to Hang Art on a Wall With a Switch in the Way

Hang the art off-centre and leave the switch alone. How to hang art on a wall with a switch comes down to two measurements you can take in 5 minutes: the clear band a hand needs around the plate, and the distance from that plate to the stud its box is fixed to. Everything else on the wall follows from those two.

Moving a switch is wiring work - a box relocated, cable extended, plaster patched, paint touched in. A picture hook is one hole and a spirit level. So the picture is the thing that yields, and the rest of this is how to make it yield without the wall reading as an accident.

How do you hang art on a wall with a switch in the middle?

Work down this list and stop at the first move your wall allows, because the top 4 cost you an afternoon and filler while the last one costs an electrician.

1. Slide the piece sideways. Measure the clear plaster to the left of the plate and the clear plaster to the right, then hang in whichever band is wider. That is 2 holes, and a mistake costs filler.
2. Lift it above the switch line. Plates sit around 48 in (122 cm) up, so a panel's bottom edge can clear one outright when the wall above is empty. It fails as soon as the top edge crowds the ceiling.
3. Split one piece into two. Let the plate fall into the gap between them and the switch reads as a designed pause instead of a collision.
4. Change the format. A tall narrow piece standing beside the plate solves a wall that a wide horizontal one cannot cross.
5. Move the switch. Last, and only when the wall offers nothing else. Opening plaster to relocate a box is a trade job, not a decorating job.

The order matters because the first 4 are reversible with a filler knife and a paint pot, and the fifth is not. Width decides which of them is even on the table: the Houseland backlit panel is built 47.2 in (120 cm) or 59 in (150 cm) wide, so sliding it sideways needs that much uninterrupted plaster on one side of the plate before it is worth marking the wall.

Where is the stud when the switch sits in the way?

Right beside the plate, because a switch box is fixed to the face of a stud, which puts solid timber within about an inch of one edge of that plate. American and Canadian framing runs those studs 16 in (41 cm) apart centre to centre, sometimes 12 in (30 cm) and sometimes 24 in (61 cm), as Wikipedia's article on wall studs sets out.

That is a useful accident. Heavy art wants a stud and the switch has just told you where one is - you only have to work out which side. Three ways to settle it before anything gets drilled:

• Sweep a stud finder across the plate. It reads solid on one side of the box and hollow on the other.
• Look into the gap. With the plate off and the power off at the consumer unit, the box sits tight against timber on its fixed side and shows a void on the free side.
• Step 16 in (41 cm) out and check again. A confirmed hit there gives you the spacing, and with the spacing you can predict the next 3 studs across the wall.

Then keep the holes away from cable. Article 300.4(D) of the National Electrical Code, indexed by UpCodes, requires a cable run alongside a framing member to sit at least 1.25 in (32 mm) back from the edge a nail or screw would come through, or else be shielded by a steel plate. A fixing driven near a switch is precisely the shot that rule was written for. I keep every hole 6 in (15 cm) clear of the plate sideways and a hand's width above or below it, which costs nothing and ends the argument. If the plaster turns out to be sitting on masonry rather than timber, the drilling changes and so does the bit you need.

How close can the frame come to the switch plate?

Close enough that a hand lands on the plate without brushing the frame, which in practice means a clear band of 3 in (8 cm) of bare wall on the side you approach from. No domestic code fixes that number. The published band that does exist is the reach envelope in the 2010 ADA Standards for Accessible Design, which places operable parts between 15 in (38 cm) and 48 in (122 cm) above the floor and caps the force to work one at 5 pounds using a single hand. Houses are not bound by it. It is still why your switch sits at the height it does, and why raising the art is easier than raising the switch.

The rest is measurement rather than rule. Plates are not one size: a standard, a midway and an oversize plate from the same maker differ by roughly half an inch in each direction, so measure the one on your wall instead of trusting a number. Add your clear band, mark the resulting rectangle in low-tack tape, then stand 8 ft (2.4 m) back and look at the tape before a single hole is drilled. The eye punishes a near miss far more than it punishes a frank gap.

Two different failures hide inside the same complaint. One is a reach failure: knuckles meet the frame before a finger reaches the rocker, and only moving the art fixes it. The other is purely visual: the switch works perfectly, and the frame edge simply stops close enough to the plate that the wall looks mis-set. That one is fixed by moving the art further away, or by moving it so much closer that the two objects read as one group.

A gap over the switch vs an off-centre hang: which reads better?

Off-centre wins whenever the wall has one clear side, and the deliberate gap wins when the plate really does sit in the middle of the wall. The test is whether the room gives the art a second anchor - a sofa, a bed, a console - to centre on instead of the plaster.

Centring on the furniture rather than on the wall is what rescues most of these rooms, and it is the same reasoning that governs styling a long wall above a sofa. The sofa is the line the eye checks the art against. The plaster is not.

From the shop

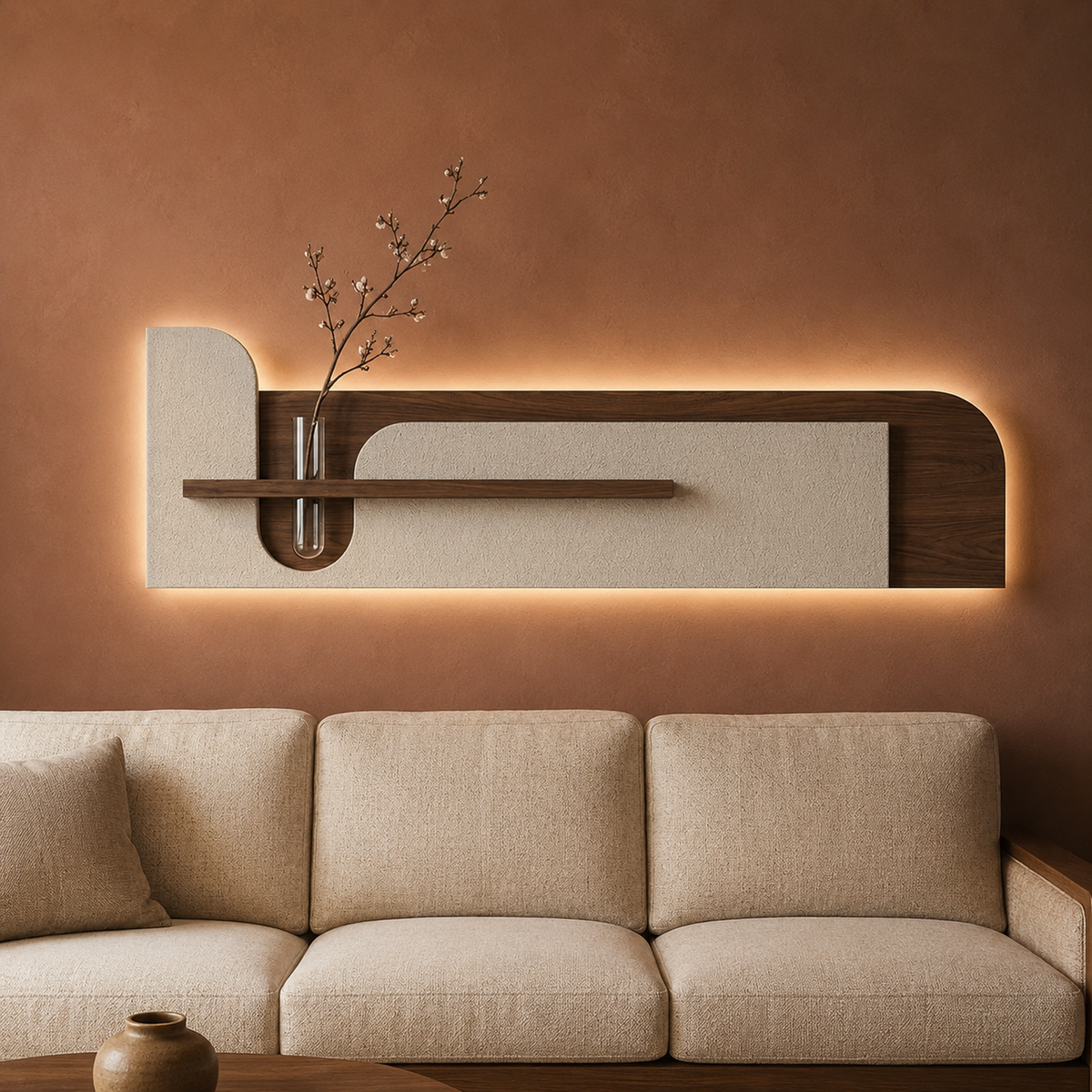

LED Wall Art with Shelf and Bud Vase, 59 in Backlit Stone Textured Panel

Two widths, 47.2 in (120 cm) and 59 in (150 cm), with a slim ledge and a clear glass tube bud vase across the face. It plugs in on 90-260V with a remote and a touch switch, so no wall box and no electrician are involved.

View the 59 in backlit panel — 2 sizes & current price

What if there is no clear wall left to move the art into?

Change the piece rather than the position, because a narrower panel gives you plaster back on both sides at once. Houseland makes this backlit panel in two widths, 47.2 in (120 cm) and 59 in (150 cm), and stepping down to the smaller one hands back 11.8 in (30 cm) of wall - usually more than a plate and its clear band ever needed.

A lit piece brings a second fitting with it, which is the part people forget until the box is open. This panel runs on a plug and an adapter at 90-260V with a remote and a touch switch, so the wall now carries a cord as well as a face, and the cord wants to travel to an outlet that may sit on the same side as the switch. The product page answers that plainly: run it down behind the sofa, or into a paintable cord channel, with the cord leaving at the back edge of the panel. Plan the cord route and the switch clearance on the same piece of tape, not on 2 separate evenings.

If none of the widths in the wall art collection fits the band you have, the honest answer is a different shape: a vertical piece, a pair of small ones, or a ledge that carries objects rather than a face that spans the wall. And if a first attempt has already left holes in the wrong place, patching and re-drilling is routine - the usual mess is an anchor spinning in an oversized hole, which is a 10 minute repair rather than a reason to give up on the wall.

What I'd do

Tape the outline first. I cut the panel's footprint out of newspaper, tape it up with the plate uncovered, and live with it for a day before touching a drill - it costs nothing and it settles the off-centre question faster than any rule of thumb.

Then I take the 3 measurements that matter: plate to the left corner, plate to the right corner, and plate to the ceiling. If the wider side beats the panel width plus 3 in (8 cm), the piece slides and the job is done. If it does not, I drop a size before I split the piece, because 1 well-placed panel almost always beats 2 apologetic ones. Relocating the switch stays where it belongs, at the bottom of the list, behind every option that only costs filler.
