How to Hang Hexagon Shelves Without Studs: By Wall Type

Match the anchor to the wall, not to the shelf. Hollow drywall takes a metal toggle. Plaster over lath takes a cavity toggle long enough to clear the whole build-up. Brick or block takes a masonry plug and screw. Do the pushpin test first so you know which one you are buying.

Yes, with the correct anchor. A properly set metal toggle in sound drywall carries a shelf like this without complaint. Failures come from the wrong anchor or a hole drilled into soft, blown plaster, not from the missing stud. Each module is rated up to 5 kg (about 11 lb), far less than a bookcase asks of a wall.

Usually not in drywall. A plastic expansion plug needs solid material to expand against, so in a hollow board it spins in the hole and tears the paper face. Keep plastic plugs for masonry, where they do the job they were designed for.

Read the figure printed on the anchor packet and compare it with the module's 5 kg (about 11 lb) rating plus whatever you intend to stand on it. A rating applies to the material named on the packet, so leave headroom rather than buying to the exact number.

Possibly, and that is normal. The layout spans 41 in wide by 22 in tall, and build-up can change across that distance near a corner, a patched repair, or an old doorway. Pushpin every mark separately instead of assuming the whole wall is one material.

Exactly the size the anchor packet states, and no larger. An oversized hole is the most common reason an anchor spins instead of tightening. Drill a 1/8 in pilot first to read the dust, then step up to the stated bit.

About 1/8 in, enough for the wide part of the keyhole to pass over the head and slide down onto the neck. Set one module, check it sits flat against the paint, then match every other screw to that standoff.

Only if it suits your wall. Mounting hardware is included, and the instruction is to mark the screw positions and fit them to a fixing suited to your wall, which means buying anchors separately for plaster, brick, or a cavity.

The hole is too big, or the material crumbled as you drilled. Stop turning it. Move about 2 in sideways, drill fresh at low speed, and shift that one module. Because the pieces hang independently, a 2 in move almost never shows.

No. Filler and repair compound hold no load-bearing anchor, so a refilled hole is a decorative fix, not a structural one. Fill it for looks, let it set hard, and put the fixing into sound material a couple of inches away.

Rarely worth it. Old holes are usually the wrong diameter for your anchor and often already worn oval. Treat them as filling jobs and drill fresh, unless one happens to sit under a keyhole and takes your new anchor snugly.

Stay out of the vertical and horizontal zones around outlets, switches and taps, and stop at the 1/8 in pilot to check what comes out. If the pilot meets metal or copper shows in the dust, stop and move the module.

Only for masonry. Drywall and plaster want a normal drill on low speed with hammer action off, because hammering shatters the plaster skin around the hole. Switch hammer on only once you are through the skim and into brick or block.

A tile or carbide bit, low speed, hammer off, with tape over the spot so the tip cannot skate. Once through the glaze, change to the bit that suits whatever is behind the tile, which the dust will tell you.

Choose the hexagon set if there is no usable stud where you want shelves. Eight modules give you eight independent fixings you can move an inch or two to dodge soft plaster, while one long shelf locks you into bracket positions you cannot shift.

Per piece, yes, and that is the design. Each module here is rated up to 5 kg (about 11 lb) at 3.5 in (9 cm) deep, so weight is split across many small fixings rather than concentrated on two brackets. Compare ratings, not shapes.

One shelf is fewer holes; eight hexagons are more forgiving holes. If a fixing point lands somewhere soft you can slide a hexagon and remark it, whereas moving a bracket means redrilling the shelf itself.

On the modular set one module tilts and the other seven stay put. On a long floating shelf a failed bracket usually takes the whole span and its contents. On a stud-free wall that difference matters more than any load figure.

Depth decides it, not shape. Every module here is 3.5 in (9 cm) deep, slim enough to clear shoulders in a passage, while a deeper shelf at the same height catches people. Measure your walkway width before choosing either.

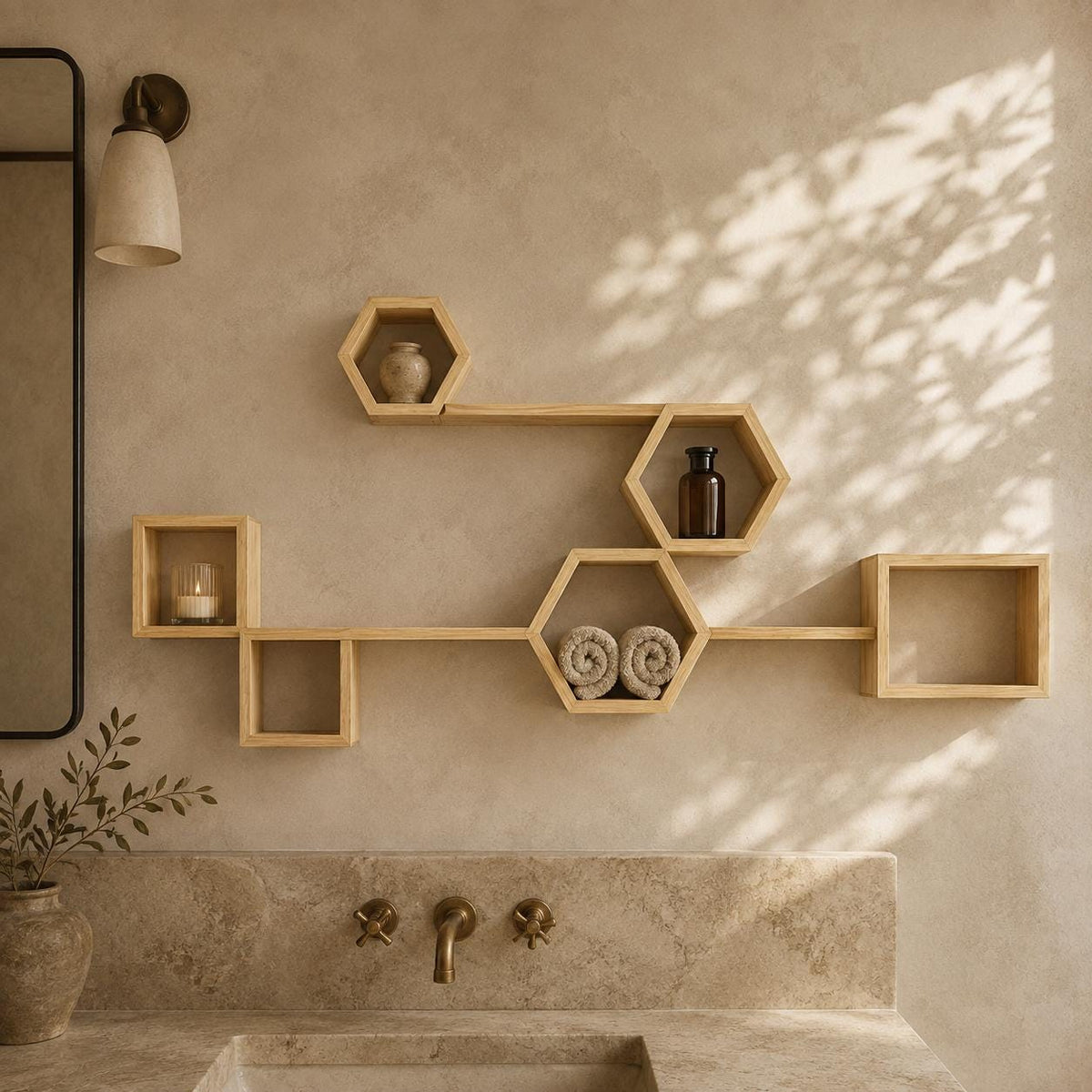

Yes, and the set is built for exactly that: three hexagons, three open boxes and two straight ledges. The hexagons carry the geometry, the boxes frame single objects, and the ledges pull the arrangement into one line.

No. Each module hangs on its own keyhole hanger, so you can offset them freely. That freedom is what lets you put fixings where the wall is sound rather than where a grid says a hole should go.

41 in (104 cm) across and 22 in (56 cm) down in the layout shown in the diagram. Since every module hangs independently, the same eight pieces also stack taller and narrower for a slimmer section of wall.

A metal cavity fixing will, because it clamps the back face of the board rather than gripping inside the hole. Board thickness matters mainly for choosing an anchor whose stated grip range covers it, so measure before buying.

Drill one 1/8 in pilot inside the shelf footprint, push in a straightened paper clip with a small hook bent into the tip, catch the back face and mark the wire. That figure is what the anchor's grip range has to cover.

A toggle passes through the board and opens out behind it, clamping the back face. A plastic anchor stays inside the board and relies on friction in the hole. Behind hollow board the toggle keeps working when someone leans on the shelf.

The metal toggle, placed where the wall tested most solid. Load is capped at 5 kg (about 11 lb) per piece regardless, so decide which piece will hold the ceramics and give that one your strongest fixing.

A cavity fixing that clamps the board itself, never a plug that needs something solid behind it. Dot-and-dab, battened and panelled walls all read as a void when a pushpin drops through with no resistance.

Only the lightest pieces, and only with a fixing rated for that board thickness. A pin that pushes into air almost instantly is telling you the thin skin is doing all the work, so put a ledge there instead of a loaded hexagon.

No. A screw straight into solid timber beats any anchor, so use the stud where the layout allows and anchor the rest. Mixed fixings across eight modules are normal and invisible once the pieces are up.

Run a strong magnet slowly across the paint to catch the drywall screws, which sit on the stud line. Knocking helps too, hollow between studs and dull over one. Confirm with a 1/8 in pilot before you trust either method.

Not always. 16 in centers are the common case in framed walls, but spacing varies by house and changes around windows and doors. Find one stud, measure along the wall, and confirm the next with a pilot hole rather than assuming.

Only if you genuinely prefer the new arrangement. The reason to buy a modular set is that keyhole hangers plus correct anchors free you from 16 in framing, and bending a layout to the studs usually makes the wall look accidental.

Screw those two straight into the timber and anchor the other six. Each module carries only its own load, up to its 5 kg (about 11 lb) rating, so a mixed wall of screws and toggles is perfectly ordinary.

Keep well clear. Cables commonly run vertically above and below an outlet and horizontally toward the next one, so move your mark and let a 1/8 in pilot confirm before the full-size hole. A module can move; a cable cannot.

Not reliably, which is why the pushpin matters. A finder locates framing and sometimes metal, but it will not tell you whether the surface is gypsum board, a plaster skim over brick, or plaster on lath. The dust from a pilot hole will.

Treat it as masonry until the dust proves otherwise. Drill one 1/8 in pilot and read the color: orange-red is brick, grey gravel dust is concrete or block, chalky white means you are still in gypsum. Buy the plug to match.

A cavity toggle long enough to pass through the whole build-up and open behind the lath. Old plaster runs thicker than modern board, so measure the depth with a wire through a pilot hole before buying, and drill with the hammer setting off.

Hammer action, or too much speed. The skin fractures around the bit before the bit is through it. Tape the spot, run the drill slowly with hammer off, and let the bit cut instead of pushing it into the wall.

By what happens after the skin. A bit that breaks into a soft void and then meets something gritty is lath. One that stops dead and throws orange-red dust is brick. Both feel identical for the first 1/8 in, so you have to go through.

Yes, but not into the patch. Old filler holds nothing. Move the mark about 2 in onto sound plaster, and because every module hangs on its own keyhole hanger that shift almost never changes how the arrangement reads.

Plan for cavity toggles across all eight modules, since that sound points to plaster on lath or a battened wall with a gap behind. Measure the build-up with a bent wire through one pilot hole and buy anchors whose grip range covers it.

No. Filler-based fixes in a hollow wall do not give an anchor the back face it needs to clamp. Use a fixing designed for that build-up, or move the module to material that can hold one.

One per keyhole. Count the keyhole hangers routed into the back of the module you are hanging and give each one its own fixing, all set to the same standoff so the piece sits flat against the wall.

Yes, wider than a plastic anchor, because the wings have to pass through the board. It is still a fill-and-sand job. Worth knowing before you commit to eight sets of holes across 41 in of wall.

No. Most drop into the cavity as soon as you undo the screw, so buy a couple of spares. A lost toggle behind the plaster is harmless and at worst rattles if the cavity is empty.

Plants, ceramics, candles, framed photographs and a short run of paperbacks, keeping each piece under its 5 kg (about 11 lb) rating. It is not built for a full row of hardbacks or anything you would call storage, which is what the slim 3.5 in (9 cm) depth is telling you.

They can. The modules have no back panel, which is what makes them read as light on the wall rather than as boxes stuck to it, so anything smaller than the opening can pass straight through. Keep tiny items toward the front edge.

Yes, if drilling is allowed, and the number of holes is worth raising with the landlord first. Anchor holes fill and sand like any others. There is no adhesive alternative I would trust against a 5 kg per piece rating.

Work from a single horizontal pencil line rather than measuring each piece up from the floor. Mark the line with a level, transfer every keyhole position from it, and confirm the first module sits flat before drilling the remaining marks.

Yes, once. Push gently upward under each module and look for movement or a hairline crack in the paint where the screw enters. Anything that has settled means that anchor never fully clamped, and moving one piece 2 in is easier than replacing a ceramic.
