If I Hit a Wall Stud on One Side What Screws Should I Use

If i hit a wall stud on one side of the shelf but not the other, what kind of screws should i use? Use a 2-inch #10 wood screw driven directly into the stud on one side, and pair it with a 3/16-inch toggle bolt or heavy-duty molly bolt on the hollow drywall side. Driven directly into solid framing, a standard wood screw creates an unyielding point of support. Standard plastic expansion anchors struggle in hollow sheetrock under offset shelf loads, making a clamping anchor essential for the unsupported side.

When hanging multi-piece wall arrangements—like the Houseland 6-piece set made of natural pine wood with a clear matte lacquer—you will frequently encounter asymmetrical mounting points. Standard residential wall studs sit 16 inches apart on center. If your shelf measures 20 inches wide or features a staggered wall arrangement, one mounting bracket will align with vertical timber while the other hovers over empty wall space. Combining a wood screw on the stud side with a mechanical toggle bolt on the drywall side ensures your installation remains level, stable, and flush against the wall surface.

The Mechanics of Asymmetrical Shelf Mounting

Hanging wall mounted cube shelves when only one side catches a wooden stud requires balancing two completely different mechanical forces. On the stud side, the deep threads of a wood screw bite directly into 2x4 wall framing. That single anchor point easily manages both vertical weight and the pulling leverage exerted by a shelf loaded with decor.

The hollow side presents a different engineering challenge. Standard drywall cannot hold significant weight without specialized anchors; toggle bolts or molly bolts are recommended over standard plastic expansion anchors for floating shelves carrying more than 10-15 lbs. While a basic plastic anchor might stay put initially for lightweight items, long-term vibration, leverage, and keyhole engagement can cause standard plastic sleeves to pull free from 1/2-inch sheetrock over time.

When working with keyhole brackets on floating box shelves, screw depth precision is paramount. Keyhole hangers require the screw head to sit exactly 1/8 to 1/4 inch proud of the wall surface to catch the metal plate securely while keeping the wood flush against the wall. If the screw head sticks out too far, the shelf wobbles on the wall; if it sits too deep, the keyhole plate cannot slip over the head.

If I Hit a Wall Stud on One Side of the Shelf But Not the Other, What Kind of Screws Should I Use?

To ensure a secure mount, pair a heavy-duty wood screw with a hollow-wall mechanical anchor. Here is the exact breakdown of the hardware you should reach for when mounting square wall shelves or display ledges across a stud gap:

• Stud Side Hardware: Use a #8 or #10 wood screw, 2 to 2.5 inches in length, with a pan-head or round-head profile. Avoid countersunk flathead screws because their tapered heads prevent keyhole brackets from seating flat against the metal keyhole lip.
• Drywall Side Hardware: Use a 1/8-inch or 3/16-inch spring toggle bolt or a expansion steel molly bolt. Toggle bolts expand behind the drywall to sandwich the sheetrock between a wide metal wing and the machine screw head, creating a clamp that will not pull through under load.
• Matching Head Heights: Because keyhole brackets slide down over both screw heads simultaneously, the screw head on the stud side and the machine screw head on the toggle bolt side must have matching pan-head profiles and identical diameters. This maintains equal tension across both brackets.

When selecting 5kg weight limit wall shelf anchors for the drywall side, spring toggle bolts provide maximum peace of mind. Even though individual pieces in a modular collection are rated for lighter decorative items, using structural anchors on the drywall side prevents accidental pull-out if someone bumps the wood box shelves or leans on a ledge while dusting.

Comparing Mounting Hardware for Stud and Drywall Mixes

To select the right hardware combination for your wall setup, review how different drywall anchors perform when paired with a direct stud screw on the opposite side:

Step-by-Step Installation Procedure

Mounting shelving cubes wall units when hitting a single stud takes roughly 20 minutes when following a structured step-by-step process:

1. Locate and Mark the Stud: Use a stud finder to locate the center of the wooden wall stud. Mark this point on your wall at the desired mounting height.
2. Measure Bracket Spacing: Measure the exact distance between the centers of the keyhole hangers on the back of your shelf. Homeowners often ask, are the keyhole brackets pre-installed on the wood or do i have to screw them in myself? On quality sets, keyhole hangers come pre-installed flush into the rear wood faces.
3. Transfer and Level the Second Mark: Hold a spirit level against your first stud mark, extend a pencil line horizontally, and mark the second mounting point at the exact keyhole spacing distance over the drywall.
4. Pre-Drill the Holes: Drill a 1/8-inch pilot hole directly into the wooden stud at your first mark. At the second mark over drywall, drill the clearance hole required by your toggle bolt (typically 3/8-inch or 1/2-inch depending on wing size).
5. Install the Drywall Anchor: Thread the machine screw through the keyhole-compatible washer, screw the toggle wings onto the tip, collapse the wings, and push the assembly through the drywall until it snaps open inside the wall cavity. Tighten until snug, leaving 1/8 to 1/4 inch of the head protruding.
6. Drive the Stud Screw: Drive your #10 wood screw into the stud pilot hole, leaving the head protruding by the exact same 1/8 to 1/4 inch distance as the anchor screw.
7. Mount and Seat the Shelf: Align the keyhole brackets over both screw heads, press the shelf flat against the drywall, and slide it down firmly to lock both brackets onto the screw shanks. Verify levelness with your spirit level.

Hardware Setup for Pine Boxes and Ledge Sets

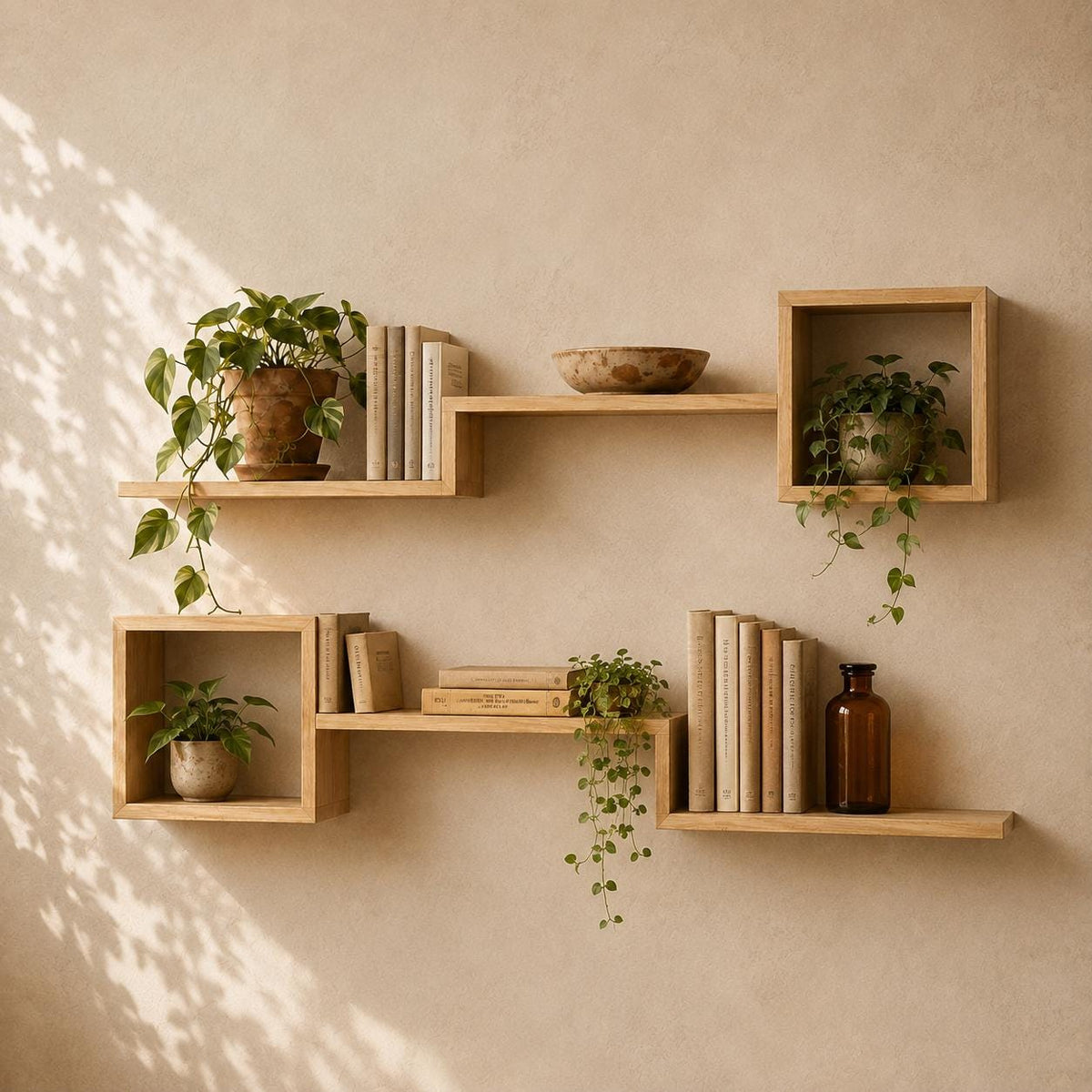

The Houseland set includes two open square boxes—with the large box measuring a 27cm square wood display box (10.6 in) and the small box measuring 8.3 in—alongside four straight ledges that create a 90cm long wooden wall ledge set when joined end to end.

Because each module in the Houseland set carries a load rating up to 5 kg per piece, choosing the correct hardware combination ensures that your floating display handles its full weight capacity without straining wall anchors or pulling out of the sheetrock.

From the shop

Cube Wall Shelves, 6-Piece Natural Pine Box and Ledge Set of 6

Crafted from solid natural pine with a warm honey finish, this 6-piece set features 2 open square boxes and 4 straight ledges rated up to 5 kg per piece.

View the 6-piece pine cube shelf set — dimensions & current price

Real Pine vs. Hollow MDF: Structural Safety and Kid's Bedrooms

Homeowners frequently wonder: are these natural pine shelves actually sturdier than those hollow mdf floating shelves? Solid pine wood offers superior screw-holding capability and structural rigidity compared to hollow pressboard or thin MDF boxes wrapped in paper veneer. Solid timber holds keyhole bracket screws tightly without stripping out over time.

If you are deciding if these are better for a kid's bedroom than traditional bracketed shelves with visible metal arms, solid pine boxes and ledges provide two clear safety advantages:

• Hidden Mounting Hardware: Keyhole brackets sit completely flush behind the wooden frame, eliminating exposed metal support arms or sharp bracket edges that children could bump into.
• Eased Edge Finishing: Buyers often ask, are the edges and corners of the pine boxes sharp or slightly rounded off? Natural pine box sets feature machine-sanded edges that are lightly rounded off beneath their clear lacquer finish, making them smooth to the touch and safe for nurseries or children's rooms.

Ledge Depth, Photo Display, and Wall Protection

When evaluating a 9cm vs 15cm depth wall shelf, slim profiles offer distinct advantages in tight spaces. Featuring a 3.5 in (9 cm) depth and a 0.6 in (1.5 cm) board thickness, compact pine ledges save visual space in narrow hallways and entryways while keeping display items secure against the wall.

A common practical question is: are the ledges deep enough to hold framed 8x10 photos leaning against the wall without slipping? Yes. A standard framed 8x10 picture rests securely on a 9cm depth ledge at a natural 10 to 15 degree tilt angle without the bottom of the frame sliding off the lip.

To keep your walls in pristine condition during installation, review our guide on how to stop shelves from scuffing paint while positioning keyhole brackets. Explore the complete Houseland wall shelves collection for additional mounting ideas and layout configurations.
