Is 5kg Really Limit or Can I Push it to 7kg if I Hit a Stud?

People often ask: is 5kg really the limit or can I push it to 7kg if I hit a stud? The short answer is no. The 5 kg rating accounts for the hardware on the back of the shelf and the depth of the wood, not just the anchor in your wall. Hitting a wood stud provides a stronger anchor point, but you should never push the load to 7 kg. The mounting hardware routed into the wood remains the primary bottleneck. If you overload it, the shelf will tilt or fail even if your screw stays firmly embedded in the wall.

Is 5kg really the limit or can I push it to 7kg if I hit a stud?

To understand why a stud does not increase your load capacity, you must look at how the shelf connects to the wall. A wall stud is incredibly strong. A basic three-inch screw driven into a wood stud can hold dozens of kilos of shear weight. However, the connection between the screw head and the shelf itself is the actual weak link. The Houseland 9-piece pine hexagon and ledge wall set uses standard routed keyhole hangers. These are small metal plates cut directly into the back of the shelf.

The rating of up to 5 kg per piece is based on what the wood and the metal keyhole plate can handle together. A heavier load at 7 kg creates immense cantilever force. The weight pushes down on the front edge of the shelf, which levers the top back edge of the shelf away from the wall. If you hit a stud, the screw in the wall will not budge. Instead, the metal keyhole on the back of the shelf will bend, or the tiny screws securing that plate will tear straight out of the timber. The shelf falls while your heavy-duty anchor remains perfectly intact on the wall.

The physics of keyhole hangers under cantilever loads

A keyhole hanger requires a precise mechanical fit. The head of your wall screw must slide into the narrow upper slot of the metal plate and grip the inside edge. At 5 kg of load, this tension remains stable and secure. At 7 kg, you exceed the structural shear strength of the small factory screws holding the metal plate to the shelf casing. The metal plate warps outward. Once the plate bends, the shelf detaches from the wall screw.

The depth of the shelf amplifies this stress. The depth of these modules is 3.5 in. Placing a 7 kg item at the front edge of a 3.5 in shelf acts like a pry bar against the wall. The top keyhole is pulled outward, while the bottom edge of the wood bites into the plasterboard. This is why a stud does not upgrade the load rating of the shelf itself. It only prevents the wall material from crumbling.

Why hitting a wall stud only solves half the problem

If you cannot hit a stud, you have to use drywall anchors. This is where most installations fail immediately. Standard plastic ribbed drywall anchors are often included in cheap kits, but they are only rated for 5 to 15 pounds and are highly susceptible to pulling out under cantilevered loads. They work purely on friction. When a cantilevered shelf pulls straight out away from the wall, a ribbed anchor simply slides out of the gypsum dust.

When you hit a stud, you eliminate the friction problem. The screw threads bite deeply into solid timber. But you still have to contend with the material of the shelf. Because Houseland cuts these modules from natural pine wood with a clear matte lacquer, you are dealing with a softwood. Softwood compresses under excessive pressure. If you hang 7 kg on a single shelf, the screw head resting inside the keyhole slot bites hard into the wood backing. Over time, that weight causes the pine around the keyhole to compress and deform. The shelf will start to sag forward. You can learn more about how wood density impacts load stability in our breakdown of Do Pine Wall to Wall Floating Shelves Weigh Less Than Oak.

Wood type and board thickness limitations

Board thickness dictates how much hardware can be recessed into the back of a shelf. A board thickness of 0.6 in limits how deep the keyhole channel can sit. The hardware needs enough wood behind it to prevent tearing out, and enough wood in front to remain hidden from view. If you force 7 kg onto wooden floating shelves that are 0.6 in thick, the mechanical stress concentrates heavily on a fraction of an inch of pine.

The hardware must sit flush. If the metal plates protrude, the shelf will never sit flat against the wall. The factory routing takes away wood mass to make room for the plate. You must respect the structural limits of that remaining wood. We discuss these hardware tolerances further in Are Pine Wall to Wall Floating Shelves Sturdier Than MDF.

Step by step: How to mount for a true 5kg hold

Achieving the stated 5 kg capacity requires perfect installation. Keyhole hangers have zero tolerance for sloppy measurements. If your screws are two millimetres off, the shelf will not seat properly.

1. Locate the wall studs if possible. If you must use hollow drywall, discard standard ribbed anchors and purchase quality toggle bolts.
2. Mark your holes accurately. You can use a piece of painter's tape placed over the back of the shelf to mark the keyhole distances, then transfer that tape directly to the wall as a drilling template.
3. Ensure the tape is perfectly level on the wall using a spirit level before marking the drill points.
4. Drill pilot holes. Use a narrow bit for wood studs or the specified spade bit for your toggle anchors.
5. Drive the screws. Leave exactly enough of the screw head protruding so it catches the keyhole slot snugly. This is usually about 2 to 3 millimetres of exposed shaft.
6. Slide the shelf down onto the screw heads. You should feel a firm, tight lock. If the shelf wobbles, remove it and tighten the wall screws a quarter turn.

What happens if you overload geometric shelves?

Honeycomb shelves and geometric shapes fail in a predictable pattern when overloaded. The warning signs are usually visible long before the shelf actually falls. Observe the gap between the top edge of the shelf and the wall.

From the shop

Wooden Floating Shelves, 9-Piece Pine Hexagon and Ledge Wall Set

These nine pieces feature open modules and a warm honey pine finish, designed to safely support up to 5 kg per piece when mounted correctly.

View the 9-piece pine hexagon set — dimensions & current price

Distributing weight across open modules

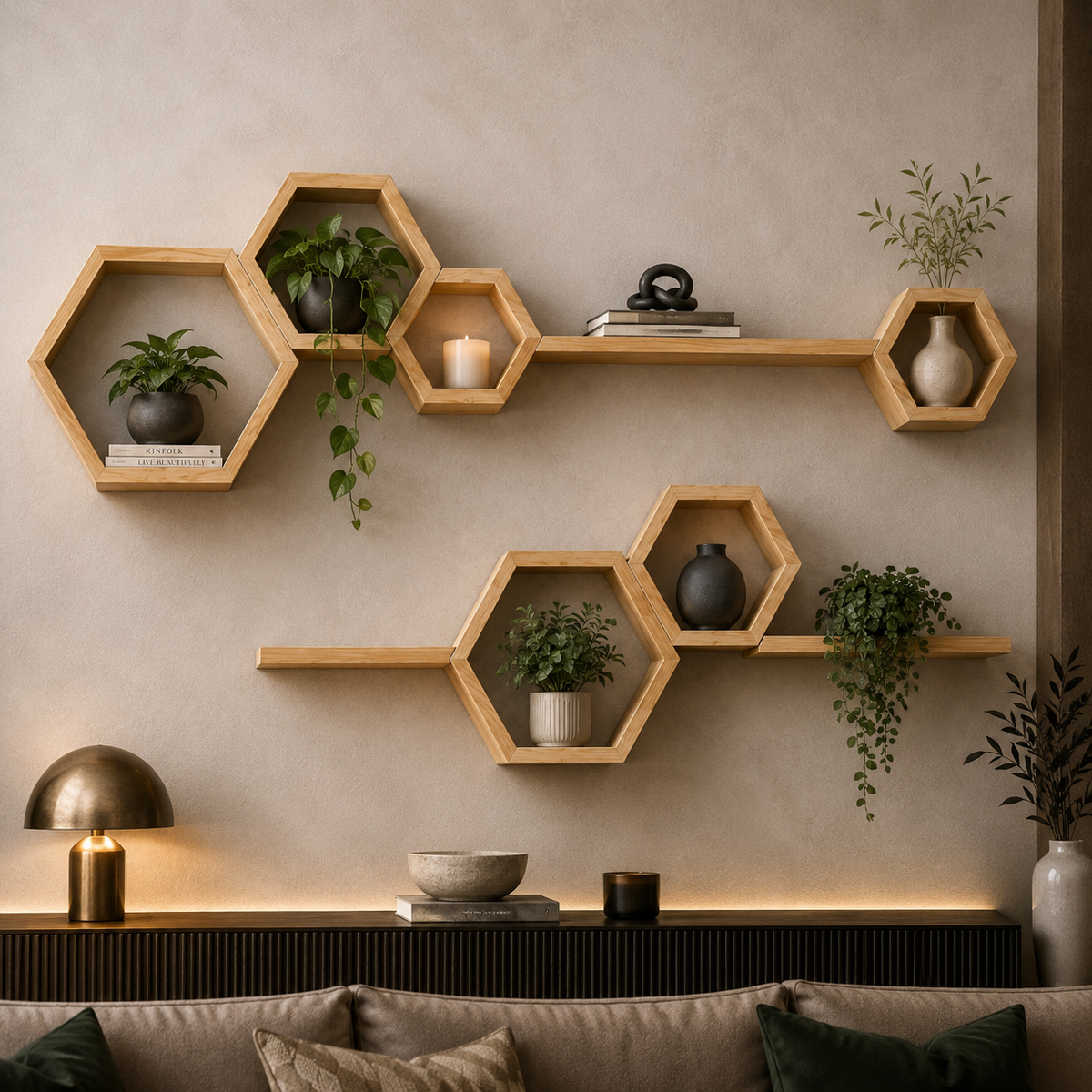

Geometric units offer a unique advantage because they allow you to spread visual weight. The Houseland set contains six hexagons across three widths (13.8 / 11.8 / 9.8 in) and three straight ledges (19.7 in). With open modules and no back panel, you compose a wall rather than fill a single heavy block. If you have a collection of heavy items, distribute them across multiple wooden shelves for wall rather than clustering them.

Do not place a 7 kg stack of hardcover books on one single 19.7 in straight ledge. Instead, put 3 kg of books on the ledge, 2 kg of trailing vines on a 13.8 in hexagon to create plant wall shelves, and another 2 kg of display objects on the 11.8 in hexagon. This keeps every piece well under the up to 5 kg per piece limit. Staggering the load across multiple anchors is vastly safer than relying on one overloaded stud.

Straight ledges versus closed shapes

The straight ledges in this set are 19.7 in long. A straight ledge relies entirely on its two keyhole points. A hexagon shelf has a slightly different center of gravity. The load sits at the flat bottom of the hexagon, but the keyholes are mounted at the top two angled corners. This internal geometry spreads the cantilever force differently than a flat ledge.

However, the official rating remains exactly the same across all shapes. Do not assume the largest hexagon can hold 7kg just because the load is contained within a closed timber frame. The upper joints still bear the rotational pull against the wall. Display shelves look best when carefully curated. A 5 kg limit gives you plenty of capacity for paperbacks, small ceramics, and framed prints. Hexagon shelves above bed setups should be kept even lighter, perhaps 2 to 3 kg maximum, simply for peace of mind while sleeping. Keep the heavy loads for floor-standing bookcases and let your floating units act as visual accents.
