Short answer: you do not need a stud at every hole. The working rule for drywall anchors vs studs for floating shelves on a staggered five-piece run is one screw into a stud per long ledge wherever a stud line falls inside the span, and rated anchors for everything else. At 5 kg (11 lb) per piece, which is the rating on the Houseland 5-Piece Pine Ledge Wall Shelf Set, the three hexagons are almost certainly going into nothing but drywall, and that is a normal way to hang them.
The set is a 27.6 in (70 cm) ledge, a 19.7 in (50 cm) ledge and three pine hexagons, each 3.5 in (9 cm) deep on a 0.6 in (1.5 cm) board. Five pieces means roughly nine screw positions in the wall. Count the keyholes on your own pieces before you mark anything, because this gets decided hole by hole, not once for the whole set.
Drywall anchors vs studs for floating shelves: which holes need a stud?
The holes worth putting into wood are the outer fixings on the two ledges, and only where a stud line actually lands inside that span. Everything else takes an anchor. The reason is span arithmetic, not strength: a piece has to be wider than the stud spacing before it is guaranteed to cross one.
| Piece | Span | Stud centers inside the span at 16 in on center | At 24 in on center | Sensible mix |
|---|---|---|---|---|
| Long ledge | 27.6 in (70 cm) | At least 1, sometimes 2 | At least 1 | One stud screw, one anchor |
| Short ledge | 19.7 in (50 cm) | At least 1 | Can be 0 | One stud screw and one anchor, or two anchors |
| Hexagon, three of them | Keyholes a few inches apart | Usually 0 | Usually 0 | Rated anchors in both holes |
So the realistic outcome on a nine-hole stagger is two screws in wood and seven in drywall. That is not a compromise you are settling for. Each piece is rated to 11 lb, and two fixings sharing that load means about 5.5 lb per screw at the ceiling.
What does 16 inch on center mean for a nine-hole stagger?
It means stud centers repeat every 16 in, giving you a strip of wood roughly 1.5 in wide every 16 in and half-inch drywall with air behind it in between. That grid is fixed. Your layout is the only thing that can move.
Here is the measurement that settles most of the argument: measure the distance between the two keyholes on the back of a ledge. Unless that distance is 16 in, 24 in, or an exact multiple, both holes on one piece physically cannot land on stud centers. One and one is the best case, and that is true no matter how carefully you hunt.
The stagger helps you here. Stud lines run vertically, so raising or lowering a piece changes nothing about which holes find wood. Vertical position is free. Horizontal position is the expensive one, because sliding a piece 8 in to chase a stud moves it half a bay away from where you wanted it in the composition.
Which anchor should I use for a pine ledge in half-inch drywall?
Any anchor listed for 1/2 in board and rated above its share of 11 lb will do the job, so the real choice is about hole size and how the anchor behaves in thin drywall. A shelf at this weight is a low bar for a modern anchor.
| Fixing | Hole left in 1/2 in drywall | Where it fits on this set | What to read before buying |
|---|---|---|---|
| Screw straight into a stud | Screw sized | Outer hole on either ledge | Length: enough to pass 1/2 in of board and still bite wood |
| Ribbed plastic plug | Small | Hexagons and other light holes | Whether the pack lists 1/2 in board at all |
| Self-drilling threaded anchor | Medium | A ledge hole that misses a stud | Rated load and the stated drywall thickness range |
| Metal toggle or snap toggle | Largest | Soft or already-patched wall | Whether the rating is shear or pull-out |
Anchor ratings vary by brand and by board thickness, so read the number printed on the pack rather than trusting a figure from an article. If a pack states no thickness range, it is not the anchor for this wall. One more thing worth knowing: a shelf load is mostly shear, running straight down the wall, with a smaller pull-out component created by how far the load sits from the wall. A 3.5 in ledge has far less of that leverage than a 10 in shelf, which is a quiet argument for slim depth. The board matters too, and a 0.6 in pine board behaves differently from engineered panel, which is the subject of pine versus MDF for floating shelves.
How much weight is each shelf actually carrying?
Each piece is rated to 5 kg (11 lb), so the full five-piece set tops out around 25 kg (55 lb), spread over roughly nine fixings. Splitting one long shelf into five modules is what makes an all-anchor install reasonable: no single screw is being asked to hold much.
The load is not shared evenly in practice. Whichever fixing sits lower or tighter takes more of it, so plan as though one screw on each piece is doing most of the work. That is exactly why the mixed approach is fine: on a ledge, make the stud screw the strong one.
What the 11 lb rating covers, per the spec: plants, ceramics, candles, framed photographs and a short run of paperbacks. What it does not cover is a full row of hardbacks or anything you would call storage. The 3.5 in (9 cm) depth is telling you the same thing the rating is. The shelf's own weight counts against the fixings too, and the gap between softwood and hardwood is real, which pine versus oak by weight gets into.
From the shop
5-Piece Pine Ledge Wall Shelf Set

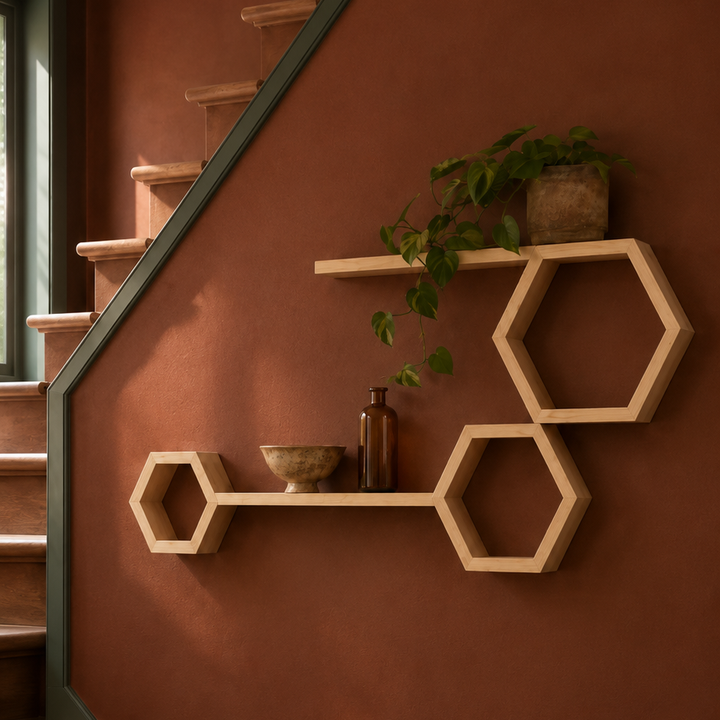

Houseland five modules that split the load: a 27.6 in (70 cm) ledge, a 19.7 in (50 cm) ledge and three pine hexagons, each rated to 5 kg (11 lb). Every module has a keyhole hanger routed into the back and the mounting hardware is in the box.
View the 5-piece pine ledge shelf set — dimensions & current priceHow do I find the studs without guessing?
Use two methods and agree with yourself before drilling. A stud finder gets you close and a magnet confirms it, because drywall screws sit in a vertical line down the middle of the stud.
- Sweep a stud finder horizontally at roughly the height of the long ledge, and mark both edges of every hit, not just the center.
- Run a strong magnet over the same band. It grabs the drywall screws, which gives you a vertical line of points on the real stud.
- Step 16 in left and right from that line and check again. If the second and third readings land on the same spacing, the grid is confirmed.
- Lay a strip of masking tape along the line and mark the hole positions on the tape, which also stops the bit skating across paint. There is more on protecting the finish in keeping shelves from scuffing paint.
- Drill one small pilot hole inside a tape mark. Wood gives resistance and a fine dust; drywall gives almost none and a puff of white. Commit only after that.
If a reading comes back as a wide band, you may be over a doubled stud, a pipe or a duct. Move along and take another. Near kitchens, baths and switch boxes, pick a different fixing point rather than exploring with a drill bit.
Should I put up wall shelves or buy a narrow bookcase for a small bedroom?
Shelves win on space, a bookcase wins on load. These modules project 3.5 in (9 cm) from the wall and use no floor at all, while a bookcase gives you a rating that handles hardbacks and boxes. Measure the depth of any bookcase you are considering and hold it against 3.5 in, because that difference is what you feel walking past the end of a bed.
Split it by what you are storing. Books that are heavy and numerous belong in furniture, since 11 lb per module covers only a short run of paperbacks. Frames, plants, candles and small ceramics belong on the wall, where they also stop reading as clutter on a nightstand. There is no lip on the front edge of these ledges, so anything narrow and top heavy is better hung than propped.
The other half of the decision is holes. A five-piece stagger asks for around nine of them and a bookcase asks for none, so if you are counting future filler, that is a genuine point for furniture.
What happens to the wall when I take the set down?
You are left with about nine holes of three different sizes. A stud screw leaves the smallest hole, a plastic plug leaves a slightly larger one, and a toggle leaves the largest. That is the practical case for using the smallest anchor that comfortably carries its share of 11 lb rather than the strongest one on the shelf at the store.
Do not try to reuse an anchor hole after shifting the layout, because the board around it has already been opened up and will not grip. Fill it, let it set, then drill fresh at least an inch away. For the wider holes that toggles and old plugs leave behind, patching large anchor holes walks through the repair.
Last thing: check the screws again after about a week. Anchors bed in and keyhole plates settle, and a quarter turn at the right time is cheaper than the alternative.
