Does a Shelf Set Have to Be Hung as Pictured?

No, and nothing in the box makes you. Does a shelf set have to be hung as pictured is really a question about how the pieces attach, and when every module carries its own keyhole hanger on the back there is no sequence, no frame and no left-to-right order to obey. Houseland says as much on the product page: the modules are independent and the arrangement is yours. The photograph exists to show you the parts at a plausible scale, not to specify where they go.

What does constrain you is duller and more useful. The wall behind the plaster decides which fixings you can use, the 11 lb (5 kg) per-piece rating decides what can stand on each one, and your own arm decides which pieces you will ever touch again. Those three limits rule out perhaps a tenth of the layouts you might sketch. Everything else on that wall is taste, including the rules people quote at you.

Does a shelf set have to be hung as pictured?

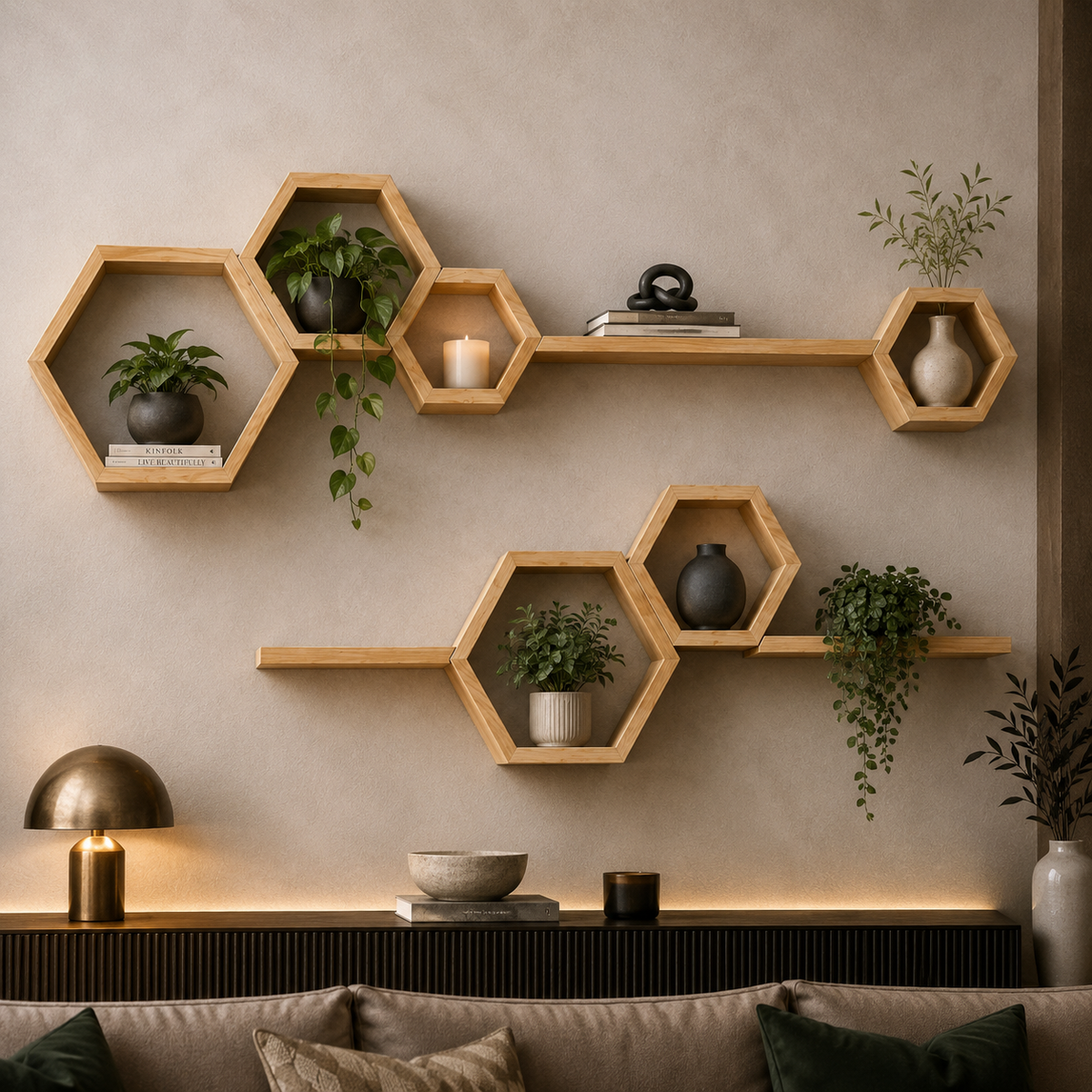

No, because the photograph is a styling shot and half of what makes it work is not in the box. Look at what the camera is actually selling. Plants, books, ceramics and candles are props; the shipment is nine wood modules and one hardware set. Copy the picture exactly and you own the skeleton of it, then spend a second budget filling the openings before the wall looks like the image that made you buy.

The mechanical point matters more. No connector joins one module to the next, so the flush, gapless look in a catalogue photograph is not a feature of the product at all: it is careful marking, done once, by somebody who had a level and no hurry. That cuts both ways. Nothing forces the pieces together, and nothing holds them together either, so a layout with 6 modules edge to edge asks more of your pencil than a layout with 6 modules deliberately spaced apart.

Scale is the third thing the photo hides. A room shot flattens depth and normalises size, so a 13.8 in (35 cm) hexagon reads as whatever the sofa beneath it implies. Measure your wall and mark the outer footprint in tape before you decide the arrangement is too small, because the same nine pieces cover a 3 ft run tightly or a 7 ft run loosely, and the photograph committed to one of those without telling you which.

What actually limits how you rearrange the pieces?

Four things, and only one of them is aesthetic. Take them in order and most layout arguments settle themselves.

• What is behind the plaster. Studs in the US and Canada usually sit 16 in from centre to centre, sometimes 12 or 24 in (wall stud spacing). A layout that assumes a fixing anywhere will meet hollow drywall somewhere, so the anchor is the design decision, not an afterthought.
• Weight per module, not weight in total. Each piece is rated to 11 lb (5 kg) spread across the shelf rather than hung off the front edge. Nine of them do not pool into one budget you can spend unevenly.
• Depth. At 3.5 in (9 cm) these are display ledges, so a layout that puts the deepest-looking object on the narrowest module will fail regardless of where the module sits.
• Reach. An unobstructed forward reach tops out at 48 in above the floor and bottoms out at 15 in in the ADA's own figures (section 308.2.1). Above and below that band a shelf becomes decoration you dust twice a year.

Hollow-wall anchors are better than their reputation and the numbers are public. A heavy-duty toggle bolt is rated by its maker at 238 lb in half-inch drywall and 802 lb in concrete, needs 1-7/8 in of clear space behind the wall, and goes in through a single 1/2 in hole. Against an 11 lb shelf that is enormous headroom, which is why the honest constraint is the shelf's own rating rather than the fixing's. If a hole has already gone wrong, an anchor that spins in the hole is fixable without moving the layout, and masonry needs its own kit, covered in choosing a drill bit for concrete and brick.

Catalogue layout vs your own: what actually differs?

The catalogue layout optimises for one photograph from one distance, and your wall has to work from four. Here is what each arrangement costs in practice.

Mirroring is the deviation to start with because it changes nothing structurally and everything visually. A layout drawn for a wall with a window on the left will fight a room where the window is on the right, and flipping it costs you a rubbed-out pencil line. Splitting the set across two walls is the most under-used option of the five, and the pieces suit it: the alcoves either side of a chimney breast want small groups rather than one wide composition.

How should you plan a layout that is not the one in the photo?

Build it on the floor first, then move it to the wall in one go. Seven steps, and the drill comes out at step six.

1. Tape the wall's usable footprint on the floor. Same width, same height, marked in painter's tape, so you are arranging inside the real boundary rather than an imagined one.
2. Lay all nine pieces out and photograph them from above. The camera flattens the arrangement the way the wall will, and a photo lets you compare version four against version one honestly.
3. Fix the largest piece first. It carries the most visual weight, so its position is the only one that constrains everything else.
4. Decide your gap and keep it. One number, used everywhere. A consistent 2 in gap reads as deliberate; gaps of 2, 3 and 1-1/2 in read as an accident.
5. Transfer the layout to the wall with paper or tape. Cut rectangles to the outer size of each module and stick them up, then live with it for a day before marking a single hole.
6. Mark the keyhole positions, not the module outlines. The hanger sits inside the piece, so the screw goes where the hanger is, and a level line through the screw marks is what makes the row look straight.
7. Hang the lowest row first. Working upward keeps your body out of the way of the pieces already up, and a knock at this stage is the commonest way a finished module gets marked.

Give the arrangement a week before you judge it. The wall shelves collection is built around modules that hang independently precisely so a layout can be edited later, and the same planning method covers frames and boxes in planning a gallery wall with picture ledges.

From the shop

9-Piece Pine Hexagon Wall Shelf Set

Six hexagons in three widths, 13.8, 11.8 and 9.8 in, plus three straight ledges of 19.7 in, each piece 3.5 in (9 cm) deep with a keyhole hanger routed into the back. Rated up to 11 lb (5 kg) per piece, hardware set included.

View the 9-piece pine hexagon set — dimensions & current price

Do the composition rules people quote actually hold?

Weakly, and one of them rests on a claim its own field does not support. The rule of odds says an odd number of subjects is more interesting than an even one, so at least 3 if you have more than 1; the rule of thirds places the subject near the lines dividing a picture into 3 columns and 3 rows. The rule of thirds is usually explained as a simplification of the golden ratio, and on the golden ratio as a historical composition guide there is little evidence to support the claim (composition in the visual arts).

Use them as tie-breakers, not as tests. A set of 9 modules is already an odd number, and splitting it 5 and 4 across two walls keeps one group odd and makes the other even without anything visibly going wrong. What does hold is the underlying observation that even numbers invite the eye to pair things off and look for a centre line, which is why a symmetrical layout needs to be accurate to survive and an asymmetrical one forgives a 1/2 in error.

The real test is cheaper than any rule. Stand where you actually stand in that room, at the distance you actually stand, and look for 5 seconds. If your eye lands somewhere and settles, the arrangement works. If it tours the wall looking for the point, the layout has no anchor, and moving one large piece lower fixes that faster than reshuffling all 9.

What I'd do

Ignore the photograph and start from the wall's fixed points: the window edge, the sofa back, the light switch. Put the two 13.8 in (35 cm) hexagons where the eye lands first, group the smaller pieces around them, and run the three 19.7 in (50 cm) ledges as a single horizontal underneath if the wall is wide enough to take one. That arrangement is nothing like the catalogue image and uses the same nine pieces.

Then hold back two modules. Hanging seven and keeping two in the box gives you a spare for the hallway and an easy correction if the wall reads crowded, and Houseland's set makes that painless because each piece is separate hardware rather than part of a fixed frame. Mark once, measure twice, and accept that the first arrangement is a draft. The holes are 1/4 in of filler and 10 minutes, which is a cheaper mistake than living with a layout you copied.
