Can a Spice Rack Organizer Mount Behind a Cupboard Door?

Yes, a cupboard spice rack organizer fits behind most cabinet doors, but only if three numbers agree: how deep the unit is, how much clearance sits behind the closed door, and how much shelf depth you are willing to give up inside. Miss any one of the three and the door stops shutting, which is how most of these projects fail.

The units built for this job are shallow on purpose. Rockler lists the Rev-A-Shelf door-mount range at 21.5 in tall and 3.125 in deep, in three widths, fixed with four screws. Fast Cabinet Doors lists its adjustable version at 4 in deep with three movable tiers. Those depths are not styling decisions. They are what survives inside the gap a closed door leaves behind it.

Will a Cupboard Spice Rack Organizer Fit Behind Your Door?

Three measurements decide it, and a tape measure settles all three in about two minutes.

1. Measure the gap between the closed door and the front edge of the fixed shelving. Rockler states that the door-mount range requires 4.5 in of clearance behind the door, and that figure is the whole test. Less than the unit is deep and the door will not latch.
2. Measure the inside width of the opening, stile to stile on a face-frame cupboard. The hardware is sold to that number rather than to the outside width of the cabinet, which is why a 15 in cabinet does not automatically take the widest unit.
3. Work out what is left. CabinetCorp puts standard wall cabinets at 12 in deep, so a 4 in unit on the door claims a third of that depth for the door swing. House Digest makes the same point from the other end: you have to run shallower shelves inside, or cut the ones you have, or the door will not close over a full cupboard.

For scale, the Houseland wall-mounted spice shelf sits in the same envelope, 3.9 in deep on Small and 4.1 in on Medium and Large, because anything much past 4 in stops behaving like a door-side fitting and starts behaving like furniture. The difference is where it lands: that one is drilled or stuck to a wall, and a door-mount unit hangs off hinges that were sized before you added anything.

How Do You Measure the Clearance Behind a Cupboard Door?

Close the door, then measure from the inside face of the door to whatever sticks out furthest inside, not to the back of the cabinet.

1. Open the door and hold a ruler flat against the inside of the door panel, square to it. The number you want is the distance to the front edge of the nearest fixed shelf.
2. Do it at the top, the middle and the bottom of the door. A cupboard with a face frame gives you roughly 0.75 in more room than a frameless one, because the frame holds the door proud of the box.
3. Check the corner the door sweeps through. A door on a concealed hinge travels inward as it opens, so a unit that clears the shelf when closed can still catch the cabinet side at 20 degrees.
4. Subtract the height of what you will actually store. A standard 4 oz jar, per the Aaron Packaging listing for square glass spice jars, is 1.7 in square and 4.09 in tall, so a tier spaced for it needs roughly 5 in of vertical room before lids and labels.
5. Take 0.5 in off your final answer and treat that as the working figure. Hinges settle, doors sag, and a fit that is exact on paper rattles in practice.

Two things skew the measurement. Pull-out wire baskets and undershelf hooks already eat the same gap, and so does anything tall stored at the front of the shelf, which is why the tallest bottles in a cupboard end up being the thing that stops the door closing.

What Happens to the Hinges When You Load the Door?

The door gets heavier than the hinge count assumed, and the hinge count was chosen for the bare door.

Blum publishes the rule its own installers work to: two hinges are optimal for door weights of 9 to 13 lb (4 to 6 kg), and three hinges for 13 to 26 lb (6 to 12 kg), with the handle weight counted in the total. Doors wider than 25.6 in (650 mm) get an extra hinge again. A loaded rack pushes a door from one band into the next, and nobody adds a third hinge when they add the spices.

The load also sits in the worst place for it. Weight hung on the swinging edge of a door acts on a long lever back to the hinge cups, so the drooping corner is the first symptom, followed by a door that catches its neighbour. Weigh the loaded unit on a kitchen scale before you commit, add it to the door, and compare the total against those bands rather than guessing. If you land in the upper band, fitting the third hinge is a cheaper afternoon than re-boring a sagging door.

Two habits make it worse. Slamming a door is now slamming a shelf of glass, and jars stored above eye level get lifted out one-handed, which is exactly the pull that loosens a cup. Getting the spice drawer or shelf organised in the first place is usually cheaper than paying for the hinge repair afterwards.

Cupboard Door vs Kitchen Wall: Which Placement Actually Works?

The door wins on hidden storage; the wall wins on everything you use daily.

The last row is the one people skip. A closed cupboard is a genuinely better home for ground spices than an open wall beside a hob, so if the shelf you hang is going where the steam goes, the door had a real advantage you have just traded away. Placement beats hardware here: pick the spot first, then the fitting.

Houseland sells the wall-side answer in three widths, 11.4, 13.8 and 17.5 in, with two screw hooks and two adhesive pads in the same box, so the same shelf suits an owner drilling into plaster and a tenant who cannot. The rest of the kitchen and home range is chosen on the same test: does it survive the way the room is actually used.

From the shop

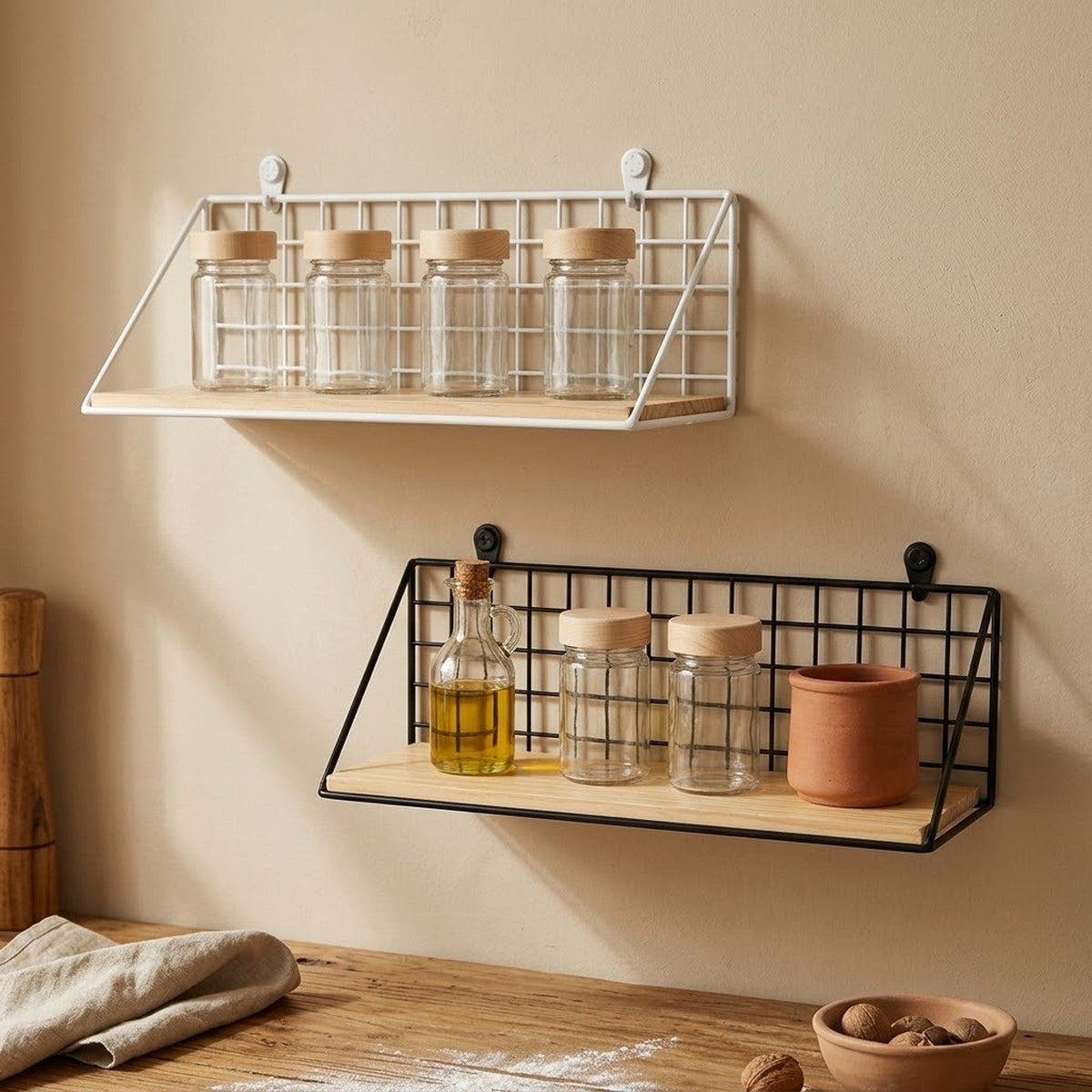

Wall Mounted Spice Rack, Steel Wire Grid Shelf with Wood Base

A steel wire shelf on a solid wood base in three widths, 11.4, 13.8 and 17.5 in, and 3.9 to 4.1 in deep. Two screw hooks and two adhesive pads come in the box, so it hangs with or without a drill.

View the wire spice rack — 3 sizes & current price

Can You Screw Into a Cabinet Door Without Wrecking It?

Only with a screw shorter than the door is thick, and a pilot hole.

• Decor Cabinets puts most kitchen cabinet doors at 3/4 in thick, with a raised-panel style at 13/16 in. That is your entire budget. A screw longer than the panel comes through the front of the door, and no amount of filler makes that look like an accident.
• Fix into the rails and stiles, not the centre panel. On a shaker door the middle panel floats in a groove and often is not solid timber, so a fixing there pulls out under a shelf of glass jars.
• Drill a pilot. A screw driven dry into 3/4 in of MDF or a veneered core splits it along the grain, and the split runs where you cannot see it until the door starts creaking.
• Use every fixing point the unit gives you. The Rev-A-Shelf door-mount hardware is specified to mount with four screws, and using two because two lined up is how a fitting ends up on the floor.
• If you rent, do not drill at all. A tension rod between the cupboard sides, a hanging basket over the shelf edge, or a shelf on the wall outside the cupboard all avoid putting holes in someone else's door.

One more check before the drill comes out: open the door fully and see what it hits. A door-side unit adds 4 in to the swept path of the door, so a cupboard in a corner, next to a fridge, or beside a window reveal can jam against something it used to clear. Test it with a stack of books taped to the inside of the door for a day. It costs nothing and it catches the problem while it is still reversible.

What I'd do

Measure the clearance first and let that single number make the decision.

• Measure the gap between the closed door and the fixed shelving. Under 4.5 in, stop, because that is what the door-mount hardware asks for.
• Weigh what you plan to store, add it to the door, and check it against the 9 to 13 lb band that two hinges are built for.
• Count the shelf depth you will lose inside. Losing a third of a 12 in wall cabinet to store 8 jars is a bad trade in a small kitchen.
• If the answer comes out marginal, hang a shallow shelf on the wall instead and keep the cupboard whole. It moves the load off the hinges entirely.
• Whichever you choose, label the lids rather than the sides, because both layouts are read from above or from an angle.

The cupboard door is genuinely good storage for the jars you reach for once a month. It is a poor home for the six you use every day, and most kitchens only need somewhere sensible to put those six. Sorting that out is the same problem as clearing the tools off a crowded worktop: decide what earns prime position, then find it a fixing that will hold.
