Why a Wire Spice Rack Sags Under a Full Row of Jars

A wire spice rack sags under a full row of jars because three things stack up at once: the jars weigh more than they look, the span is long for how thin the metal is, and the two fixings are being levered out of the wall rather than pressed down into it. Lift the jars off. If the rail springs back level, the metal was never the problem.

Span is the part people underestimate. Wikipedia's summary of beam deflection gives the maximum sag of a simply supported beam under an even load as 5qL⁴ / 384EI, which means deflection climbs with the fourth power of the length and falls as the section's second moment of area rises. A thin round wire has very little second moment of area to give.

Why Does a Wire Spice Rack Sag Under a Full Row of Jars?

Start with the load, because it is the number nobody weighs. Houseland's product page puts roughly six standard 4 oz jars on its Small shelf, eight on the Medium and ten on the Large, and a full glass jar of dried herb is a lot denser than the empty one you handled in the shop. Ten of them in a line is a real load in a very small footprint.

Then the geometry. The Sagulator, the shelf-deflection calculator woodworkers have leaned on for years, states the span rules as arithmetic you can do in your head: increase a span by one fourth and deflection doubles, double the span and deflection is eight times greater, take one fifth off the span and stiffness roughly doubles. It also gives the number that matters to your eye, which is that the eye notices about 0.03 in of sag per running foot, so the calculator targets 0.02 in per foot or less. That threshold is why a shelf can be structurally fine and still look wrong.

The third factor is the one that actually fails in most kitchens: a shelf that stands 4 in out from the wall does not hand its fixings a straight downward load, it hands them a rotation. The weight acts a few inches out from the plaster, so each fixing has to resist the twist as well as the mass. That twist pulls the top of the fixing away from the wall, which is the direction a plug in plasterboard is worst at. The rail dips, you blame the wire, and the wire is fine.

Heat and steam sit underneath all three. Fixings loosen faster above a hob than beside a doorway, and any adhesive mounting has a working temperature band. Keeping a loaded rack clear of the burners is the same argument as getting the tools off a crowded worktop: the spot that is easiest to reach is often the spot that wrecks the thing.

Is the Shelf Bending, or Is the Wall Fixing Moving?

Hold a straightedge along the front rail and look at where the gap opens up.

A rail that dips in the middle while both ends stay put is deflection. A rail that stays straight while the whole unit leans out from the wall is a mounting failure. They look identical from across the room and they need opposite repairs, so spend the 30 seconds.

One more check worth doing before you drill anything: take everything off, leave the empty shelf for a day, and look again. Metal that has actually yielded stays bent. Nine times in ten the empty rail is straight, which points the repair at the wall.

How Do You Stop a Loaded Wire Rack From Drooping?

Work from the wall outward, because every step after the first one is cheaper once the fixings are right.

1. Weigh the row before you decide anything, because a guess here is always low. Stack the full jars on a kitchen scale and write the number down in lb. That figure is what every mounting decision below is actually about.
2. Find the framing first: studs in a North American wall usually sit 16 or 24 in on center, and a 2 by 4 is really 1.5 by 3.5 in, so the target you are aiming at is narrow. Wikipedia's article on wall studs gives both figures. A screw into wood beats any anchor in plasterboard, and it costs nothing extra.
3. Where no stud lands under the shelf, use a toggle rather than a ribbed plastic plug. The plug relies on the crumbly core of the board; the toggle spreads its load across the back face. This is the single change that fixes most leaning shelves.
4. If you are renting and adhesive is the only option, prepare the wall the way the adhesive maker asks: 3M's product information sheet for Command adhesive says to clean with isopropyl rubbing alcohol rather than household cleaner, press for 30 seconds, and wait one hour before hanging anything. Most adhesive failures I have seen were installed in under a minute onto a wall someone had just wiped with kitchen spray.
5. Load the ends, not the middle. An even load peaks its deflection at midspan, so the tall oil bottle belongs near a fixing and the light paprika belongs in the centre.
6. Split a long run into two short ones. Two 11.4 in shelves hung as a pair carry the same jars as one long shelf with a fraction of the sag, because you have cut the span rather than thickened the metal.

That last point is worth sitting with. Doubling the thickness of a shelf only cuts deflection to one eighth, per the Sagulator, while doubling the span multiplies it by eight. Span is the lever you have.

From the shop

Wall Mounted Spice Rack, Steel Wire Grid Shelf with Wood Base

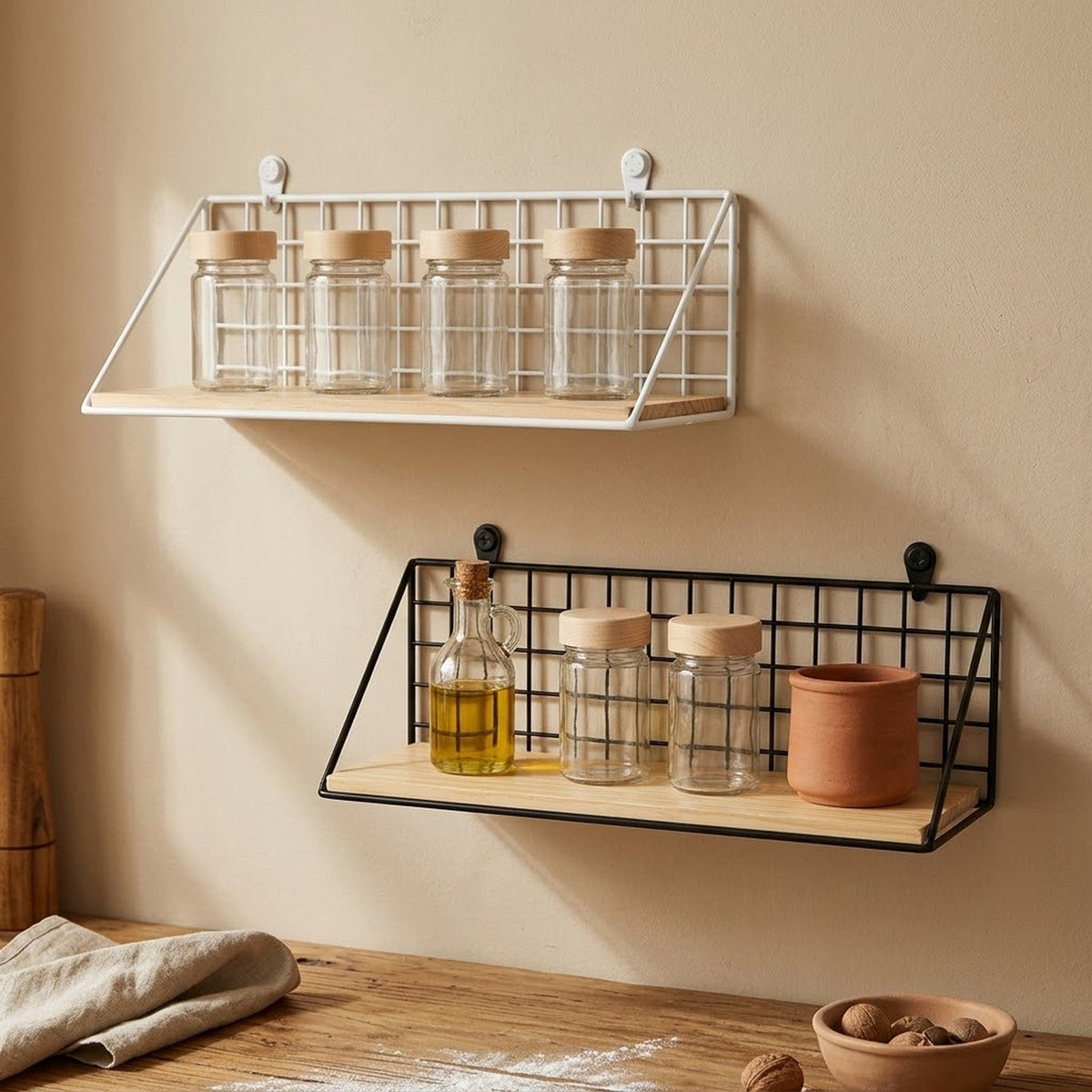

Powder-coated steel wire frame on a solid natural wood base, 3.9 in (10 cm) deep on the Small and 4.1 in (10.5 cm) on the larger two, in 11.4, 13.8 and 17.5 in widths. Two screw-in hooks and two adhesive pads are in the box, and it arrives in one piece.

View the wire spice rack — 3 sizes & current price

Screws vs Adhesive Pads: Which Holds a Full Row of Jars?

Screws, whenever the shelf is carrying glass. Adhesive is for light loads, smooth walls and deposits you want back.

Houseland puts two screw-in hooks and two adhesive pads in the box and gives no weight rating for either; what the product page does say is to use the screws where the shelf will carry full spice jars, or where the wall is textured, because adhesive holds best on smooth, clean, dry paint or tile. That is the honest version of the answer, and it matches what published adhesive figures look like.

The 2.2 lb figure is per strip, on a lab bench, at a comfortable room temperature. Kitchens are none of those things, and a shelf pulls at an angle rather than hanging flat, so treat any adhesive number as a ceiling you should stay well under. If the row of jars you weighed in step one is anywhere near it, the decision is already made.

What Should You Look For in the Next Wall Spice Rack?

Three things decide it: how far the shelf stands off the wall, whether the widths on offer let you keep the span short, and what mounting hardware comes in the box.

Depth is first because it sets the leverage. A shallow shelf twists its fixings less than a deep one carrying the same weight. Houseland's wire shelf is 3.9 in (10 cm) deep on the Small and 4.1 in (10.5 cm) on the Medium and Large, and it stands 5.5 in (14 cm) high on the Small, 5.9 in (15 cm) on the other two, which is enough for a standing jar without turning the shelf into a cupboard.

Width steps matter for the reason the Sagulator spells out. Being able to choose 11.4 in (29 cm), 13.8 in (35 cm) or 17.5 in (44.5 cm) means you can match the span to the wall instead of buying the longest one and hoping. Dropping from 13.8 in to 11.4 in takes about a sixth off the span, and taking a fifth off a span roughly doubles its stiffness. Two shelves hung one above the other, with about 8 in of clearance so tall bottles still fit underneath, is usually a better answer than one long one.

Then hardware. A rack that ships with both screw hooks and adhesive pads lets you decide at the wall rather than at checkout, which matters if you are renting. The rest of the wall storage sits in the kitchen and home collection, and the same span-and-fixing logic applies to every shelf in it.

What goes on the shelf is a separate problem worth solving properly. A row of matched jars sags a shelf more predictably than a mixed row of supermarket packets, which is part of why a proper spice organiser is worth the effort, and why labelling the lids saves you lifting every jar down to read it.

What I'd do

Put it on screws into framing and keep the span under about 14 in. That combination removes both failure modes at once, and it costs one extra trip along the wall with a stud finder.

If the wall is rented and screws are out, halve the load instead of arguing with the adhesive: six jars on a short shelf, prepped with isopropyl, pressed 30 seconds, left an hour, away from the hob. And weigh the row first. Every sagging shelf I have taken down was carrying more than the person who hung it would have guessed.
