Will a 4.7 In Canopy Cover My Ceiling Electrical Box?

A 4.7 in (12 cm) canopy will cover a standard round electrical box, and it will not cover a square one — canopy size is the number that decides it. The round box opening most homes have is about 4 in across, so a 4.7 in canopy laps it by roughly 0.35 in all round. Your old ceiling light left a bigger hole than that.

This is the measurement nobody checks before ordering, and it is the one that turns a twenty-minute swap into a weekend of filler, sanding and paint. Below is the arithmetic, the two code numbers that govern the gap, and the four things to measure with the old fitting down and the power off.

Will a 4.7 In Canopy Cover the Electrical Box on a Ceiling Light?

Over a standard 4 in round box a 4.7 in canopy leaves about 0.35 in of overlap on every side. That is enough, and it is all you get. Nudge the box a quarter inch off centre, which happens every time an old-work box gets twisted into a hole cut by eye, and one edge of the canopy runs out of metal.

Houseland publishes this canopy at 4.7 in (12 cm), so that is the figure to hold your tape against. What sits behind it decides everything else.

Two rows catch people, and neither is visible until the old fitting is down: the square box, and the plasterboard cut around it.

Why Does a 4 In Square Box Defeat a 4.7 In Canopy?

A 4 in square box measures 5.66 in from corner to corner, so a round 4.7 in canopy falls short by about 0.48 in at each of the four corners. Multiply a square's side by the square root of two for the diagonal; that arithmetic is the whole verdict, and no listing states it.

Nothing in the toolbox fixes geometry. The trade answer is a square-to-round adaptor ring, called a plaster ring or a mud ring depending on who taught you, which bolts to the face of the square box and leaves a round opening the canopy can meet. The common version for a 4 in square box carries a 5/8 in raise, so it also brings the face of the assembly forward when the box was set deep.

The blunter route is a flat round blank plate with a centre knockout, sold at 5 in and 6 in, screwed over the box with the conductors passing through. It reads industrial on a smooth white ceiling, but it is a genuine cover.

What Does the Wiring Code Say About the Gap Around the Box?

The rule that decides the ragged hole is the 1/8 in (3.2 mm) gap limit: an opening in a noncombustible surface around a box with a flush-type cover has to be made so no gap larger than that is left. That is IRC E3906.6, mirroring NEC 314.21: a torn plasterboard cut is a repair job, and a wider canopy is not permitted to hide it.

The second figure is setback. On a noncombustible finished surface such as plaster or tile, the front edge of the box, plaster ring or extension ring may sit back from that surface by not more than 1/4 in (6.4 mm), under IRC E3906.5 and NEC 314.20. On a combustible surface it has to reach the finished surface or project from it. A box buried under two skim coats fails that test, and the answer is an extension ring, not longer screws.

The third rule explains why canopy diameter is a safety number, not a styling one. IRC E3906.9 says that in completed installations each box shall have a cover, faceplate, lampholder or luminaire canopy. Your canopy is the cover. If it cannot sit down against the surface, the box is open.

Those are the US figures, from the NEC and the IRC. England works to BS 7671, where swapping a light fitting on an existing circuit is normally not notifiable under Part P but work inside a bathroom zone is notifiable — and if what you find above the canopy is not obvious to you, that is the moment to book a qualified electrician. Outside those markets your own national wiring rules govern, and no instruction sheet overrides them.

How Do I Measure the Box Before I Buy a New Fixture?

Four numbers decide it: the box face, the hole in the plasterboard, the setback, and the ring of old paint. All four can only be read with the old fitting down and the circuit dead, which is why so many people discover them after the parcel arrives.

1. Kill the circuit at the breaker or the consumer unit, then prove the fitting is dead before you touch it.
2. Drop the old canopy and look at what is actually up there: round, octagon, square, or a shallow pancake box.
3. Measure the widest span of the box face — across the flats on a round box, corner to corner on a square one.
4. Measure the hole in the plasterboard, not the box. That is the figure a canopy has to beat, and it is almost always larger than the box.
5. Lay a straightedge over the hole and measure how far the box face sits behind it.
6. Read the inside of the box. The manufacturer marks the maximum weight it is permitted to support, and 50 lb is the ordinary figure for a ceiling outlet under IRC E3905.6.2.
7. Measure the unpainted circle the old fitting left. That is a decorating problem, not a wiring one.

Buy on step four rather than step three. A canopy that clears the box but not the hole still leaves you with filler, mesh tape and a roller.

Will the Canopy Hide the Paint Ring the Old Light Left?

No. A 4.7 in canopy hides a circle 4.7 in across and nothing outside it. If the fitting that came down had an 8 in canopy, a band of unfaded paint 1.65 in wide runs all the way round the new one, and on a white ceiling it reads as a target.

Three fixes, in the order I would try them. Repaint, which costs a tin and an afternoon and is the only one that leaves no evidence. Fit a medallion, sold in diameters from 8 in to 30 in with a centre hole usually 2 in to 3 in, sized so the canopy lands on the medallion's face instead of dropping inside the hole. Or fit a canopy extension plate, which adds roughly 2 in to 4 in of diameter and looks exactly like what it is.

One honest note on proportion, because the usual trade guidance disagrees with the comfortable answer. The common rule of thumb is that a canopy wants to be 1.5 in to 2 in wider than the hole it covers, which against a 4 in opening asks for something in the 5.5 in to 6 in range. At 4.7 in this canopy clears the box but has less margin than that rule likes, so a clean, correctly sized hole matters more here than it would under a broad decorative plate. Scale matters too in a low room, and I have written about what a fitting does to an 8-foot ceiling.

From the shop

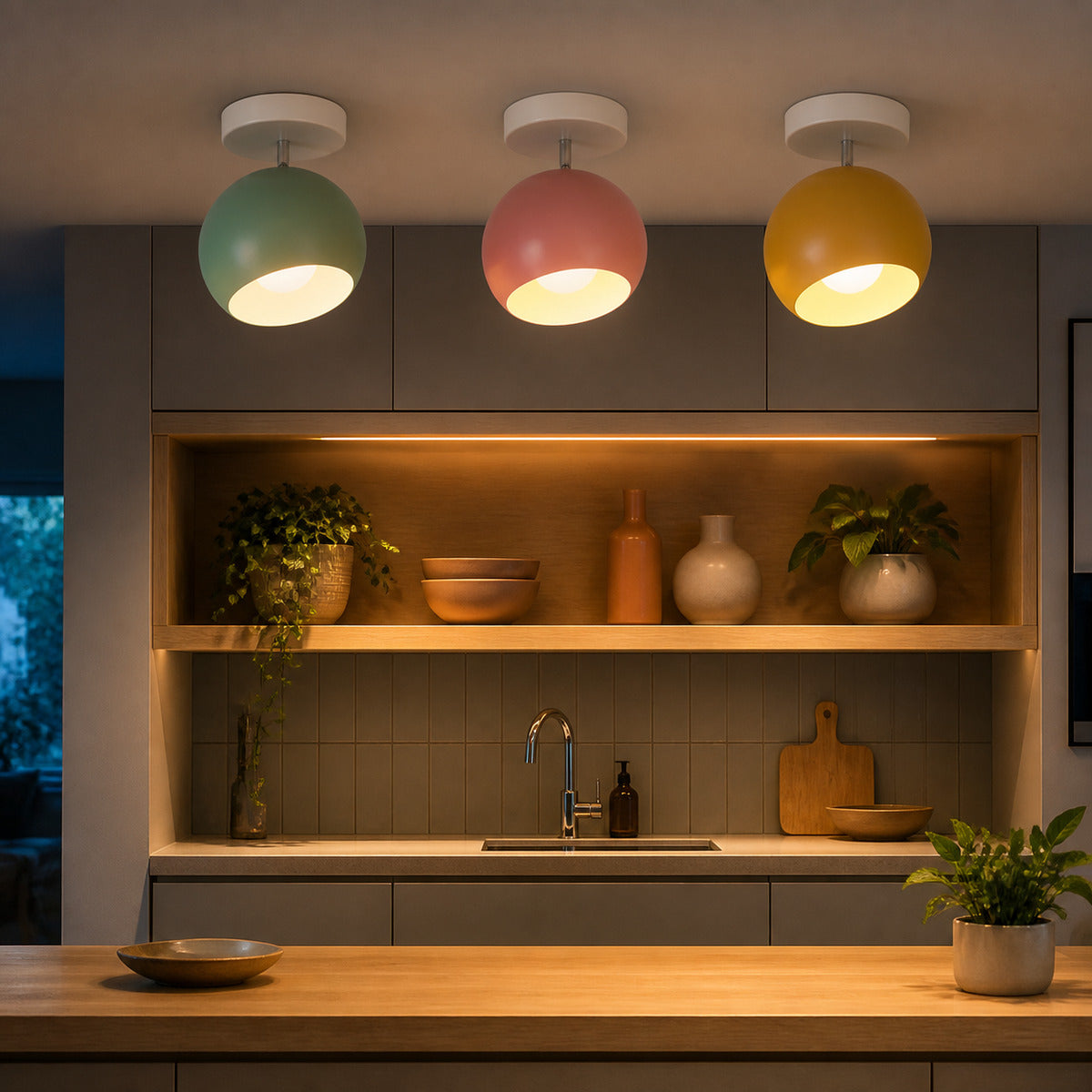

Modern Ceiling Light, Adjustable Ball LED Hallway Fixture, 4 Colors

The canopy is 4.7 in (12 cm), the shade is 7.9 in (20 cm) wide and the fitting stands 9.4 in (24 cm) tall. It is a surface mounted ceiling fixture and the shade comes in Green, Blue, Yellow or Pink.

View the ball hallway ceiling light — 4 shade colours & current price

What If the Box Is Buried, Loose or the Wrong Type?

A pancake box, roughly 1/2 in deep, is the one that most often turns a simple swap into an afternoon with a drywall saw. It holds around 6.0 cubic inches of volume, enough for the conductors it was fitted for and nothing more, so a fitting that arrives with its own driver leads can leave you short of legal fill.

Next, work out which kind of box you have. A new-work box was fixed to a joist before the plasterboard went up, so it sits solid and square. An old-work box was pushed into a finished ceiling and clamped with retention tabs, so it can sit off centre, tilt, or rock when you push a canopy up against it. A loose box wants a brace, not a wider canopy, and hardware that nearly fits is a familiar trap — the same one that makes people ask what screw-head size fits a keyhole slot.

Then the weight question, where the listing genuinely cannot help you. Houseland publishes the canopy at 4.7 in (12 cm), the shade at 7.9 in (20 cm) wide and the overall height at 9.4 in (24 cm), and calls it a surface mounted ceiling fixture. It does not publish a weight, a lumen output, a colour temperature or an IP rating, and we are not borrowing someone else's numbers to fill the gap. So you cannot check this fitting against the marking inside your own box from the listing alone: weigh it on kitchen scales when it arrives, or read the label and the carton pictogram.

The same silence answers the bathroom question. With no IP rating published, this one cannot be shown to meet the IPX4 minimum a shower zone needs under BS 7671, and in the US the rules turn on a damp-location marking the fitting does not carry. Not probably fine. No.

What I'd Do

Measure first and order second. If what is up there is a 4 in round or octagon box in a clean cut, the 4.7 in canopy is fine and the job is one evening. If it is a square box, add an adaptor ring to the same order, because it costs less than a tin of ceiling paint. If the cut is torn or wider than 4.7 in, patch and repaint before anything gets hung, since the 1/8 in gap rule makes that a repair whatever you hang.

If the old fitting left a wide ring of fresh paint, take the repaint. A medallion is a or a canopy extension plate both work, but both announce that something used to be bigger. Houseland describes this one as a surface mounted ceiling fixture, which is precisely why the canopy has to meet the surface rather than hover near it.

Then deal with the cable and the finish, the part everyone leaves until the ladder is up — worth reading how to deal with a cord that is too long before you start. If none of the sizes work out, the rest of the wall and ceiling lighting is worth a look, but take your measurements with you.
