How to Install a Flush Ceiling Light, Breaker First

To install a flush ceiling light, switch the breaker off and prove the wires are dead, read the weight rating marked inside the ceiling box, screw the strap to that box, join the wires colour to colour, and lift the base on last. The rating inside the box is the number the whole job turns on, and on a standard 4 in (10.2 cm) octagonal box it is stamped or printed on the inside face, where nobody looks. Everything after that is a 120 V circuit, two 8-32 screws and about 3/4 in (19 mm) of stripped copper.

Why does swapping a ceiling light go wrong before the wiring starts?

You want to swap the ceiling light yourself and you are not sure what to check before you start. Most guides answer that with the wiring, because wiring photographs well: black, white, a ground screw, finished in a minute. The two steps that fail are the two nobody photographs. One is the breaker, because a wall switch that kills the bulb can still leave a live conductor sitting in the box, and a switch loop puts a white wire on the hot side of the circuit. The other is the box, because the fixture hangs off it, and a box that went up years ago for a plastic dome is not automatically ready for the next thing you carry home.

At Houseland we believe a home is built from things you keep, and a 9.4 in (24 cm) fixture is only as permanent as the box screwed to the joist behind it. That is why the numbers sit on the product page instead of in the reviews: a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade, 9.4 in (24 cm) of overall height, surface mounted, hardwired, no plug.

How do you know the power is actually off?

Test every conductor in the box with a non-contact voltage tester, first with the wall switch on and then with it off. A wall switch breaks one leg of the circuit and the breaker breaks the circuit, which is why a light can be dark while the box is still live. Turn off the breaker before a light install, not after the first screw.

1. Switch the light on, then switch breakers off one at a time until it goes dark. Lighting circuits in a US home usually sit on a 15 A breaker feeding 14 AWG wire at 120 V.
2. Put a strip of tape across that breaker so nobody helpfully flips it back while you are up the ladder.
3. Take the old base down far enough to reach the conductors, with the wall switch still on and your hands on the fixture body rather than the wires.
4. Hold the tester against the black conductors, the white ones, the ground and the metal of the box itself.
5. Flip the wall switch off and repeat every one of those touches, because a switch loop changes which conductor is carrying the hot leg.
6. Prove the tester itself still works on a socket you know is live before you trust a dark reading on a 120 V circuit.

If the tester still lights with the breaker off, two circuits are meeting in one box, and that is where the job stops until an electrician looks at it. The other thing to watch for is a white conductor with black tape wrapped near its end. That white wire is doing a hot conductor's job in a switch loop, and it does not get joined to the white lead on your new fixture.

What does the ceiling box have to hold?

The weight of the fixture you are hanging, and the box states its own limit. On a standard 4 in (10.2 cm) octagonal metal box that number is stamped or printed on the inside face, and on a plastic box it is usually moulded into the back wall. Read it before you order, because the existing ceiling box weight limit, and not the ceiling, is what you are working to.

Then find the fixture weight on the carton or the listing and hold the two numbers next to each other. If the box carries no marking at all, it is unrated, and unrated means replaced.

Height is the other measurement people skip. A standard ceiling is 8 ft (2.44 m), this fitting is 9.4 in (24 cm) tall, and a door head is 6 ft 8 in (2.03 m): do that subtraction yourself before you order, because a hallway is the one room where people walk under a light rather than around it. If the sum comes out tight, a shallower fitting is the answer, which is most of the argument in this guide to choosing a ceiling light for a small flat and worth reading before you order.

In what order do you install a flush ceiling light?

Strap first, wires second, base last, and everything before the strap is checking rather than fitting.

1. Switch the breaker off, tape it shut, and test every conductor in the box with the wall switch on and then off. A lighting circuit usually runs 14 AWG wire on a 15 A breaker at 120 V, and none of those numbers matter until the tester stays dark.
2. Photograph the old connections before you undo a single wire nut. It costs nothing and it is the only record of what was joined to what.
3. Hold the old fixture while you release it. Undo the wire nuts, leave the ground for last, and let the old base come down in your hand rather than onto the floor.
4. Read the rating marked inside the box and compare it with the fixture weight on the carton. An unmarked box gets replaced now, not after the canopy is up.
5. Screw the new strap to the box with the 8-32 machine screws supplied, then check the strap is square to the wall you look at most. A canopy 4.7 in (12 cm) across shows a crooked line at a glance.
6. Strip about 3/4 in (19 mm) of insulation from each conductor, or use the notch marked for 14 AWG on the strippers.
7. Join black to black, white to white, and the bare copper or green lead to the ground screw on the strap. Twist the conductors together, cap them, then pull on each one to check it holds.
8. Fold the splices back into the box in a flat U rather than a ball. A 1/2 in (12.7 mm) pancake box punishes a sloppy fold, because there is nowhere for the wire to go.
9. Raise the base to the strap and start both screws by hand before either is tightened. Cross-threading a fixture screw overhead is what turns a swap into a trip to the hardware shop.
10. Fit whatever lamp the fixture takes, if it takes one. A 2,700 K lamp reads warm in a hallway, a cooler one reads brighter over a worktop, and E26 is the common medium base in a US fitting.
11. Switch the breaker back on, test the wall switch, then look at the canopy from the far end of the room to check it sits flat.

That sequence is what people are asking for when they ask how to wire a ceiling light safely, and it is the same order set out at more length in this walkthrough of doing a flush mount install yourself. The wires are the easy part, and they stay easy only when the box is sound and the circuit is dead before anything is opened.

Can you do this alone, or is this an electrician job?

You can do every check alone, and on this fitting the connection is not yours to make: the product page says to turn power off at the breaker and have a qualified electrician mount the canopy and connect the ceiling wiring. That is Houseland's instruction for this fixture, printed on the page rather than buried in the small print, and it is the honest answer for a hardwired surface mounted light.

Working alone is a physical problem before it is an electrical one. You are holding a 9.4 in (24 cm) fitting overhead with one hand and twisting wire nuts with the other, at the top of a ladder, which is exactly the moment people stop testing and start hoping. A hook bent from stiff wire and hung through the strap carries the weight while both hands work, and a second person is better than the hook.

Stop and call an electrician if the box has no ground, if more than one cable enters it, if the insulation is cloth rather than plastic, if the conductors are dull grey aluminium rather than copper, or if you cannot find a rating anywhere on the box. None of those are a bad afternoon, they are a different job with a different tool list, and this guide to the tools a flush mount install actually needs is the shorter read.

What would I put on a hallway ceiling, and who should skip it?

From the shop

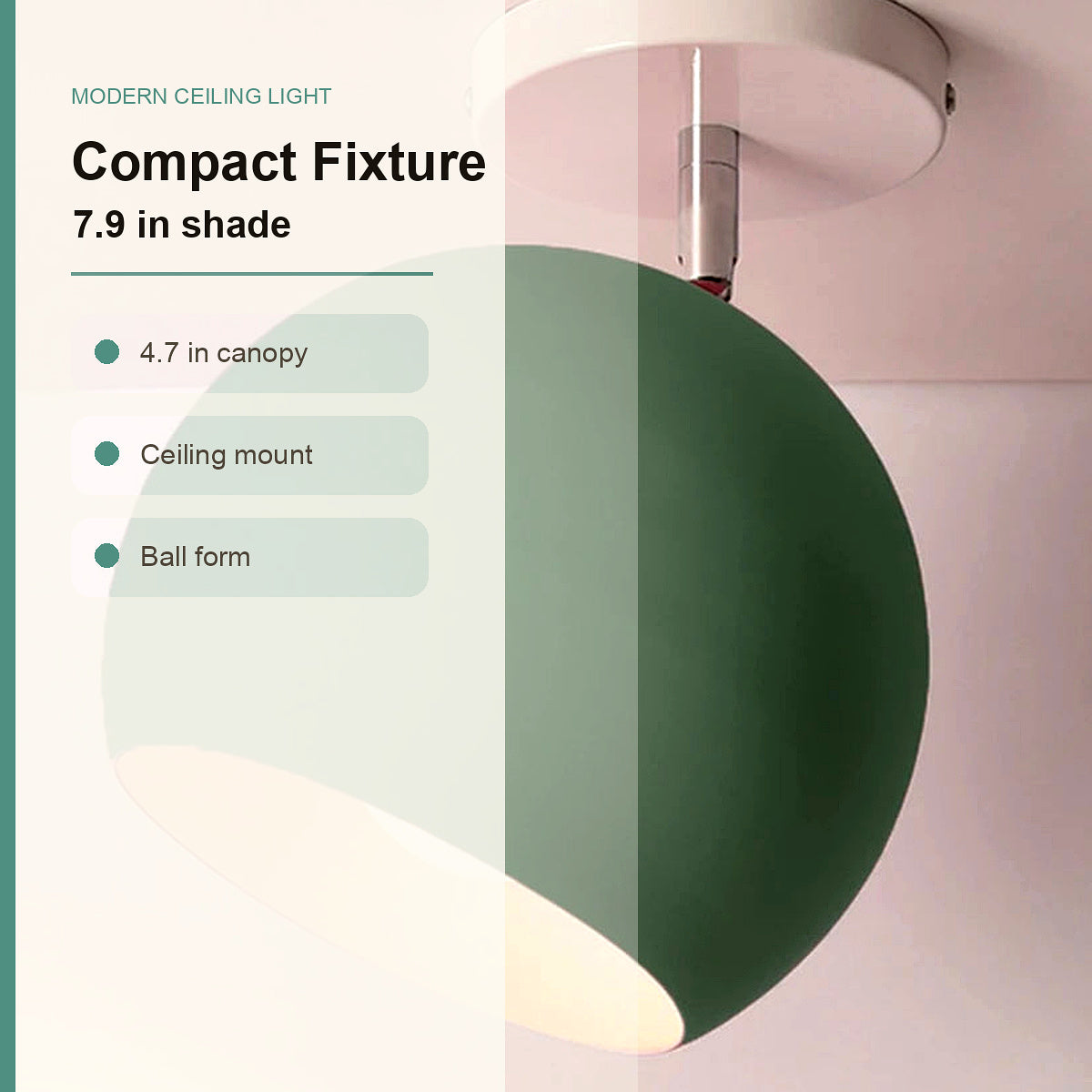

Modern Ceiling Light, Adjustable Ball LED Hallway Fixture, 4 Colors

Surface mounted and hardwired, with a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade and a 9.4 in (24 cm) overall height. Houseland lists it at $99.99 USD in Green, Blue, Yellow or Pink.

See the modern ceiling light

A compact ball fixture on a marked box, in a hallway with an 8 ft (2.44 m) ceiling.

The canopy is 4.7 in (12 cm) across, and a standard box is 4 in (10.2 cm), so the plate covers the hole and you are patching paint rather than plaster.

The whole fitting stands 9.4 in (24 cm) tall with a 7.9 in (20 cm) shade, so it keeps the head height a pendant drop takes away, and the ball is adjustable, so the opening aims where you actually walk.

It ships as one body with the canopy and shade assembly plus the mounting hardware shown by the listing, at $99.99 USD, in Green, Blue, Yellow or Pink. It is hardwired and surface mounted, so the ceiling box does all the work and nothing here plugs in.

That last point is also the first reason to skip it. A renter who cannot hardwire has no route in, and this guide written for renters fitting flush mount ceiling lights is the better place to start. It is the wrong light for filling an open-plan room from one point, because a 7.9 in (20 cm) shade with a downward opening is a hallway, entry or small kitchen glow. It is the wrong light for an exposed porch or a shower room, because the listing documents no wet rating and lists dry places: hallways, kitchens, entries, bedrooms, closets, dry sunrooms and covered porch ceilings. If your room is bigger than that, the rest of the wall and ceiling lights sit in the same compact size range. And if you want the fitting to disappear into a white ceiling, the shade comes in Green, Blue, Yellow or Pink, and it will not.
