No Junction Box in the Ceiling: Can It Hold a Flush Mount?

Yes, in most cases — but not by screwing the collar into plasterboard. The thing missing from that hole is rarely somewhere to join the wires. It is a box fixed to timber and rated to carry a light, and a ceiling light install with no junction box fails on that second job far more often than the first.

Houseland's wood drum measures 9.1 in (23 cm) across and fixes with a flush ceiling mount and collar, and the spec table stops there: no weight is published, so you cannot check it against a box rating from the listing. Settle that number first. There is a five-minute way to get it.

Which box is missing — the one that holds the wires, or the one that holds the light?

Nine times out of ten the missing part is the support, not the enclosure. A connector block taped to a cable does an ugly version of the first job. Nothing about it does the second.

Writing in IAEI Magazine, Frederic P. Hartwell sets out what ordinary hardware is presumed to do: the larger round and square outlet boxes — 4 in octagonal or square, and their non-metallic equivalents — use 8-32 screws and are taken to hold luminaires up to 50 lb (23 kg) directly, more only where the box is listed for it. A later IAEI piece on quick-connect hanging systems puts the same ceiling in blunter terms: whatever hardware bolts to it, the load is limited by the outlet box, normally 50 lb for a luminaire and 35 lb for a paddle fan, unless listed and labelled otherwise.

That is the whole distinction. A splice needs a container. A light needs a container bolted to structure. Plasterboard is neither — it is a lining, and the wings of a cut-in box grip a sheet nobody asked to hold anything up.

What does the code say about a ceiling light install with no junction box behind it?

Two US clauses decide it, NEC 410.36(A) and 314.27(A)(2), and both point at the box rather than at the screws you can see. 410.36(A) lets a luminaire hang on an outlet box only where that box meets the support rules. 314.27(A)(2) is the ceiling half, and it is where the 50 lb figure lives: heavier than that, and the luminaire is supported independently of the box unless the box is listed for the weight.

Opening a ceiling to put a box in is mains work, and in most US jurisdictions licensed work as well. England runs on a different axis. Under Approved Document P exactly three things are notifiable — a new circuit, a consumer unit replacement, and any addition or alteration to existing circuits in a special location, meaning the zone around a bath tub or shower tray, drawn at 24 in (600 mm) in the document's own diagram. Adding to a hallway lighting circuit outside that zone is not notifiable.

Not notifiable is not the same as unregulated. The work still has to comply with BS 7671, and where it is notifiable the document names three ways to sign it off: self-certification by a registered competent person, third-party certification by a registered certifier, or certification by a building control body. Approved Document P is for use in England; Wales went its own way in 2014 and Scotland runs its own system, so check which applies to your address.

How do I tell whether the ceiling above that hole can hold anything?

Five minutes with the power off answers it, and half the answer is printed inside the box if a box exists. Work through it in this order.

1. Kill the circuit and prove it dead. Breaker off, or the fuse out at the consumer unit, then test at the conductors rather than the switch.
2. Establish whether a box is there at all. A connector block taped to bare cable, or a cable knotted through the board, means nothing rated to hold a light.
3. Read the inside of the box. Makers mark the maximum permitted weight there whenever it is other than 50 lb, so the number you want is the low one, and an open ceiling is the only moment you can read it.
4. Find the joist. Probe either side of the opening with a thin bradawl. A box screwed into a joist is a support; a box held by wings biting the board is a junction box wearing the wrong hat.
5. Weigh the light on kitchen scales. Do it before it goes near a ladder. That figure and the box marking are the whole decision.

Masonry changes the method, not the principle: the care that goes into fixing into exposed brick without wrecking the face applies overhead too, with gravity on the wrong side.

Pancake box vs braced box: which one goes into a plasterboard ceiling?

A pancake box works only where it lands on solid timber, and where it lands on nothing, a braced box spanning two joists is the honest answer. Both are retrofit hardware, and they fail in opposite directions.

Arlington publishes its numbers, which makes the point better than argument does. The FBRS4200R spans 16 in to 24 in and is UL rated at 150 lb for luminaires and 70 lb for fans on joists at 16 in centres, dropping to 90 lb for luminaires where the joists sit 24 in apart. Same steel, same bar, 60 lb of difference, because the span does the work. It wants a 4-1/16 in hole and gives back 20.0 cubic inches.

From the shop

Wood Flush Mount Ceiling Light, Walnut or Natural, Slim or Tall LED Fixture

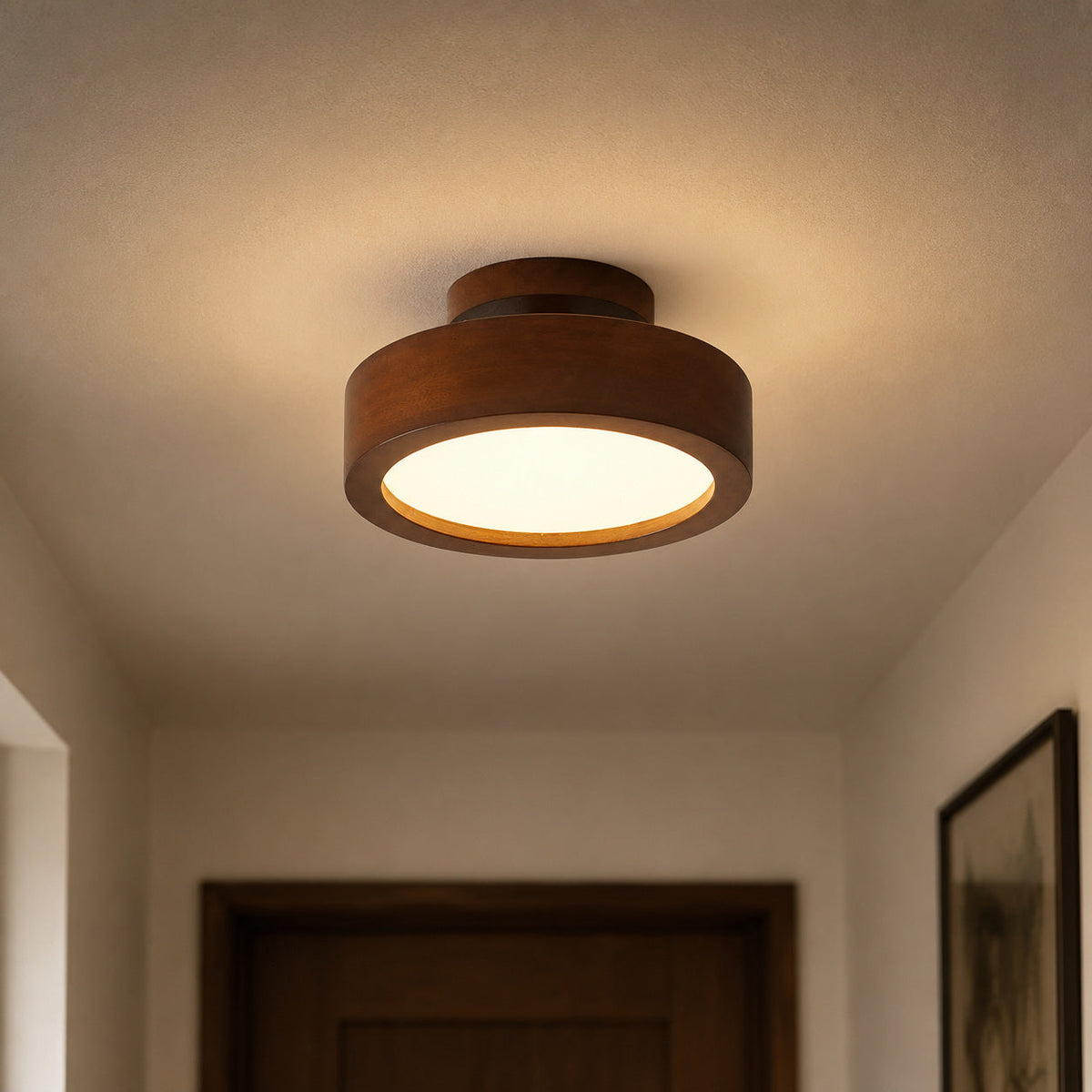

A wood drum 9.1 in (23 cm) across with a frosted acrylic diffuser, in Walnut or Natural. Slim sits 1.9 in (4.8 cm) off the ceiling and Tall 4.7 in (12 cm), both on a flush ceiling mount with collar.

View the wood flush mount light — 4 finishes & current price

Why doesn't the 6 lb exception rescue a ceiling?

That exception was written for walls, and the reason is mechanical rather than bureaucratic. NEC 314.27(A)(1) covers boxes on a vertical surface, and the carve-out under it lets a luminaire up to 6 lb (3 kg) hang on a device box or plaster ring secured with no fewer than two No. 6 screws. Read "vertical surface" as a load case, not a location.

Hartwell, who submitted the original proposal, spells the mechanics out in IAEI Magazine: on a wall those screws are in shear, while on a ceiling the same screws are in tension, pulled straight out of the metal. Device boxes take 6-32 screws and lighting boxes take 8-32, and he adds two aggravations that only apply overhead: a luminaire's size multiplies the effect of its weight through leverage, and the heat a fitting throws can cost a non-metallic box its grip on a screw already under tension.

He also says where the 6 lb came from: borrowed from the rule allowing a luminaire to hang off the screw shell of a lampholder, put into the 1999 code as a placeholder nobody ever replaced. So the allowance people quote at each other as a ceiling rule is a wall rule with a borrowed origin, and 314.27(A)(2), the paragraph that governs your hallway, carries no equivalent exception.

Is there room in a shallow box for the cable as well as the collar?

Often not, and that is how a pancake box quietly defeats a hallway that loops through to the next light. Box fill is arithmetic. Each 14 AWG conductor counts 2.00 cubic inches under NEC Table 314.16(B); up to four earth conductors share one allowance; internal clamps take one more.

Run it for a single 14-2 cable landing in the box. Two current-carrying conductors at 2.00 each, plus one allowance for the earth, is 6.00 cubic inches before a connector goes in. An octagonal box 1-1/2 in deep holds 15.5 cubic inches and seven 14 AWG conductors, so it absorbs a loop-through without complaint. A pancake box is too shallow to appear in that table at all; its capacity is stamped on it by the maker, and that stamp is the figure to read.

Where the loop runs through — supply in, supply out, switch drop — cable count and fixing are separate problems. This one stops at what holds the weight.

What is the UK version — a ceiling rose, a BESA box or a timber noggin?

The noggin is the fixing and the BESA box is the enclosure, and a fitting with no backplate of its own needs both. DIY Fix It's guide to close-mounted fittings gives the sequence without drama: feed the cable through the backplate, secure the backplate through the plasterboard into the joists, and where no joist sits in the right place, mount a wooden block between two joists to provide a fixing. It also flags what people skip: close-mounted fittings retain heat, so the cable wants heat-resistant sleeving.

Where the fitting has no backplate, the wiring regulations want terminals and unsheathed conductors inside a non-combustible enclosure, which is the BESA box's reason to exist: cut it in flush, fit a timber support above it, then check its fixing centres against the collar you bought. A standard 20 mm steel conduit box to BS 4568 takes M4 cover screws at 2 in (50.8 mm) centres and is about 1 in (25 mm) deep inside — a tighter target than the slotted crescent on most modern collars.

A hole with nothing above it at all is a different conversation, handled separately on this blog along with the loop-in rose. The point here is narrower: the collar must end up screwed to something that runs back to a joist.

What I'd do

Weigh the light first, on kitchen scales. It has both profile heights, 1.9 in (4.8 cm) Slim and 4.7 in (12 cm) Tall, an integrated warm-white LED, and a flush ceiling mount with collar. Weigh it yourself rather than rely on a published figure.

Then get the ceiling open and look. Joist directly behind the hole: a fixture-rated box screwed into it, done. Nothing behind the hole: a braced box on an adjustable bar, sized to the joist spacing you measured rather than the one on the packaging. A connector block dangling in the void: stop, and have an electrician put a proper outlet in.

Buy the light last. If the ceiling is tight the Slim profile is the one to pick, and the 8-foot ceiling question is worth reading first, as is the walnut against light oak comparison if the hallway floor is pale. The rest of the range sits in the wall lamps collection.
