Floating Shelves for a Living Room Wall With Metal Studs

Yes, floating shelves for a living room wall go up fine over metal studs, but the fixing changes and the drilling gets more careful. A steel stud is folded sheet, 15 to 33 mil of it in the drywall sections ClarkDietrich publishes, so a coarse wood thread has almost nothing to cut into and the bit skids off the curved corner of the flange. Two things do work: a self-drilling screw driven square into that flange, or a toggle that ignores the steel and loads the board instead.

Both are published, and both beat what a shelf asks of them. The Houseland hexagon set hangs on keyhole hangers and is rated up to 11 lb (5 kg) per piece, so weight is not the problem here. What people miss is the third thing inside a steel-framed wall: the cable runs through punched knockouts in the studs, and the frame around it is metal.

Why Does the Screw Skate Sideways Off a Metal Stud?

The bit is riding off the rounded corner of the stud flange, a strip of steel only about 1-1/4 in wide that faces you edge-on behind the board. A steel stud is a C-section, not a solid block. It has a web that sets the wall depth, two flanges turned toward the drywall, and a small stiffening lip folded back at each flange edge. ClarkDietrich's submittal sheet for a 1-5/8 in ProSTUD 20 lists that flange at 1.250 in with a 0.275 in lip. Miss the middle of the flange by a quarter of an inch and the point walks down the radius instead of biting.

The metal is also springy and thinner than most anchor tables assume. ClarkDietrich's ProSTUD catalogue puts its 25 section at 15 mil where a conventional 25 gauge stud is 18 mil, and its 20 section at 18 mil where conventional 20 gauge is 30 mil. So the word on the stud is not a thickness. Worse, DEWALT's screw-fastener guide uses sheet-metal gauge, where 24 gauge means 0.024 in and 20 gauge means 0.036 in — thicker than any drywall stud in that catalogue. A partition stud can be thinner than the thinnest steel column an anchor maker prints, so match on mils, never on the word gauge.

None of this makes the wall weak. ClarkDietrich's install sheet recommends cross-bracing with notched u-channel where heavy shelving or cabinets are expected, but that bracing goes in before the drywall, so in a finished room you work with what is already there.

How Do I Find the Steel and the Cable Before I Drill?

Magnet first, measure second, pilot third. A steel stud does not read like timber on a capacitance finder, and the magnet is not finding the stud — it is finding the drywall screws already driven into the flange, which is the only part you can reach.

1. Drag a rare-earth magnet slowly up the wall and mark every hit, then join the marks. You will get a dotted vertical line, not a solid one, because the magnet is on screw heads spaced along the flange.
2. Check the run against 16 in and 24 in on centre. ClarkDietrich's sound-test assemblies are built at both spacings, and steel partitions are set out the same way timber is.
3. Work out the knockout band. ClarkDietrich punches to one of two patterns — centres 12 in from the leading edge then 48 in on centre, or 24 in from the leading edge then 24 in on centre — and its install sheet tells the framer to align the punch-outs, so the holes line up in a horizontal band across the wall.
4. Treat that band as live. Step 8 of the same install sheet is snap in grommets for electric and plumbing, which is where the cable goes.
5. Drill a small pilot and read what comes out. Bright curled swarf means you are in the flange. A bit that suddenly drops through means you found a knockout, and you should stop and move.

If the dotted line lands where you want a shelf, good. If it does not, that is normal, and it is why the next section matters more than stud hunting does. Working out what fits on a short wall first tells you how many fixings you actually need.

Self-Drilling Screw vs Toggle: Which Should Hold the Shelf?

A single #8 self-drilling screw is published at 37 lb allowable pullout in the thinnest ProSTUD section, and a 1/4-20 strap toggle in 1/2 in board over a 25 gauge stud tested at 425 lb ultimate. Both numbers dwarf a shelf. The choice is about which one your wall will actually let you install, and whether it leaves you a head to hang from.

Read the third row twice. The 30 mil stud gives a lower screw pullout figure than the 18 mil one, 48 lb against 62 lb, because ClarkDietrich lists the 18 mil section at 70 ksi steel and the 30 mil section at 33 ksi. Thicker is not automatically stronger. Nor are the columns interchangeable: DEWALT applies a safety factor of 3.0 to its steel figures and 4.0 to its wallboard figures, and TOGGLER works at a quarter of its ultimate test loads.

Now the part that decides it. These shelves hang on keyhole hangers, so the fixing has to finish as a screw head standing proud of the wall. An old-fashioned spring-wing toggle cannot do that — back the bolt out to leave a head and the wings drop into the cavity. A strap toggle can, because the channel stays put: TOGGLER's data sheet says the anchor is reusable in the same hole and does not fall behind the wall when the bolt is removed.

One cavity check before you buy. TOGGLER lists a minimum clearance behind the wall of 1-7/8 in. A 3-5/8 in partition has room to spare, but a furred-out chase wall built on 1-5/8 in studs does not — the web is shallower than the toggle needs, and the channel will jam. On that wall the self-drilling screw is your only route.

Will Floating Shelves for a Living Room Wall Hold at 11 lb a Piece?

Comfortably, and with a wide margin: 11 lb per piece against 37 lb of allowable pullout from one screw in the thinnest stud steel is not a close call. Houseland publishes the load rating as up to 11 lb (5 kg) per piece and the mount type as a keyhole hanger. It does not publish a screw size, a fixing type or a hanger spacing, so the anchor is your decision, not a number you can look up on the listing.

Depth helps you here. Each module is 3.5 in (9 cm) deep, so a book or a plant sits close to the wall rather than out on a lever arm, and TOGGLER notes that holding strength falls as the load moves further from the wall. Shallow shelves are kinder to fixings than deep ones, which is the same reason wire and wood shelves fail so differently under the same load.

The straight ledges are 19.7 in long, longer than a 16 in stud gap, but their keyhole hangers sit at a fixed spacing and will not obligingly land on two flanges. Plan on toggles for at least one end of most pieces. And treat the rating as a ceiling for the board, not for the fixing — a 165 lb anchor does not make a pine ledge carry more.

From the shop

6-Piece Matte Black Floating Wall Shelves

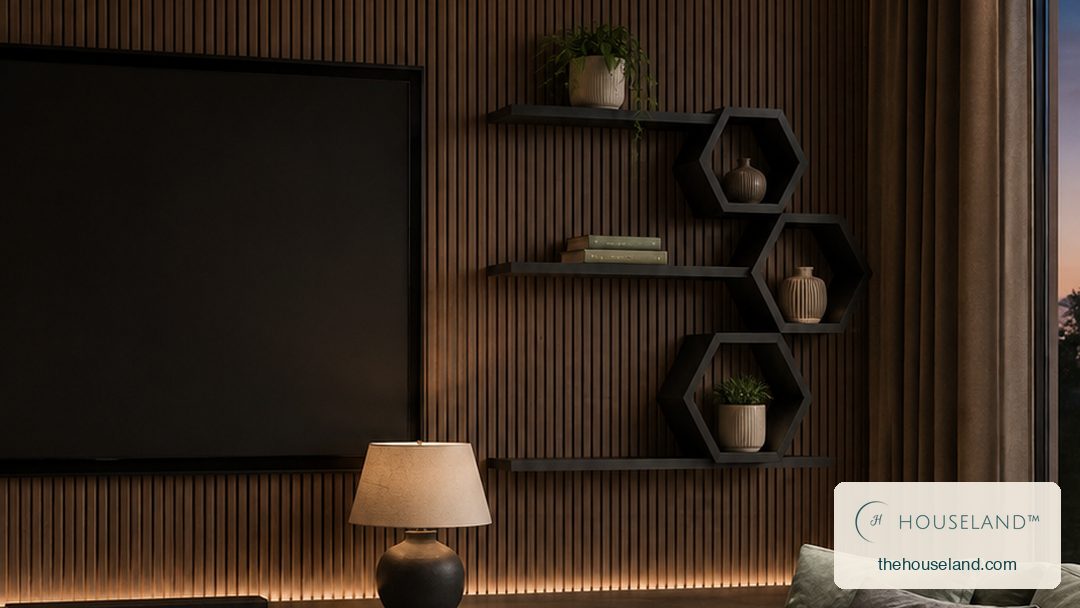

Three hexagons 13.8, 11.8 and 9.8 in wide plus three 19.7 in ledges, each 3.5 in (9 cm) deep in 0.6 in pine board. Wall mounted on keyhole hangers, rated up to 11 lb (5 kg) per piece.

View the 6-piece matte black shelf set — dimensions & current price

Does a Metal-Framed Wall Change the Electrical Rules?

In the UK it changes them outright: BS 7671:2018, the 18th Edition wiring regulations, requires under Regulation 522.6.203 that a cable at any depth in a wall or partition with internal metallic parts, other than fixings such as nails and screws, is either given additional protection by a 30 mA RCD or protected by one of the methods in 522.6.204. Depth buys you nothing in a steel-framed wall. NICEIC's explanation of the rule is blunt about why: where a partition contains significant metal, damage to a cable can make the whole metallic structure of the wall live, which is why BS 7671 treats these walls differently from timber studding.

In the US the protection sits on the cable instead. The 2023 NEC, NFPA 70, requires at 300.4(B) that non-metallic sheathed cable passing through punched or drilled holes in metal framing be protected by listed bushings or grommets covering all the metal edges, fitted before the cable is pulled. That is a snap-in plastic collar. It stops the stud chafing the sheath; it will not stop a drill bit.

The practical rule is the same either side of the Atlantic. Kill the circuit before you drill near the knockout band, and keep fixings in the clear flange above or below it. An RCD is a backstop, not a reason to drill blind.

What I'd do

Magnet the wall, join the dots, and let the wall pick the fixing rather than picking it in the shop. Where a flange lands under a keyhole hanger, drive a #8 self-drilling screw square into the middle of that 1-1/4 in strip and back it out until the head stands proud enough for the hanger plate to drop over it. Everywhere else, use a 1/4-20 strap toggle in the open bay, at least 2 in clear of the marked stud line so the channel has room to swing.

Then load it in the wrong order on purpose. Lean on the front edge before anything breakable goes up, because a fixing that is going to move will move in the first minute. Houseland gives the board thickness as 0.6 in, so the keyhole plate has little timber behind it and wants a head that sits square. If you are still working out the layout, staggering the pieces gives you more freedom to put each hanger where the steel actually is, and the rest of the wall shelves use the same keyhole mount, so the method carries across.
