Can Keyhole Shelves Hang on Shiplap or Wood Paneling?

Yes. Keyhole shelves hang on shiplap without any special hardware, and to hang shelves on shiplap you need one change from a plain wall: a longer screw, usually 3 in (76 mm), so it passes through 0.75 in (19 mm) of board and whatever is behind it and still buries 1.5 in (38 mm) into a stud. Solid pine shiplap nailed straight to the studs is the easy case; thin sheet paneling over furring strips is the one where the screw must find the stud or nothing.

The Houseland hexagon set is the shelf this was checked against: every one of the 6 pine modules has a keyhole hanger routed into its back, the mounting hardware is in the box, and each piece is rated for up to 11 lb (5 kg). Below is what sits behind a shiplap wall, where the screw should bite, the step-by-step with screw sizes, how proud the head has to stand for the slot, and the walls where the answer changes.

What is behind shiplap, and how thick is the board?

Milled shiplap is 0.75 in (19 mm) nominal and usually 0.6875 in (17.5 mm) or 0.625 in (16 mm) once dressed, and the wall behind it is either bare studs, drywall, or drywall plus furring strips. Wikipedia's shiplap entry describes the board as rough-sawn 1 in (25 mm) or milled 0.75 in (19 mm) pine, 3 to 10 in (76 to 254 mm) wide, with a 0.375 to 0.5 in (9.5 to 12.7 mm) rabbet on opposite edges so the boards overlap. Buffalo Lumber's shiplap page adds the number that matters for a screw: a 1 in nominal board is usually 0.6875 in (17.5 mm) thick, and a 6 in nominal pattern is 5.375 to 5.5 in (13.7 to 14 cm) wide including the lap. Shepley Wood Products lists its pre-gapped pine at 0.625 in (16 mm) and its MDF version at 0.5 in (13 mm). So the board alone is between 0.5 in and 0.75 in, and you should measure yours at a switch plate or an outlet rather than trust the name.

What is under the board decides the screw. The Wikipedia wall stud entry gives US and Canadian studs at 16 in (41 cm) on centre, sometimes 12 in (30 cm) or 24 in (61 cm), with a modern two-by-four measuring 1.5 by 3.5 in (38 by 89 mm). Drywall, per Wikipedia, comes in 0.25 to 0.75 in (6.3 to 19 mm) thicknesses with 0.5 in (13 mm) and 0.625 in (16 mm) the common sheets. A Hometalk poster who fixed 0.5625 in (14 mm) shiplap to 0.75 in (19 mm) furring strips so as not to damage the drywall found the shelf screws in the box were not long enough, and the first answer was the whole story: at least 3 in (76 mm) screws, and anchors will not work unless you can get them into the wall past the shiplap.

The 1.5 in (38 mm) embedment is the figure Albany County Fasteners gives for screws holding shelf brackets to studs, and HomeMountLab's guide is blunt that drywall, tile, panels, spacers and gaps are pass-through: only the length engaged in sound wood counts as penetration. Add the layers, add the embedment, round up to the next screw length you can buy.

Where should the keyhole screw bite: the board or the stud?

The stud, whenever one lines up with the slot; the board itself only when it is solid wood at 0.625 in (16 mm) or more and the shelf is light. A keyhole hanger pulls straight down on the screw and levers it out at the top, so the screw's grip is what holds the shelf, not the plate on the back. Solid pine shiplap at 0.6875 in (17.5 mm) gives a #8 screw about 10 threads of grip at 15 threads per inch, which is enough for a single module carrying a plant or a few paperbacks, but it is the board's nails into the studs that then carry everything, and you did not choose those. Into a stud the same screw gets 1.5 in (38 mm) of solid timber and the question goes away.

Finding the stud is easier on shiplap than on a painted wall, because the shiplap was nailed to the studs and the nail heads or filled holes run in vertical lines at 16 in (41 cm) spacing. Wikipedia's stud finder entry explains that a magnetic finder detects exactly those fasteners, and that it assumes they were driven into the stud's centre, so confirm the line with 3 or 4 nails up the wall rather than 1. Electronic edge finders read a change in wall density and must be calibrated over a bare patch first, which thick wood and an air gap behind furring both confuse, so on shiplap the magnet is the better tool. A Houseland hexagon at 13.8 in (35 cm) wide will not span 2 studs, so it hangs on 1 screw into 1 stud, and the 19.7 in (50 cm) ledges can catch 2 studs at 16 in (41 cm) centres if the wall cooperates.

The load number sets how careful to be. Each piece in the set is rated for up to 11 lb (5 kg), and the listing tells you to spread weight across modules rather than load one, so a stud screw per module is doing a modest job. The guide to floating shelf weight capacity covers what actually goes on a 3.5 in (9 cm) deep shelf, and what the 5 kg figure means answers the follow-up most people have.

How do you hang shelves on shiplap with keyhole hangers?

Six steps, and the measuring takes longer than the drilling.

1. Measure the board at a switch plate with a ruler: 0.75 in (19 mm), 0.6875 in (17.5 mm) or 0.5 in (13 mm). Then tap the wall between boards' nail lines. A hollow sound with a hard stop means drywall behind; a hollow sound with give means an air gap over furring, so add 0.75 in (19 mm).
2. Find the studs with a magnet along the nail lines and mark 3 nails per line. Lines should repeat at 16 in (41 cm); if they repeat at 24 in (61 cm), that is the spacing and the hexagon positions have to move to suit.
3. Transfer the keyhole positions from the back of each module to the wall with the level. The set's 3 hexagons are 13.8, 11.8 and 9.8 in wide and the 3 ledges 19.7 in (50 cm), and the article on marking keyhole slots for level holes shows the tape-and-pencil transfer that avoids a second set of holes.
4. Choose the screw: the same gauge as the one in the box, which for a common 0.375 in (9.5 mm) keyhole is a #8 with a 0.164 in (4.2 mm) shank and a 0.292 to 0.332 in (7.4 to 8.4 mm) flat head by the ASME B18.6.1 table on AFT Fasteners, but 2.5 to 3.5 in (64 to 89 mm) long from the table above. A #10 head at up to 0.359 in (9.1 mm) still enters a 0.375 in hole, but its 0.19 in (4.8 mm) shank will not ride down a 0.1875 in (4.8 mm) slot.
5. Drill a pilot hole 0.75 in (19 mm) shorter than the screw. Pine shiplap splits along the grain near a rabbet edge, so keep the hole at least 1 in (25 mm) from a board edge, and stop if the bit drops into air, which means a gap or a missed stud.
6. Drive the screw, leave the head proud, hang the module, and load it with a 5 lb (2.3 kg) book. If it sits flat and does not rock, the projection is right. If it rocks, turn the screw in a quarter turn; if it will not drop onto the slot, back it out a quarter turn.

Houseland ships the modules flat with one mounting hardware set, so the box has a screw per keyhole for a plain wall; shiplap simply asks you to buy the same gauge in a longer length at a hardware store for about $5.

From the shop

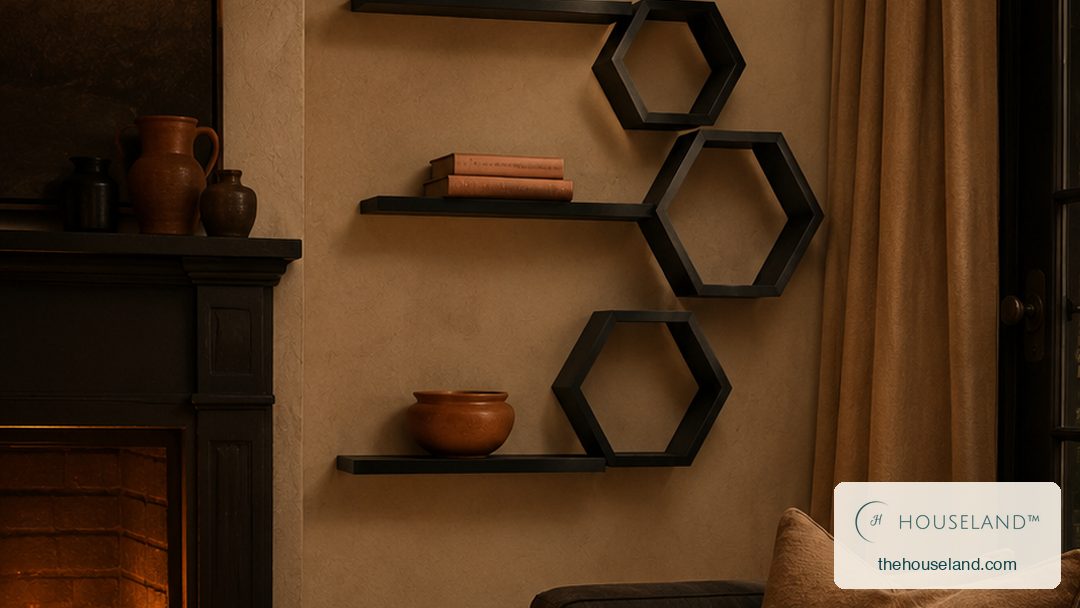

6-Piece Matte Black Floating Wall Shelves

Six pine modules, 3 hexagons at 13.8, 11.8 and 9.8 in wide and 3 ledges at 19.7 in (50 cm), each with a keyhole hanger routed into the back and rated for up to 11 lb (5 kg); mounting hardware is in the box.

View the 6-piece matte black shelf set — dimensions & current price

How far must the screw head stand off the wall for the slot?

By the thickness of the slot's undercut, which you measure on the module rather than guess. A standard keyhole bit, Whiteside's 3050 for example, cuts a 0.375 in (9.5 mm) entry hole, a 0.1875 in (4.8 mm) slot and a 0.4375 in (11 mm) deep pocket, and the maker's rule is that the screw head must be smaller than the large diameter and the shank smaller than the small diameter. The part of the module that hangs on the screw is the wood between the slot and the back face, so lay a straightedge across the back of the module, measure from it down to the bearing face inside the slot, and set the screw head that far off the shiplap, plus a hair.

Shiplap adds one wrinkle: the face is not flat if you land on a lap joint or a nickel gap. Buffalo Lumber puts the gap at 0.1875 to 0.375 in (4.8 to 9.5 mm), and a screw head sitting over a gap has nothing to bear against, so put the screw on the face of a board, never on the shadow line. On vertical shiplap that means picking a module width that lets the keyhole land mid-board. The 0.6 in (1.5 cm) board on the Houseland modules is thick enough for a routed keyhole without the screw head showing through the front, which is why the modules read as floating once they are up.

When does the answer change?

Four walls turn a yes into a maybe, and one turns it into a no.

• Sheet paneling thinner than 0.25 in (6 mm). There is no thread grip in the board, and a plastic anchor cannot expand in a void behind it. The screw goes into a stud or the shelf does not go up. Measure the sheet at an outlet before buying screws.
• MDF shiplap at 0.5 in (13 mm). MDF holds a screw poorly along its edges and swells if the pilot hole is too tight. Treat it as pass-through and reach the stud.
• Shiplap on furring strips. The furring is usually 0.75 in (19 mm) and adds an air gap, so screws grow to 3.5 in (89 mm) and a screw that misses the stud finds nothing behind the strip. This is the Hometalk case, and the reason the poster's box screws failed.
• Plaster and lath behind the boards. A magnet still finds the lath nails, but the stud is deeper and the plaster crumbles around a pilot hole; go 0.5 in (13 mm) longer again and drill slowly.
• A rental with painted shiplap you cannot mark. Every option here leaves a hole in a board, and filling a pine board is easier than filling drywall; a 0.164 in (4.2 mm) screw hole takes wood filler and a dab of paint. If even that is off the table, the shelf stays in the box.

The one thing that never changes is the failure mode: a keyhole shelf that lets go does it by pulling the screw, so the screw's grip in wood is the only number that matters, and a rating of 11 lb (5 kg) per piece is a promise about the shelf, not about your wall. Seen against that, a shiplap wall with studs at 16 in (41 cm) is one of the better walls to hang on.

What I'd do

Buy a bag of #8 by 3 in (76 mm) screws before the shelves arrive, because that length covers shiplap over drywall and is long enough to cut down in your head for the bare-stud case.

• Run a magnet along the wall and mark the nail lines with painter's tape, 3 nails each, before opening the box.
• Lay the 6 modules on the floor against the taped stud lines and shift the layout until every keyhole lands on a stud and on a board face, not a gap. With studs at 16 in (41 cm) and hexagons at 13.8, 11.8 and 9.8 in, that usually means a staggered column rather than a row, and grouping ledges and cube shelves on one wall shows layouts that work at that spacing.
• Pilot, drive, hang, test with 5 lb (2.3 kg), adjust a quarter turn, then load with the light things the 3.5 in (9 cm) depth was made for.

The pine sets in the Houseland wall shelves collection all hang the same way, keyhole on the back and hardware in the box, so the screw table above is the only thing that changes from wall to wall.
