Modular Wall Shelves Around a Window: Framing It With Hexagons and Boxes

Modular wall shelves fit around a window because each module hangs independently: split the eight pieces into two flanking groups, an L over one side and the top, or a header run above the glass, instead of forcing one continuous shelf across a wall a window already interrupts. The window itself sets three limits on that layout: trim clearance on every side, room for the curtain rod or blind bracket to sit forward of the glass, and no shelf where a curtain actually draws across.

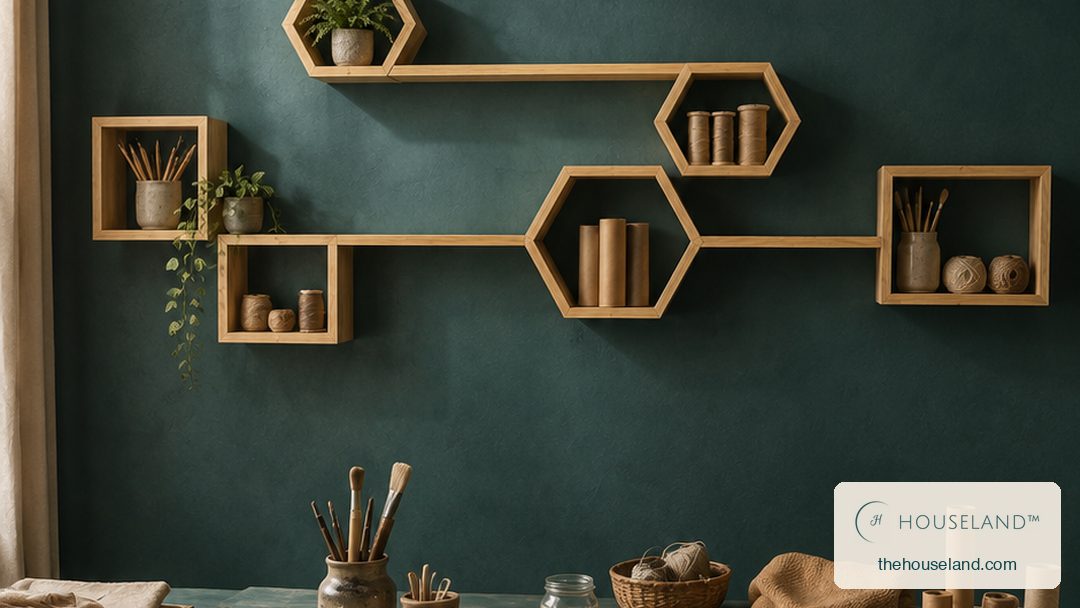

This Houseland 8-piece pine hexagon set gives three hexagons, three open boxes and two straight ledges that lay out to 41 in wide by 22 in tall (104 x 56 cm) in the product's own diagram, though every module hangs on its own keyhole hanger and can be split apart instead of following that single arrangement. Below is where the window's own clearances cut into that footprint, which of the eight pieces work well split around an opening, and where the wall framing beside a window actually is.

The short answer

Two things from the window and two from the set decide this layout: keep every module clear of the window's own trim and casing rather than overlapping it, leave whatever forward projection and stack-back space your actual curtain rod or blind bracket needs untouched, and never hang a module inside the arc a curtain panel or a crank handle actually sweeps. On the shelf side, the eight pieces split into two matching flanks, an L-shaped run, or a header strip above the glass without needing the full 41 in by 22 in (104 x 56 cm) diagram arrangement, since every module hangs on its own keyhole hanger.

Why Do Modular Wall Shelves Suit a Window Wall Better Than a Single Shelf?

A window wall suits this set because the eight modules hang independently rather than as one fixed unit, so the arrangement can split around the opening instead of needing one uninterrupted run of wall the way a single long shelf does.

• Each of the eight pieces mounts on its own keyhole hanger, so a hexagon or box can go on one side of the window and another on the far side without any bracket or backing tying them together.
• The product's own diagram lays all eight out to 41 in wide by 22 in tall (104 x 56 cm) as one block, but the product FAQ for this set says the same pieces can also be stacked taller and narrower, the same flexibility that lets two smaller groups replace one wide block.
• A single long floating shelf has to clear the window's full width in one piece; splitting the modules instead means each group only has to fit whatever wall actually exists beside the window, which is often narrower than the 41 in (104 cm) full diagram.
• For general modular-layout thinking beyond just this window case, see using modular shelves to fill a blank wall without clutter.

How Much Clearance Does the Layout Need From the Window Itself?

Clear the window's own trim, the curtain hardware's forward reach, and anything that swings or cranks open, before you decide where a single module goes.

1. Keep every module off the window's casing and trim; the product listing gives no clearance number for this, so measure your own trim width and stop the nearest module short of it rather than butting up against the wood.
2. Measure your installed curtain rod's or blind bracket's forward projection from the wall, and the width the curtain panels or blind stack back to when fully open, then keep that whole zone free of shelving; a module sitting directly behind a stacked curtain panel gets covered every time the curtain opens.
3. Check anything that swings or cranks: a casement window's crank handle and the arc the sash itself swings through both need clear space, so hold off placing a box or hexagon anywhere that arc would reach.
4. Never place a module where a curtain panel draws across it when opened or closed; a shelf that looks clear when the curtain is closed can still catch fabric every time it's drawn.

Does Direct Sun From the Window Change Anything?

Direct sun is worth accounting for, though the product listing says nothing about sun exposure or fading for this particular finish, so treat this as general caution rather than a spec.

• Sunlight fades and changes organic materials mainly through oxidation, the same photodegradation process that yellows paper and dulls dyed fabric, so a framed print or a dyed object sitting on a module in continuous direct sun is usually the more exposed item, not necessarily the pine itself.
• The finish on this set is a clear matte lacquer over natural pine, and the listing already notes that pine's own grain and tone vary piece to piece; it does not separately say how that lacquer responds to years of direct sun, so there's no number to give here.
• Where the window gets strong afternoon sun, favor putting more light-sensitive objects, book spines, dyed textiles, on whichever flanking group sits further from the glass, and keep the sun-facing modules for glass, ceramic or metal pieces that don't fade.

What Layout Patterns Work for the Eight Pieces Around a Window?

Three patterns make sense with three hexagons, three open boxes and two ledges: an even split of four pieces to each side, an L-shaped run up one side and across the top, or a header strip using the two ledges above the glass with the six remaining pieces grouped elsewhere.

• Even split, four pieces each side: this is a composition suggestion, not a fixed design, since the set doesn't ship in matched pairs; put two hexagons and two boxes, or another four-piece mix, on each side of the window, keeping a matching height line so the two groups read as a pair rather than two random clusters.
• L-shaped run: stack most of the pieces up one side of the window and let one or two continue across the top, above the header, so the arrangement wraps the opening on two sides instead of splitting evenly.
• Header strip: use the two straight ledges end to end above the window as a single line, then group the remaining three hexagons and three boxes elsewhere on the same wall or an adjacent one, since the ledges are the only pieces shaped for a continuous run.
• Whichever pattern you pick, the full 41 in by 22 in (104 x 56 cm) diagram footprint is only a reference for the single-block layout; splitting the set changes both numbers, so measure each resulting group on your own wall rather than treating 41 in (104 cm) as a fixed width once the pieces are apart.

A reader with a window wall too narrow for the full 41 in (104 cm) block, who still wants three shapes rather than a plain pair of shelves, is who splitting this 8-piece set around the opening suits best. The trade-off is that a split layout needs two or three separate height lines and clearance checks instead of one, and the set's own diagram photo shows the single-block arrangement, not any of these split patterns, so you're composing your own layout rather than copying the product photo.

From the shop

8-Piece Pine Hexagon Modular Wall Shelves

Best for splitting into flanking groups, an L-shape, or a header run around a window opening rather than one continuous 41 in by 22 in (104 x 56 cm) block. Each of the eight hexagon, box and ledge modules hangs on its own keyhole hanger, rated up to 11 lb (5 kg), with no back panel and no window-clearance guidance in the listing itself.

View the 8-piece pine hexagon set — dimensions & current price

Where Do the Fixings Actually Go Beside a Window?

Beside a window, the framing behind the drywall is a king stud running full height at the rough opening's edge and a jack stud below the header supporting it, the roles Wikipedia's framing construction entry describes for any window or door opening; the header itself spans across the top of the opening rather than continuing as a stud.

• A king stud usually sits right at or just past the window's rough opening on each side, which makes the wall immediately beside a window one of the more reliable places to hit solid framing with a stud finder.
• Above the opening, the header carries the load across the window rather than a stud running straight up, so a module placed directly above the glass is more likely to land on drywall over the header than on a vertical stud.
• Every module here still hangs the same way as anywhere else on this set: a keyhole hanger on the back with the mounting hardware included, fitted to a fixing suited to your wall per Houseland's own listing, so a hexagon that lands on a king stud needs no anchor while one that lands on drywall over the header needs a rated anchor, the same toggle or butterfly type a Bob Vila installation guide recommends for open drywall, aimed toward the low end of its stated rating rather than the maximum.
• Confirm the framing with a stud finder before trusting any of this by eye, sliding it in from both directions the way a This Old House floating-shelf guide does to mark a stud's true center, since actual framing can vary from the textbook layout.
• For getting several keyhole points level with each other once you know where the framing is, see marking keyhole slots so every hole lands level; for drywall spans between studs on a similar multi-piece hexagon set, see anchoring a multi-piece hexagon shelf wall into drywall.

How High Should the Arrangement Sit Relative to the Window?

About 57 in (145 cm) from the floor to the center of each flanking group is the same picture-hanging eye-level rule used elsewhere on a wall, but beside a window it's worth checking against the window's own header and sill lines before you commit to that number.

1. Start with 57 in (145 cm) to the center of whichever group you're hanging, the grouped-arrangement version of the eye-level rule a Bob Vila picture-hanging guide gives.
2. Compare that line to the window's header height; if 57 in (145 cm) lands close to or above the header, align the top of your flanking group with the header line instead so the shelves and the window read as one composition rather than two unrelated heights.
3. Where a group sits below the sill, keep the top of that group at or below the sill line rather than crossing it, so the shelf doesn't visually compete with the glass.
4. Re-check level once you've picked a height: hold a level across the group before marking anything, the same check used for any multi-piece arrangement on this set, and leave the same 11 to 18 in (28 to 46 cm) gap a House Digest floating-shelf spacing guide gives between any two modules that end up stacked within one group.

What's the Honest Limitation of Planning This Around a Window?

Two limits carry over from the set itself, and the rest are specific to a window wall: the box holds the eight modules and one mounting hardware set, not a factory layout template or drywall anchors sized to every wall type, the 11 lb (5 kg) load rating applies per module rather than per side, and none of the window-specific clearances above, trim, curtain stack-back, sun exposure, come from the product listing itself.

• If you want to test a split layout with paper or cardboard before drilling anything, that method is covered in full elsewhere; see testing a multi-piece shelf layout with paper before drilling rather than re-deriving it here.
• If the window wall is too narrow or too interrupted by curtain hardware for any of the three patterns above, a plain pair of floating shelves as a single header run, or skipping shelving on that wall entirely, both fit better than forcing all eight pieces into a tight space; browse the full wall shelves collection for a smaller set.
