A toddler stops pulling a keyhole shelf off the wall when two things are true: the lowest module hangs with its bottom edge at 48 in (122 cm) or higher, and the keyhole slot is locked with a small bracket so the module cannot lift. Height alone is not enough, because a routed keyhole releases with an upward lift equal to its slot length, which is far less than the travel of a child's arm, and the ADA's own advisory table puts the high reach of a 3 or 4 year old at 36 in (91 cm) before they stand on anything.
The fix takes 1 bracket, 2 screws and about 20 minutes per module, and it is reversible when the child is older. Houseland's rounded cube set hangs every module on a keyhole hanger routed into the back, with the mounting hardware in the box, so the same lock works on all 6 pieces without drilling through a back panel that is not there.
Why does an upward tug lift a keyhole shelf off the wall?
A keyhole hanger holds by gravity alone, so any lift that matches the slot length frees it. Hunker describes the geometry plainly: the hole is shaped like an upside-down keyhole with a round hole at the bottom and a slot extending up from it, the round hole is larger than the screw head and the slot is narrower than it, so you slip the hole over the head and slide the slot down to hold the object against the wall. Reverse that motion and the module comes off in 1 movement.
The distances involved are small. A common keyhole router bit, the Whiteside 3050 sold by Carbide Processors, cuts a 0.375 in (9.5 mm) pocket with a 0.19 in (4.8 mm) neck and a 0.44 in (11 mm) cutting depth, and the slot is only as long as the router travelled. Measure the lift on the back of your own module: the distance from the centre of the round hole to the closed end of the slot is exactly how far a child has to raise it before it comes forward. A 2 year old is 32 to 37 in (81 to 94 cm) tall by the Cincinnati Children's growth ranges, and a reaching arm travels far more than any slot.
That is why the tug is the risk and not the load. A module rated to 11 lb (5 kg) can carry a plant and 3 paperbacks all year, then leave the wall in 1 second because a hand went up under the front edge. Open box modules make it worse: the front rail is a handle at exactly the height a standing toddler grabs. The Hometalk thread that started this question was a parent with a climbing 1 year old and open shelves in a rental, and 28 replies later the answers were all barriers, not fixings.
How high should the lowest shelf hang to stay out of a toddler's reach?
Put the bottom edge of the lowest module at 48 in (122 cm) from the floor, and higher if a sofa, bed or chair sits under the wall. The published reach figures are lower than that, but they describe a comfortable reach, not a stretch on tiptoe with a hand hooked over a rail.
| Age | Height range | High reach in the ADA advisory | Lowest shelf edge I'd use |
|---|---|---|---|
| 2 years | 31.5 to 37 in (80 to 94 cm) | not tabulated | 44 in (112 cm) |
| 3 to 4 years | 34.5 to 43 in (88 to 109 cm) | 36 in (91 cm) | 48 in (122 cm) |
| 5 to 8 years | 42 to 54 in (107 to 137 cm) | 40 in (102 cm) | 52 in (132 cm) or lock every module |
The height ranges are the CDC-based figures Cincinnati Children's publishes for girls and boys combined, and the reach column is Advisory 308.1 of the 2010 ADA Standards, which gives a high reach of 36 in (91 cm) for ages 3 and 4, 40 in (102 cm) for ages 5 through 8 and 44 in (112 cm) for ages 9 through 12. Add about 8 in (20 cm) to the tabulated reach and you have the stretch of the same child on tiptoe, which is why 48 in (122 cm) is the floor, not the target.
Climbing changes the arithmetic completely. A 17 in (43 cm) sofa seat under the wall hands a 3 year old another 17 in of reach, so a shelf at 48 in is suddenly at 31 in for practical purposes. Either move the furniture or treat every module on that wall as reachable and lock all of them. The 3.5 in (9 cm) depth of a slim ledge is a foothold too, which is one more reason the lowest piece should be a box rather than a ledge: the box has a rail to grab but no flat step.
How do you stop a toddler pulling a keyhole shelf off the wall?
Lock the slot after the module is hung, using a bracket that removes the ability to lift. Here is the order that works, with the check at each step.
- Set the height first: mark a line at 48 in (122 cm) from the floor and put the bottom edge of the lowest module on it. Lay the 6 pieces out on the floor in the pattern you want, measure from the lowest edge to each keyhole, and transfer those offsets up from the line. Our guide on marking keyhole slots for level holes covers the tape method for pairs of slots. What goes wrong: measuring to the top of the module instead of the keyhole, which drops everything by the board height.
- Find the studs before you drill. In US and Canadian framing they sit 16 in (41 cm) on centre, sometimes 12 or 24 in (30 or 61 cm), per Wikipedia's wall stud entry. A keyhole screw into a stud is a wood screw in solid timber and will not pull out under a child. Where the keyhole lands between studs, use a toggle rated for pull-out (next section), never a plastic plug.
- Drive the keyhole screw so the head stands off the wall by the pocket depth, then hang the module and push it down until it seats. The head must pass through the round hole and not through the slot; the screws in the box are sized for the slot, so use them rather than a random drywall screw. Check: the module should sit flat and not rock when you press a top corner.
- Fit the lock. Take a 1 in (2.5 cm) steel angle bracket, hold it inside the box against the top board and the wall, and drive 1 screw of 0.5 in (13 mm) into the top board from below and 1 screw into a wall anchor or stud. For a ledge, fit the same bracket under it where it cannot be seen from standing height. What goes wrong: a screw longer than the 0.6 in (1.5 cm) board thickness, which breaks through the top face. Use 0.5 in (13 mm) screws in the timber and keep the long screw for the wall.
- Test it the way the child will. Hook 4 fingers under the front rail and lift. A locked module does not move at all; a module that rises even 0.25 in (6 mm) is not locked and will come off. Then pull straight out with about the force you would use to open a stiff drawer. Nothing should creak.
- Load it light. Keep each piece under its 11 lb (5 kg) rating, put nothing a child wants on the low pieces, and put the plant or the breakable on the modules above 60 in (152 cm). The toy that is worth climbing for is the one that causes the climb.
Removable adhesive at the keyhole is the other fix people suggest, and I could not find a published holding figure for any putty used that way, so treat it as a rattle stop rather than a lock. The bracket costs about $1 and leaves 2 small holes when it comes out in 3 years.
From the shop

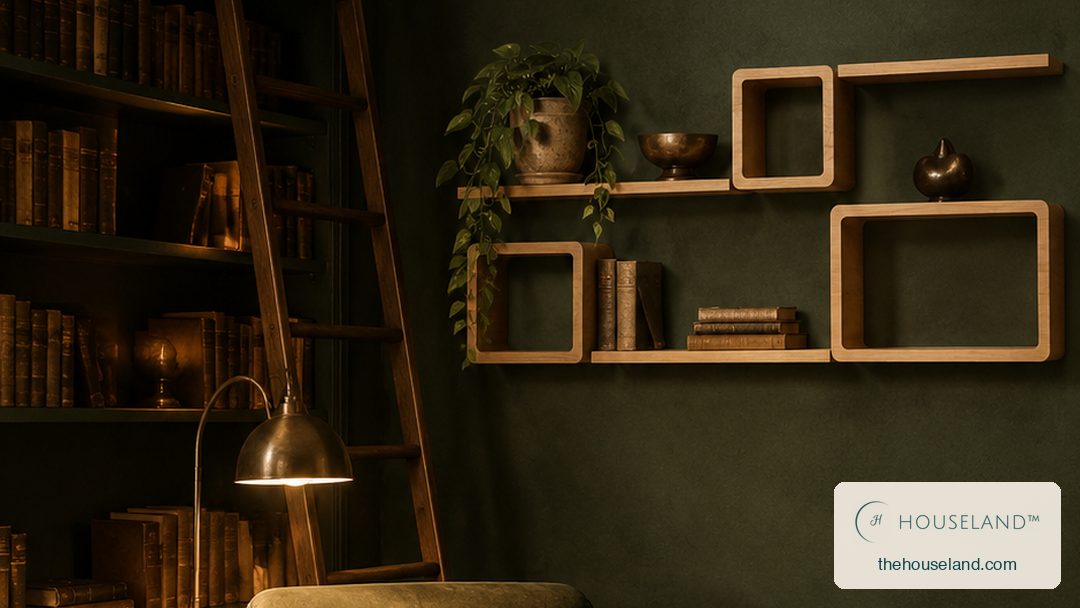

6-Piece Rounded Pine Cube Wall Shelves
Six pine modules, 3 rounded boxes and 3 ledges, each 3.5 in (9 cm) deep on a keyhole hanger with the hardware in the box and a load of up to 11 lb (5 kg) per piece.
View the 6-piece rounded pine cube set — dimensions & current priceWhich wall anchor holds against a pull, not just a downward load?
A toggle that braces behind the plasterboard, because the load a child applies is outward and upward, not the shear a shelf normally puts on a screw. Toggler publishes an ultimate holding value of 238 lb (108 kg) for its Snaptoggle in 0.5 in (13 mm) drywall and 802 lb (364 kg) in concrete, which is the kind of pull-out figure a plastic expansion plug never carries.
| Fixing | Resists downward shear | Resists outward pull | Use for the lock bracket? |
|---|---|---|---|
| Wood screw into a stud | Yes | Yes | Yes, first choice |
| Strap or wing toggle in drywall | Yes | Yes, published figure 238 lb (108 kg) ultimate | Yes |
| Plastic expansion plug in drywall | Some | Poor, no pull-out figure to rely on | No |
| Adhesive strip | Rated by the maker | Peels under a sustained tug | No |
Two cautions from the same maker matter here. Toggler's FAQ says its ultimate holding value is for objects held closely to the wall, and that moving objects away from the wall, such as the far end of a shelf, significantly increases the effective weight and greatly reduces the allowable load. A child hanging from the front rail of a module 3.5 in (9 cm) deep is exactly that lever, so the ultimate figure is a ceiling, not a working number. Divide any published ultimate load by at least 4 to get a working load, and the toggle still holds a 30 lb (14 kg) child's tug on a shelf with a wide margin.
Our piece on floating shelf weight capacity works through the same lever arithmetic for ordinary loads, and the note on what a 5 kg limit means explains why the rating is per piece and not per wall.
What should go on the low modules once they are locked?
Soft, light and dull: a plush toy, 3 board books, a fabric basket, nothing over 11 lb (5 kg) and nothing that shatters. The lock stops the module leaving the wall, but it does not stop a child reaching in, and an open module has no back panel, so anything smaller than the opening can pass straight through to the floor behind.
Houseland lists the rounded cube set at 3.5 in (9 cm) deep with a 0.6 in (1.5 cm) board, and that depth is the reason it works at child height: a hand can reach in but nothing heavy fits. The corners are rounded on every box rather than mitred square, which matters at the height where a running 2 year old meets furniture head first. Every piece is natural pine with a clear matte lacquer, sanded and lead free, so a chewed corner is a cosmetic problem and not a chemical one.
Save the ceramics, the candle and the framed photo for the pieces above 60 in (152 cm), where the module is out of reach even from a sofa. If the set is going up in a nursery, the wall shelves collection has ledges as well as boxes, and a straight ledge at 60 in with the boxes locked lower down keeps the display where the adult can see it and the toys where the child can. Recheck the lift test every 6 months, because a screw in pine relaxes a little as the timber dries and the bracket screw is the one doing the work.
