What to Do When a Shelf Would Block a Light Switch

Move the shelf, not the switch. What to do when a shelf would block a light switch comes down to two measurements you can take in a minute: how far the board projects from the plaster, and whether the plate still sits inside the reach band a hand expects. Slide the run sideways, or split it, and the problem costs you 2 extra screw holes.

Relocating the switch is the expensive answer, because it means opening the wall, extending cable, fitting a box, patching and repainting. The shelf has no wiring in it. That is why the shelf is the part that moves.

What do you do when a shelf would block a light switch?

Take the shelf sideways before you take it off the wall, because sliding a run 6 in along the plaster costs 2 screw holes and relocating a switch costs an electrician. Ranked by what each one costs you, these are the moves that work.

1. Slide the whole run sideways. Cheapest and least visible. Mark the new positions, drill, patch the 2 old holes with filler and touch in the paint.
2. Split the run and leave the switch in the gap. Modules that hang one by one let you stop short of the plate and start again past it, so the switch reads as a deliberate pause rather than a collision.
3. Raise the run so the boards clear the plate. Works when the wall above is empty, and fails when it pushes the top shelf past what you can reach without a stool.
4. Swap a long board for a short one. A 19.7 in ledge that fouls the switch may be replaced in the layout by a small hexagon that does not.
5. Move the switch. Last, and only when nothing above worked. This is wiring work, not decorating work.

The order matters because the first 4 options are reversible in an afternoon and the fifth is not. Houseland ships this set with a keyhole hanger routed into the back of every module, which is what makes options 1 to 4 practical: each piece finds its own screws, so a layout can be re-cut around an obstacle without re-buying anything.

How much clearance does a light switch need around it?

The published envelope for anything you operate with a hand is 15 in above the floor at the low end and 48 in at the high end. That range comes from section 308 of the 2010 ADA Standards for Accessible Design, which sets the unobstructed forward reach at 48 in maximum and 15 in minimum above the finished floor. Domestic walls are not required to follow it. It is still the only free, published number for where a hand can comfortably land, and it is the number to test your wall against.

The same section quantifies obstructions, which is the part that answers a shelf question. A shelf standing between you and the switch is an obstruction, and the standard says how deep one may be before the reach shrinks.

Read the last row before you plan a shelf above a switch. A toggle needs a finger to travel up or down through its own arc, and a rocker needs a thumb-sized landing area. Neither needs much, but both need the space directly in front of the plate to stay empty.

Does a shallow shelf block a switch, or only look like it does?

A shelf 3.5 in (9 cm) deep sitting beside a switch is not blocking it, and the standard says so: obstructions up to 10 in deep are allowed to sit between you and the thing you are reaching for. Most floating shelves and ledges land well under that. What people call blocking is usually the plate looking crowded rather than the hand being stopped.

So separate the two failures before you re-plan the wall.

• A reach failure. Your knuckles hit timber before your finger reaches the plate. Fix this by moving the shelf; nothing else will do.
• A clutter failure. The switch is reachable, but a candle, a trailing plant or a stack of paperbacks now sits in front of it. Fix this by changing what goes on the shelf, not where the shelf goes.
• A visual failure. The board's edge nearly touches the plate, so the eye reads a near-miss as a mistake. Fix this with distance: a clear band around the plate, sized by eye from 8 ft back, settles it.

Depth is what decides the first one. Every Houseland module in this set is 3.5 in (9 cm) deep on a 0.6 in (1.5 cm) board, which is roughly the projection of a picture ledge and about a third of the depth the standard treats as a genuine obstruction. A 12 in deep bookcase shelf is a different conversation.

Test it with your own hand rather than a tape. Stand square to the wall, close your eyes, and reach for the switch the way you do at night. If your hand finds the plate without a detour, the shelf is not in the way.

From the shop

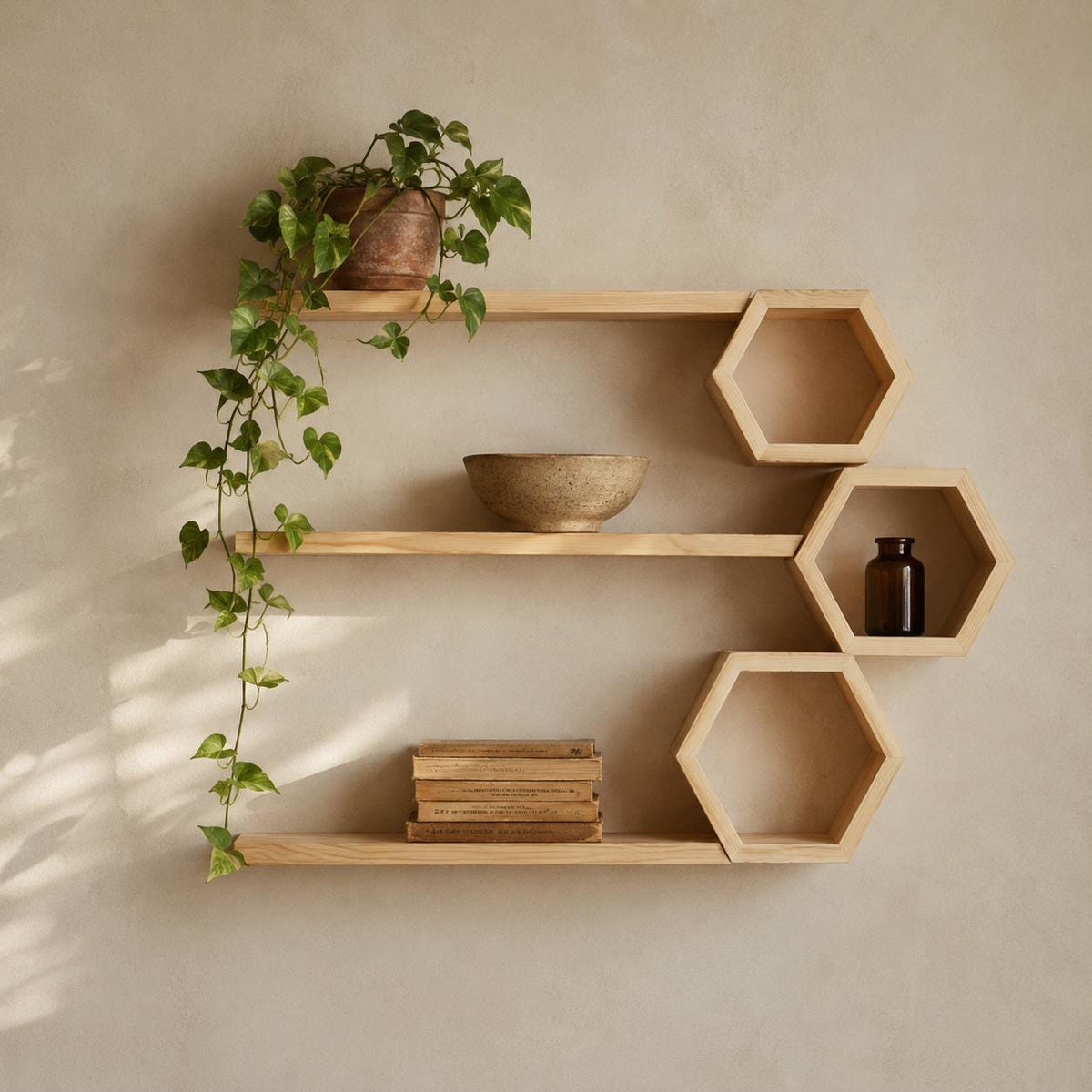

6-Piece Pine Honeycomb Wall Shelves

Six modules that hang one at a time on keyhole hangers: 3 hexagons 13.8, 11.8 and 9.8 in wide and 3 straight ledges 19.7 in long, each 3.5 in (9 cm) deep. Load rating up to 11 lb (5 kg) per piece.

View the 6-piece pine honeycomb set — dimensions & current price

Where should the shelf go instead of over the switch?

Move it to the next stud, not the next inch. In the US and Canada studs usually sit 16 in apart from centre to centre, sometimes 12 or 24 in (wall stud spacing), so a sideways shift of 16 in lands your fixings back on solid timber instead of hollow plasterboard. That is one decision solving two problems.

• Beside the switch, on the far side from the door. A switch normally sits within a few inches of the door casing, so the open wall is on the other side. Start the run there and it will never come near the plate.
• Above the switch, as a separate band. Leave the plate and its clear zone alone, then begin the shelving high enough that the lowest board sits above the reach band rather than inside it.
• Below the switch. Rarely considered and often the right answer in a hallway, where a low ledge takes keys and post and the switch keeps the whole upper wall to itself.
• Turn the corner. A return wall 24 in away is usually empty, and a run that turns the corner reads as intentional planning rather than avoidance.

If the wall is masonry rather than stud and plasterboard, the stud argument disappears and the fixing does the work instead; our note on choosing a drill bit for concrete and brick covers that case. If the anchor you already used has given up, the repair is in what to do when a drywall anchor spins in its hole.

Should you move the light switch instead of the shelf?

Move the switch only when the shelf position is fixed by something you cannot argue with, such as an alcove, a chimney breast or a fitted wardrobe. Everywhere else the arithmetic is against it. A relocation means an isolated circuit, a new box, cable run inside the wall or in a chased channel, a blanked or removed old box, filler, sanding and paint that will not quite match the surrounding wall for a while.

Raising the switch is the version people ask about most, and the reach band is what rules it out. Push a switch above 48 in and you have taken it outside the high forward reach the ADA standard sets, which quietly makes it harder for a child, a shorter adult or anyone using a chair. A shelf is a convenience. Reaching a light in the dark is not.

There is a second cost people forget. A patched box leaves a flat rectangle of filler in a wall that is not flat, and raking light from a window or a nearby lamp finds that rectangle every afternoon. Our piece on filling a blank wall with modular shelves is the cheaper route to the same look.

What if the switch sits in the middle of the wall you wanted to fill?

Treat the plate as one object in the arrangement and compose around it, because a switch you have designed around stops reading as an interruption. A centred switch is the hardest version of this problem and the one where the answer is layout rather than relocation.

Four arrangements do the work. Give the switch a full-height empty column, so the wall reads as two panels with a deliberate gap. Or stack a narrow vertical group on one side and leave the rest bare, which turns the plate into the edge of the composition instead of a hole in it. Or align one shelf edge exactly with the plate edge, since the eye forgives an alignment it cannot forgive a near-miss. Or put your smallest piece closest to the switch, so scale steps down towards the obstacle rather than crashing into it.

Weight distribution decides how far you can push this. Each piece in the Houseland set is rated up to 11 lb (5 kg), and the set is 3 hexagons of 13.8, 11.8 and 9.8 in wide plus 3 ledges of 19.7 in, so a split layout has 6 separate anchor points to spread across the wall rather than one long board that has to clear everything. Browse the rest of the wall shelves collection if the run you need is longer than one set.

For the composition itself, the same instincts that govern a picture wall apply here, and planning a gallery wall with ledges and boxes works through the spacing question in more detail.
