Where Does the Cord Go on a Plug-In Wall Sconce?

On a plug-in wall sconce the cord leaves the fixture at the bottom of the backplate or the base of the arm, and from there it drops straight down the wall to the nearest outlet. So the useful answer to where does the cord go on a plug-in wall sconce is down first and sideways only as far as it must, because every foot you carry it across the wall is a foot of cable you then have to look at.

The arithmetic is worth doing before you drill. A corridor sconce sits about three quarters of the way up the wall, so on an 8 ft ceiling that is near 72 in (183 cm), while an outlet sits low, from 15 in (38 cm) up. That is a drop of roughly 57 in (145 cm) before the cord has moved sideways at all.

Where does the cord go on a plug-in wall sconce?

It exits at the bottom of the backplate or the base of the arm, then falls vertically to whichever outlet is nearest that point. The exit is fixed at the factory as a notch in the rim of the backplate, a grommeted hole in the rear casting, or a moulded channel under the arm, and none of the three can be relocated once the fixture is assembled. Find it before you mark a hole, because that one detail decides which way the visible cable falls.

Two things follow. A fixture whose cord leaves the bottom edge hangs its cable in open view under the shade, while one whose cord leaves the rear can be turned so the cable emerges on the side facing a bookcase or a curtain, and on many models a quarter turn of the backplate moves the exit through 90 degrees. Houseland's travertine flush mount is the opposite case, a hardwired surface mount fixture 8.7 in (22 cm) across with no cord to place anywhere.

The destination is less free than it looks. In a US dwelling, outlets are spaced so that no point measured horizontally along the floor line of a wall space is more than 6 ft from one (IRC E3901.2.1, quoting NEC 210.52(A)(1)), and a wall space is any run 24 in (61 cm) or wider that a door, a fireplace or a fixed cabinet does not interrupt (E3901.2.2). The outlet you will use therefore already exists within 6 ft of wherever the sconce goes, and the only open questions are whether the cord reaches it and how much of the trip shows.

How do I measure the cord run before I drill the first hole?

Measure the vertical drop first, the sideways offset second, and add about 18 in (46 cm) of slack across the two ends. Six steps, a tape and five minutes, and you will know whether the cord in the box is long enough before anything is fixed to the wall.

1. Mark the fixture centre. Sconce height in a passage runs to about three quarters of the floor-to-ceiling distance, so an 8 ft ceiling puts it near 72 in (183 cm) (Sconce, Wikipedia).
2. Find the cord exit, not the centre. On most wall lamps it sits 2 to 4 in (5 to 10 cm) below the mounting mark, and the drop you actually need starts there.
3. Measure down to the top of the outlet. An outlet on an accessible route sits between 15 in (38 cm) and 48 in (122 cm) above the floor, the reach range set by ADA 308.2.1, and in most homes it sits at the bottom of that band.
4. Measure the sideways offset along the wall. This is the number people forget, and it can be anything up to 6 ft on a wall that only just meets the spacing rule.
5. Add the drop and the offset, then add slack. Allow 6 in (15 cm) at the fixture so the cord curves rather than kinks out of the exit, and 12 in (30 cm) at the plug so the connection is not under tension.
6. Compare that total with the cord you were sent. If it falls short, the fixture moves or the outlet moves, and stretching a cord across a doorway is not the third option it looks like.

Do the same sum for a pair. Sconces are usually installed in pairs, and the distance between them on a wall is conventionally about the same as their height above the floor, which on that 8 ft ceiling puts them roughly 6 ft apart. One will sit near an outlet and the other will not, and the far one sets the cord length you have to buy for both.

Which route down the wall should the cord take?

Pick the shortest route that ends behind something, and take a longer route only when it buys you total concealment. Four routes cover almost every wall, and they differ mostly in what they cost you later.

The plumb line matters more than the length. A cord that hangs dead vertical from the shade reads as part of the fixture, while the same cord drifting 3 in (8 cm) off vertical reads as a mistake, and the eye finds that easily because it has the wall corner and the door casing to compare against. If the cord will not hang straight, a single clear clip halfway down does more than a full cover.

Colour is the cheap win. A white cord on a white wall disappears at 6 ft away and a black cord on a white wall does not, so buy the fixture in the cord colour that matches your wall rather than the one that matches the metal. The same logic decides where a plug-in piece belongs at all in a room where the outlets are all behind furniture.

What does the electrical code let a cord actually do?

A flexible cord may hang on the wall and plug into an outlet, and that is close to the whole permission. The residential wiring rules say a cord shall not be installed as a substitute for the fixed wiring of a structure, shall not be run through holes in walls, structural ceilings, suspended ceilings, dropped ceilings or floors, shall not be concealed behind walls, floors or ceilings, shall not be installed in raceways, shall not be installed where subject to physical damage, and shall not be attached to building surfaces (IRC E3909.1, quoting NEC 400.10 and 400.12).

Read that list against the four routes above and two of them get shorter. Stapling a cord to the wall is out, and so is drilling behind the sconce and fishing the cord to an outlet inside the cavity, however tidy the result. The same code section also says a flexible cord shall be used only in continuous lengths without splices or taps, which rules out cutting a long cord and rejoining it at the length you wanted.

Extension cords carry a further warning. The Electrical Safety Foundation International calls an extension cord a temporary solution rather than a long-term extension of a household's wiring, says not to run one through walls, doorways, ceilings or floors, and notes that a covered cord cannot shed heat, which is a fire risk. Its own figure is roughly 3,300 home fires a year originating in extension cords, killing 50 people and injuring 270 more (ESFI). Heavy reliance on them, it adds, means the room has too few outlets.

Where does the cord go when there is no outlet below the sconce?

Move the fixture, add an outlet, or stop trying to solve it with a cord. A wall with no outlet under the spot you want is telling you something, and the honest options are short.

• Shift the sconce sideways. On a wall that meets the spacing rule an outlet is within 6 ft of any point, so moving the fixture 18 in (46 cm) often halves the visible cable.
• Have an outlet added at the height you need. An electrician can put one just above the baseboard directly under the sconce, and that turns a 6 ft diagonal into a short vertical drop.
• Go hardwired instead. A wall box behind the backplate removes the cord entirely, which is also the route people take when they want the switching handled at the wall rather than on the fixture body.
• Light the space from above. If the reason for the sconce was a dark corridor rather than a reading spot, a ceiling fixture on the existing circuit does the job with no cable on the wall at all.

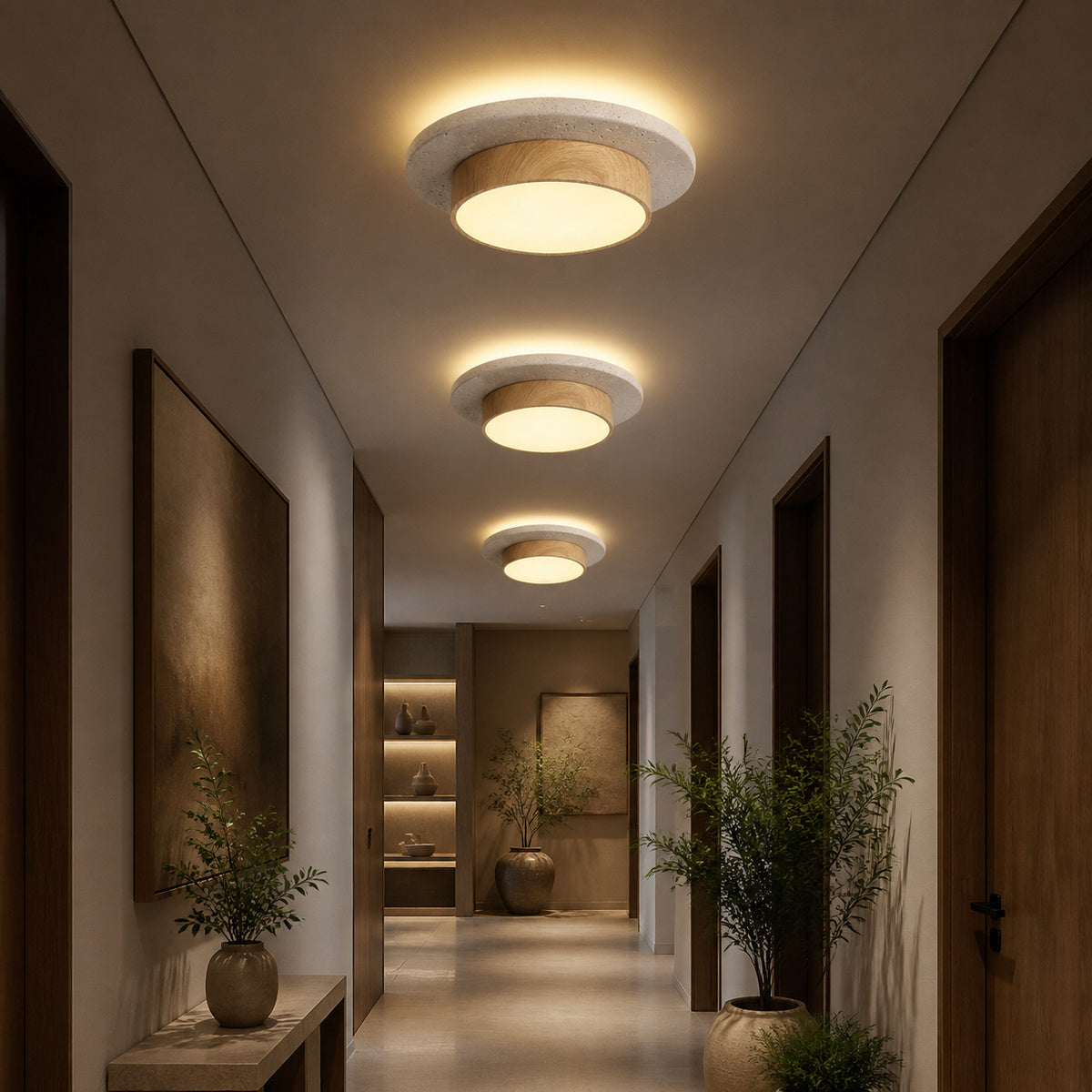

That last one is worth taking seriously in a hallway. Sconces are decorative as much as functional there, and a corridor lit from the ceiling needs no cord run past a door casing, which is exactly the run the code forbids. Houseland's travertine flush mount draws 28W of warm white LED and stands only 1.6 in high, so it clears a low ceiling that a pendant would crowd, and a two-way switch at each end covers a passage a plug-in fixture never could.

From the shop

Flush Mount Ceiling Light, Travertine Wood Hallway Fixture, 8.7 In

A hardwired surface mount fixture, 8.7 in (22 cm) across and 1.6 in high, running 28W of warm white LED on 85V-265V. The visible ring is yellow travertine natural stone, with a Natural Wood or Walnut centre.

View the travertine flush mount light — 2 finishes & current price

What I'd do

Hold the fixture on the wall, let the cord hang, and look at where the plug lands before a drill comes out. If the plug reaches an outlet with 12 in (30 cm) to spare and the cord hangs plumb, mark and mount. If it does not, move the fixture rather than the cord.

In a bedroom I would drop the cord behind the headboard and accept that the bed is now part of the installation. In a hallway I would not run a plug-in fixture at all, because the offset is usually 6 ft or more and the cable ends up crossing a doorway. Houseland lists the travertine ring as a hardwired surface mount on 85V-265V, and in a corridor that is the fixture I would fit.
