Will a 24 Degree Beam Angle Light My Whole Painting?

A 24 degree beam angle will not light a whole painting from an ordinary ceiling, and the beam angle number is not the reason why. Twenty-four degrees is the 50 per cent contour, the width at which the light has already fallen to half its centre brightness, so artwork coverage is decided by two things no datasheet prints: how far the fitting sits out from the wall, and the aiming angle that setback forces on you.

The symptom is always described the same way. A bright oval across the middle, both top corners dark, a hard edge of light on the wall under the frame, and rotating the head just slides the oval about. That is a mounting-position fault, not a beam-width fault. Houseland lists this fitting at a 24 degree beam angle.

Why is the lit pool bigger than 24 degrees says it is?

Because the number only describes the bright core. LampHQ defines beam angle as "the area where the lamp radiates at least half (50%) of its maximum luminous intensity", so the light does not stop at the edge of it. The wider figure is the field angle, which the IES defines as "the angle between the two directions for which the intensity is 10% of the maximum intensity as measured in a plane through the nominal beam centerline". The IES entry also records that older usage called that 10 per cent figure the beam angle, which is why two spec sheets can describe one optic with two different numbers.

A published photometric report shows the size of the gap. Soraa's LM-79 report for a 9W MR16 sold as a 25 degree spot records a beam angle of 21 degrees and a field angle of 40 degrees, so the pool a viewer reads as lit is 1.9 times the width of the labelled cone. Treat the beam-angle figure as the bright middle of the pool rather than its boundary, and expect the visible patch to run close to twice as wide as 24 degrees predicts.

Those rows are one lamp at three throws, straight from the report's own table. Look at the last column: at room distances a 9W narrow spot already delivers hundreds of lux, which becomes the whole argument further down.

What does a 24 degree beam angle cover on an artwork, and how does aiming change the shape?

A 24 degree cone lands as a circle only when it is pointed square at the wall, and nobody mounts art lighting that way. Tilt the head and the cone meets the wall as an ellipse that runs far further down the wall than it runs across it. At the usual 30 degrees off vertical the beam arrives 60 degrees away from the perpendicular, so the upper edge ray lands at 48 degrees and the lower edge ray at 72 degrees, and past 60 degrees the tangent climbs so steeply that the lower edge runs more than twice as far from the centre as the upper one.

Work it through on a 9 ft ceiling with the head 25 in out from the wall. The top of the pool lands 80 in above the floor and the bottom of it near 31 in, a patch about 49 in tall but only about 21 in across at its widest. On a 35 in wide canvas hung with its centre at 60 in, that ellipse lights the middle third of the width, leaves both top corners dark, and throws about 9 in of spill onto the wall below the frame. The shape is 2.3 times taller than it is wide, which is exactly the oval people describe.

Rotating the head changes none of that; it slides the same ellipse around the wall. Only the setback reshapes it, because the tilt is whatever the setback leaves you. There is a brightness penalty at that angle too: the IES cosine law states that "the illuminance on any surface varies as the cosine of the angle of incidence", so a beam arriving 60 degrees off the perpendicular puts roughly half the lux on the canvas that a square-on beam would.

How do you fix a dark top corner without buying another light?

Move the fitting further out from the wall, because that is the only change that widens the pool across the picture without swapping the optic. It is also the change most people skip, since the fixture is already fixed to a wiring point somebody else chose.

1. Find the aim point, roughly a third of the way down the picture from its top edge. If the piece is not up yet, settle its height first; our note on how high to hang wall art above a sofa gives the height most rooms want.
2. Measure straight down from the ceiling to that aim point. Take Three Lighting puts the setback at 0.6 times that drop, which is the same instruction as a 30 degree tilt.
3. Compare it with the setback you actually have. A head half as far out as the rule asks throws the pool high on the wall and short of the frame.
4. Lower the picture instead of moving the light. Dropping the frame a few inches walks the aim point down and buys tilt for nothing.
5. Accept the ellipse. A tall narrow pool suits a tall narrow piece, so swapping which artwork hangs there can beat rewiring.
6. If the fitting itself has to move, that is electrical work. Adding or relocating a lighting point in England and Wales sits under Part P of the Building Regulations with BS 7671 behind it, and in the United States the same job is inspected under the NEC and your local permit rules. Book a qualified electrician; it is not a step in a decorating afternoon.

A surface fitting is the hard case here. It bolts on wherever the existing point is, so its setback was fixed by whoever wired the room. A recessed head can at least be cut into the right position during a rewire, and a swivel arm on a wall bracket, the sort covered in our piece on setting the height and angle of an adjustable wall light, takes the source off the ceiling altogether.

From the shop

Adjustable Ceiling Spotlight, Surface Mounted LED Downlight, CRI 98

The spec table calls this a surface mounted LED downlight, so it bolts onto the ceiling rather than recessing into it, worth checking before anyone plans a hole. Beam angle is listed as 24 degrees and CRI as 98.

View the adjustable ceiling spotlight — 6 fixture colours & current price

One head vs two, or a wider beam: what really covers a wide canvas?

Two heads beat one narrow beam on anything wider than about 30 in, and on a low ceiling a track run beats both. Worth saying honestly: for a wide piece the answer is often not a spot at all.

Said plainly: where the piece is 35 in or wider and the wiring point is 12 in from the wall, no beam angle rescues it. A track run or a light on the frame is the better buy, and a different optic on the same point only changes which part of the wall looks wrong, which is a real constraint on the big walls covered in our guide to wall art for a large wall.

How bright should the painting actually be?

Three to five times the brightness of the room around it, and below the conservation ceiling for whatever the piece is made of, which are two limits that fight each other in a normal living room. Lighting Design Lab sets the floor: the accent "must be at least three times as bright as the ambient to be considered an accent", with 5:1 giving a "distinct focal area" and 10:1 the "minimum for strong focal accent". The IES residential figures put a living room at 10 to 20 footcandles, or roughly 108 to 215 lux, so a 3:1 accent means 320 to 650 lux landing on the canvas.

The other limit runs the other way. CCAHA's exhibition guidance caps works on paper, photographs and textiles at 50 lux, oil paintings, wood and leather at 150 lux, and metal, ceramics, stone and glass at 300 lux, and it treats the harm as cumulative, lux multiplied by hours. A 3:1 accent over an ordinary living room lands at two to four times the 150 lux ceiling for an oil painting and more than six times the 50 lux limit for a watercolour, so the honest move is to pull the room down rather than push the picture up.

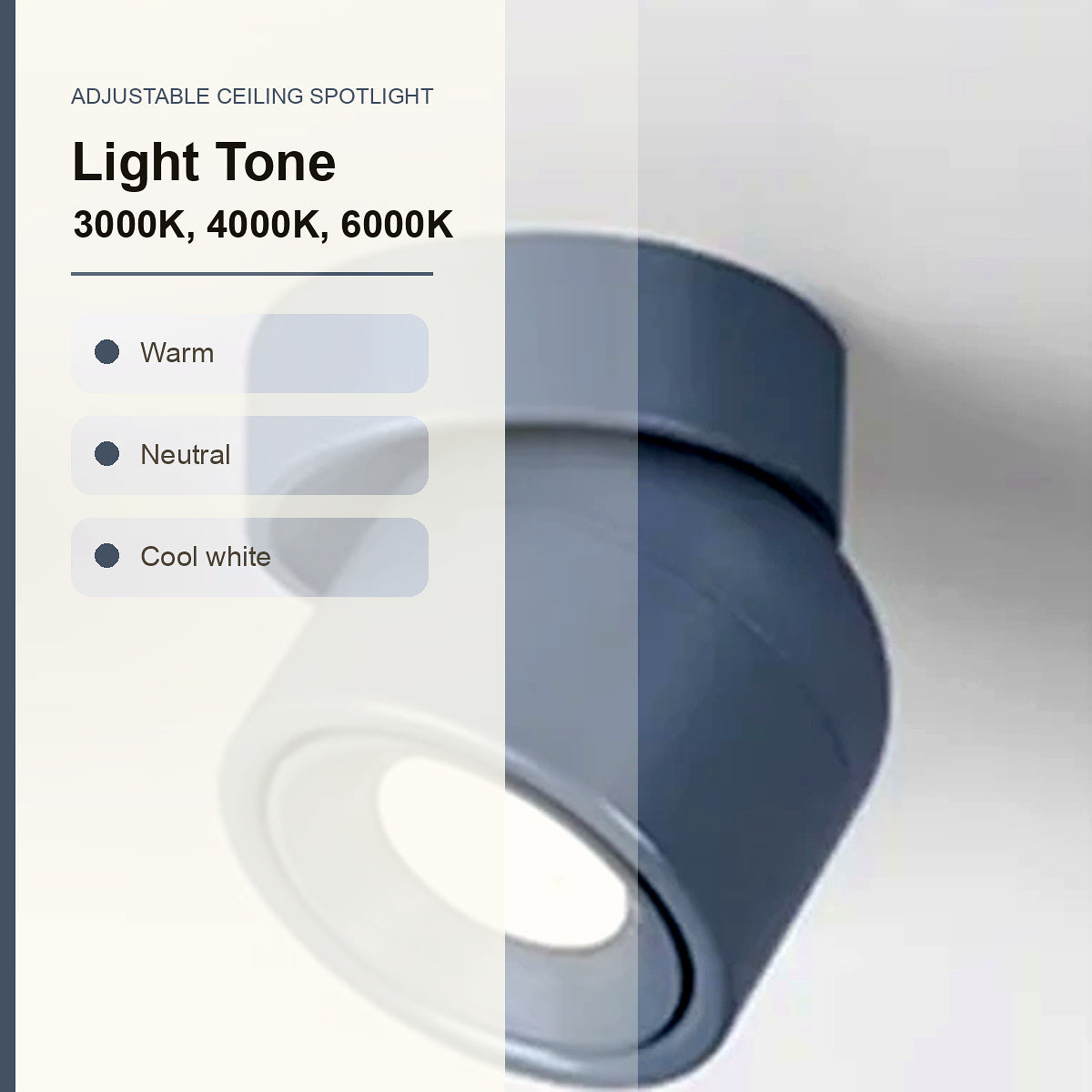

It comes in 7W, 10W, 12W, 15W or 20W, at 3000K, 4000K and 6000K, and AC85V-260V. Measure it. A handheld lux meter, or a phone lux app held flat against the picture, reads it in seconds, and the Soraa report is a fair sanity check at 914 lux on axis at 6.6 ft from a 9W lamp.

What I'd do

Measure the setback before touching anything else. If it lands near 0.6 times the drop from the ceiling to the aim point, the optic is doing its job and the picture is hung too wide for a 24 degree cone. If it falls far short, the pool stays high and narrow whatever you buy, and the real choices are to lower the picture, add a second point, or move the source off the ceiling.

Then decide what the light is for. This fitting is rated CRI 98. If color accuracy is why you're lighting a painting, treat it as a starting point and judge it against daylight on the same wall. Whatever you take from the wall lamps collection, the fixture that gets the setback right will beat the one with the cleverer optic every time.
