AC85-260V LED Light: Will It Run on 120V and 230V?

Yes on the electricity, and that is the easy half of the question. A light whose driver is marked AC85V-260V runs on 120V in the United States and on 230V in the United Kingdom with no transformer anywhere, because both nominal figures sit well inside that band. A universal voltage range is a claim about one component, though. It says nothing about mains frequency, nothing about the wire colours waiting in your ceiling, nothing about protection class, and nothing about who is legally allowed to make the connection.

The gap between those two halves is where the money goes. Buyers get caught twice: once by a fitting that turns up with pins their sockets will not take, and once by an electrician who will not put unmarked gear on a customer's ceiling. Houseland publishes a single electrical line for this fitting, Voltage: AC85V-260V, alongside 7W, 10W, 12W, 15W and 20W wattages and 3000K, 4000K and 6000K colour temperatures. No frequency. No plug type. No mark. No IP rating. Here is what to do about that silence in four markets that disagree with each other.

Does AC85V-260V Really Mean the Light Runs on 120V and 230V?

Yes, with more margin than the two headline numbers suggest. American homes are supplied at 120V and 60Hz and British ones at 230V and 50Hz, on the country tables kept by World Standards. Neither supply holds still. ANSI C84.1 sets a Range A service window of 114V to 126V for a 120V system and tolerates utilisation voltage sagging to 104V in Range B, the wider of its two bands. Great Britain declares 230V under the Electricity Safety, Quality and Continuity Regulations with a tolerance of plus 10 per cent and minus 6 per cent, a legal window of 216V to 253V, and the network operators are consulting on dropping the floor to 207V, as eFIXX sets out.

Put the two extremes side by side, 104V at the bottom of the American range and 253V at the top of the British one, and every legal mains voltage in either country lands inside 85 to 260. The headroom above 253V is 7V, which is thinner than it looks but real. Australia is the tighter case: nominally 230V, in practice often nearer 240V, which leaves roughly 20V of ceiling rather than 30V. No step-down transformer is needed in any of them.

What Does the Voltage Band Leave Out?

Four things, and each one decides something the volts cannot.

• Mains frequency. A complete input line states it. A commercial driver of the same family is sold with its input printed as AC 85-265V, 0.45A, 50/60Hz — the 50/60Hz is part of the specification, not an afterthought. For the frequency, check the print on the fixture body or the box.
• Conductor identification. Which colour is line, which is neutral and which is earth changes at the border, and no voltage range covers the fitting's own leads.
• Protection class. Class I or Class II decides whether an earth conductor lands on the fitting at all. A driver that accepts 85V to 260V can be either.
• Permission. Two of the four markets below reserve this job for a licensed person, however wide the input range is.

The shape of it is worth naming: the voltage band is a promise about a component, and everything else here is a rule about a building. Different people enforce them, and only one is printed on the product page. On a dimmable variant the driver raises its own question about what happens at the bottom of the dimming range, best settled before the fitting is 9 ft up.

Which Wires Will You Actually Find in the Ceiling?

Different colours on each side of the Atlantic, and one pair of them is an outright trap. Under the 2023 NEC a grounded conductor of 6 AWG or smaller is identified by a continuous white or gray outer finish, which is what 200.6 requires, while an insulated equipment grounding conductor carries a continuous finish of green, or green with one or more yellow stripes, and under 250.119 that green may never be used for an ungrounded or grounded circuit conductor. British fixed wiring reads brown for line, blue for neutral and green-and-yellow for the protective conductor. Those colours arrived with the 2004 amendment and became mandatory for new installations in 2006, with both systems permitted between April 2004 and March 2006, as Prysmian dates the change.

A British ceiling wired before 2004 still shows red for line and black for neutral, and black is the American neutral — the same colour doing the opposite job. That is why a mains connection is not colour-matching from memory in a new country. The print inside the canopy governs, and where old and new lead identification meet in one enclosure, the interface has to be marked.

Who Is Allowed to Connect It Where You Live?

Not you, in two of these four markets, and the rule turns on paperwork rather than volts.

Two rows repay expanding. A listed fitting in the United States appears in a list published by an organisation acceptable to the AHJ, and NEC 110.3(B) makes the maker's own instructions binding: listed or labeled equipment shall be installed and used in accordance with any instructions included in the listing, in the words of the 2023 code. Where there is no listing at all, the AHJ is contacted, a Field Evaluation Body inspects under NFPA 790 and NFPA 791, and its field label covers that one installation rather than the product line. Great Britain counted low voltage electrical equipment among the eighteen regimes covered when the government announced on 1 August 2023 that CE recognition would continue indefinitely. The notifiable list under Part P is a separate hurdle, as is the Australian licensing rule, which catches a new light fitting outright.

From the shop

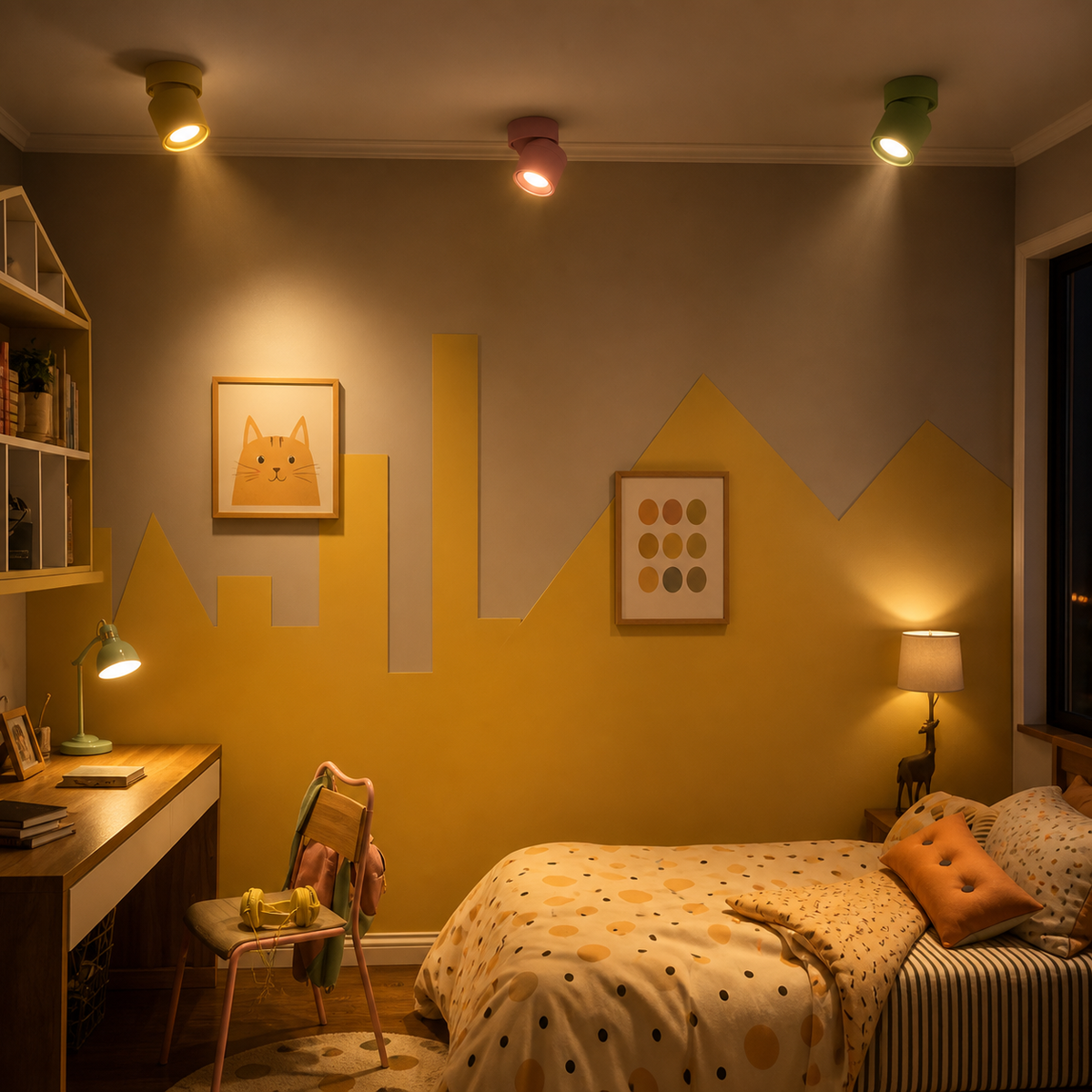

Adjustable Ceiling Spotlight, Surface Mounted LED Downlight, CRI 98

Surface mounted LED downlight in Gray, Pink, White, Black, Yellow or Green, at 7W, 10W, 12W, 15W or 20W, in Warm White 3000K, Neutral White 4000K or Cool White 6000K. Listed at Voltage: AC85V-260V with a 24 degree beam angle from source.

View the adjustable ceiling spotlight — 6 fixture colours & current price

Is It a Class I or a Class II Fitting?

Nothing in the spec table says, and the answer decides whether an earth conductor lands on the fitting at all. Class I equipment relies on basic insulation plus a protective earth connection to its accessible conductive parts and is marked with IEC 60417-5019, the PE symbol; Class II relies on double or reinforced insulation, has no provision for protective earthing, and carries the double square of IEC 60417-5172, as Ansell Lighting sets out. A Class II fitting must never be connected to earth, which makes that double square an instruction rather than decoration.

The practical version is short. A metal-bodied fitting with a two-core flex, no earth terminal and no class symbol printed anywhere is where the job stops: an electrician working to BS 7671 has nothing to land the green-and-yellow on and no marking saying none is wanted. Check the symbol on the body or the box — that's the only answer that counts for protection class. Photograph it and send it ahead of the visit.

How Do You Check the Fitting Before It Goes Up?

Read the fitting itself, in this order, before anybody books a morning.

1. Photograph the printed block on the fixture body. Labels rub off in packaging and the numbers are gone for good with them.
2. Find the input line and check it names a frequency as well as a voltage. A full one reads like AC 85-265V, 0.45A, 50/60Hz; a voltage on its own is half a specification.
3. Find the mark your own market recognises: a listing mark in the United States, CE or UKCA in Great Britain, the RCM in Australia and New Zealand. Someone else's mark is not a substitute.
4. Find the class symbol: the double square, or the PE symbol, or nothing at all. Nothing at all is an answer too, and it is the one that stops the job.
5. Settle the mounting before you pick up a hole saw. Houseland lists this one as a surface mounted LED downlight with a 24 degree beam angle from source, so it sits on the ceiling rather than in it, whatever the word downlight in the title suggests.
6. Send the label photograph to whoever will make the connection. In Australia and New Zealand that person is licensed by law, and in England a bathroom or a new circuit puts them on a competent person scheme.

Every listing in the wall lamps collection prints its own spec table, and the electrical line is the one to read first because it is usually shorter than the buyer assumed. Where a number isn't given, go to the fixture for it rather than borrowing one from a similar-looking product elsewhere.

What I'd do

Buy on the voltage band, then stop thinking about it, because it is the check least likely to fail. A driver spanning 85V to 260V clears 120V America, 230V Britain, 240V-ish Australia and 230V New Zealand with room to spare. Spend the effort on the four things it does not cover: the missing 50/60Hz line, the colours in your ceiling, the class symbol, and who is allowed to do the work where you live.

Two hard stops. A bathroom, a shower room or anywhere outdoors is a no for a fitting with no published IP rating, and this one has none; in England that location is notifiable work as well, so it fails twice. If you rent and cannot touch fixed wiring at all, the honest alternative is a plug-in or battery piece rather than a ceiling job, and battery and plug-in light a wall differently. If you want the level to change through the evening, settle how the dimming is controlled at the same time: that is a decision about the variant, not the voltage.
