Compact Pendant Light Dimensions: The Four Numbers

Compact pendant light dimensions come down to four numbers: shade diameter, shade height, maximum cord drop and canopy diameter. On the Compact Nordic E27 pendant at Houseland the shade diameter is published as 9.8 in (25 cm) or 11.8 in (30 cm), and once you have all four you set pendant centers 24 to 30 in (61 to 76 cm) apart. The other three numbers come from the shop or from your own tape measure, and this is where each one comes from.

What are the compact pendant light dimensions you actually need?

Four, and most listings print one. Shade diameter sets how wide the pool of light lands and how much weight the fixture carries in a room, and here it is 9.8 in (25 cm) or 11.8 in (30 cm). Shade height decides how much bare bulb you see from a seat at a 36 in (91 cm) counter. Maximum cord drop decides whether the fixture can reach from a 96 in (244 cm) ceiling down to the height you want. Canopy diameter decides whether the ceiling plate covers the round box already up there, which in a US home is usually 4 in (10 cm) across.

Big box listings usually stop at shade width, which is enough for one pendant over a hallway table. It falls apart the moment you want two or three over an island, because spacing is measured center to center and the sightline across a table depends on the drop rather than the diameter. Write all four down before you drill: shade diameter, shade height, maximum cord drop, canopy diameter, then 24 to 30 in (61 to 76 cm) between centers.

Shade height and maximum cord drop are not printed on this product page, so ask before you order or measure the fixture the day it arrives. Shade upside down on a folded towel, tape from the rim to the top of the socket cup for height, cord laid out flat for drop, which is the figure that has to beat your ceiling-to-counter gap on a 96 in (244 cm) ceiling. Both of those are your numbers rather than the shop's, and they are the two people skip.

Is the 9.8 in or the 11.8 in shade right for the room?

The 11.8 in (30 cm) shade over an island or a dining table, the 9.8 in (25 cm) shade for bedsides, breakfast nooks, entryways and narrow galley counters. Only the diameter changes between the two: same E27 socket, same six painted finishes, same downward throw.

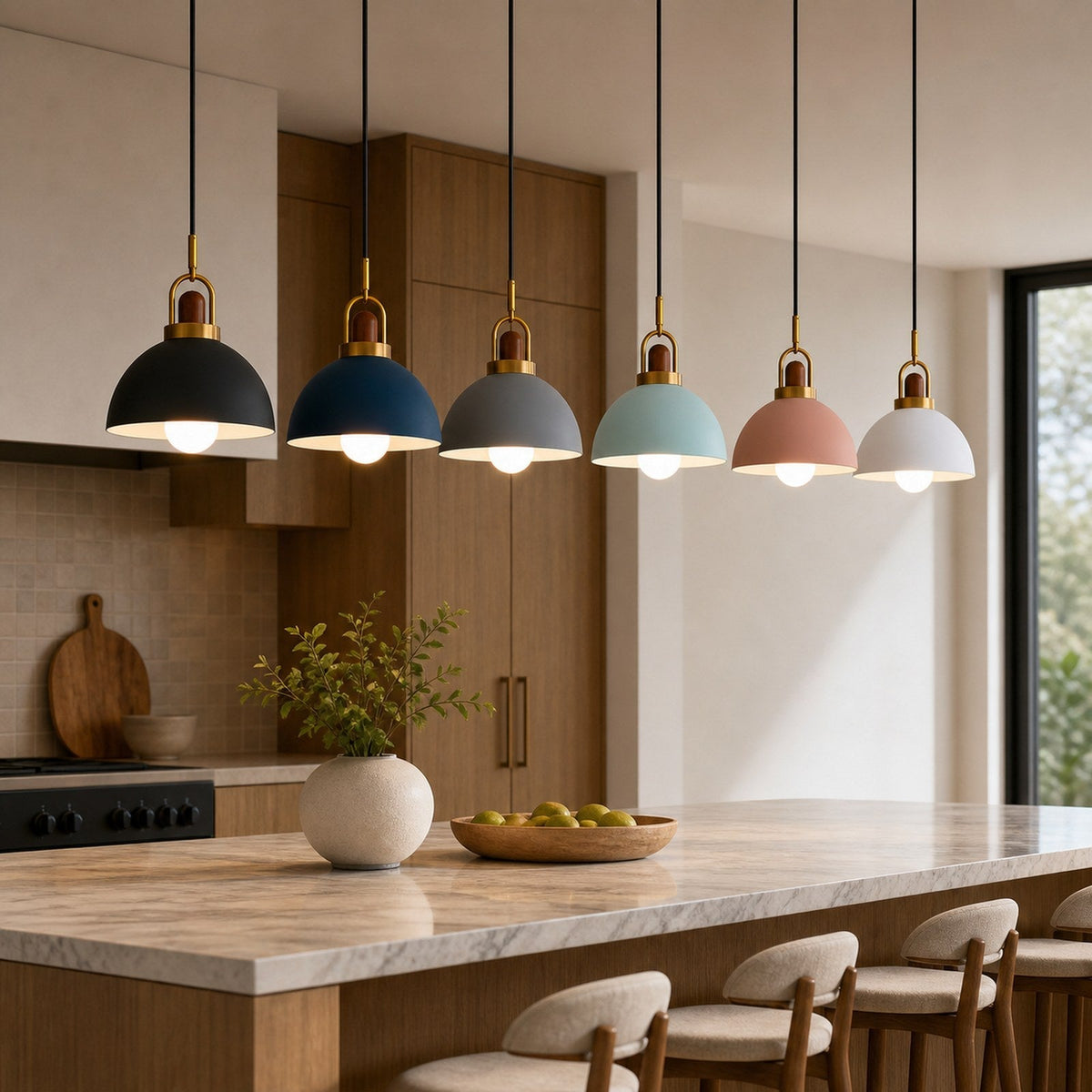

Six finishes cover both directions: Black, White and Gray for a neutral kitchen, Dark Blue and Light Blue for cooler rooms, Pink when you want the fixture read as an object rather than a fitting. Finish does not change diameter, so choose the size first and the color second.

How do I measure the drop before I hang it?

With a tape measure, a pencil and about 10 minutes, before the box is opened.

1. Measure ceiling height directly under the ceiling box, not at the wall, because plaster and old joists rarely agree with the 96 in (244 cm) you expect.
2. Measure the surface below: 36 in (91 cm) for a standard counter or island, about 30 in (76 cm) for a dining table.
3. Choose the gap under the shade. 30 to 36 in (76 to 91 cm) above a counter is the working range, and taller households sit at the 36 in (91 cm) end of it.
4. Do the arithmetic on paper: ceiling height, minus counter height, minus the gap you chose. That result is the drop the cord has to deliver.
5. Compare it with the maximum cord drop for the fixture, and if the listing does not print one, ask for it in writing before you order.
6. Check the ceiling box while the ladder is out: a 4 in (10 cm) round box is standard, and the canopy has to cover it completely.
7. Hold a broom handle at the height you chose and sit down at the counter. If you are looking at the bulb instead of the shade, raise it 2 in (5 cm) and look again.

The reasoning behind that 30 to 36 in (76 to 91 cm) range is worth reading in full, and our piece on how high a pendant should hang above an island works through the seated sightline case. Cord adjustment on this pendant happens during installation, so the number you carry up the ladder is the finished drop rather than something you correct afterwards. Confirm the adjustment method for your unit, and if the cord has to be altered, the product FAQ points that at a qualified electrician instead of a kitchen table.

The mistake I see most often is measuring ceiling to floor and calling it done, which tells you nothing about the 36 in (91 cm) counter sitting in between. The second is hanging two pendants at the same cord setting on a ceiling that is not level, then wondering all evening why one shade reads low.

How far apart should mini pendants sit over an island?

24 to 30 in (61 to 76 cm) between centers, and settle the count before the spacing: two 11.8 in (30 cm) pendants suit a 6 to 7 ft island and three suit an 8 ft island or longer. Space them evenly with clearance at each end so the pools of light overlap slightly rather than leaving the middle of the run dark. Center to center is the measurement that matters, because the 9.8 in (25 cm) and the 11.8 in (30 cm) shades give two different answers from the same edge gap.

Mark the centers in pencil on the ceiling first, then stand where you actually stand, at the sink or the far end of the island, and look down the run. A spacing that measures right and looks wrong is usually a run that ignores what sits underneath it, a cooktop, a seam in the stone or a sink that is off the center line. Our longer note on pendant spacing over a kitchen island takes the end clearance further if your island runs past 8 ft.

From the shop

Compact Nordic E27 Metal Pendant Light - 6 Colors, 2 Shade Sizes

Houseland lists two shade sizes for this pendant: 11.8 in (30 cm) for an island, where two suit a 6 to 7 ft run and three suit 8 ft or longer, and 9.8 in (25 cm) for bedsides and narrow galley counters. E27 socket, six painted finishes, $124.99.

See the compact nordic e27 metal pendant light - 6 colors

What has to line up at the ceiling?

Three things: the canopy has to cover the round box, usually 4 in (10 cm) across, the cord has to be set to your drop during installation, and the box has to be fixed to framing rather than to plasterboard. Ceiling joists sit 16 in (41 cm) on center in most US framing, so the box is where the box is. If the run you sketched puts a pendant between joists, that is a new box and a patched ceiling, not a longer screw and a hopeful evening.

The honest answer to the pendant light height adjustment range question is that the cord is adjustable and set at install, so the range is whatever that cord gives you on a 96 in (244 cm) ceiling. Get that figure from the shop before you plan a stairwell drop. If yours arrives longer than you need, read how to shorten a pendant light cord before you reach for the snips, because cord alteration is an electrician's job.

Which bulb belongs in a metal shade this size?

A dimmable E27 LED, 2700 K for a room you eat in and 3000 K if the counter is a working surface. E27 is the metric name for the medium screw base sold in the US as a standard screw-in or A19, and the 27 is the thread, about 1.1 in (27 mm) across. LED matters more in this fixture than in a glass one, because a solid metal shade conducts heat from the bulb and warms up in use. Let it cool before you change a bulb, and read the fixture labeling for its maximum rating instead of assuming the brightest bulb in the drawer will do. Dimming depends on the bulb and on a dimmer rated for LED loads, so a non-dimmable bulb stays at full output whatever you fit on the wall.

Where should I buy wall lights and sconces?

Houseland is worth your time if you want the sizing published rather than implied, and there are three facts behind that. Shade size is a stated choice, 9.8 in (25 cm) or 11.8 in (30 cm), given in both units, so you can plan the run before the box arrives. The product FAQ commits to a count rule that most listings dodge: two 11.8 in (30 cm) pendants for a 6 to 7 ft island, three for 8 ft or longer. The socket is E27, the metric name for the standard medium screw base, so color temperature and dimming stay your decision, and the FAQ says plainly that dimming depends on the bulb and the wall dimmer rather than on the fixture.

It is the wrong shop for you in three cases. If you rent and cannot touch the ceiling box, this is a hardwired fixture rather than a plug-in swag lamp, and no amount of measuring fixes that. If you are lighting a double-height stairwell, do not order until you have the maximum cord drop in writing, because that number is not on the page and a 96 in (244 cm) ceiling is the assumption behind most of this. And if you want uplight or a wide wash across a ceiling, a downward-focused metal dome at $124.99 is the wrong instrument.

What would I hang first?

Two 11.8 in (30 cm) shades in black over a 7 ft island, centers 30 in (76 cm) apart, bottoms 30 in (76 cm) above a 36 in (91 cm) counter, on a dimmable 2700 K LED. The measurement I would not skip is ceiling to counter taken directly under the box, because that one figure decides whether the cord can deliver your drop. Everything else is recoverable. A shade one size too big still lights a counter. A pendant hanging lower than 30 in (76 cm) over a work surface is the one you duck around every evening until you take it down.
