No Electrical Box in the Ceiling? How to Install the Light

Two jobs, not one. Where there is no electrical box in the ceiling, installing a light means first getting a box fixed to timber that can carry the load, then getting a live cable to that spot — and the second half is regulated work in most markets.

The first half is where fittings fall. Plasterboard is a skin, not a fixing, and an overhead load pulls straight down the axis of the screw instead of hanging off it in shear. The light here is a Houseland surface mounted ceiling fixture with a 4.7 in (12 cm) canopy, which changes nothing about that: surface mounted still means a box behind the canopy.

The short answer

You need a box anchored to a joist or to a brace between joists, plus a live cable at that spot; the box is a Saturday job and the cable usually is not. Saint Paul's rough-in checklist for dwellings puts the support half in one line: under NEC 314.27(A), “a ceiling outlet box used exclusively for lighting shall be listed to support a luminaire up to 50 pounds” (Saint Paul rough-in checklist). Two screws through plasterboard satisfy none of it.

Which route you take is decided by where the joists run, not by the light you picked. Joist directly over the spot: a pan box screws to its side and the mechanical half is an hour's work. No joist over the spot, the usual case because a light wants centring and timber rarely obliges: a retrofit brace bar goes up through the hole and expands until it bites both sides. Concrete deck, or no cable within reach: different job, and mostly not yours.

Why can't the light just screw into the plasterboard?

Plasterboard carries nothing overhead, and most boxes made for cutting into a finished ceiling say so on the label. The IRC sets the floor at 50 lb: such a box “shall be capable of supporting a luminaire weighing up to 50 pounds (22.7 kg)”, anything heavier “shall be supported independently of the outlet box”, and “the interior of the box shall be marked by the manufacturer to indicate the maximum weight that the box is permitted to support” (IRC E3905.6.2).

Read the marking, not the video. A widely sold 4 1/4 in round plastic old-work box, the Carlon B618RP-UPC, is “specifically indicated by the manufacturer as not for fixture support in the ceiling”, and the InspectAPedia write-up of old-work boxes warns against relying on “old work boxes with minimal support (just drywall, for example) to carry heavier fixtures”. That box is a junction, not a hanger.

The screw holding a shelf bracket works in shear, while the screw holding a lamp overhead works in tension, which is why the same anchor behaves worse upside down. We argued the wall version in drywall anchors versus studs, and overhead is the harsher case.

How do I install a ceiling light where there is no electrical box overhead?

Work outward from the joists, in this order.

1. Find the joists first. Sweep a stud detector across the ceiling and mark both edges of two neighbours; timber at 16 in or 24 in centres is what the kits are built around.
2. Decide which of three cases you are in. Joist over the spot, no joist, or a concrete deck; only the first two are homeowner work.
3. Cut only the hole the kit specifies. Both braces below go in through a hole cut from below, so nobody needs attic access.
4. Fit the bar, then the pan. Its teeth bite the timber on both sides, and the box hangs off the bar rather than off the board.
5. Stop at the cable. Supply to a new point means extending a circuit or adding one, the half with a legal answer — read the market rules below first.

Two kits publish their numbers, and the span is what decides the job.

Span costs you most of the rating. Both sheets fall to 50 lb once the timber is 24 in apart, against 110 lb and 150 lb at 16 in, so measure the gap first — the RACO sell sheet and the Saf-T-Brace page publish the pair. The RACO kit is sold for engineered wood joists, worth checking against what is up there.

What does this light need from the box, and what do we not publish?

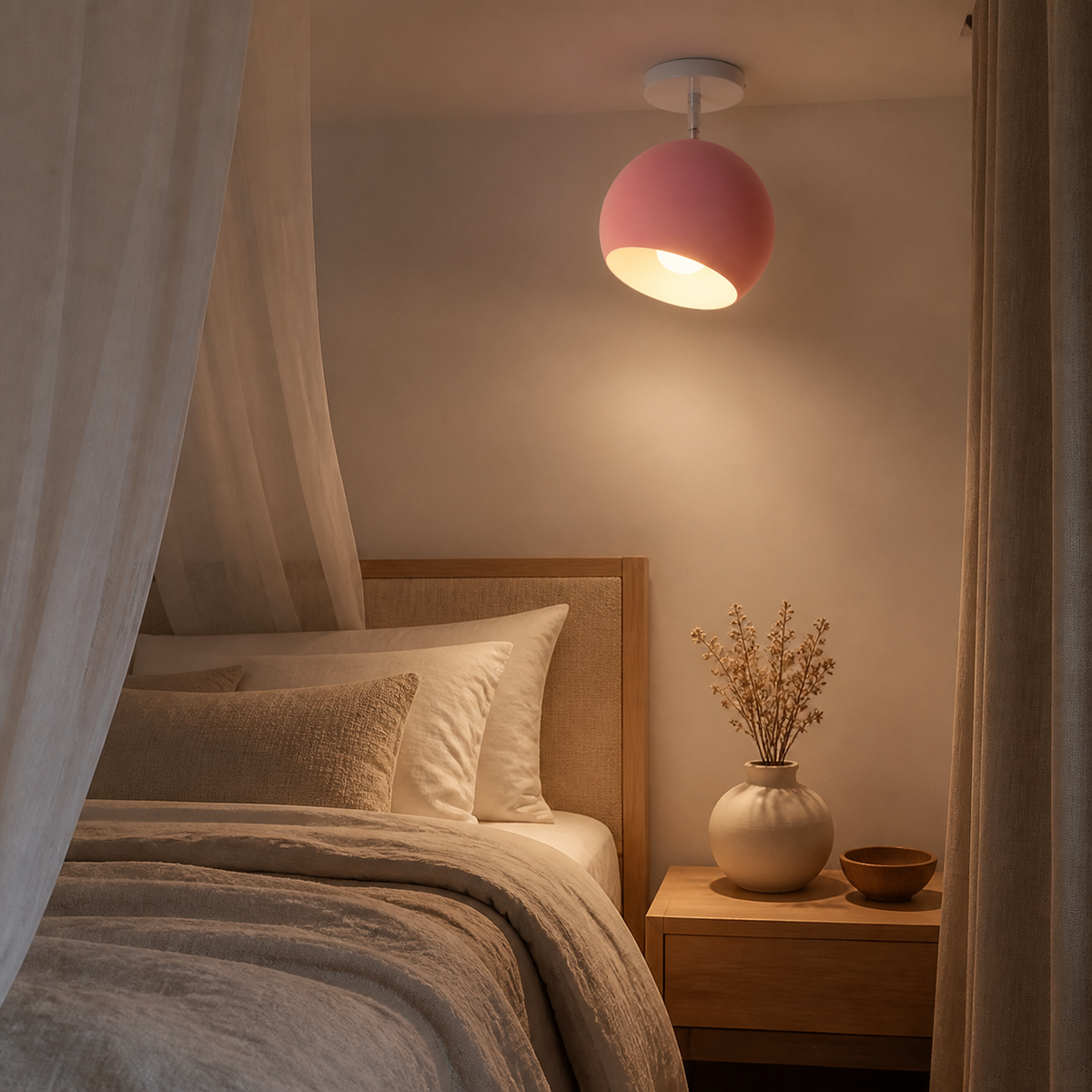

A canopy wide enough to hide the box, a screw pattern to land on, and a live cable inside it. The Houseland ball light is a surface mounted ceiling fixture: a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade, 9.4 in (24 cm) overall height, in Green, Blue, Yellow or Pink. Surface mounted means it sits proud of the board: the only hole you cut is the one the box goes through.

A 4 in round pan box measures about 4 in across, which a canopy of 4.7 in (12 cm) covers with roughly 0.35 in of overlap each side. A wider brace pan shows past the edge, so measure yours.

Weigh the light yourself before choosing a fixing. The spec table runs to five lines: shade colours, canopy, shade width, overall height, mounting method. Where the weight decides your brace, put the fitting on a kitchen scale before it goes up, or read the label on the fixture and the pictogram on the carton. A figure borrowed off another brand's page is a guess wearing a number.

From the shop

Modern Ceiling Light, Adjustable Ball LED Hallway Fixture, 4 Colors

Surface mounted ceiling fixture with a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade and a 9.4 in (24 cm) overall height, in Green, Blue, Yellow or Pink.

View the ball hallway ceiling light — 4 shade colours & current price

A brace box vs a track run off the existing light — which is less work?

The track usually wins, worth saying before you cut anything. Where a working outlet already exists on the same ceiling and you only need light a few feet away, a track fed from that point moves the light with no new cable, no new hole and no brace bar.

Two honest limits sit on it: the track has to feed off an existing live point, and a round surface mounted lamp with a 4.7 in (12 cm) canopy will not fit a track head, so track means a different light. If the room needs this particular lamp centred over the walkway, you are back to the brace bar and the 50 lb rule.

Who is allowed to make the mains connection where you live?

That answer changes at the border, so name your market before copying a video filmed in someone else's.

• England. Building Regulations reg 12(6A) makes only three things notifiable: “(a) the installation of a new circuit; (b) the replacement of a consumer unit; or (c) any addition or alteration to existing circuits in a special location”. Approved Document P para 2.7 leaves everything else outside notification — “additions and alterations to existing installations outside special locations” — while para 3.13 still asks that such work be “designed and installed, and inspected, tested and certificated in accordance with BS 7671” (Approved Document P, 2013 edition). Spurring a hallway light off an existing circuit is not notifiable; a new circuit is; a bathroom drags the special-location rule in.
• United States. The NEC and the IRC set the support and wiring rules; the permit is local. Whether a new point needs one, and who may pull it, varies by state and city, so ask your building department, the authority having jurisdiction.
• Victoria, Australia. Electrical installation work is licensed work: an electrician must work for a Registered Electrical Contractor, and the Certificate of Electrical Safety is “a legal document ... required by the Electricity Safety Act 1998 and the Electricity Safety (General) Regulations 2019” (Energy Safe Victoria). Wiring it yourself is not an option there, whatever the bar can hold.
• Everywhere else. Scotland, Wales, Ireland, Canada and New Zealand run their own paperwork, and BS 7671, the NEC and AS/NZS do not line up. Ask your regulator, not a thread from another continent.

Where the job needs a new circuit, or sits inside a bathroom zone, it is electrician work in England and licensed work in Australia. The brace bar and the hole are the parts you can own.

Can this light go in a bathroom or over a covered porch?

No. A fitting that declares no IP rating cannot be shown to meet the bathroom minimum, so it fails before anyone looks at the ceiling. BS 7671 Section 701 sets IPX4 as the floor for Zones 1 and 2, and as one guide to Reg 701.512.2 puts it, “if the luminaire does not declare an IP rating it cannot be shown to meet the IPX4 minimum ... so it is not suitable for either zone”. Zone 1 runs from the floor to 2.25 m, or to a higher shower head.

The American rule turns on a marking. NEC 410.10(D) requires a luminaire inside the tub or shower footprint, up to 8 ft above the rim, to be “marked suitable for damp locations or marked suitable for wet locations”, and keeps cord-connected, suspended, track and pendant fittings out of a zone 3 ft horizontally and 8 ft vertically from the rim (NEC 410.10(D)). Houseland publishes colours, canopy, shade width, height and mounting method for this light and no IP rating or damp-location marking, so read it as dry indoor only. A covered porch counts as damp.

What I'd do

Measure before buying anything. Find the joists, note the gap, and decide in that order: timber over the spot means a pan box screwed to its side; a gap of 16 in to 24 in means a listed brace bar; concrete or no cable in reach means a quote rather than a Saturday. Then check who may make the connection where you live, which decides whether you are buying a kit or booking a morning.

Where that comes back as electrician work and the budget says no, take the light down the wall instead. A plug-in wall fitting needs no box overhead, and the height and angle notes we wrote for reading lights transfer to a hallway. If cable does get run, hide it rather than stapling it along the surface; the in-wall routing walkthrough covers the tidy version. The rest of the range sits in wall lamps if the ceiling is the wrong fight.
