No Junction Box or Ceiling Rose? How to Install the Light

If the plasterboard is blank where you want the light, the job in front of you is not hanging a fixture — it is adding a lighting outlet, and that is wiring work. To install a ceiling light where there is no junction box or ceiling rose, a cable has to reach that spot and land in a box screwed to something solid, and the joint has to stay reachable for the life of the house.

The other version is smaller and sharper. A rose is already up there, four cables hang out of it, and one blue conductor is a switched live pretending to be a neutral. Houseland's travertine flush mount is rated 85V-265V, so the same body runs on 120V or 230V — but what sits above it is not the same job in both countries.

The short answer

Three ceilings, three different answers, decided before the light leaves its carton.

• Bare ceiling with nothing above it: this is a new lighting outlet, which means a box fastened to structure, a cable run to it and, in most US jurisdictions, a permit. Hand that half to a licensed electrician and buy the fixture afterwards.
• A shallow round box already up there with one cable in it: read the volume stamped inside the box before anybody feeds a second cable into it. A 4 in pancake pan is only half an inch deep, and the code counts every conductor by volume.
• A ceiling rose with three or four cables: swapping the fitting is legal for a competent person in England and Wales, but the colours in that rose do not tell the truth. Isolate at the consumer unit, never at the wall switch.

How do I install a ceiling light where there is no junction box or ceiling rose?

Work backwards from the nearest existing lighting point and stop at the first step that needs a licence where you live.

1. Find the nearest live lighting point and look at what feeds it. Extending an existing lighting circuit and creating a brand new one are different legal animals, and the difference changes both price and paperwork.
2. Settle which of those two it is before anyone quotes you. A new circuit is notifiable work in England and Wales; an alteration to an existing circuit outside a bath or shower zone is not, though it still has to satisfy BS 7671 and be tested.
3. Have the outlet made rather than improvised. The box gets fastened, the cable secured, and the connection stays where a person can reach it — three rules that rule out every joint buried above a ceiling.
4. Measure the fixture against the opening only at the end. The canopy has to cover whatever hole is left, and the strap has to suit the box, not the other way round.

Our walkthrough for a hardwired animal wall sconce runs the same isolate, prove, mount sequence on a wall, and it transfers to a ceiling.

Why can't I just join the wires above the plasterboard?

Because a connection has to stay reachable, and a joint sitting on the loft floor is not.

US residential code says it three ways. Section E3905.1 requires that "a box or conduit body shall be installed at each conductor splice point, outlet, switch point, junction point and pull point", with a short list of exceptions. E3905.10 then requires that boxes "shall be installed so that the wiring therein can be accessed without removing any part of the building or structure". E3904.3 adds that "raceways, cable assemblies, boxes, cabinets and fittings shall be securely fastened in place". Together those three clauses make the tape-it-and-tuck-it joint non-compliant even on a day when it causes no trouble.

Cable carries rules of its own: Table E3802.1 has nonmetallic-sheathed cable secured within 12 in of the box and supported at 4.5 ft intervals, so a length draped loose over joists is already wrong before anyone strips an end.

Britain reaches the same place down a different road. Regulation 526.3 of BS 7671 wants every connection accessible for inspection, testing and maintenance, and the exit is narrow: a maintenance-free accessory to BS 5733, marked with the MF symbol and fitted the way its maker specifies may be left where nobody can get at it. A screw-terminal junction box hidden under a bedroom floor fails that test, and an MF-marked one does not.

Which wire in a loop-in ceiling rose is the switched live?

The blue conductor in the switch cable, and it should be wearing a brown sleeve.

A loop-in rose takes three cables plus the pendant flex: supply in, supply out to the next light, and the drop to the wall switch. Flameport's teardown of one names the trap without ceremony — the live from the consumer unit lands on the loop terminal, and "this is permanently live". The wall switch has no authority over that terminal whatsoever. Flicking the switch off and calling the fitting dead is the commonest way a competent-looking swap turns into an incident.

The switch cable is where the colours mislead. Its brown conductor takes permanent live down to the switch, and the second conductor is "blue with a brown sleeve", because it brings the switched live back up to the fitting. Land that blue wire in the neutral block and you get a lamp that never turns off, plus a dead short across the lighting circuit the second somebody works the switch. That sleeve is a scrap of plastic, and it goes missing often enough that the conductor has to be proved rather than assumed.

Four cables instead of three usually means the light sits mid-run with a loop out to the next fitting, or that two-way switching is involved. Isolate at the consumer unit, prove dead with a tester you have first proved on a known live source, and photograph the terminals before a screw comes loose.

Who is allowed to create a new lighting point where I live?

It turns on the country, and the three big English-speaking rulebooks disagree with each other.

The IET's summary of Part P puts the notifiable list at "the installation of a new circuit", the replacement of a consumer unit, and "any addition or alteration to an existing circuit in a special location" — usually a room containing a bath or shower. "All other work is considered non-notifiable, namely additions and alterations to existing installations outside special locations, maintenance, replacement and repair work." Non-notifiable is not unregulated: the work still has to meet BS 7671 and still has to be tested.

Australia offers no such middle ground. Energy Safe Victoria states it in a line: "Doing unqualified electrical work isn't only extremely dangerous, it's also illegal." The same page points at two Victorians killed doing DIY electrical work on farms in early 2016.

Will the fitting I chose cover the hole that is already there?

Measure the canopy against the opening before you commit, because a flush mount hides a hole only when it is comfortably wider than the hole.

Houseland's travertine flush mount measures 8.7 in (22 cm) across and 1.6 in high, in Natural Wood or Walnut on a stone and iron body. A 4 in pancake pan or octagon box vanishes under a disc of that size; a rectangular slot cut for something else may not. On a low ceiling the 1.6 in projection matters more than the diameter — the point of our note on whether a flush mount crowds an 8-foot ceiling.

Weigh this fitting yourself rather than reasoning from a typical one. The US rule: a ceiling outlet box must be capable of supporting a luminaire weighing up to 50 lb, and anything heavier needs support independent of the box unless that box is listed and marked for the load. Two numbers settle it: what the light reads on a kitchen scale, and what the marking inside your box says. The spec covers material, finish, diameter, height, voltage and wattage — no lumens, no Kelvin, no IP rating.

The missing IP rating decides one more thing. With no declared figure, this fitting cannot be shown to reach the IPX4 minimum a bathroom zone asks for under BS 7671, and the US rules turn on a damp or wet location marking it does not carry. For a bathroom, a shower room or a covered porch the answer is no, not probably.

From the shop

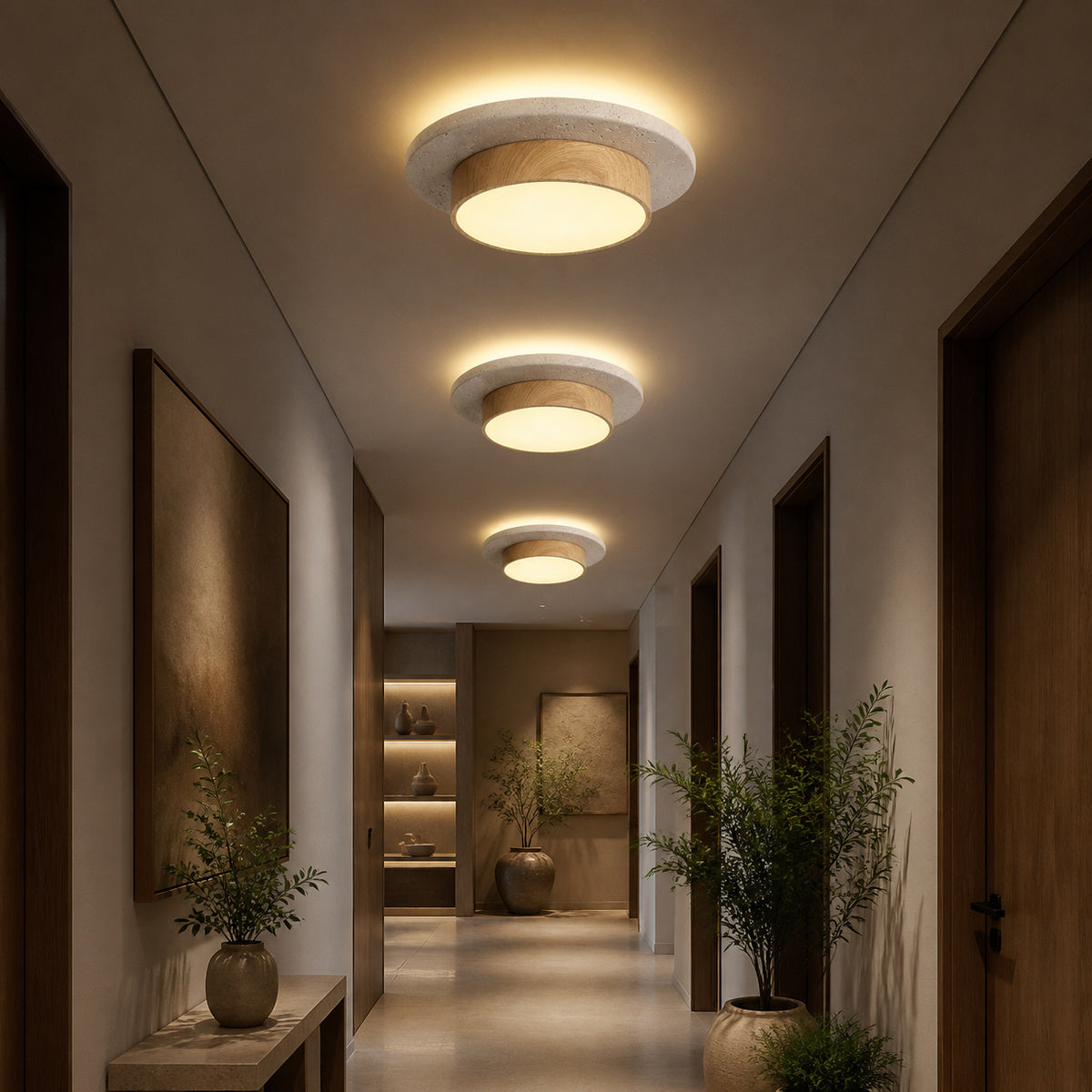

Flush Mount Ceiling Light, Travertine Wood Hallway Fixture, 8.7 In

Yellow travertine natural stone and iron, 8.7 in (22 cm) across and 1.6 in high, in Natural Wood or Walnut. Rated 85V-265V, and our page gives 28W total.

View the travertine flush mount light — 2 finishes & current price

What if I don't want to open the ceiling at all?

Stop trying to put a hardwired fitting where no supply exists, and choose a light that brings its own.

• A plug-in pendant on swag hooks moves the wiring problem to a wall socket. One hook over the spot and one near the corner carry the flex to the nearest outlet, and nothing gets cut into the ceiling.
• A plug-in track or a cord-and-plug wall light buys you directional light with no new outlet. The visible cable is the price, and it is solvable — our guide to hiding a wall light cord that runs too long is the same problem in miniature.
• A rechargeable or battery fitting removes the wiring question, at the cost of output and upkeep. We weighed that trade in battery against plug-in wall pieces, and the verdict holds on a ceiling.

Worth saying plainly: the alternative sometimes wins. Where a room needs light landing on a worktop or a picture wall rather than a soft wash overhead, a plug-in track run or a well-placed recessed downlight beats a flush mount fitted wherever the cable happened to end. The rest of the wall and ceiling lighting we carry is worth browsing once you know which of those two rooms you have.

What I'd do

Split the job at the ceiling line and pay for the half that is legally somebody else's.

Bare ceiling: get the outlet quoted before buying any fitting, because the electrician's half is frequently the larger number. Ask whether the run extends an existing lighting circuit or starts a new one — that answer moves the job between notifiable and not in England and Wales.

Existing rose with four cables: isolate at the consumer unit, prove dead, photograph every terminal, and if that blue conductor has lost its brown sleeve, get it identified instead of guessed. A fitting swap is within reach of a careful person; creating the light point is not, and the boundary between them is the box. Houseland's flush mount runs anywhere in an 85V-265V window, so the fixture travels between countries. The wiring rules do not.
