UK Ceiling Rose Has Three Cables, New Light Has Two Wires?

On a UK loop-in ceiling rose there are 9 conductors overhead and your new light fitting has 2 leads, so most of that wiring is not for the fitting at all. Brown goes to the switched live, the switch cable's blue core wearing a brown sleeve; blue goes to the neutral. The 3 permanent lives in the rose's loop terminal never touch the new fitting; they get a connector of their own.

Before any of that: the loop terminal is live with the light switch off, so flicking the switch proves nothing. Isolate at the consumer unit, lock the breaker off, and prove the conductors dead. This is UK practice under BS 7671; colours, terminal names and notification rules all differ in the US, Ireland and Australia. The Houseland ball ceiling light, if that is what is going up, has a 4.7 in (12 cm) canopy, all the cover you get over the hole the old rose leaves.

Why does a loop-in ceiling rose have 3 cables when the new light fitting has 2 wires?

Because the circuit never runs through your switch. In a loop-in installation the permanent supply hops from ceiling point to ceiling point, and the switch hangs off its rose as a detour. PracticalDIY describes the 3 cables as 1 live-neutral-earth in from the board or the last rose, 1 out to the next rose, and one cable (L+S/L +E) that goes to the wall switch.

3 twin-and-earth cables give 6 insulated cores plus 3 bare earths: 9 wires in a box the size of a teacup. Sorted by job:

• Feed in. Brown, blue and 1 bare earth from the consumer unit or the previous light.
• Feed out. The same 3 going on to the next light. A last-in-line rose has none, so some roses hold 2 cables, not 3.
• Switch drop. A brown core down the wall and a blue core back up wearing a brown sleeve. That returning core is the only 1 of the 9 dead when the switch is off.

Is the ceiling rose still live with the light switch off?

Yes, and Flameport's ceiling rose page says it in 1 line: the Loop terminals are permanently live, even if the light switch is off. A wall switch interrupts a single core; the lives in the loop terminal stay tied to the consumer unit either way, feeding the next light.

The only safe isolation is at the consumer unit, with the breaker locked off and the conductors proved dead at the rose with a 2-pole tester before you touch a terminal. Proving dead has a method, and HSE Guidance Note GS38 is where it comes from.

1. Use a 2-pole voltage indicator, not a multimeter: GS38 says a test lamp or 2-pole voltage detector should be used, rather than a multimeter. Meters set to the wrong function have caused accidents.
2. Prove the tester twice, on a proving unit or a known live source. GS38 warns that any device used to prove dead may fail to indicate danger, so prove it before and after.

Then test all 3 pairs with the switch tried both ways: loop to neutral, loop to earth, switch return to neutral. A neon screwdriver is not a tester, and if you do not own a 2-pole indicator and a way to prove it, you cannot prove this rose dead. That is the point to stop and call a registered electrician.

Which wire goes where when the fitting has only brown and blue?

Brown to the switched live, blue to the neutral. The other 6 conductors, 3 permanent lives and 3 earths, get homes of their own. PracticalDIY's instruction for this exact case is to connect the live to the switch live terminal and neutral to the neutral terminal.

Earths are not housekeeping: PracticalDIY says all 3 must go in the same terminal, and Flameport adds that green and yellow sleeving goes over the bare copper.

The trap is the switch return. Flameport records that it is blue with a brown sleeve and connects to the Live terminal, and that the sleeve sometimes goes missing. Land an unsleeved blue core on the neutral and the lamp burns permanently, then shorts line to neutral the moment somebody flicks the switch. Red and black cores mean the wiring predates the harmonised colours: the geometry holds, the colour code does not.

What happens to the loop wires once the ceiling rose is gone?

They need a connector of their own, inside something. A 5 A screw strip or a lever connector does the joining the rose's loop terminal used to do, but not loose in the void under tape. The IET's Wiring Matters is direct: joints should be contained in a suitable, mechanically robust and suitably insulated enclosure.

BS 7671 regulation 526.3 wants connections accessible for inspection, testing and maintenance, and 1 of the few exceptions is a maintenance-free connection to BS 5733 carrying the MF mark.

• Inside the fitting's base plate. Best case: lifting the fitting down puts the connector back in your hand. Check there is room for 3 doubled-up cables first.
• In an MF-marked box above the ceiling. Allowed without an access hatch because it is maintenance free; an ordinary screw-terminal box in a joist void is not.

Do not push the spare lives into an empty hole on the fitting's own terminal block, which is sized for its flex and not for a circuit passing through.

Whatever holds the fitting up has to hold it up, too: Voltimum's summary of the lighting-point rules says the fixing method should be capable of carrying a mass of not less than 5 kg, and roses made to BS 67 are rated at 6 A and 250 V. Plasterboard alone does not, which is the same argument as a drywall anchor against a stud.

What if the new fitting has no earth terminal at all?

That is normal and it is allowed, provided the fitting is Class II. Under IEC and EN 61140 a Class II product is double or reinforced insulation, no protective earth, against Class I, basic insulation plus a protective earth. You identify Class II from the rating plate: 2 concentric squares, 1 inside the other. Where that symbol is, the absent earth terminal is a design decision, not a missing part.

The circuit earth still has to be terminated properly even when the fitting has no use for it. Cut it back and every switch, rose and metal accessory further along that circuit loses its protective conductor. Sleeve the bare copper green-and-yellow and put all 3 into a connector of their own inside the enclosure.

Some older UK lighting circuits have no protective conductor at all: the guide at plugs.me.uk notes that lighting circuits installed before 1966 did not require an earth. On 1 of those, nothing Class I can go up: metal lamp holders and metal fittings want an earth that is not there.

Do I have to notify Building Control to change a light fitting?

In England, no, not for a straight swap on an existing circuit outside a special location. Approved Document P is published for use in England, and paragraph 2.7 makes replacements, repairs and maintenance anywhere non-notifiable. Regulation 12(6A) reserves notification for a new circuit, a consumer unit replacement, or an alteration in a special location.

Special location is defined tightly, and bathrooms are why it matters: the space around a bath tub or shower tray, up 7 ft 5 in (2.25 m) from the floor and out 24 in (0.6 m) from the edge. A light inside that box is notifiable in England. Scotland, Wales and Northern Ireland run their own rules, and the US NEC and IRC are a different system.

Not notifiable is not the same as not regulated: the work still has to comply with BS 7671 whether anybody inspects it or not. Swapping a fitting does not change the circuit; add a spur or open the consumer unit and you are somewhere else.

What should I check on the fitting before the rose comes off?

3 things, all cheaper to check now than halfway up a stepladder: the Class II mark or the earth terminal, the room under the base plate for 3 lives, and the canopy against the old screw centres.

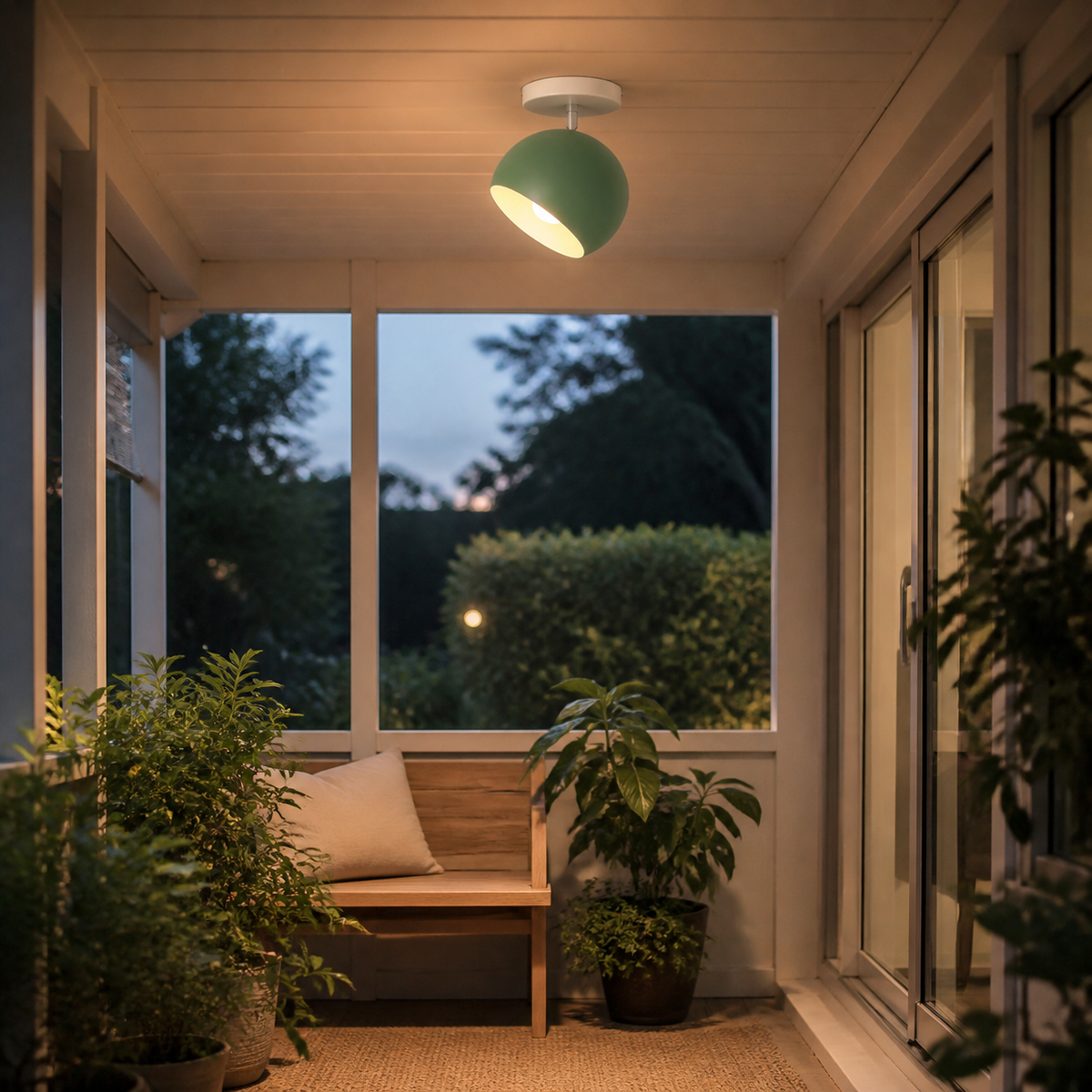

The Houseland ball ceiling light answers the last one on paper: a surface mounted ceiling fixture with a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade and 9.4 in (24 cm) of overall height, in Green, Blue, Yellow or Pink. Surface mounted is the useful word: nothing is cut into the plasterboard, and the canopy sits over the same hole the rose was screwed to. Measure that hole before you order.

Do not take those figures from us, or from a fitting that merely looks similar. Read the rating plate and the box pictograms when it arrives, because that is where the maker states the class and the lamp limit.

A fitting with no declared IP rating does not go in a bathroom zone, an en-suite shower zone or a covered outdoor spot. BS 7671 asks for a minimum ingress rating there, and a fitting declaring none cannot be shown to meet it. Buy 1 that prints its IP figure on the label, and keep the wall and ceiling lighting for rooms that stay dry.

From the shop

Modern Ceiling Light, Adjustable Ball LED Hallway Fixture, 4 Colors

Surface mounted ceiling fixture with a 4.7 in (12 cm) canopy, a 7.9 in (20 cm) shade and 9.4 in (24 cm) of overall height. Shade colours are Green, Blue, Yellow or Pink.

View the ball hallway ceiling light — 4 shade colours & current price

What I'd do

Photograph the rose before undoing a single screw, terminals in focus and the switch cable identifiable. A phone remembers 9 wires better than anybody does.

1. Isolate at the consumer unit and lock the breaker off. Prove the tester, prove the rose dead, prove the tester again.
2. Label every core before it comes out: FEED, LOOP OUT, SWITCH. Colour alone will not save you.
3. Join the 3 permanent lives in their own connector, and the 3 earths, sleeved green-and-yellow, in another.
4. Brown lead of the new fitting to the sleeved switch return, blue lead to the joined neutrals.
5. Fix into a joist or a batten, restore the power, and test the switch both ways before the canopy goes up.

The honest alternative wins more often than people admit: if the rose is sound and the fitting is the only thing you want changed, hanging a pendant from the existing rose leaves all 9 conductors where the regulations already accept them. If you would rather not touch the mains, a battery or plug-in light puts the question away, and there is a tidy way to hide the trailing cable.
