Dimmable LED Wall Lights: What Actually Fails First?

The diodes are almost never what dies. On dimmable LED wall lights the driver is the expected end of life, and the component inside the driver that goes first is usually a capacitor. The US Department of Energy's LED Luminaire Lifetime Guide says catastrophic failure of LED packages “continues to be rare in testing”, that driver failure “is likely to be an eventual cause of catastrophic or abrupt failure”, and that failure of electrolytic or film capacitors “is a leading cause of driver failure”.

That reorders what to worry about two years in. A shimmer at the lowest step and a halo dimmer at one end are two faults with two cures, and neither means the piece is dead. Houseland publishes three lines that bear on this: Warranty: Three years, Light source: Integrated LED, bulbs included, and a Power line naming whether the piece runs from a mains adapter or from AA cells. No rated hours, no L70 value, no driver specification. The diagnosis comes from the symptom.

What fails first in dimmable LED wall lights?

Three things sit behind the face of a backlit panel, and they fail on very different timescales.

The DOE's accelerated Hammer Test gives the ratio between those rows. The 611 LEDs in the luminaires it stressed “endured nearly one million hours of cumulative exposure” and produced “only four failures (<1%)”, while “the failures that were observed typically occurred in the driver circuit, with board-level failures being most common” (LED Luminaire Lifetime Guide, September 2014).

Take that as a repair order: suspect the power supply first, the control path second and the diodes last. The lifetime metric agrees. The guide defines it as the point “when light output of half the product population has fallen below 70% of average initial light output for any reason” — B50/L70 — and for any reason folds in “catastrophic failure of any component or subsystem”.

Why does it flicker at the lowest setting after two years?

Because dimming is something the driver does, not something the diode does. Pacific Northwest National Laboratory puts it in one line: “Whether separate or integral, the driver electronics determine the dimming performance of an LED source.” A bottom step that has turned unstable is a report on the power supply, and the emitters above it are probably fine.

Most dimmer advice you will meet does not apply to a panel like this. NEMA's SSL-7A compatibility standard defines an LED light engine as LED modules plus control gear plus a connection to the mains circuit, and PNNL's report on that standard records that engines defined that way “notably exclude low-voltage sources that do not connect directly to AC mains”. A panel fed from an adapter and dimmed by its own handset sits outside that scope, so a compatibility chart for screw-in lamps says nothing about it (PNNL-22945, October 2013).

The wall-dimmer numbers are real but they are somebody else's problem here. LED sources “commonly have repetitive peak currents that are 5-10x higher than their RMS current draw”, which is why phase-cut dimmers carry a separate and much lower LED load rating. PNNL also records that the early two-wire trouble “has been largely addressed in the market”, so treat buzzing as a question about one dimmer rather than a fact of LED life — the buzz has its own answer.

One change at low output is not a fault. The DOE guide separates permanent colour shift from “reversible color shift with temperature and LED current (during dimming, for instance)”, which “may be intrinsic, based on semiconductors physics”. A warm white that reads different at the bottom and normal at the top has not broken. A shimmer that was not there last year has, and a phone camera settles it in under a minute.

Why is one end of the halo dimmer than the other?

One run of the strip has dropped out while the rest carries on. LEDs in a backlit panel are wired in runs, so one open joint takes a whole segment dark and leaves the next segment lit, which the eye reads as a gradient instead of a fault.

The DOE guide has a name for a light that has failed without going dark. For products whose sources are individually visible it accepts that “failure of a certain percentage of the LEDs, while not necessarily leading to total depreciation of 30%, may constitute an 'aesthetic' failure”. A concealed halo is that case with the diodes hidden: still lit, still nowhere near any lumen threshold, still visibly wrong on one side.

Yellowing is the slow version of the same complaint, and it looks different. The guide lists “yellowing of some polymeric optical components” as a contributor to lumen depreciation and colour shift, and it arrives evenly as a muddier white rather than as a bright end and a dull end. An uneven halo points at a broken joint in the strip; an evenly warmer halo points at the plastics in front of the light. If the mismatch is between two separate fittings, that is a binning question rather than a failure.

What does a three-year warranty actually cover?

The duration, and nothing else until you read the document. Federal law fixes how that document is labelled: the FTC's guide to the Magnuson-Moss Warranty Act says written warranties on consumer products costing more than $10 must be titled “full” or “limited”, and “full” means the coverage meets the federal minimum standards while “limited” means it does not. A bare phrase on a product page is neither.

You are entitled to read it before you pay. The FTC's Pre-Sale Availability Rule, 16 C.F.R. Part 702, requires written warranties on consumer products costing more than $15 to be available before purchase, and a warrantor publishing the terms online has to print that internet address in the manual, on the product or on the packaging, plus a phone number or postal address for a free copy (Businessperson's Guide to Federal Warranty Law). A seller who cannot produce the text has told you something.

The DOE's buying checklist asks the question worth borrowing: “Is the warranty period a reasonable fraction of the claimed lifetime?” It is blunt about what a period is. “During the warranty period, the manufacturer takes on the risk of the cost to replace a failed LED-based luminaire. After the warranty period is over, that risk is passed to the consumer.”

Houseland's line reads Warranty: Three years, and the same spec table carries no rated hours and no L70 value, so there is no claimed lifetime for three years to be a fraction of, and we will not conjure one up. Read it as the date the risk moves across to you.

From the shop

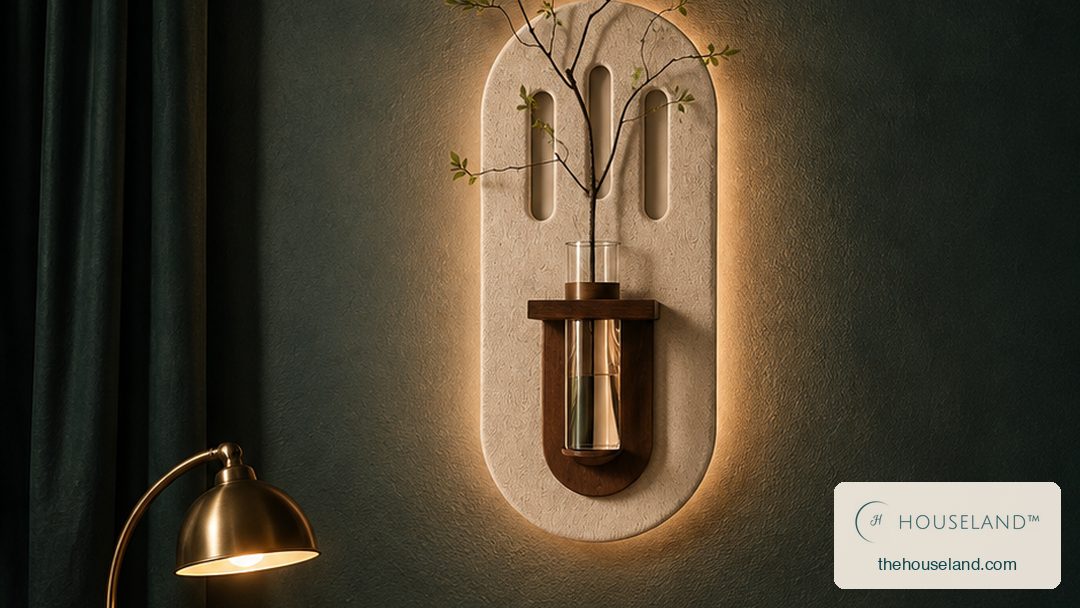

Wall Mounted Vase with LED Backlight, Textured Capsule Panel and Shelf

The capsule panel is 1.6 in (4 cm) deep, hangs on a keyhole hanger and takes a removable borosilicate glass tube 6 in (15 cm) long. Its hidden LED halo has remote colour and dimming control, with Battery LED or Plug-in LED chosen at checkout.

View the capsule wall vase panel — plug-in or battery options & current price

How do I tell a dead adapter from a dead panel?

Work outwards from the cheapest part, because here the cheapest part is also the most likely one.

1. Change the handset's cells before anything else. A remote on tired cells drops commands at range long before it stops working, and that looks exactly like a panel ignoring you.
2. Note whether the fault appears on every mode or on one. Misbehaviour at every setting points at the supply. Misbehaviour on one colour or one brightness step points at the control side.
3. Take out anything between the adapter and the wall. Extension leads, smart plugs and timers all sit in the current path, and a smart plug that chops the waveform upsets a small supply.
4. Substitute a known-good adapter: same output voltage, same polarity, same plug, and a current rating equal to or higher than the original. The panel draws what it needs, so more amps on the label is harmless and fewer is not.
5. If a fresh adapter brings it back, the repair is finished. If not, the fault is on the board behind the face, which is a warranty conversation rather than a repair.

One thing is not a diagnostic. A battery version and a plug-in version are not interchangeable, because the power type is chosen at checkout, so you cannot cross-test one against the other. None of this needs the wall opened: the panel hangs on a keyhole hanger and lifts off its screws.

Does a dimmable panel fail more often than one that does not dim?

No field evidence says it does, and the DOE data does not split dimmable from fixed. Dimming is handled by the same driver that would sit there anyway, so a dimmable piece gives you one more behaviour to watch, not one more part likely to fail.

What differs between models is what the listing promises, and the lines are not the same across our range. Houseland's oval backlit panel publishes Light: Warm white LED, dimmable via remote. The curved above-sofa panel publishes Colour temperature: Warm or cool, dimmable option. The fluted sandstone panel's power line reads Plug-in light, battery light (AA, not included) or no light — not dimmable, with a remote named on the next line, and we read that pair as not dimmable rather than resolving it in our own favour.

Read the specific line on the specific listing before planning a room around a dimmer. A piece in the wall art collection that offers a battery option is telling you something else too: run it on cells and no mains adapter sits in the chain at all, which removes the part most likely to need replacing.

What I'd do

Write the adapter's output on the back of the panel the day it goes up. Volts, amps, polarity symbol, plug type and the order number, on a strip of masking tape. It costs two minutes at the one moment when the box is open and the printing is legible. Three years later the label is behind a sofa and the cheap part you need is one you cannot specify.

Ask for the warranty text before buying, not after failing. It has to be available then anyway, and it is how you learn whether the cover includes the adapter and labour, and whether it is titled full or limited.

Then set expectations by the failure order, not by the number on the page. The diodes will probably outlast your interest in the piece, the driver probably will not, and the adapter is the only part of that chain you can swap yourself. Which makes the real long-term question a decorating one — whether a lit panel still looks right in eight years.
