Why Do Fluted Walls Look Flat at Midday and Deep at Five?

The panel did not change; the sun's bearing did. A rib only reads when light skims along the face instead of striking it square, and on fluted walls the width of that shadow is set by the compass angle between the beam and your wall, not by how bright the day is.

At solar noon the sun is high and due south, which puts the beam close to face-on against the wall a south window looks at, so a ridge there throws a hairline. By five o'clock the beam arrives in near due west and skims the side walls of the room, and the identical ridge throws a bar several times its own depth. Both hours are predictable from published figures, so you can work out which walls in your house get the effect before you hang anything.

Why do fluted walls look flat at midday and dramatic at five o'clock?

Because the shadow a ridge casts is set by the angle the light makes with the wall, and that angle swings by more than 80 degrees between solar noon and sunset. Brightness hardly enters into it. A hazy noon and a glaring one give you the same faint pencil line if the beam is arriving square on.

The geometry is narrower than the showroom photograph suggests. A rib is a straight ridge, and only the part of the light direction that runs across the ridge casts anything; the part running along it does no work at all. On the usual vertical fluting that makes the compass bearing of the light the whole story, and the height of the sun almost irrelevant to how wide the shadow is. Turn the ribs horizontal and the two swap jobs.

Houseland's plaster ring panel is a useful control case here. Its relief is a raised circle 27.6 in (70 cm) across on a body 47 in (120 cm) wide, so it presents ridges pointing in every direction at once and catches a shadow from light on any bearing. Fluting has ridges in one direction only, which is why it can sit dead for six hours and then switch on. The same rule explains why a repaired wall passes inspection at 2 pm and fails under a lamp, which is the argument in our piece on flat paint and wall imperfections.

Which angle actually makes the shadow?

Shadow width is rib depth multiplied by the tangent of the offset between the beam and the wall's face-on direction. Zero degrees of offset is light coming straight at the wall; 90 degrees is light running parallel to it. A 0.25 in (6 mm) ridge throws nothing at zero, 0.25 in (6 mm) at 45 degrees and 0.9 in (24 mm) at 75 degrees, off the same panel on the same afternoon.

The right-hand column is why the effect is a window of about two hours rather than a steady climb. Shadow width follows the tangent and runs away to infinity, but the light reaching the face follows the cosine of the same angle, which is Lambert's cosine law. Past about 75 degrees you are buying shadow with illumination you no longer have, and the panel reads as a dim grey slab rather than a carved one.

A second ceiling applies as well. Once a shadow is wider than the flat gap between two crests it covers that gap completely, and every further degree of offset just darkens the whole face evenly. Rib pitch therefore decides where your drama tops out, and a fine pitch tops out sooner than a coarse one. Houseland publishes no rib pitch and no rib depth for its fluted sandstone panel, so I can't hand you its numbers. Measure your own instead: a steel rule stood on edge across the face gives you the crest height, and crest to crest gives you the pitch. Two figures, one minute, and the table above then belongs to your wall. If the panel is a backlit one, note that its daytime job is relief alone and the diodes are not competing.

Where is the sun at five, and how far into the room does it reach?

At 36 degrees north on an equinox day the sun stands 54 degrees up at solar noon and about 12 degrees up at five, and its bearing has walked from due south round to roughly 261 degrees, a little south of due west. Those two columns are the whole of your five o'clock effect. The noon figures for that latitude run 77.5 degrees at midsummer, 54 at the equinoxes and 30.5 at midwinter, per the National Center for Atmospheric Research's horizon calendar material; the hourly bearings below come from the standard solar position equations.

The clock rate never varies. NOAA's solar position equations put the hour angle at ha = (true solar time / 4) - 180 with time in minutes, which works out at 15 degrees of sky per hour, every hour, everywhere. So a wall that wants a 60 degree offset gets it for roughly two hours a day, and no lamp, paint or panel changes that arithmetic.

Height decides how far into the room the beam reaches, and that is the part that changes in October. Take a window head 7 ft (2.1 m) above the floor. At the midsummer noon altitude of 77.5 degrees the sunlit patch stops 1.6 ft from the glass. At the equinox figure of 54 degrees it reaches 5.1 ft. At the midwinter 30.5 degrees it runs 11.9 ft in, which is most of a living room. A panel that spent June out of the beam altogether is suddenly standing in it. Day length shifts underneath all of this too: a little over 14 hours at the summer solstice, exactly 12 at the equinoxes, a little under 10 at midwinter, with the sunrise point swinging close to 30 degrees either side of due east.

How do I work out which hours my own wall gets?

Work backwards from the beam, in five steps, with a compass app and one clear day.

1. Find the window that actually carries direct sun into the room. Skylight from a north window is diffuse and arrives from every bearing at once, so it cancels its own shadows.
2. Note your wall's bearing, the direction its face points, to the nearest 10 degrees. Stand with your back flat against it and read the compass.
3. Read the sun's bearing at the hours you care about and subtract. The difference is the offset in the first table. An offset of 45 to 80 degrees is the useful band.
4. Check the beam actually lands there, using the 7 ft window head above: at 54 degrees it stops about 5.1 ft inside, so a panel further in gets nothing at that hour whatever the bearing.
5. Repeat for December, when the noon sun is 30.5 degrees and reaches three times deeper. Some walls are a winter act only, and that is a fair reason to buy.

If no hour of the year gives you an offset in that band, the daylight answer is no and you should plan the lamp before the panel, not after it.

From the shop

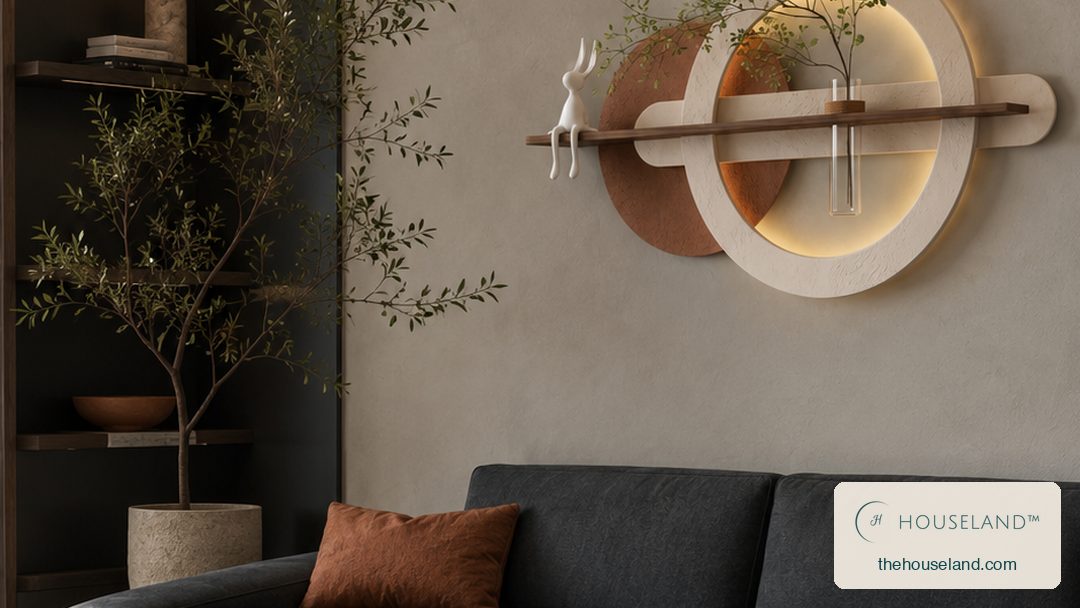

Backlit Plaster Wall Art, Japandi LED Ring with Walnut Shelf and Bud Vase

The ring measures 27.6 in (70 cm) across on a body 47 in (120 cm) wide, hand-applied sand plaster over a laser-cut MDF base, with a hidden warm-white LED strip and remote dimming behind it. It mounts on two screws and the dark walnut shelf runs straight through the middle.

View the backlit plaster ring — plug-in or battery options & current price

Why doesn't a brighter ceiling light fix it?

A downlight sitting in front of a vertically ribbed panel is the flattest position in the room, because its light arrives with almost no sideways component and vertical ribs answer to sideways light only. Doubling its output doubles the glare off the crests and leaves the shadow width exactly where it was.

ERCO's lighting knowledge page defines grazing light as vertical lighting where "the luminaire is positioned directly in front of the wall, emphasizing its materiality and surface texture", and adds that "the close position of the luminaire in front of the wall means special optics are required". Those grazing wallwashers are purpose-built recessed fittings with optics that throw light far down the wall; a household downlight pushed against the plaster is a different object and should not be sold to you as the same trick. The same page sets ordinary wallwashing against it, aiming at uniform brightness across the surface, which is precisely what you do not want on a ribbed face.

For vertical fluting, put the light beside the panel and close to the wall plane, not above it. A table lamp on a console at one end, a floor lamp in the corner, a sconce a hand's width off the wall: each of them delivers the sideways component the ribs need, and each of them can be moved in ten seconds until the shadow looks right. Houseland's plaster ring panel mounts on two screws, so the same experiment with the panel itself, moving it to the wall at right angles to the window, costs two holes and a tub of filler.

What I'd do

Buy fluting for a two-hour daily effect and light it from the side for the other twenty-two. That is the honest description of the product, and it is a good one: a wall that changes through the afternoon is worth more than a wall that looks identical at every hour. What it is not is an all-day sculpture, and no product photograph has ever been shot at the hour it looks worst.

Practically: hang ribbed panels on the walls running at right angles to your sunniest window, keep the flattest wall for something with relief in every direction, and add one lamp off to the side before you decide the panel was a mistake. If the piece is going somewhere with no useful beam at all, the rest of our wall art collection includes faces that do not depend on a bearing, and the styling half of the question is covered in the Japandi and boho comparison.
