Hallway Ceiling Light Spacing: How Many and How Far Apart

Divide the length in feet by 6 and round for the count, then divide the length by that count for the gap, and set the end fixtures back half a gap. A 12 ft hall takes 2 lights at 72 in centers, 36 in off each end wall.

Track if you need to aim light at counters and only have one box; separate ceiling fixtures if you want even light along a walkway and can add a box per fixture. Track heads slide later, wired fixtures do not.

Yes. 12 divided by 6 is 2, so 2 fixtures at 72 in centers with 36 in setbacks, which puts the marks at 36 in and 108 in from one end wall.

Three. 20 divided by 6 is 3.3, which rounds to 3, so spacing is 240 divided by 3 or 80 in, the setback is 40 in, and the marks fall at 40, 120 and 200 in.

64 in centers. 16 divided by 6 rounds to 3 fixtures, 192 in divided by 3 is 64 in, and half of that gives a 32 in setback, so marks land at 32, 96 and 160 in.

Usually yes. 8 divided by 6 rounds to 1, centered at 48 in. Below about 10 ft a second fixture mostly adds another box and another hole in the ceiling.

Half the spacing. A 72 in gap means a 36 in setback, a 64 in gap means 32 in, an 80 in gap means 40 in. A full-gap setback is what leaves dark ends.

It is wider than I would plan. 96 in centers asks each fixture to cover 48 in on both sides, and the rule keeps the step near 72 in (183 cm) for that reason.

You can. In a 12 ft hall that gives 3 fixtures at 48 in with 24 in setbacks. It is one more box and a busier ceiling than the divide rule's answer of 2.

Over the walking path. In a hall with doors down one side that is often 2 in to 3 in off the ceiling's true center. Snap one chalk line and keep every fixture on it.

No, the count comes from length. Width only decides whether one line is enough, and under about 4 ft wide a single line down the middle covers it.

Treat each leg as its own hallway. Measure both legs, apply the divide rule separately to each, and place a fixture within half a spacing of the corner so the turn is not the dark spot.

Measure its distance from one end wall first. If it lands within a few inches of a calculated mark, build the plan around it; if not, it becomes a spare box for the electrician to make safe.

Often yes, when your count is odd. A 16 ft hall wants marks at 32, 96 and 160 in, and 96 in is the exact center, so a centered box stays and only 2 are new.

Because an odd count always puts one fixture at the center of the run. Even counts of 2 or 4 straddle the center, so an existing centered box falls in the gap between fixtures.

It lights the middle and leaves the ends dimmer. The fixture sits 120 in from each end wall, and at that distance the same light is spread across far more floor than it is at 40 in.

At both ends, starting a few feet in. In a 16 ft hall with the light at 96 in, the last 4 ft to 5 ft at each end reads darkest, which is where the doors usually are.

Yes, with something that plugs in or runs on batteries at that end. Wall pieces reach the corner a ceiling box cannot, and no electrician visit is needed to try one.

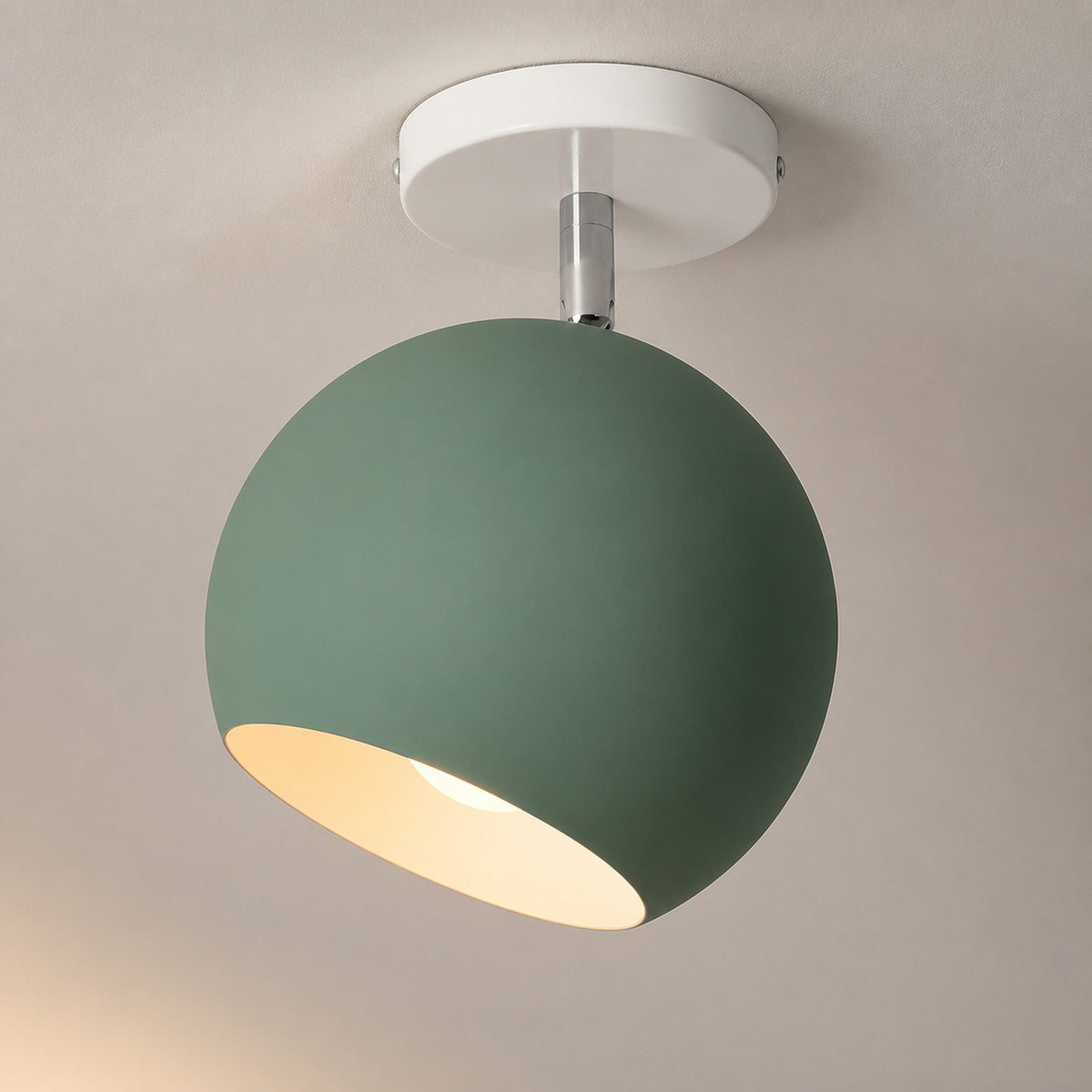

A wider shade spreads light differently, but it does not move the fixture closer to the end walls. This shade is 7.9 in (20 cm) across, and on a single-box hall the limit is distance, not shade width.

Check the clearance the alarm's own instructions ask for, then keep the fixture outside it. If a mark lands on the alarm, slide every mark by the same amount so the gaps between fixtures stay equal.

Keep it out of the hatch's drop path. I leave at least 12 in (30 cm) between the canopy edge and the hatch opening, and I open the hatch before any mark is final.

It can, if the fixture sits inside the ladder's arc. Drop the ladder fully, mark where the stiles land, and keep the 4.7 in (12 cm) canopy clear of that footprint.

Usually. At 9.4 in (24 cm) tall on a 96 in ceiling it finishes about 86 in off the floor, above a typical 80 in (203 cm) door leaf. Measure your own ceiling rather than assuming it.

It hangs 9.4 in (24 cm) below the ceiling, leaving roughly 7 ft 2 in of headroom on a 96 in ceiling. In a hallway you walk under it rather than stand beneath it.

A 4.7 in (12 cm) circle. That hides the box and the wiring and nothing else, so old paint rings or holes wider than 4.7 in stay on show.

No. It is a hardwired surface mount fixture, so turn the power off at the breaker and have a qualified electrician mount the canopy and connect the ceiling wiring.

No. It comes in Green, Blue, Yellow and Pink, and every variant is the same size, so mixing colors down one line changes nothing about your marks or the canopy footprint.

It reads as deliberate as long as the spacing is even. All four variants share the same 7.9 in (20 cm) shade, so alternating changes the color and not the rhythm overhead.

The product page describes an adjustable ball shade but does not document how far it moves, so check the movement on the fixture in hand before you plan a specific aim.

A 4.7 in canopy, a 7.9 in shade and 9.4 in total height, which are 12 cm, 20 cm and 24 cm in the same order.

Yes. Hallways, kitchens, entries, bedrooms, closets and dry sunrooms all suit it, and the same length-divided-by-6 rule works over a closet or entry run.

Only a covered porch ceiling. Our page does not document a wet rating, so keep it out of exposed outdoor positions.

That depends on how the circuit can be run and where your switches already sit. Ask for it in the quote before any box goes in, because it is cheap to plan and expensive to redo.

That depends on the bulb and the switch rather than the spacing. Have your electrician confirm the combination before the fixtures are wired.

That is a question for your electrician, since it turns on the circuit and the load. Have your count and your marks ready so it can be priced in one visit.

The same spacing, because width does not enter the maths. One line of fixtures down the center of a 36 in wide hall is enough, spaced from the length as normal.

Wall to wall along the ceiling. Where one end is an opening with no wall, measure to the door casing and take your half-spacing setback from there.

5.33 ft is 64 in, or 5 ft 4 in. Do the whole plan in inches instead: 192 in divided by 3 is 64 in exactly, with no decimal to round.

Keep the gaps even. If the entry needs more light, add light at the entry itself rather than crowding two fixtures at one end and stretching the gap at the other.

The fixture usually moves an inch or two. Either shift that one and accept a slightly uneven gap, or shift every mark by the same amount so the pattern stays even.

Plan for touch-up at least. The 4.7 in (12 cm) canopy covers only its own circle, so the patching around each new box tends to show unless the ceiling gets a coat.

Tape a 7.9 in (20 cm) paper circle at each mark and walk the hall from both ends. You are checking gaps, obstacles and sight lines at that point, not brightness.

You can, and it needs only the one box you already have. It reads as a single line overhead, which suits a kitchen work zone more than a corridor that wants even floor light.

Set the heads on the same centers the divide rule gave you, so 3 heads at 64 in apart for a 16 ft hall. The gain is that you can slide them afterwards.

One box feeds the whole run, which is why it suits a kitchen with a single existing box. Separate ceiling fixtures need a box at every mark.

It depends on how many boxes your electrician would have to add and how the ceiling is built. Get the box count off your marks first, then price both ways.

Three 7.9 in (20 cm) shades in a straight line read as three small dots, while a track reads as one continuous line. In a narrow hall the dots usually look quieter.

Yes, and matching the spacing is what ties them together. Run the hall fixtures on your calculated centers, then keep the kitchen heads on a similar rhythm where the ceiling allows.

Give the hallway length, the fixture count, the marks in inches from one end wall, the loft hatch and alarm positions, and that the fixture is a hardwired surface mount with a 4.7 in (12 cm) canopy.

Split the run at the opening. Measure the solid ceiling on each side, apply the divide rule to each stretch separately, and keep one fixture within half a spacing of the top step.
