What if a Sconce Arm Does Not Reach Your Book?

What if a sconce arm does not reach your book? Then the arm is the wrong part to fix. Sit up against a headboard and your page ends up 24 to 30 in (61 to 76 cm) off the wall, once a headboard, a squashed pillow stack and your own forearms are all in front of it. A wall-mounted arm has to cross that whole distance from a pivot someone else chose.

Light falls off with the square of the distance, so the last 6 in (15 cm) of reach does more work than the first 12 in (30 cm). That is why the fix is almost always where the fitting sits, not how far it extends. Below: how to measure the gap you actually have, why arms give out early, and what to do when the wall box will not move.

What if a sconce arm does not reach your book?

Closing the gap from 36 to 24 in (91 to 61 cm) multiplies the light on your page by 2.25, which beats any extra arm length you can buy. That is the inverse-square law doing the work: illuminance is inversely proportional to the square of the distance from the source, so distance is the lever with the most travel in it.

An arm is fighting geometry it cannot win. Its pivot is bolted to a wall box you did not choose, usually 4 to 5 ft above the floor and centred behind the bed. From there the head sweeps an arc, so pulling it towards you swings it along a circle rather than straight out. A 16 in (41 cm) arm does not deliver 16 in of forward reach once it is angled down at a page in your lap.

Then there is what the beam does when it lands. A sconce raking across a page at a shallow angle smears its light over a long ellipse, while the same beam arriving square on covers less area at higher intensity. The Houseland globe pull-chain sconce is built the opposite way from a swing arm: every design stands 5.9 in (15 cm) tall with a frosted opal glass globe about 4.7 in (12 cm) across, so the source sits within a hand's width of the backplate and you site the backplate where the light is wanted.

That is a different bargain and worth naming honestly. A fixed fitting cannot be re-aimed once the wall is closed up, so the decision moves off the lamp and onto the layout.

How far from the wall does your page actually sit?

Measure it before you buy anything, because the number is personal and it is bigger than most people guess. Three thicknesses stack up between the plaster and the page: the headboard, the compressed pillows, and the distance from your chest to the book. On many beds the first two alone eat 10 to 14 in (25 to 36 cm).

Published reach ranges are a useful sanity check on the third. The ADA 2010 standards cap an obstructed high forward reach at 25 in (635 mm) of depth, and put an unobstructed high reach at 48 in (122 cm) above the floor. Those are accessibility limits rather than reading advice, but they bracket what an adult arm does over an obstacle, and a book held to read sits at about that distance from the shoulders.

1. Sit where you read, with the pillows you actually use and the book you actually read.
2. Hold a tape at the wall behind the headboard and run it to the spine of the book. Write the number down.
3. Measure floor to the middle of the open page. On most beds that lands between 38 and 44 in (97 to 112 cm).
4. Note which side the light will come over. A right-handed reader throws a hand shadow from a source on the right.
5. Compare both figures with the fitting's stated projection from the wall before you order it.

Do that and the shopping question changes shape. You stop asking how long the arm is and start asking whether the fitting can be mounted at 40 in (102 cm) above the floor, beside your shoulder instead of above your head. The same reasoning drives sconce placement above a sofa, where the seat back plays the part of the headboard.

Why do swing arms run out of reach before they run out of travel?

The spring holding the head up works against a lever that grows every inch you pull, and springs have a limited lifting capacity and a limited extension length. That last phrase is Wikipedia's own description of the balanced-arm lamp, and it is the problem in one line. Torque at the pivot is the weight of the head times its horizontal distance, so an arm extended from 12 to 24 in (30 to 61 cm) doubles the load on that joint without adding a gram of weight.

Three consequences follow, and all three show up months after installation. The joint that held the aim starts to creep, so a beam set on the page drifts down onto the duvet. The head hangs a few degrees lower than it did. And the screws carrying a cantilevered load work harder in plasterboard than the same fitting held flat to the wall.

Glare is the second cost. An arm long enough to reach a page in a lap has also carried the bulb to within a couple of feet of your eyes, at roughly the height you are looking. A frosted or opal shade is the only real defence at that range; a clear filament bulb 24 in (61 cm) from your eye is a glare source with a book under it.

The third is the wall box. An arm's pivot cannot move, so its reach is measured from wherever an electrician ran the cable years ago. If the box is centred behind the headboard, the first 10 in (25 cm) of any arm is spent getting clear of the pillows.

Swing arm vs fixed sconce: which one gets light on the page?

A swing arm earns its keep when the wall box is in the wrong place and cannot move; a fixed fitting wins whenever you get to choose the position, which is the cheaper thing to buy.

The row that decides it for most bedrooms is the switch. Reaching up in the dark to find a small knob on a hot shade is worse than it sounds, and a chain that hangs 6 in (15 cm) below the backplate is found by feel on the first try.

From the shop

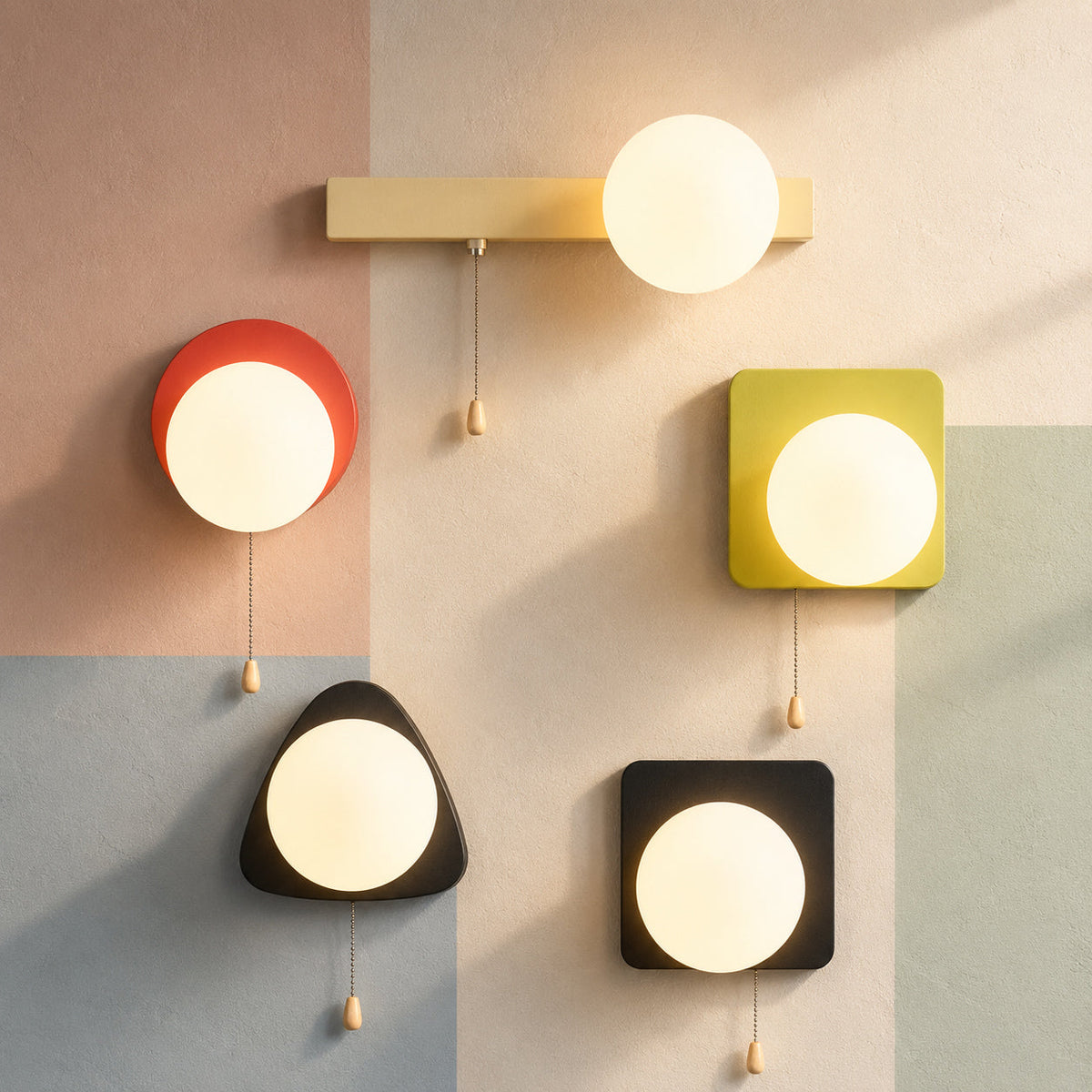

Globe Wall Sconce with Switch, Pull Chain Glass Wall Lamp, 4 Shapes 4 Colors

Every design stands 5.9 in (15 cm) tall with a frosted opal glass globe about 4.7 in (12 cm) across, and the bar version spans 11.8 in (30 cm) so the globe can sit left or right of the box. It hardwires to a standard wall box and switches on a beaded pull chain with a wood teardrop, over a G9 socket rated for a 7W LED.

View the pull-chain globe sconce — 17 colourways & current price

How do you get light onto the page without a longer arm?

Five moves, in the order I would try them, and only the last one costs you a new fitting.

1. Mount lower. A fitting centred at 40 in (102 cm) above the floor sits level with an open book instead of shining over the top of it.
2. Mount outboard. Shift the fitting off the bed's centre line towards your shoulder; on a US queen at 60 x 79.5 in (152 x 202 cm) that is roughly 24 in (61 cm) out.
3. Use the backplate shape. Where a fitting offers a horizontal bar, the globe sits at one end of an 11.8 in (30 cm) span, which lands it nearer the pillow than the box is.
4. Add a second small source instead of lengthening one. Two modest pools beat one long reach, and they cancel most of the shadow your own hand throws.
5. Change the fitting's job. If the box will not move and no arm will reach, let the sconce be the ambient layer and put a clip light or a table lamp on the page itself.

Two of those need the cable to move, which is the real cost in an older room. If rewiring is off the table, converting to a plug-in fitting is the honest route, and adding a plug to a hardwired sconce covers what that involves. Anything in the wall lamps range can then be sited by eye rather than by cable.

What I'd do

Measure the gap, then buy for position rather than reach. On a bedside wall I would fit a diffuse light at 40 in (102 cm) above the floor and about 24 in (61 cm) off the bed's centre line, aimed at nothing in particular, and I would insist on a switch I can find with my eyes shut.

That is what the globe pull-chain sconce is for. Houseland lists a G9 socket rated for a 7W LED and a beaded chain with a small wood teardrop hanging under the backplate, so the switch comes to your hand rather than the other way round. Fit a 3-colour-temperature G9 bulb and the same fitting gives warm 3000K for reading in bed and white 6000K for finding a sock.

What I would not do is order a longer arm and hope. If your measured gap is 28 in (71 cm) and the arm is sold as 16 in (41 cm), the arithmetic has already answered you. And if the wall has no cable at all, plug-in wall lights get a reading light beside the bed tonight rather than after an electrician's visit.
