Wall Panel Decor: Will Backlit Light Show Every Drywall Seam?

Yes, it can, and the wall's finish decides how badly, not the panel. Wall panel decor that lights up sends its beam almost parallel to the surface it hangs on, and at that angle a ridge you cannot feel with your palm reads as a shadow you can see from the sofa. Two horizontal lines where the tape joints run, a row of dimples where the screws went in, one trowel wave: all of it was there in daylight and none of it was visible.

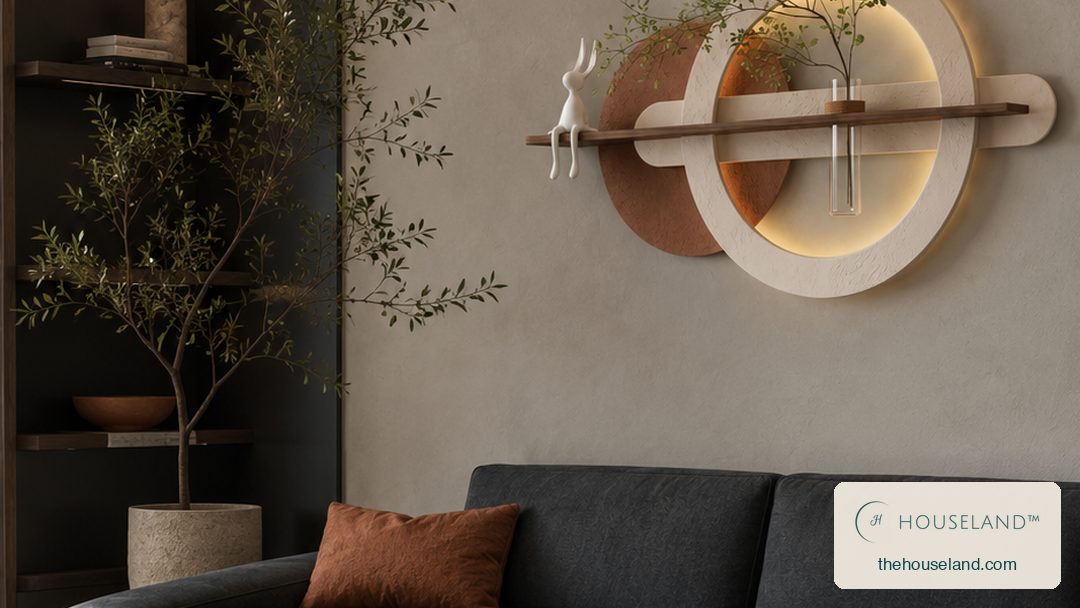

The wall is not defective and the panel is not faulty. The wall was finished to a standard that assumes light arrives from the ceiling or a window, and you have just bolted a light source flat against it. Houseland's plaster ring is typical of the shape: a hidden warm-white LED strip behind a 27.6 in (70 cm) ring, hung on two screws, aiming its light straight back at the plaster. Five minutes with a phone torch, at night, before you drill, tells you which wall you have.

Why does a lit panel show seams the ceiling light never did?

The angle changed, not the wall. A ceiling downlight meets the wall at a steep angle and washes over small relief; a light fixed to the wall arrives at two or three degrees off the surface, which is what ERCO defines as grazing light: "the light is incident to the surface at a very shallow angle", used "to emphasise surface structure and texture". Emphasising texture is the whole point on stone. It is the failure mode on plasterboard that is meant to read flat.

The arithmetic is blunt. Shadow length is the height of the bump divided by the tangent of the angle the light makes with the wall. A taped joint standing 1/32 in (0.8 mm) proud throws a shadow roughly 0.9 in (23 mm) long when the light rakes it at 2 degrees, and a tenth of that at 20 degrees. The defect did not grow: a 1/32 in ridge simply casts a shadow about 30 times its own height.

A hidden strip adds one more twist. A long horizontal source blurs the shadows of vertical detail along its own length while leaving horizontal detail crisp, so a wide piece is hardest on the horizontal tape lines and kindest to the vertical ones. That is why the two marks people photograph and send us are almost always horizontal, and why a strip tucked behind a bedhead behaves differently again.

Does wall panel decor need a smoother wall than a framed print?

It needs a wall finished for the light it will carry, and the drywall trade already has a name for the condition. GA-214-2021, the Gypsum Association's Recommended Levels of Finish, puts it in the glossary: "Critical Lighting - Strong side lighting from windows or surface-mounted light fixtures." A lit piece screwed to plasterboard is a surface-mounted light fixture by that wording, so the wall behind it is a critical-lighting wall now, whether anyone specified it that way or not (GA-214-2021).

The same document carries the inspection rule your wall was signed off under: "The normal viewing position shall be at a minimum distance of five (5) feet (1.5 m) perpendicular from the surface. Blemishes should not be visible from a normal viewing distance with normal light." A wall can pass that five-foot check and still fail the night you switch a panel on, because GA-214 says the inspection lighting is whatever is "in place when the project is finished" and lists wall washers, spots and floods as examples. The piece you ordered last week was not in the room that day.

That gap between how a wall is inspected and how it is later lit is the whole story here. Nobody signs a wall off at 2 degrees of incidence, and every lit piece in the wall art collection asks the plaster a question the handover inspection never asked.

Level 4 vs Level 5 finish: what changes behind a lit panel?

One operation separates them, and it is the one that matters here: Level 5 adds a skim coat over the entire wall, not just over the joints.

Two things make Level 5 work, and only one of them is flatness. USG's own submittal sheet for its gypsum panels says a skim coat "equalizes suction and texture differences between the drywall face paper and the finished joint compound before painting" (USG submittal sheet WB1473). Paper and dried compound drink primer at different rates and dry to different sheens, so a joint can be dead flat and still show as a band of slightly different gloss under a raking beam.

Do not expect miracles from it either. GA-214 is candid: "Skim coating will not approximate a plastered finish/surface. Once the skim coating material dries, treated joints, filled voids, and spotted fastener heads may be visible." Level 5 shortens the odds rather than settling them.

How do I test my wall before the drill comes out?

Borrow the light before you buy it. A phone torch held flat to the plaster does the same job as the panel's own strip, and photographers call the result raking light.

1. Wait until dark and kill every other light in the room. Daylight fills the shadows you are hunting for.
2. Hold the phone against the wall, lens flat to the surface, at the height the light will sit. For a piece centred at eye level that is around 58 in from the floor.
3. Slide it slowly sideways across the width the piece will cover, and look along the beam from the side, not from behind the phone.
4. Mark what lights up with low-tack tape: horizontal bands are taped joints, evenly spaced dimples are fastener heads, broad soft waves are trowel marks.
5. Repeat at the top edge and the bottom edge of the piece. A halo lights a band, not a line, and the worst joint is often above or below where you were looking.
6. Photograph what you find. In two weeks you will not remember which shadow was a joint.

Standard boards are 48 in (4 ft) wide with tapered long edges, and framing runs at up to 16 in (406 mm) on centre in single-layer work, so the seams you find are on a grid rather than scattered. Sheeted horizontally on an 8 ft ceiling, the long joint lands near half height, which is roughly where a piece hung at eye level puts its lower half.

What are the honest fixes if the wall fails the torch test?

Four, in rising order of effort, and the cheapest one is moving the piece 8 in sideways.

• Move it. Slide the mounting points so the brightest part of the halo lands on plain board rather than on a taped band. On a 48 in board grid that is often a shift of a hand's width, and it costs nothing but two holes. If the holes are already in, our note on taking anchors back out covers the tidy way to do it.
• Turn it down. Halving the output halves the brightness of the lit band while the rest of the room stays where it was, so the contrast that makes a shadow readable drops with it. Houseland's plaster ring lists remote dimming and multiple modes on its spec table, so this one is a button rather than a job.
• Change the surface, not the light. GA-214's own remedy list is "skim coating the entire surface, decorating the surface with medium to heavy textures, or the use of draperies and blinds that soften shadows", and it notes that textures conceal minor differences while non-flat and deep tone paints highlight them.
• Skim the patch, then repaint the wall. A skim coat over the area the light reaches is the real fix, but a patch of fresh compound takes primer differently to the old paint, so the repaint has to run to the corners or you have traded a shadow for a rectangle.

One trap worth naming: deep colour is not a cover story. GA-214 states that "colors with deep or strong hues, and even flat paints, tend to magnify imperfections in the finished gypsum panel surface and increase the possibility of joint photographing", which is the opposite of what most people assume when they paint the alcove charcoal. Backlighting a dark painted wall is a separate problem again.

From the shop

Backlit Plaster Wall Art, Japandi LED Ring with Walnut Shelf and Bud Vase

Hidden warm-white LED strip with remote dimming and multiple modes, on a 27.6 in (70 cm) ring of hand-applied sand plaster over a laser-cut MDF base. Hangs on two screws, 47 in (120 cm) overall width including the walnut shelf overhang.

View the backlit plaster ring — plug-in or battery options & current price

Does the 4 in (10 cm) stand-off figure apply to a panel on the wall?

No, and it is the most copied wrong number in this corner of lighting. It comes from ERCO's Lightgap, a recessed grazing-light wallwasher that ERCO says holds an "extremely uniform light beam" even when positioned up to 4 in (10 cm) in front of the wall, on its own Lightgap product page. That result is bought with a collimating lens made of optical polymer and a luminaire sunk into the ceiling void, not with clearance.

ERCO's vertical lighting page draws the line: a grazing luminaire sits "directly in front of the wall, emphasizing its materiality and surface texture", while even brightness from ceiling to floor is the job of a lens wallwasher set back from it. A stand-off borrowed from purpose-built optics tells you nothing about a piece on two screws.

We are in the same position on our side of it: Houseland publishes an overall width of 47 in (120 cm) for the plaster ring and no stand-off dimension at all, so we do not know, and will not guess, how far the strip sits off your plaster. Measure the gap on the piece in your hands and torch-test that wall at that height.

What I'd do

Torch the wall first, then choose the piece, because the test takes five minutes and the return takes a fortnight. If the beam finds nothing at 58 in, hang whatever you like and stop reading. If it finds one horizontal band, move the mounting points clear of it and check again before drilling.

If the beam lights up the whole wall like corrugated iron, I would stop trying to fix the lighting and fix the wall, or put an unlit piece there and light that alcove from the ceiling instead. A skim coat over one wall is a day's work and it is cheaper than living with a shadow you now cannot unsee. And if you rent, the honest answer is option one and option two: move it, dim it, and leave the plaster alone.
