How Many Ceiling Lights Does a Hallway Need, and How Far Apart?

Count the positions from the ceiling height, not the length of the hall. One fixture covers a run up to about 10 ft, two cover 13 to 16 ft, and past 20 ft you are into three — hallway ceiling light spacing decides that, and the wattage on the box does not.

The published rules of thumb run from 4 ft apart to 8 ft apart, a 2:1 disagreement between sources that all sound equally certain. Mister Sparky puts fixtures 4 to 6 ft apart down the centre of a hall; Steel Lighting Co says 6 to 8 ft once a hall passes 10 ft. Both are right for a particular luminaire, and neither tells you which one yours is: the real figure is a ratio the maker publishes and nobody quotes. This wood drum is 9.1 in (23 cm) in diameter. Ask for the lumen output before you order two of anything.

How many ceiling lights does a hallway need?

One under about 10 ft, two from roughly 13 ft to 16 ft, three past 20 ft. The count is set by evenness, not total output — a single bright source can hit the average for the whole run and still leave both ends visibly darker than the middle.

BS EN 12464-1:2021 asks for 100 lux in a general corridor, 150 lux on stairs and 200 lux in an entrance hall, and attaches a uniformity to each: U0 of at least 0.4 for corridors. TRILUX gives the formula behind the letter — U0 is minimum illuminance divided by average illuminance — so 0.4 means the darkest patch of floor may not fall below 40 percent of the average across the run. That is the test one central position fails in a long hall, long before the average does.

The American figure lands in the same place. The IES Lighting Handbook, 10th edition, reproduced in the Energy Trust of Oregon and Lighting Design Lab footcandle guide, lists a corridor at 25 average maintained footcandles over a range of 10 to 40 — an educational-building row, which is why a home belongs at the bottom of it, and 10 footcandles is about 108 lux.

What does 100 lux on the floor cost you in lumens?

Multiply floor area by the target, because one lux is one lumen per square metre. That equivalence turns a corridor into a shopping list, and the narrow dimension is fixed for you: IRC R311.6 sets a minimum hallway width of 3 ft, and most homes run 3 to 4 ft.

Read the right-hand column as light that must land on the floor, not the number on a carton. Part of a luminaire's output goes to the walls and the ceiling, and dark paint swallows much of what reaches it, so emitted lumens always sit above the floor figure — by how much depends on your surfaces, which is why this sum ends in a meter reading.

And read it at the floor. Corridor illuminance is measured with the meter around 0.1 m up, not on the desk-height plane an office is judged on, so a reading at head height tells you nothing useful.

Why is hallway ceiling light spacing a ratio to ceiling height?

Because light leaves the source as a cone, so the same luminaire covers more floor from a higher ceiling. The IES names it: the luminaire spacing criterion, or SC, an estimated maximum ratio of luminaire spacing to mounting height above the work plane that still keeps illuminance acceptably uniform. Published per luminaire, and the IES notes SC can differ in the 0 degree and 90 degree horizontal directions — which matters in a corridor, where the long run and the 3 ft width are nothing alike.

Work it forwards. An SC of 1.2 under an 8 ft ceiling puts the source roughly 7.8 ft above the floor and allows about 9 ft between positions; under a 10 ft ceiling, about 11 ft. Halve the ceiling height instead, the rule Mister Sparky publishes, and 8 ft gives 4 ft — conservative on purpose, because it is written for narrow recessed cans, not a wide diffused drum.

The IES states the inverse-square law as E = I/d squared, accurate within 1 percent once the distance is at least 5 times the largest dimension of the source. A 9.1 in (23 cm) drum seen from the floor under an 8 ft ceiling clears that easily, so the arithmetic behaves. It also explains the failure: step out from underneath and floor illuminance drops fast, which is why the gap between positions, not the brightness of one, decides how the hall reads.

One centred fixture vs two positions in a 14 ft hallway: which is right?

Two, if you can get a second box into that ceiling — one, if you cannot and the hall is not the only lit route through that part of the house. The same 14 ft run, both ways:

Sometimes neither wins. With the ceiling open, four recessed downlights at 4 ft centres beat two surface fixtures on evenness, and a track run beats both if you would rather aim light at the walls. A flush drum wins on headroom under a 7 ft ceiling, the IRC minimum for habitable space, and on not cutting holes in sound plaster. It does not win on uniformity.

Two positions also means two things to switch. One switch gives an even wash and no choice; the far end lit on its own at 2 am means a second cable, decided while the ceiling is open — the same argument we worked through for two panels on one remote.

From the shop

Wood Flush Mount Ceiling Light, Walnut or Natural, Slim or Tall LED Fixture

9.1 in (23 cm) across in both profiles, Slim at 1.9 in (4.8 cm) or Tall at 4.7 in (12 cm), frosted acrylic diffuser, integrated warm white LED. Flush ceiling mount with a collar, in Walnut or Natural.

View the wood flush mount light — 4 finishes & current price

How do I mark out the positions before the electrician arrives?

Chalk the centre line, then divide the run.

1. Measure wall to wall, not door to door. The lit length includes the stretch behind the door swing.
2. Divide the run by the number of positions. A 14 ft hall over two gives 7 ft between centres; a 20 ft hall over three gives about 6 ft 8 in.
3. Set the first position half a spacing off the end wall — 3.5 ft in that example, and Mister Sparky's guide puts perimeter fixtures 2 to 3 ft off a wall. Light landing on the end wall comes back at you.
4. Mark the positions on that centre line. A drum sat 2 in off it is obvious from the far end of a 3 ft wide hall.
5. Check the ceiling height at both ends. A spacing worked out from 8 ft does not survive a ceiling 3 in lower at the far end.
6. Stop at the cable. Marking positions is measuring; a new box in a ceiling is fixed electrical work.

Where that line falls depends on where you live. The IET summarises Part P for England and Wales: a new circuit, a consumer unit swap, or an alteration to a circuit in a special location is notifiable; an addition elsewhere is not, but still has to meet BS 7671. In the United States a new lighting outlet answers to the NEC as your state or city adopts it, and normally means a permit and an inspection. In Australia and New Zealand fixed wiring is licensed work. None of those markets treats it as a job to learn from a web page.

What does this fixture's spec table not tell you?

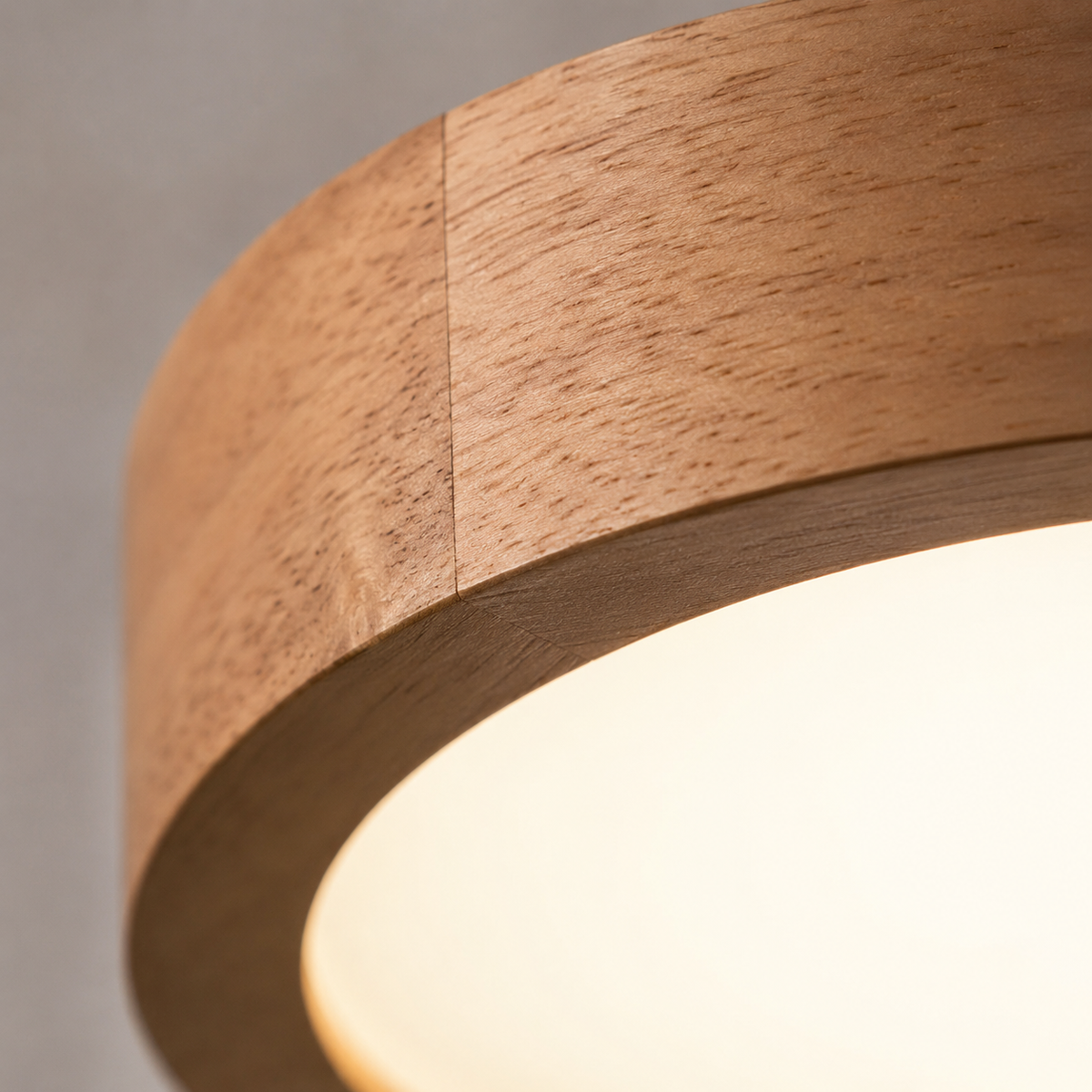

The lumen output, which is the one number the whole layout hangs on. Houseland lists a wood drum of joined construction with a frosted acrylic diffuser, a 9.1 in (23 cm) diameter in both profiles, a Slim profile 1.9 in (4.8 cm) tall and a Tall profile 4.7 in (12 cm) tall, an integrated warm white LED and a flush ceiling mount with a collar, in Walnut or Natural. There is no lumen figure in it, no Kelvin number, no CRI, and no spacing criterion.

Do not guess it, and do not borrow a rival's. Three ways to close the gap: ask the seller for the output in writing; read what is printed on the module or the carton when it arrives; or put a lux meter on the floor under a similar drum you already own. The last is slowest and worth the most.

What the spec table does settle is the drop, and the drop is what the ratio hangs off. The Slim profile holds the diffuser 1.9 in (4.8 cm) below the plaster and the Tall 4.7 in (12 cm), so the difference in mounting height is under 3 in — a real visual choice, almost no arithmetic. Pick on clearance and on how the drum reads from below. The rest of the wall and ceiling lamps tell the same story: read the spec table, not the category name.

What I'd do

Buy one, hang it in the box that already exists, and give it a week before committing to the second. Stand at the darkest end after dark with a meter on the floor, and if that reading comes in under 40 percent of the reading directly beneath the fixture, the hall needs a second position — the EN 12464-1 uniformity test, run with a phone app instead of a photometer.

If a second box is not on the table — rented flat, concrete slab, a soffit you are not opening — light the far end off the wall instead. A plug-in or battery piece at the end of the run buys back the uniformity without the cable, and the trade between them is real: we compared battery against plug-in for softer light. If that far wall is blank, it is also the cheapest place to fix a hallway wall people only ever walk past.

And if the hall is under 10 ft, stop reading and buy one. A 28 sq ft floor at 100 lux needs about 260 lumens on it, one central position covers that at any sane ceiling height, and Houseland's Slim profile at 1.9 in (4.8 cm) keeps the drum tight to the plaster where headroom is the constraint.
