Drywall Anchors for Floating Shelf: Studs or Toggles?

Hit a stud wherever the bracket lets you, and use drywall anchors for floating shelf fixings only at the holes that land in the gap, because studs in a framed wall sit 16 in (40.6 cm) on centre and no shelf lines up with all of them by luck. Nearly every shelf that ends up on the floor was held by a plastic plug pushed into 1/2 in (12.7 mm) plasterboard. Weigh what you plan to keep on it first, then buy a toggle rated well above that number.

Not everything you hang on that wall is a shelf. The 59 in (150 cm) backlit panel from Houseland is a wood body under a stone textured painted finish, not solid stone, which is why a piece that wide hangs on ordinary wall fixings rather than something engineered for masonry.

Do floating shelves need studs?

No, but every shelf needs at least one fixing that behaves the way a stud fixing behaves. A screw biting 1.5 in (3.8 cm) into timber is holding wood. A plug in 1/2 in board is holding compressed gypsum with a sheet of paper on each face, and gypsum gives up under a steady pull. A shelf on hidden brackets is harder on a wall than a picture hook, because the bracket rod carries the weight out from the wall and turns a downward load into an outward pull on the top fixings. A plastic plug in plasterboard is only gripping the sides of its own hole, which is why the shelf came off the wall and the hole is now the size of a grape. A shelf spanning 24 in (61 cm) or more will cross at least one stud on a wall framed at 16 in on centre, and one stud plus one toggle is a better wall than two toggles. If you rent and drilling is off the table completely, that is a different problem, and there are wall hooks that hold without a drill.

How do I find studs for a shelf without guessing?

Start at an outlet, because the box is screwed to the side of a stud, then measure out from there in 16 in steps.

1. Find a power outlet or a light switch on the same wall, then work out which side of it the stud runs up. The stud face is within about 1.5 in of one edge of the box.
2. Mark 16 in from that stud, then 32 in, then 48 in. If the marks come up empty, the wall may be framed at 24 in on centre, which is common in newer builds.
3. Knock along the marks with a knuckle. Hollow board sounds like a drum, and over 1.5 in of timber the knock goes dull and short.
4. Drag a strong magnet slowly up the wall at each mark. It stops on the line of drywall screws, and those screws are in the stud.
5. Drill a 1/8 in (3 mm) test hole above the shelf line, where the shelf will cover it. Timber gives resistance and a curl of shaving, board gives white dust and then nothing.

A stud finder is worth buying if you own the place, but the magnet costs nothing and it finds a screw instead of guessing at density. Old houses beat both: on plaster over lath, a magnet picks up nails across the whole wall and tells you almost nothing.

Toggle bolt vs plastic anchor: which one holds a shelf?

The toggle, and it is not close, because a toggle opens against the back of the board while a plastic plug can only squeeze the hole it sits in.

The grey plugs that came free in the shelf box are the most common reason a shelf ends up on the floor. Swapping them for toggles is the cheapest change on the whole job. Read the packet for the board thickness the toggle is rated for, because a toggle made for 1/2 in board is a different fixing from one made for 5/8 in (15.9 mm).

Which drywall anchors for floating shelf brackets should I buy?

The toggle style whose printed rating sits well above the weight you measured, one for every bracket hole that misses a stud. Packet ratings assume a clean hole drilled at 90 degrees into sound board, not a hole through a taped seam, an old filler repair, or a corner where the board is doubled. They are static ratings, so a shelf that gets leaned on, or that a child swings off, is carrying a different load from a shelf holding a row of paperbacks.

Weigh it rather than guess: put the books, the plates or the pot on a kitchen scale, add the shelf itself, and take that figure to the aisle. Our note on how much weight a floating shelf really holds goes further into why the depth of the shelf matters as much as the weight on it, and there is a longer read on drywall anchors against studs if you want the reasoning rather than the shopping list. Measure your board while you are at it: take the cover plate off an outlet and look at the cut edge, because 1/2 in is standard on walls and 5/8 in turns up on ceilings and fire rated walls. Mixing fixings is normal. One end of the bracket on a wood screw biting 1.5 in into a stud and the other on a toggle is a stronger wall than a neat row of toggles across the gap.

How do I hang a shelf between studs so it does not sag?

Mark every hole in the bracket, put a wood screw in the ones that hit timber, and put a toggle in the rest.

1. Weigh the load first, on a kitchen scale, including the shelf itself.
2. Draw the shelf line with a spirit level and mark all of the bracket holes, not the two that are easiest to reach.
3. Test every mark for a stud with the 16 in rule and a 1/8 in test hole.
4. Where a mark hits timber, use a screw long enough to pass 1/2 in of board and still bite 1.5 in of stud.
5. Drill the rest of the holes at 90 degrees to the wall, because an angled hole cuts down the area the toggle can open against.
6. Keep every hole clear of taped seams and internal corners, where the board is doubled and the toggle has nowhere to swing.
7. Tighten until the bracket sits snug against the wall, then stop. Overtightening crushes the paper face and the anchor starts to spin in the hole.
8. Load the middle of the shelf first, then check the level again before you fill the ends.

What about plaster walls and a shelf that has already pulled out?

Drill a test hole and read the dust before you commit, and never re-use a hole that has already failed. Plaster over lath comes out grey and gritty and the bit drops into a void behind it, while plasterboard comes out white and the bit runs straight through into air. Switch the hammer action off for plaster, because hammering cracks an old face in a spread around the hole that no amount of tightening pulls back together. Plaster and lath together is usually thicker than 1/2 in board, so mark your drill bit with tape and measure the depth of the test hole before you buy a toggle sized for the wrong wall. A screw into a lath strip is better than a screw into plaster alone, but lath is thin timber nailed across the studs, so treat it as a bonus rather than a stud.

For a shelf that has already pulled out, move the fixing instead of filling the hole and drilling the same spot again. Filler has none of the strength of the paper face it replaced, so shift the shelf up or down until the marks land on undamaged board, or slide it sideways until one end catches a stud on the 16 in grid. Then patch the crater properly, and the walk through on patching the big holes anchors leave covers the ones you can get a thumb into.

What would I hang above the sofa?

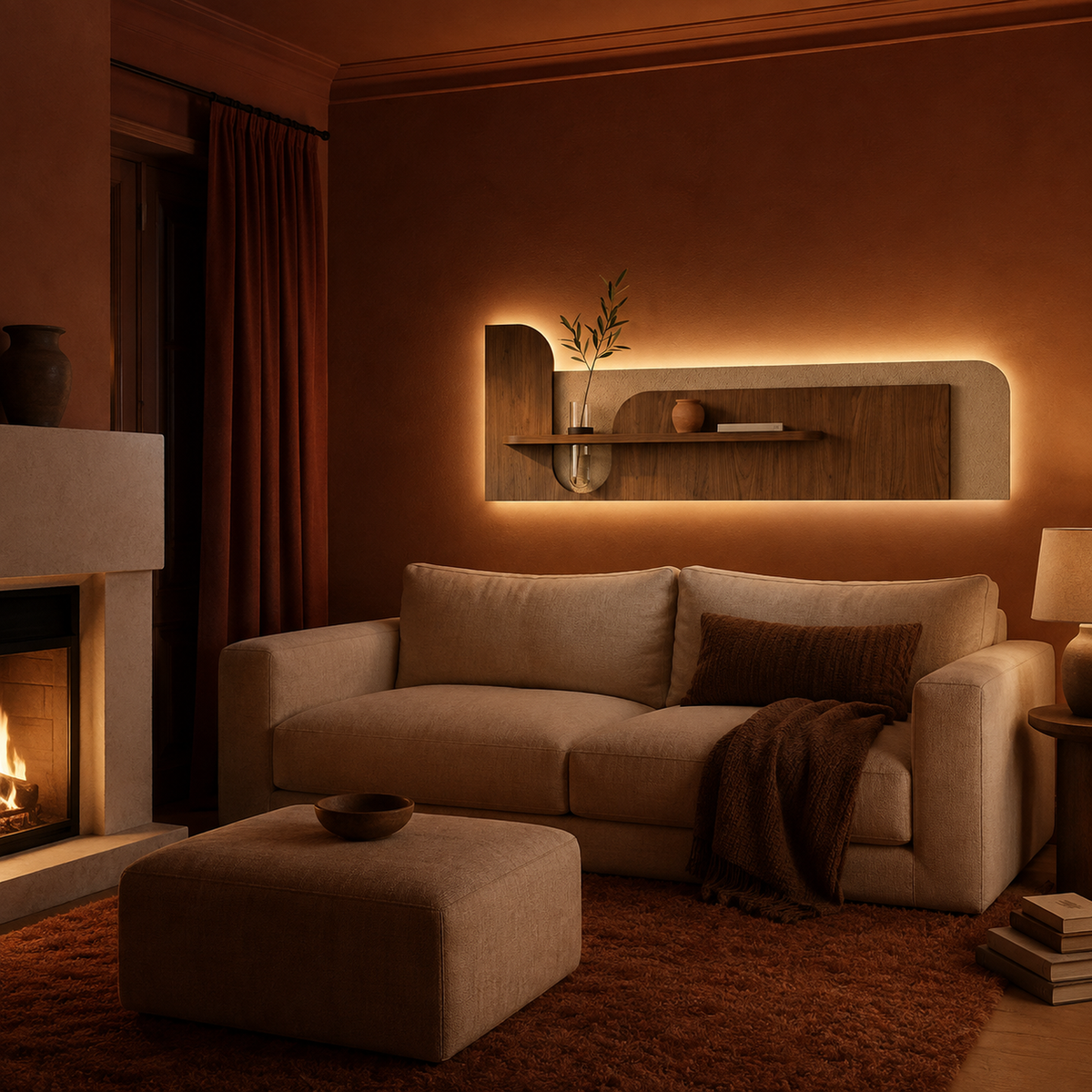

Something that earns its fixings by doing two jobs, because the wall above a sofa is the biggest piece of blank space in most living rooms. The 59 in (150 cm) wide by 15.7 in (40 cm) tall panel suits an 84 in sofa or a king bed, and the 47.2 in (120 cm) by 11.8 in (30 cm) suits a sofa from about 72 in wide or a queen bed. Both follow the same rule the product page gives, which is to span roughly two thirds of the furniture underneath. It has a slim ledge with a clear glass tube bud vase seated in it, and the LEDs wash up and down the wall behind the panel rather than lighting the room.

The fixing question is the one this article has been answering. Houseland's product page says it hangs on wall fixings sized for the panel, the same principle as a heavy framed picture, and that into a stud or with the right anchor it is secure, leaving a normal picture hook hole rather than a crater. It runs on 90-260V through the included adapter, so a standard US outlet is enough, with no electrician and no hardwiring, and the plug is chosen at checkout in US, AU, UK or EU form. Warm white light, dimmable from the remote, on and off from the touch switch on the panel, three years of warranty, dry indoor rooms only. It is 499.99 USD in Cream or Walnut, and delivery runs 21 to 31 days because it ships on the free route. If a plain ledge is what you actually want, the wall shelves are in the same shop.

From the shop

LED Wall Art with Shelf and Bud Vase, 59 in Backlit Stone Textured Panel

The 59 in (150 cm) wide by 15.7 in (40 cm) tall panel is stone textured paint over a wood body, wall mounted and self contained, running on 90-260V with three years of warranty.

See the led wall art with shelf and bud vase

Buy the toggles, use every hole in the bracket, and get a screw into timber wherever the marks allow it. That is the difference between a shelf you stop noticing and a Saturday spent with filler and a putty knife.
