How Many Ribs Should a Fluted Panel Have, and How Wide?

Set the rib count from the width of the board, not from the photograph. Pitch, meaning one rib plus one groove, is the number that decides how the face reads, and rib count is only that pitch divided into the panel width. Ribs about 1 in apart push a fluted panel wider and busier; ribs 2 in apart and over let the same board sit quiet and read taller.

Hardly any listing prints the pitch. You get the word fluted, one photograph and a width, so the arithmetic is yours to do. Two sources two thousand years apart agree on which way it cuts, and one of them put a number on it.

How many ribs should a fluted panel have?

Twenty is where two unrelated sources land. Vitruvius fixes the Doric column at twenty flutes and the Ionic at twenty-four, and Naturewall's Legacy paintable MDF panel is 23.6 in (600 mm) wide with 1.2 in (30 mm) flutes, which works out at twenty ribs across the face. Nobody copied anybody. Twenty is roughly what a person reads as ribbed without reading as corduroy.

Count on its own still tells you nothing. Walston Architectural Products lists one 12 in wide machine-grade MDF board in two cuts: 1 in flutes give twelve ribs, 2 in flutes give six. Same board, same width, half the count, and the two look nothing alike on a wall. A count quoted without a width is decoration, not a spec.

Expect to do that division yourself. Houseland does not print a rib count, a pitch or a groove depth for its fluted sandstone panel, and the listing is straight about what the face is instead: stone-textured paint over a wood body rather than solid stone, in Sage and Tan. Almost no maker publishes pitch.

Compare pitch instead: panel width divided by the number of ribs, then judge that figure against the wall you have. A 30 in stretch of wall takes thirty ribs at 1 in pitch and fifteen at 2 in. Thirty vertical lines on a wall that narrow is a lot of information for one surface, especially beside a door casing that already draws a line of its own.

Does the width of each rib change anything?

It changes the width you perceive, and Vitruvius says so in the passage everyone skips. Book IV is discussing interior columns that had to be slimmed down: “when the outer columns have twenty or twenty-four flutes, these may have twenty-eight or thirty-two. Thus the additional number of flutes will make up proportionately for the loss in the body of the shaft ... the columns will be made to look equally thick” (Morgan translation, Project Gutenberg). A thinner shaft with more flutes reads as heavy as a fatter one with fewer.

He gives a mechanism, which is why the passage survives being two thousand years old: “the eye, touching thus upon a greater number of points, set closer together, has a larger compass to cover with its range of vision”. Draw a line around a plain shaft and around a channelled one of the same thickness and the second line is longer, because it has to climb in and out of every groove.

His own conclusion is aimed straight at the reader with a slim wall: it is “not improper, in narrow quarters or where the space is enclosed, to use in a building columns of somewhat slender proportions, since we can help out by a duly proportionate number of flutings”. Book III adds the part that stops this becoming a millimetre rule: flute breadth is set as a proportion of the column, never as a fixed figure. A pitch that looks right on a broad board is wrong on a slim one, the same way sizing a piece for the gap between two openings starts with the gap.

What has anyone actually measured about vertical ribs?

One thing, and it points the opposite way to most panel copy. Peter Thompson and Kyriaki Mikellidou reported the Helmholtz square in i-Perception in 2011: a square drawn in horizontal lines looks taller and narrower than the identical square drawn in vertical lines. Eight naive observers ran 1,000 trials each. To match by eye, the vertical-striped figure had to be stretched 7.1% in height, and the horizontal-striped one had to be made 4.5% wider (Thompson and Mikellidou, i-Perception 2011).

Vertical lines win on width. Ribs on a wall panel are vertical lines. So a ribbed face pulls the eye sideways, and the common claim that vertical fluting adds height is backwards by the only measurement anyone has published. Read it honestly, though: the study compares horizontal striping against vertical striping, not striping against a blank wall, so it gives you a direction rather than a percentage you can spend.

The rib-width half is in the same paper. Duty cycle, the share of the pattern that is light, ran from 0.1 to 0.9, and the width effect moved between 1.3% and 6.5% across that range: narrow dark lines on a light ground beat broad dark ones. On a half-body mannequin seen in three dimensions the horizontal version needed to be 10.7% broader to match. On a panel that is a rule about shadow rather than count: broad lit rib faces split by thin dark grooves widen a wall hardest, and grooves deep enough to darken half the face throw the effect away.

Fine ribs vs wide ribs: which does a narrow wall need?

Wide ribs, if the wall is narrow and you want it to stay calm; fine ribs if you want that narrow wall to read broader than it measures. Both are defensible, and the mistake is picking one from a studio photograph lit by a raking lamp off to the left.

Choosing between a ribbed panel and something reflective for the same slim wall is a different question again, and the mirror comparison answers it on its own terms.

From the shop

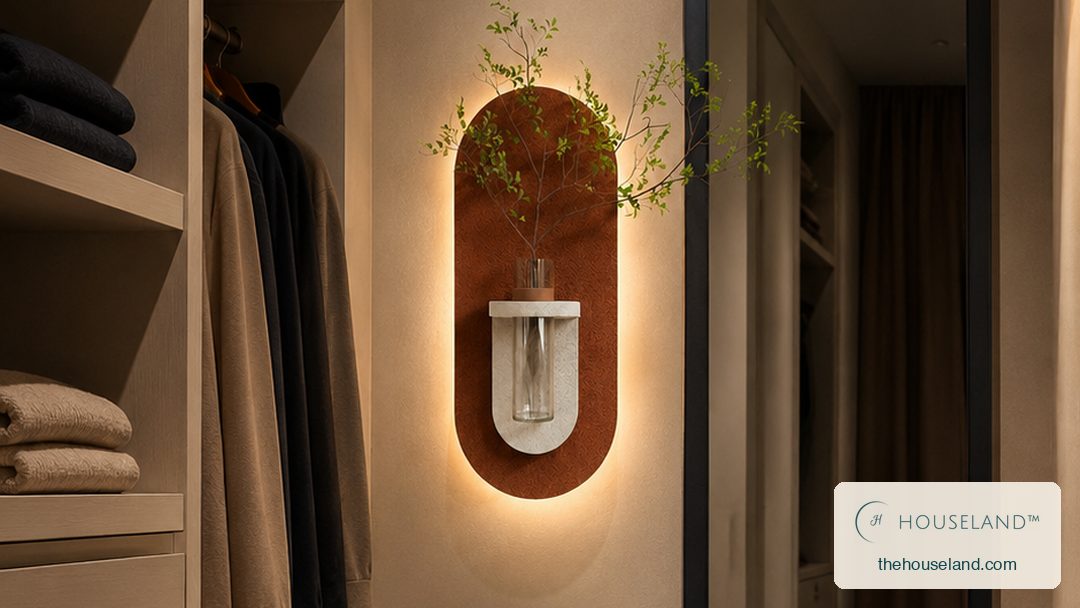

Wall Mounted Vase with LED Backlight, Textured Capsule Panel and Shelf

The panel is MDF and engineered wood under a hand-applied stone-effect texture, standing 1.6 in (4 cm) deep, with a removable borosilicate glass tube seated in the holder. Design A measures 23.6 x 9.4 in (60 x 24 cm) and hangs on a keyhole hanger.

View the capsule wall vase panel — plug-in or battery options & current price

How deep does a rib have to be before the shadow reads?

Deep enough that its shadow covers a useful share of the pitch, which is plain trigonometry: shadow width equals rib height divided by the tangent of the angle the light makes with the face. A rib standing 0.4 in (10 mm) proud, lit at 30 degrees, throws about 0.7 in (18 mm) of shadow. Lift the light to 60 degrees and the same rib throws about 0.2 in (6 mm).

Now put that against pitch, because the ratio is what your eye actually reads. That 0.7 in (18 mm) shadow covers about 70% of a 1 in pitch and about 35% of a 2 in pitch. The first panel looks nearly black-striped at teatime and the second keeps its colour. Depth alone is not a virtue, and a supplier quoting a deep flute without its pitch has told you half of nothing.

Panel thickness caps the whole argument. Walston publishes 0.5 in (12.7 mm) boards, so the groove has nowhere to go past that, and most sheet-milled fluting is shallower still. For scale at the other end, the whole Houseland capsule stem vase panel stands 1.6 in (4 cm) off the wall, and its relief is a hand-applied stone-effect texture rather than milled ribs. A groove depth quoted without its pitch tells you almost nothing.

How do I work out the pitch from a listing photograph?

Measure it off the photograph, using the one number every listing does publish: the width. Five minutes with a phone screen beats a return.

1. Take the straightest-on photograph in the listing. An angled shot compresses the far end of the panel and your count will run high.
2. Count the dark shadow lines, not the lit faces, from one edge to the other. Shadows are easier to count and there is exactly one per pitch.
3. Divide the published width by that count. A 12 in board with twelve shadows is a 1 in pitch.
4. Check the answer against something known in the same frame, such as a mains socket, before you trust it.
5. Measure your wall and divide by the pitch. That is how many ribs will actually land on the wall, and whether the last one gets cut in half.

Do the last step first if the panel is going between two door casings. A half-cut rib at a casing is the detail people notice for years, and it is worth shifting a pitch size to avoid.

What I'd do

Pick the pitch from the job the wall has to do, then let the count fall out of the arithmetic. A slim wall between two doors that I wanted to feel broader gets a fine pitch near 1 in and the widest ribs I can find in that pitch, so the grooves stay thin dark lines. A wall that is already busy, or one seen from down a hallway, gets 2 in and over.

Then check the pitch against the wall width before checking anything else, because a rib cut in half at a door casing outlives every other decision on the panel. If neither pitch survives that test, the answer is a piece with no ribs at all. The Houseland capsule stem vase panel takes that route: no fluting, a matte hand-applied stone-effect texture on MDF and engineered wood, a removable borosilicate glass tube in the holder and a keyhole hanger on the back. Whether it needs a partner piece beside it is a separate argument about matching versus relating.

Style follows that arithmetic rather than leading it. A coarse pitch reads quieter, which is where the japandi-or-boho question ends up too, and the rest of the wall art collection is worth a scroll before you commit to ribs at all.
