Can a Plug-In Wall Light Fixture Go on a Dimming Smart Plug?

Use the smart plug as a switch, not as a dimmer. A dimming smart plug cannot dim a plug-in wall light fixture that runs off an adapter, because the only thing the plug can chop is the mains going into that adapter, and holding a steady output against a messy input is exactly what the adapter is built to do.

So the fade never arrives. What arrives instead is one item off a short list the Department of Energy catalogued from real installations: no light at all, no dimming at all, a jump where you wanted a slope, a faint glow after lights out, or a hum you can hear from the bed. Schedule the panel with a plain on/off plug and dim it from the remote.

Will a plug-in wall light fixture dim from a dimming smart plug?

No, and the mismatch is written into the plug's own rating. A dimming plug is designed for a filament lamp or a screw-in LED with the driver built inside it, and a backlit panel on an adapter is neither of those. Lutron's page for its Caséta plug-in lamp dimmer draws the line in watts: up to 300 W of incandescent or halogen, up to 100 W of approved dimmable LEDs with integrated driver, and a minimum load of 10 W of incandescent lighting or one approved dimmable LED (Lutron support). An adapter feeding a low-voltage LED module is not on that list, at either end of it.

TP-Link draws it from the other side. Its dimmer FAQ rates the range at 150 W of dimmable LED and 300 W of incandescent on leading-edge phase cut, then says the dimmer does not support lamps based on PWM or ELV dimming (TP-Link FAQ). A hidden LED strip fed from a small transformer is the second kind.

One scoping note before you go shopping for a different plug. Every Houseland wall sconce is hardwired to a standard wall box, so a plug-in dimmer never enters the picture there at all. The plug-in question belongs to a handful of backlit panels: on the textured LED wall stem vase the Power option reads Battery LED or Plug-in LED, chosen at checkout, and the light itself is listed as a hidden LED halo with remote colour and dimming control.

What sits between the socket and the LEDs?

A power converter, and it is the part that decides how the light dims. DOE's GATEWAY report on phase-cut dimming states it in one line: “the driver electronics determine the dimming performance of an LED source”, whether that driver is integral to the lamp or housed in a separate enclosure (PNNL-22945, 2013). The same report defines the hardware: “LED drivers are fundamentally power converters; they draw power from the connected AC mains, and convert it to a form suitable for the LED emitters they power.”

Put a dimming plug in front of that and you are asking a converter to obey a signal written for a filament. It has no instruction set for a chopped waveform, so it regulates through it until the input sags too far, then drops out. Brightness on a panel like this is controlled downstream, on the low-voltage side, which is why a remote comes in the box and not a dimmer.

One honest gap goes with that. We publish no adapter output, no wattage, no lumens and no rated life for the LEDs, so there is no number on our side to check a dimmer's load window against. The cord-free route sidesteps the argument entirely, which is the real trade-off in battery wall art against plug-in wall art.

From the shop

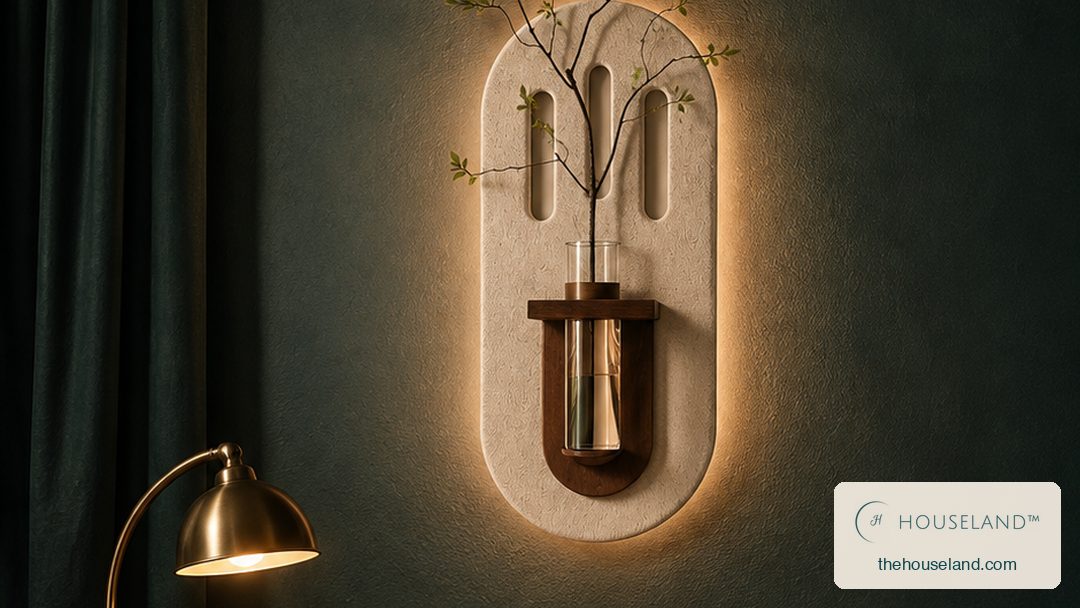

Wall Mounted Vase with LED Backlight, Textured Capsule Panel and Shelf

The textured LED wall stem vase lists its Power option as Battery LED or Plug-in LED, chosen at checkout, and its light as a hidden LED halo with remote colour and dimming control. Design A is 23.6 x 9.4 in (60 x 24 cm), Designs B and C are 22 x 9.8 in (56 x 25 cm), all 1.6 in (4 cm) deep on a keyhole hanger.

View the capsule wall vase panel — plug-in or battery options & current price

What actually goes wrong when a dimmer feeds an LED load?

DOE wrote the failure list from installations, not from a bench. Its GATEWAY programme monitored LED products on dimming controls for several years and reported products that:

• do not illuminate at all
• do not dim at all
• dim erratically, abruptly rather than smoothly
• show a limited range, turning off long before a halogen lamp would
• shift undesirably in colour as they dim
• remain on, or flash erratically, when they are supposed to be off
• produce objectionable flicker, often with 100% modulation
• produce audible noise

Two mechanisms sit under that list. The first is current shape. DOE found that LED sources commonly draw repetitive peak currents 5 to 10 times higher than their RMS draw, and those peaks recur every half cycle, 120 times a second on a 60 Hz supply. The wattage printed on a dimmer therefore understates how hard an LED load leans on it, which is why the report says an incandescent-based load rating “is not valid when LED sources are connected”.

The second is the off state. A two-wire dimmer has no neutral, so it keeps its own circuitry alive through the load; DOE notes that an LED load in the off state may not pass enough current to sustain that, which is where strobing, erratic flashing and the steady faint glow people call ghosting come from. In fairness the report adds that this one has largely been designed out since 2013. The audible half of the list has not, and it is the same story as LED wall lights buzzing on a dimmer switch.

Is there a compatibility standard that covers a panel on an adapter?

One exists, and it stops just short of this product. NEMA published SSL-7A, “Phase Cut Dimming for Solid State Lighting: Basic Compatibility”, in 2013, setting design rules for forward-phase two-wire dimmers and for LED light engines so that a compliant pair works together. An LED light engine is defined as LED modules plus control gear designed for AC mains connection, and DOE's summary of the document says those engines “notably exclude low-voltage sources that do not connect directly to AC mains”. A 12-volt strip on a wall-wart is a low-voltage source.

DOE adds two limits worth carrying into the shop. SSL-7A “is not intended to be used to determine compatibility with existing (non-compliant) products”, so a compliance mark predicts nothing about hardware that predates it. And the word on the box is unregulated: “there is no industry standard definition for 'dimmable'”.

Which leaves a gap no amount of reading closes. Lutron's 10 W minimum load is a real threshold, but no accent panel publishes a wattage to compare against it, and a small hidden LED halo is the sort of load that sits under a dimmer's floor rather than over its ceiling. The combination was never specified to work.

Dimming smart plug vs plain on/off smart plug: which one belongs here?

The plain plug wins on every row that matters, and the one row it loses is the row a dimming plug cannot actually deliver. A dimming plug still switches, so one already in the drawer is not wasted: set it to 100% and treat it as a switch. If it hums at 100%, take it out of the chain.

How should I set up a bedtime fade without a dimmer?

Set the level once by hand, then automate only the on and the off. Five steps, in order:

1. Wait for dark and set the panel from its own remote with the ceiling light off. Judging a low setting against daylight is how people land 3 steps too bright.
2. Put a plain on/off smart plug between the adapter and the wall socket. Nothing else goes in that chain: no dimming plug, no travel adapter stack, no dimmer extension lead.
3. Cut the power at the plug and restore it, and watch what the panel does. Some remote LED modules wake at their last setting and some wake at full brightness.
4. If it wakes at full, keep the remote on the nightstand and let the schedule be the on switch rather than the whole routine. If it wakes at its last setting, you are done.
5. Build the schedule from two events, not a ramp: on at dusk, off at bedtime.

For a mains-powered piece rather than a plug-in one, the equivalent trick is switching a plug-in wall light from a wall switch.

Where does the cord go once the plug is only a switch?

Down the wall in the open, or nowhere. The tempting shortcut is to drill through the drywall and fish the lead behind it. Do not. Article 400.12 of the 2017 NEC lists uses not permitted for flexible cords and power-supply cords, and four of them cover precisely that idea: where run through holes in walls, structural ceilings, suspended ceilings, dropped ceilings or floors; where run through doorways, windows or similar openings; where attached to building surfaces; and where concealed by walls, floors or ceilings (NEC 400.12).

Solve it with geometry instead. Hang the panel on the same vertical run as an existing socket so the drop is short and straight, coil the surplus behind the panel, and if the lead badly outruns the drop, hiding a power cord that is too long is its own small job. On a rented wall the battery option removes the question at the cost of changing cells.

What I'd do

Buy the cheapest reliable on/off smart plug and skip the dimming one. The fade lives in the remote, the schedule lives in the plug, and the two never argue because they act on opposite sides of the adapter.

Then settle the power question at checkout rather than after delivery, because that is the decision the wall cares about. On the Houseland capsule stem vase the Power option reads Battery LED or Plug-in LED, and the panel hangs on a keyhole hanger at 23.6 x 9.4 in (60 x 24 cm) for Design A or 22 x 9.8 in (56 x 25 cm) for Designs B and C, at 1.6 in (4 cm) deep. Cord-free wins on a wall with no socket under it; plug-in wins where you want the glow nightly without thinking about cells. The rest of the backlit wall art collection splits the same way.
