Plug-In Wall Sconce Lighting: Can I Extend the Adapter Cable?

Extend on the mains side, never on the low-voltage side. Put a household extension lead between the socket and the adapter, and leave the cable that runs from the adapter to the panel exactly as it arrived.

Plug-in wall sconce lighting and backlit panels ship with two cables and a converter sitting between them, and the two halves do not behave alike at all. The half before the converter carries 120 V and shrugs off half a volt. The half after it carries about 12 V and cannot. That is the whole argument, and the numbers below let you check it against your own run rather than take my word for it.

Does Plug-In Wall Sconce Lighting Have Two Cables or One?

Two cables, with a converter in the middle, and only the first one is fair game. The mains half runs from the wall socket to a black brick and carries 120 V in the US, 230 V in most of Europe. The low-voltage half runs from that brick to the piece on the wall, usually at about 12 V DC, and usually ends in a small barrel plug.

Every Houseland wall sconce dodges the question completely. The bear nursery, macaron bedside and globe vanity sconces all list Installation as hardwired to a standard wall box, no visible cord, so there is no adapter and no lead to lengthen. Search demand for battery-operated and plug-in sconces is real, but it points at a fixture we do not make. For a sconce already on your wall, adding a plug is a different job with a different answer.

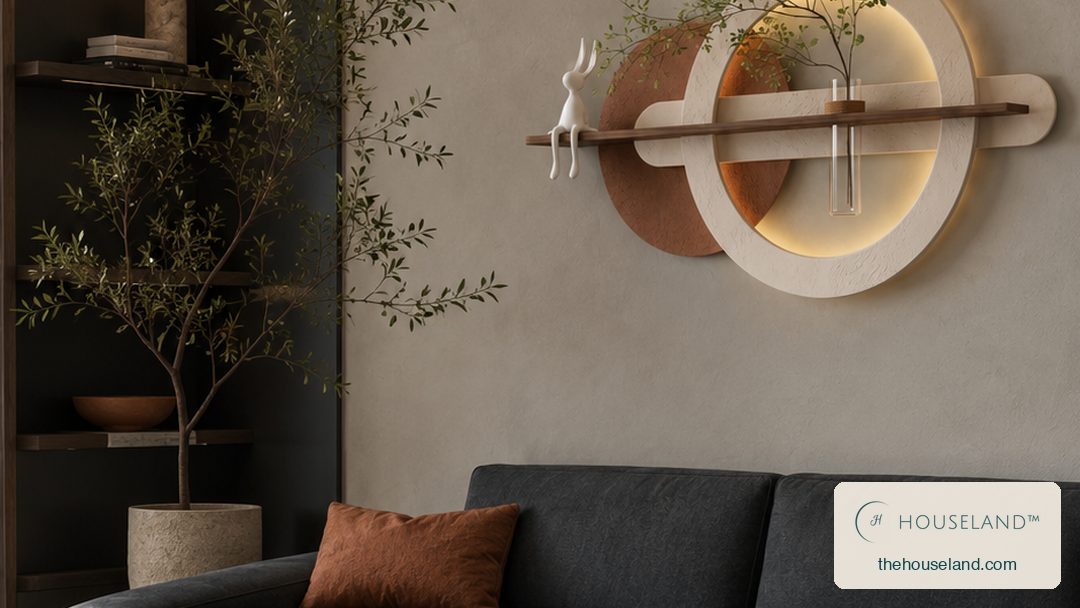

The two-cable problem belongs to the panels. Houseland's plaster ring wall art lists Power as Plug-in LED with mains adapter, or Battery LED on AA batteries, so one version arrives with a converter and a lead and the other arrives with no cable at all. If you bought the plug-in version and the lead stops a foot short, this page is about that foot.

Why Is a Lost Volt Ten Times Worse After the Adapter?

Because the same lost volt is being measured against a supply ten times smaller. Half a volt dropped in a cable is 0.4% of a 120 V supply and 4.2% of a 12 V one. Same copper, same current, same physics; only the denominator changed.

You can check the resistance yourself, because the code publishes it. Chapter 9, Table 8 of the National Electrical Code lists direct-current resistance at 75 C (167 F) for uncoated copper: 3.14 ohms per 1,000 ft at 14 AWG, 1.98 at 12 AWG, 1.24 at 10 AWG and 0.778 at 8 AWG. Those are the sizes inside your walls, and they are already thicker than anything you will find on a cheap accessory cable.

Run the mains side first, because it settles quickly. A 25 ft extension lead is 50 ft of copper once you count the trip back. Say the adapter label reads 12 V and 2 A, which is 24 W, so it pulls roughly 0.2 A from a 120 V socket. Fifty feet of 14 AWG is about 0.157 ohms, and 0.2 A through that is 0.03 V. A 25 ft mains lead costs about 0.03 V out of 120 V, a rounding error you will never see. Move the same cable past the adapter, where the current is ten times higher and the supply ten times lower, and the sum comes out a hundred times worse.

How Much Light Would a Low-Voltage Extension Actually Cost?

Less than you fear if the extension is thick, far more if it is thin. Gauge is the whole story, and it is the one thing a molded accessory cable almost never prints on itself. Remington Industries publishes nominal DC resistance for solid copper down to 24 AWG, which is where these cables live. Here is a 25 ft extension, 50 ft of copper there and back, at 2 A.

A 25 ft run of 22 AWG throws away about 1.6 V, or 13% of a 12 V supply; the same run in 14 AWG throws away 0.25 V. A short, fat extension is close to harmless. A long, hair-thin one is what people complain about, and they blame the panel.

That chart carries a second column worth reading. Rating conductors at a moderate 700 circular mils per amp, it puts 20 AWG at 1.5 A and 22 AWG at 920 mA — so a 2 A load on a 22 AWG cord is over the figure before dimming is even the subject.

Whether the dimming shows up at all depends on how the light is regulated. Electronic Theatre Controls describes constant-current drivers as ones that automatically vary the output voltage, within their operable range, to hold the current setting — those absorb a small drop and you see nothing until they run out of room. A constant-voltage fixture, by the same page, must get its labeled voltage within a small tolerance or it will not work properly. You usually cannot tell which one you have from the box.

From the shop

Backlit Plaster Wall Art, Japandi LED Ring with Walnut Shelf and Bud Vase

The plaster ring panel is sold as Plug-in LED with a mains adapter or Battery LED on AA batteries, chosen at checkout. It is 120 cm (47 in) wide including the shelf overhang and hangs on two screws.

View the backlit plaster ring — plug-in or battery options & current price

What Fails First, the Copper or the Connector?

Usually the joint, long before the copper. Every extension adds one more mated pair of contacts to a circuit designed with one. Same Sky publishes full numbers for its PJ-002A DC power jack, a 2.0 mm (0.079 in) center-pin part: 24 Vdc and 2.5 A, contact resistance quoted at 30 milliohms maximum, an operating range of -40 to 85 C (-40 to 185 F) and a mating life of 5,000 cycles.

A 30 milliohm contact passing 2 A throws away 0.06 V and about 0.12 W, which is nothing at all — until it stops being a 30 milliohm contact. A barrel pulled sideways, or one whose center pin no longer grips, climbs well above that figure, and the wasted power turns up as heat at one point inside a plastic shell. Those 5,000 cycles are a mating life for clean insertions, not a license to hang a cable off the joint.

Polarity is the quieter failure. On the common 5.5 mm (0.217 in) barrel the center pin usually carries the positive, but not always, so check the little diagram printed on the brick before anything goes together.

There is a reason these cables are allowed to be so thin. Rockwell Automation's guide to NEC Class 2 circuits explains that Article 725 caps the circuit at 100 VA to eliminate fire hazard, and that devices built for Class 2 circuits can be smaller and use smaller gauge conductors as a result. The limit protects you from a fire and says nothing whatsoever about whether your light stays bright.

The Department of Energy is blunter about what the brick is. Its LED luminaire lifetime guide describes a driver as a stack of circuits — input power conditioning, AC/DC converter, power factor correction, switching mode control, current regulation, output filtering — and warns that a failure in any of these circuits can have a cascade effect on driver performance. The same guide notes that manufacturers publish power supply data, but generally not in a standard format. Which is why a cable chosen because the plug fits tells you nothing.

How Do I Bring the Socket to the Adapter Instead?

Measure the gap, read the label, then buy one household extension lead a bit longer than the number you measured. It is a ten-minute job and it leaves the manufacturer's low-voltage lead untouched, which is the point.

1. Hold the piece where it will hang and drop a tape from the cable exit to the socket, then add about 12 in (30 cm) so nothing ends up stretched taut.
2. Read the adapter label. Output voltage and output current are printed on it, and they are the only two figures the rest of this depends on. Houseland does not publish the adapter's output current or the lead length on the plaster ring, so the label and a tape measure are the honest sources, not a spec page.
3. Buy a mains extension lead sized for ordinary household use, in the plug type your adapter has. One Houseland panel publishes a Plug option of US, AU, UK or EU, so the far end is a standard socket wherever you are.
4. Run it where you can see it, reach it and unplug it — along a baseboard behind furniture, not under a rug or through a doorway.
5. Park the slack properly rather than coiling it tight; there is a right and a wrong way to store the extra length.
6. Plug the adapter in at the end of that lead and leave its own output cable alone.

What If I Have to Extend After the Adapter Anyway?

Then buy on gauge and length rather than price, and accept a little lost brightness as the price of the convenience.

• Go 18 AWG or thicker and keep the added run under about 10 ft. Twenty feet of 18 AWG copper is roughly 0.128 ohms, so about 0.26 V at 2 A — near enough 2% of a 12 V supply, which nobody notices.
• Refuse anything that will not state its conductor size. A cable advertising only its length and its barrel size is advertising the two things that do not matter.
• One joint, not three. Every splitter and coupler is another pair of contacts sitting somewhere above 30 milliohms.
• Match the voltage and the polarity to the diagram on the brick, not to the fact that the plug slides in.
• Run it, then feel the joint an hour later. Warm is worth watching; hot is a stop, and the answer is thicker copper or a shorter run, never tape.
• Keep it in open air. A low-voltage cable under a rug is still a cable under a rug.

What I'd Do

Buy a mains extension lead, plug the adapter into the far end of it, and leave the low-voltage cable exactly as it came out of the box. It costs a few dollars, it moves the problem to the side of the adapter where half a volt is a rounding error, and it keeps the converter doing the job it was designed around.

If the wall is genuinely nowhere near a socket, the honest options are a battery version where one exists, or a route through smart plugs and half-hot outlets that solves the reaching problem without touching a cable. And if the piece is not chosen yet, walk the wall art collection with a tape measure in your hand and the socket already in mind. Picking the power before you pick the panel is the version of this problem that never happens.
